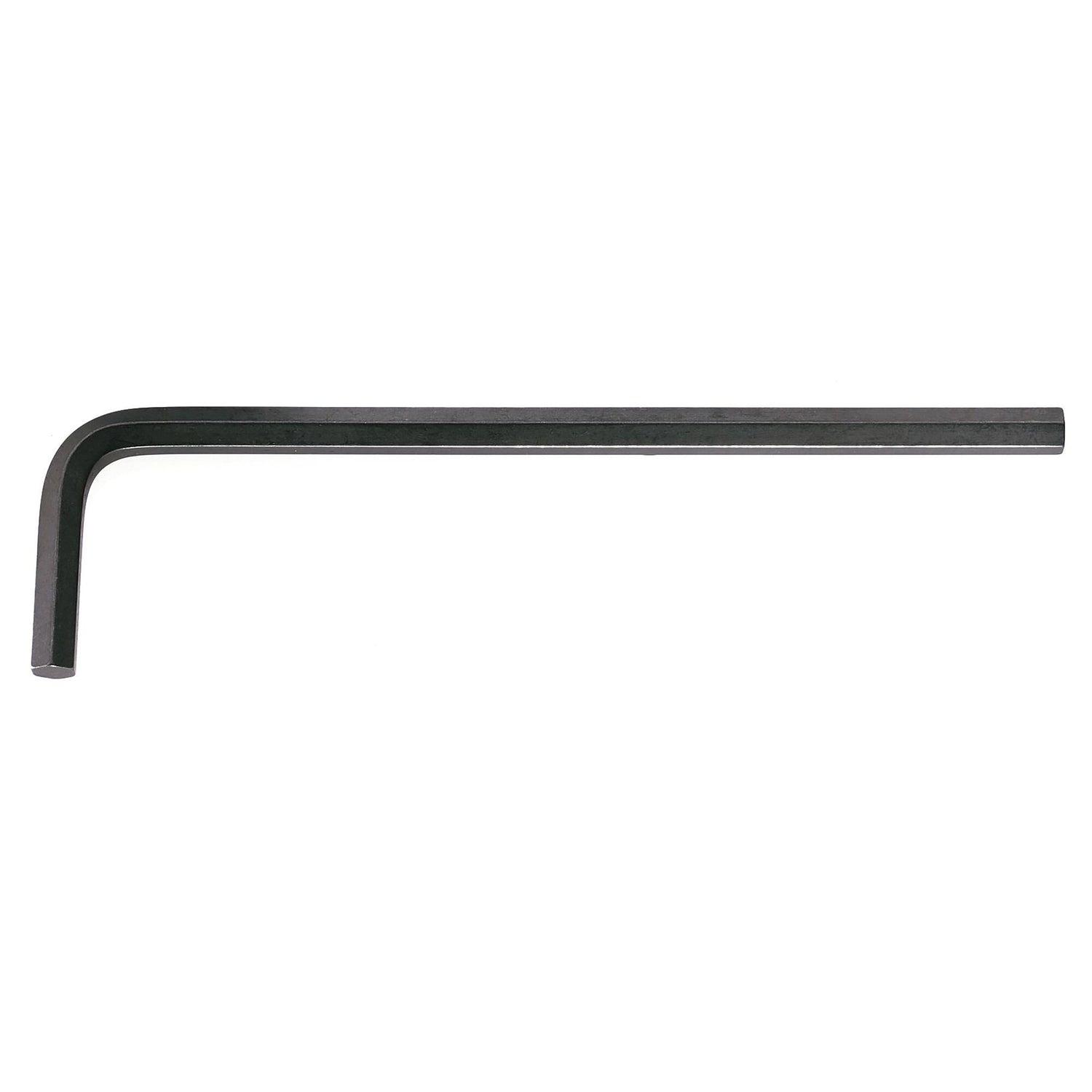

83H - Long Hexagonal Keys, Inch

SKU: 83H.3/64  -  Barcode: 3148511243916
  • Manufactured in silicon steel.
  • Finish: phosphate-coated.
Full product description
Reference comparison

Made in France

This product is Made in France in our factories.

Click here to learn more about Our Factories.

Standards and certifications

This product complies with the following standards and certifications:

ASME B18.3

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Manufactured in silicon steel.
  • Finish: phosphate-coated.

Specifications
  • Finition du produitPhosphate noir
  • Hauteur du produit14 mm
  • Inclinaison tête sphérique90°
  • Largeur de la tête3/64
  • Longueur du produit58 mm
  • Marquage CEOui
  • Nombre de pièces1
  • Poids net0.001 Kg
  • Type de têteFixe
  • Type de clé hexagonaleClés hexagonales longues - en L

Technical drawing and dimensions

H (mm)L (mm)
83H.3/64 [83H.3/64] 3/64 in. Long Inch Key 14.0058.00
83H.1/16 [83H.1/16] Long inch keys, 1/16" 13.0062.00
83H.5/64 [83H.5/64] 5/64 in. Long Inch Key 16.0075.00
83H.3/32 [83H.3/32] Long inch keys, 3/32" 17.0085.00
83H.7/64 [83H.7/64] 7/64 in. Long Keys 18.0090.00
83H.1/8 [83H.1/8] 1/8 in. Long Inch Keys 20.0090.00
83H.9/64 [83H.9/64] 9/64 in. Long Keys 22.0095.00
83H.5/32 [83H.5/32] Long inch keys, 5/32" 25.00100.00
83H.3/16 [83H.3/16] Long inch keys, 3/16 28.00115.00
83H.7/32 [83H.7/32] 7/32 in. Long Inch Key 32.00135.00
83H.1/4 [83H.1/4] 1/4 in. Long Inch Key 32.00140.00
83H.5/16 [83H.5/16] 5/16 in. Long Key 36.00150.00
83H.3/8 [83H.3/8] 3/8 in. Long Key 38.00170.00
83H.7/16 [83H.7/16] Long inch keys, 7/16" 42.00180.00
83H.1/2 [83H.1/2] 1/2 in. Long Inch Key 45.00190.00
83H.9/16 [83H.9/16] 9/16 in. Long Keys 56.00215.00

Documents

83H - Long Hexagonal Keys, Inch

References available

  • [83H.3/64] 3/64 in. Long Inch Key
  • [83H.1/16] Long inch keys, 1/16"
  • [83H.5/64] 5/64 in. Long Inch Key
  • [83H.3/32] Long inch keys, 3/32"
  • [83H.7/64] 7/64 in. Long Keys
  • [83H.1/8] 1/8 in. Long Inch Keys
  • [83H.9/64] 9/64 in. Long Keys
  • [83H.5/32] Long inch keys, 5/32"
  • [83H.3/16] Long inch keys, 3/16
  • [83H.7/32] 7/32 in. Long Inch Key
  • [83H.1/4] 1/4 in. Long Inch Key
  • [83H.5/16] 5/16 in. Long Key
  • [83H.3/8] 3/8 in. Long Key
  • [83H.7/16] Long inch keys, 7/16"
  • [83H.1/2] 1/2 in. Long Inch Key
  • [83H.9/16] 9/16 in. Long Keys

Lieu de fabrication

N/A

Normes & certifications

ASME B18.3

Période de garantie

Lifetime warranty on the tool (replacement)
