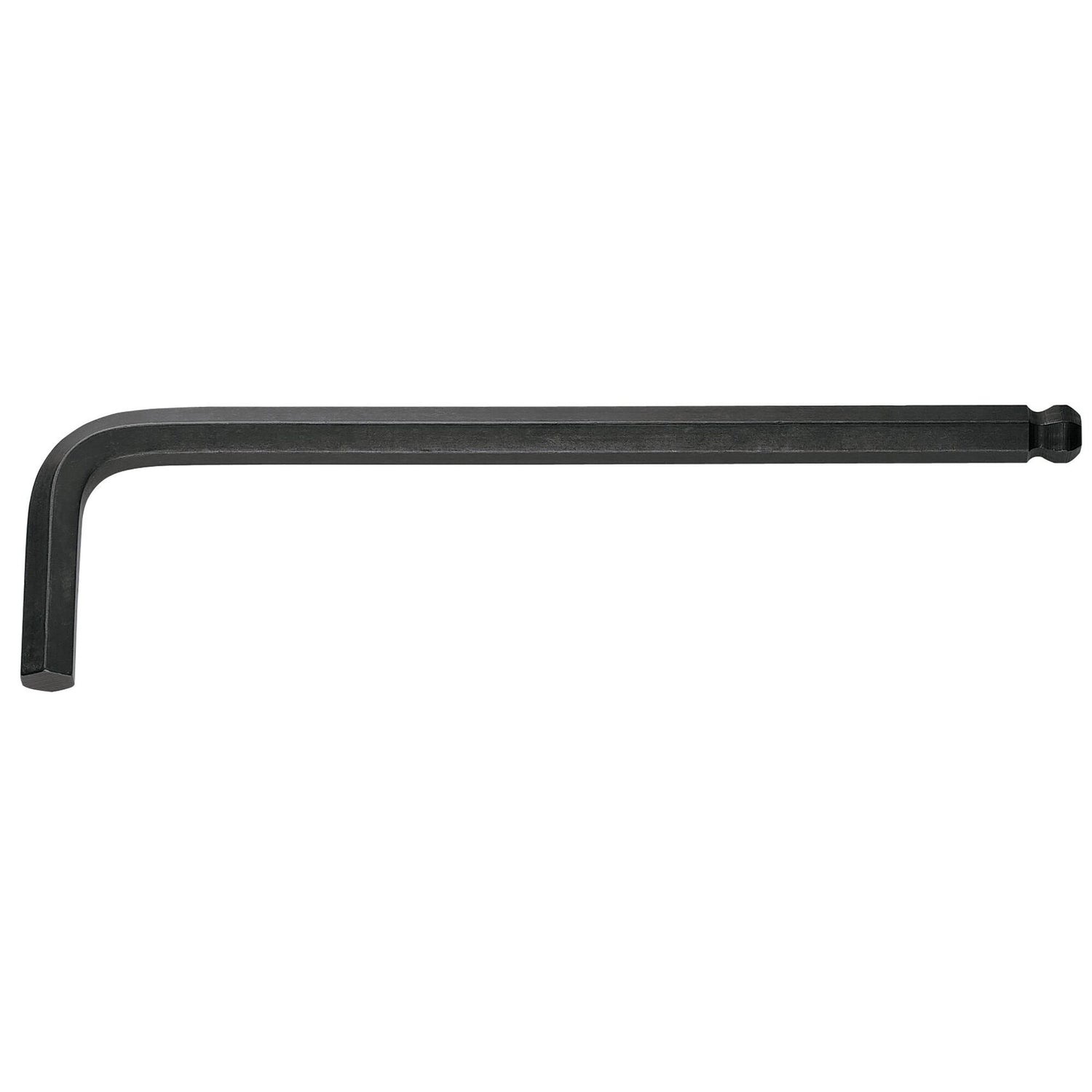

83SH - Long Hexagonal Keys with Spherical Head, Metric
83SH - Long Hexagonal Keys with Spherical Head, Metric - [83SH.2] 2mm Long Spherical Head Key is backordered and will ship as soon as it is back in stock.
Made in France
Made in France
This product is Made in France in our factories.
Click here to learn more about Our Factories.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
DIN ISO 2936, ISO 2936, NF ISO 2936
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: Lifetime warranty on the tool (replacement)
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Finition du produitPhosphate noir
- Hauteur du produit16 mm
- Inclinaison tête sphérique30°
- Largeur de la tête2
- Longueur du produit75 mm
- Marquage CEOui
- Nombre de pièces1
- Poids net0.002 Kg
- Type de têteTête auto-centreuse
- Type de clé hexagonaleClés hexagonales longues - en L
Technical drawing and dimensions
Technical drawing and dimensions
| A (mm) | H (mm) | L (mm) | |||
|---|---|---|---|---|---|
| 83SH.2 | [83SH.2] 2mm Long Spherical Head Key | 2.00 | 16.00 | 75.00 | |
| 83SH.3/32 | [83SH.3/32] 3/32 in. Sperical Head Inch Long Key | 17.00 | 86.00 | ||
| 83SH.1/8 | [83SH.1/8] 1/8 in. Inch Long Key, Spherical Head | 19.00 | 95.00 | ||
| 83SH.3 | [83SH.3] 3mm Long Spherical Head Key | 3.00 | 20.00 | 90.00 | |
| 83SH.5/32 | [83SH.5/32] Inch long key, spherical head, 5/32" | 21.00 | 105.00 | ||
| 83SH.4 | [83SH.4] 4mm Long Metric Key With Spherical Head | 4.00 | 25.00 | 100.00 | |
| 83SH.3/16 | [83SH.3/16] 3/16 in. Long Key, Spherical Head | 24.00 | 114.00 | ||
| 83SH.1.5 | [83SH.1.5] Long metric key spherical head, 1.5 mm | 1.50 | 14.00 | 62.00 | |
| 83SH.2.5 | [83SH.2.5] 2.5 mm Long Metric Spherical Head Key | 2.50 | 18.00 | 85.00 | |
| 83SH.7/32 | [83SH.7/32] 7/32 in. Long Key, Spherical Head | 26.00 | 124.00 | ||
| 83SH.5 | [83SH.5] 5mm Long Metric Key, Spherical Head | 5.00 | 28.00 | 115.00 | |
| 83SH.5/16 | [83SH.5/16] 5/16 in. Inch Spherical Head Long Key | 32.00 | 152.00 | ||
| 83SH.3/8 | [83SH.3/8] Inch long key, spherical head, 3/8" | 35.00 | 172.00 | ||
| 83SH.6 | [83SH.6] Long metric key spherical head, 6 mm | 6.00 | 32.00 | 135.00 | |
| 83SH.7 | [83SH.7] 7mm Long Key With Spherical Head | 7.00 | 34.00 | 140.00 | |
| 83SH.8 | [83SH.8] Long metric key spherical head, 8 mm | 8.00 | 36.00 | 150.00 | |
| 83SH.9 | [83SH.9] 9mm Spherical Head Long Metric Key | 9.00 | 38.00 | 160.00 | |
| 83SH.12 | [83SH.12] 12mm Spherical Head Long Metric Key | 12.00 | 45.00 | 190.00 |
