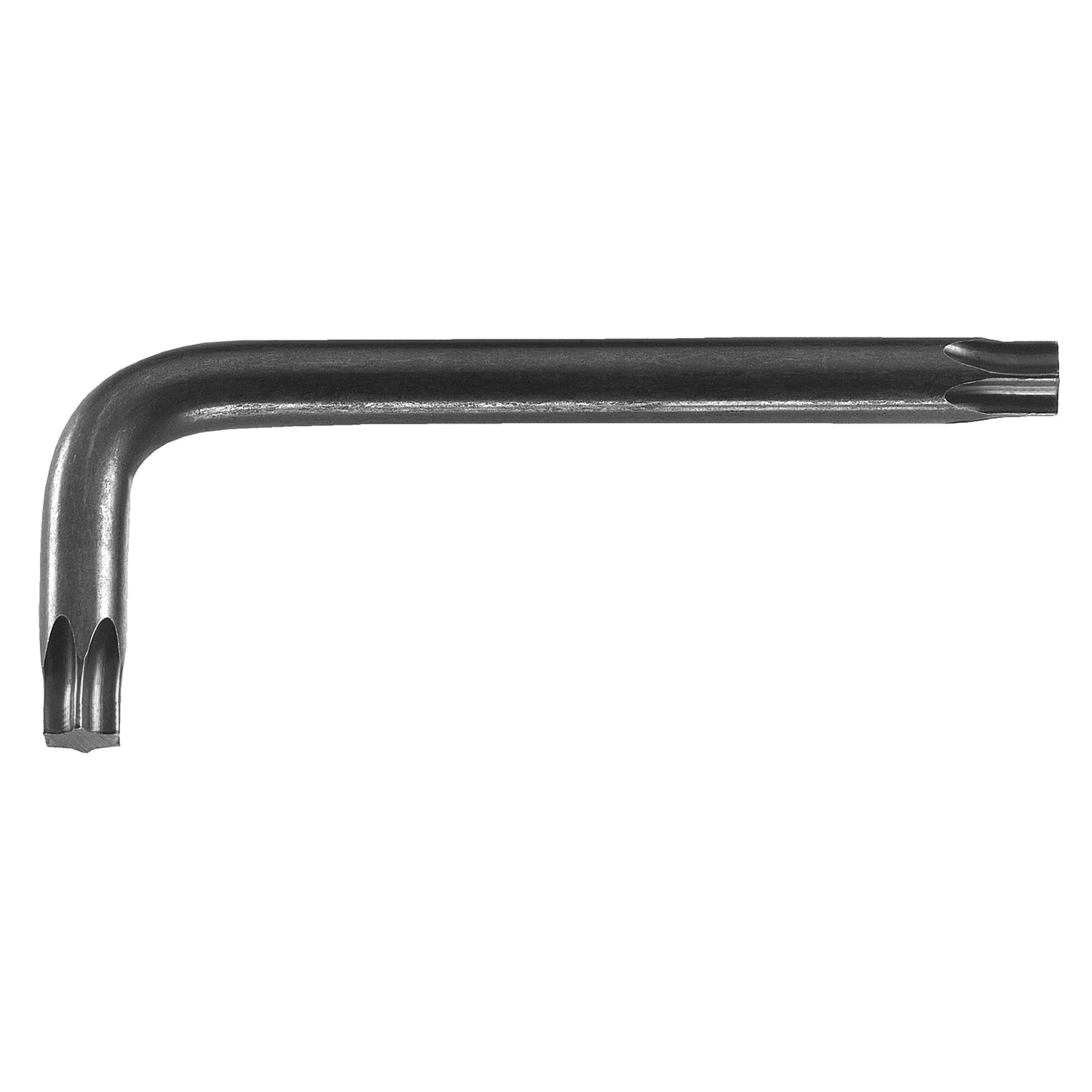

89 - Short Torx® Keys

SKU: 89.6  -  Barcode: 3148511267448
  • Compliant with Torx® specifications.
  • Finish: burnt.
Full product description
Reference comparison

Made in France

This product is Made in France in our factories.

Click here to learn more about Our Factories.

Standards and certifications

This product complies with the following standards and certifications:

ISO 2936

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Compliant with Torx® specifications.
  • Finish: burnt.

Specifications
  • Finition du produitAcier inoxydable
  • Hauteur du produit18 mm
  • Inclinaison tête sphérique90°
  • Largeur de la tête1.65
  • Longueur du produit51 mm
  • Marquage CEOui
  • Nombre de pièces1
  • Poids net0.003 Kg
  • Type de têteFixe
  • Type de clé hexagonaleClés hexagonales courtes - En forme de L

Technical drawing and dimensions

A (mm)H (mm)
89.6 [89.6] Short TORX® key, 6 mm 1.65018.00
89.8 [89.8] TORX® 8mm Short Key, 8 mm 2.3018.00
89.10 [89.10] 10mm Short TORX® Key 2.72019.50
89.15 [89.15] 15mm Short TORX® Key 3.26021.50
89.20 [89.20] 20mm Short TORX® Key 3.84024.00
89.25 [89.25] 25mm Short TORX® Key 4.4025.50
89.30 [89.30] 30mm Short TORX® Key 5.49030.00
89.40 [89.40] 40mm Short TORX® Key 6.6034.00
89.45 [89.45] Short TORX® key, 45 mm 7.7037.00
89.50 [89.50] Short TORX® key, 50 mm 8.79041.00
89.55 [89.55] Short TORX® key, 55 mm 11.17048.00

Documents

89 - Short Torx® Keys

References available

  • [89.6] Short TORX® key, 6 mm
  • [89.8] TORX® 8mm Short Key, 8 mm
  • [89.10] 10mm Short TORX® Key
  • [89.15] 15mm Short TORX® Key
  • [89.20] 20mm Short TORX® Key
  • [89.25] 25mm Short TORX® Key
  • [89.30] 30mm Short TORX® Key
  • [89.40] 40mm Short TORX® Key
  • [89.45] Short TORX® key, 45 mm
  • [89.50] Short TORX® key, 50 mm
  • [89.55] Short TORX® key, 55 mm

Lieu de fabrication

N/A

Normes & certifications

ISO 2936

Période de garantie

Lifetime warranty on the tool (replacement)
