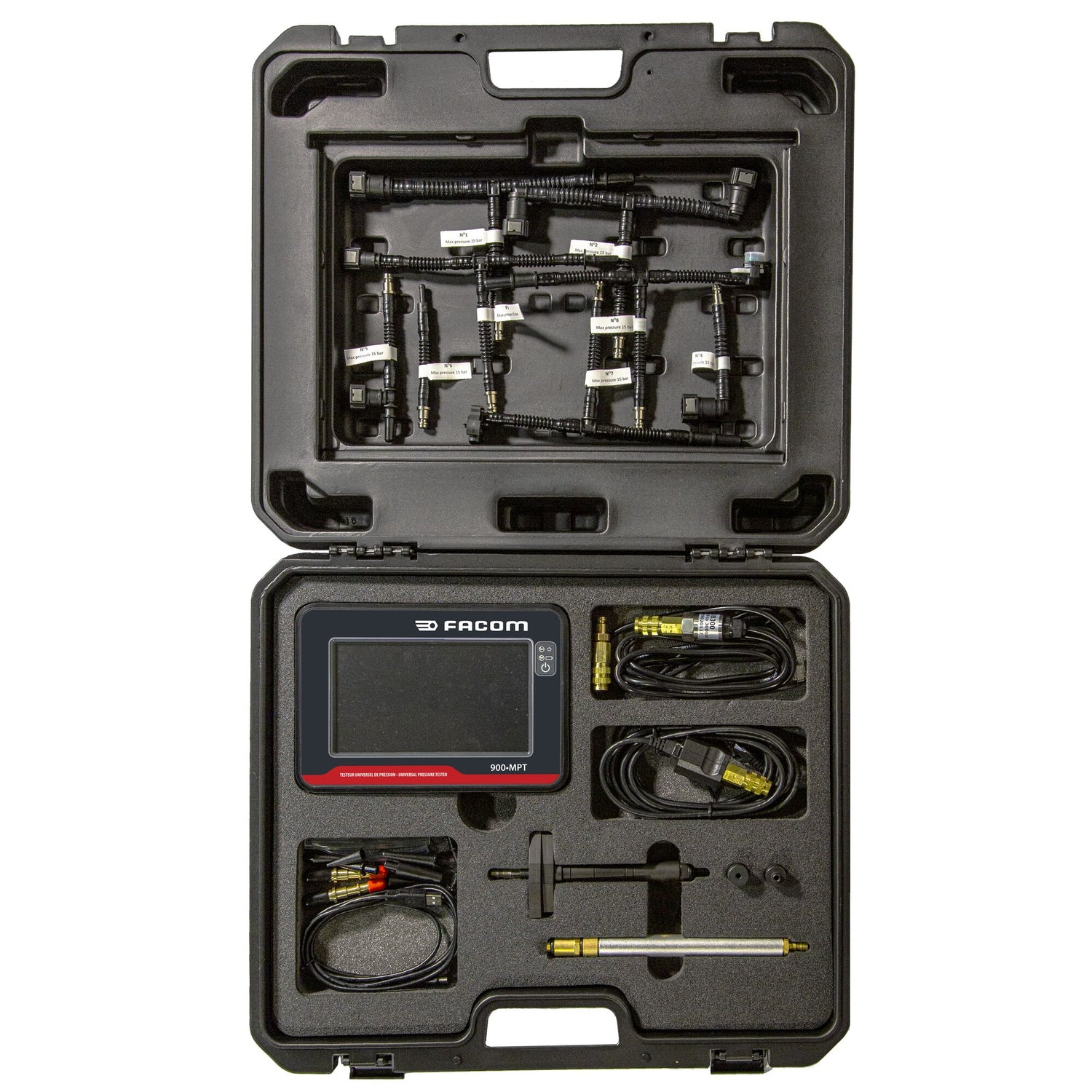

Universal Digital Pressure Tester

SKU: 900.MPT - Barcode: 3662424166402

Universal digital pressure tester.
Measure Diesel and Petrol compression, Oil pressure, Turbo pressure, Cooling system pressure, AD Blue pressure, Fuel low pressure, Vacuum pressure and Particle filter pressure and as an option, Fuel high pressure.
Suitable for all types of diesel engine: using dummy injectors and dummy heater plugs.
Working range 0 to 300 bars.
7” Color TFT display with resistive touch panel.
USB smart battery charge with led indicator.
PC connection by USB port.
Depressurisation snesor -1 to 3 bars.
Compatible with depressurisation pump DA160.

Full product description

Standards and certifications

This product complies with the following standards and certifications:

2011/65/EU (RoHS), 2012/19/EU (WEEE), 2014/30/EU (EMC)

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by the statutory warranty

Click here to learn more about our warranties.

Description

Universal digital pressure tester.
Measure Diesel and Petrol compression, Oil pressure, Turbo pressure, Cooling system pressure, AD Blue pressure, Fuel low pressure, Vacuum pressure and Particle filter pressure and as an option, Fuel high pressure.
Suitable for all types of diesel engine: using dummy injectors and dummy heater plugs.
Working range 0 to 300 bars.
7” Color TFT display with resistive touch panel.
USB smart battery charge with led indicator.
PC connection by USB port.
Depressurisation snesor -1 to 3 bars.
Compatible with depressurisation pump DA160.

Specifications

Hauteur du produit180 mm
Longueur du produit350 mm
Largeur du produit70 mm
Poids net3.5 Kg

Spare parts

TESTER - HU35020-2
BATTERY - HU35020-21
SCREEN - HU35020-23
SENSOR - HU35020-3
NOZZLE - HU35020-402
NOZZLE - HU35020-403
SPACER - HU35020-405
SPACER - HU35020-406
SPACER - HU35020-407
SPACER - HU35020-408
BRIDGE - HU35020-409
BRIDGE - HU35020-410
O RING KIT - HU35020-412
SPACER - HU35020-413
ADAPTOR - HU35020-421
SHAFT - HU35020-6
VALVE - HU35020-8
SENSOR - HU35025-1
HOLDER BIT - HU35025-10
ADAPTOR - HU35025-11
ADAPTOR - HU35025-2
ADAPTOR - HU35025-3
ADAPTOR - HU35025-4
ADAPTOR - HU35025-5
ADAPTOR - HU35025-6
CONNECTOR - HU35025-7
ADAPTOR - HU35025-8
ADAPTOR - HU35025-9

Documents

User manual
