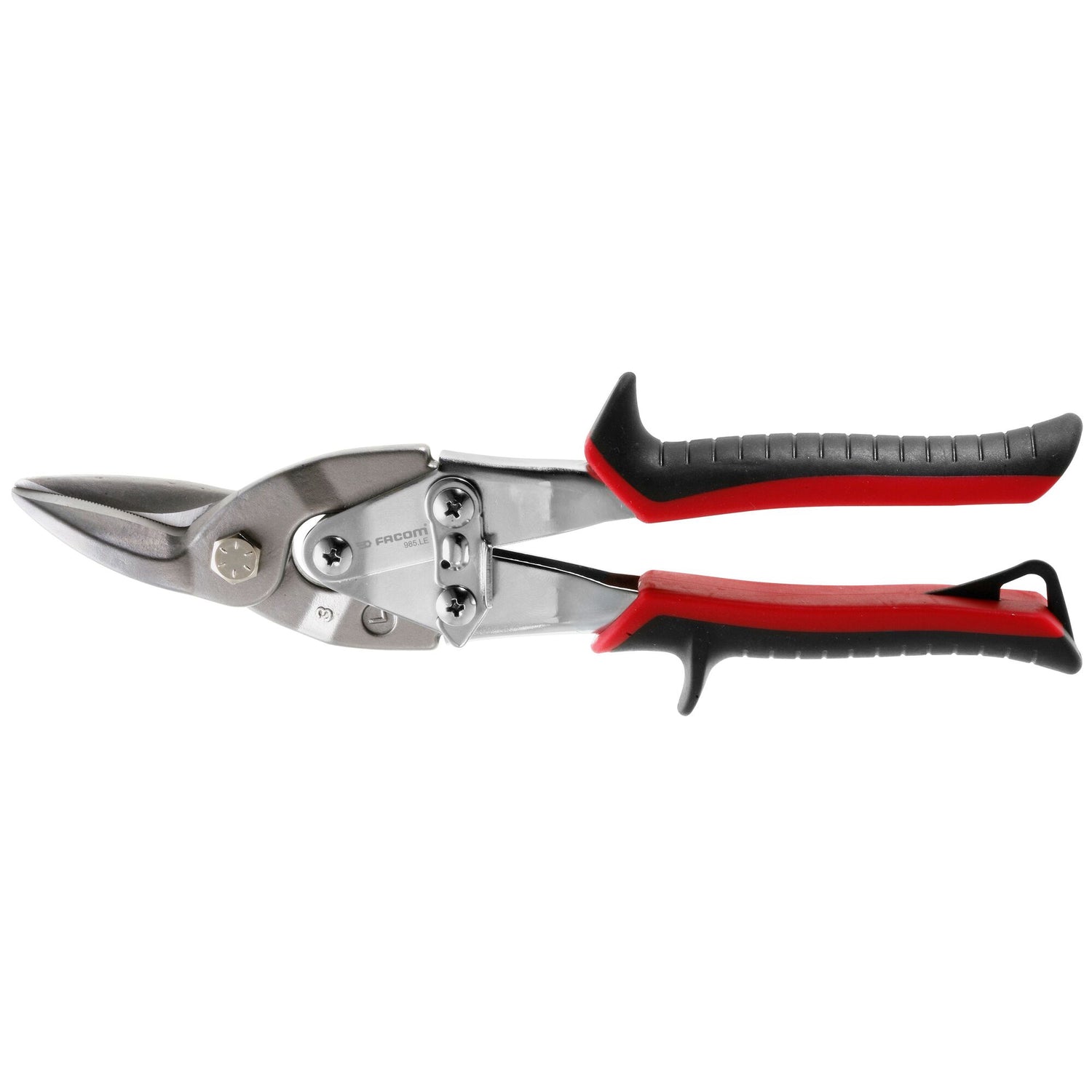

985 - Aircraft shears

SKU: 985.LE - Barcode: 3148512170808

High demultiplication allows long runs without effort.
Good demultiplication and inset opening spring.
Slightly serrated cutting edges prevent workpiece slip.
Forged chrome molybdenum blades.
Ergonomic non-slip bi-material grips.
Colour-coded according to direction of cut. - Red: left cut (Ref 985.LE). - Green: right cut (Ref 985.RI). - Yellow: straight cut (Ref 985.ST).
Jaw lock catch.
Cutting capacity: - Stainless 80 kg/mm²: 0.8 mm. - Semi-hard steel: 1.2 mm.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.500

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

High demultiplication allows long runs without effort.
Good demultiplication and inset opening spring.
Slightly serrated cutting edges prevent workpiece slip.
Forged chrome molybdenum blades.
Ergonomic non-slip bi-material grips.
Colour-coded according to direction of cut. - Red: left cut (Ref 985.LE). - Green: right cut (Ref 985.RI). - Yellow: straight cut (Ref 985.ST).
Jaw lock catch.
Cutting capacity: - Stainless 80 kg/mm²: 0.8 mm. - Semi-hard steel: 1.2 mm.

Specifications

Technical drawing and dimensions

		A (mm)	L1 (mm)	L (mm)
985.LE	[985.LE] Aircraft shears, left cut	55.00	60 - 150	255.00
985.RI	[985.RI] Right Cut Aircraft Shears	55.00	60 - 150	255.00
985.ST	[985.ST] Straight Cut Aircraft Shears	55.00	65 - 165	255.00
