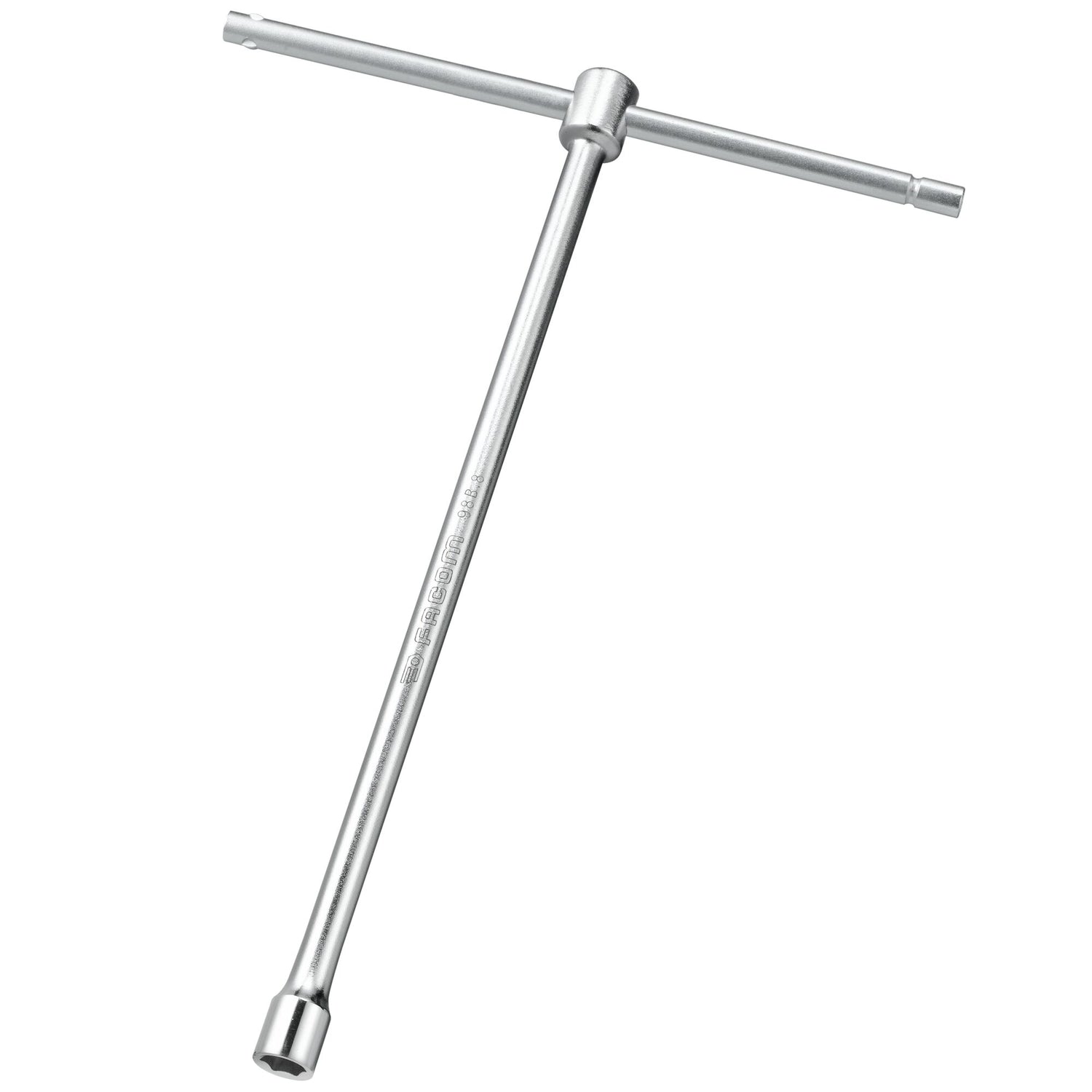

98B - Tee Socket Wrenches

SKU: 98B.8  -  Barcode: 3148518024419
  • POWER & SPEED - Sliding tee handle: ideal for unlocking requiring access or fast execution.

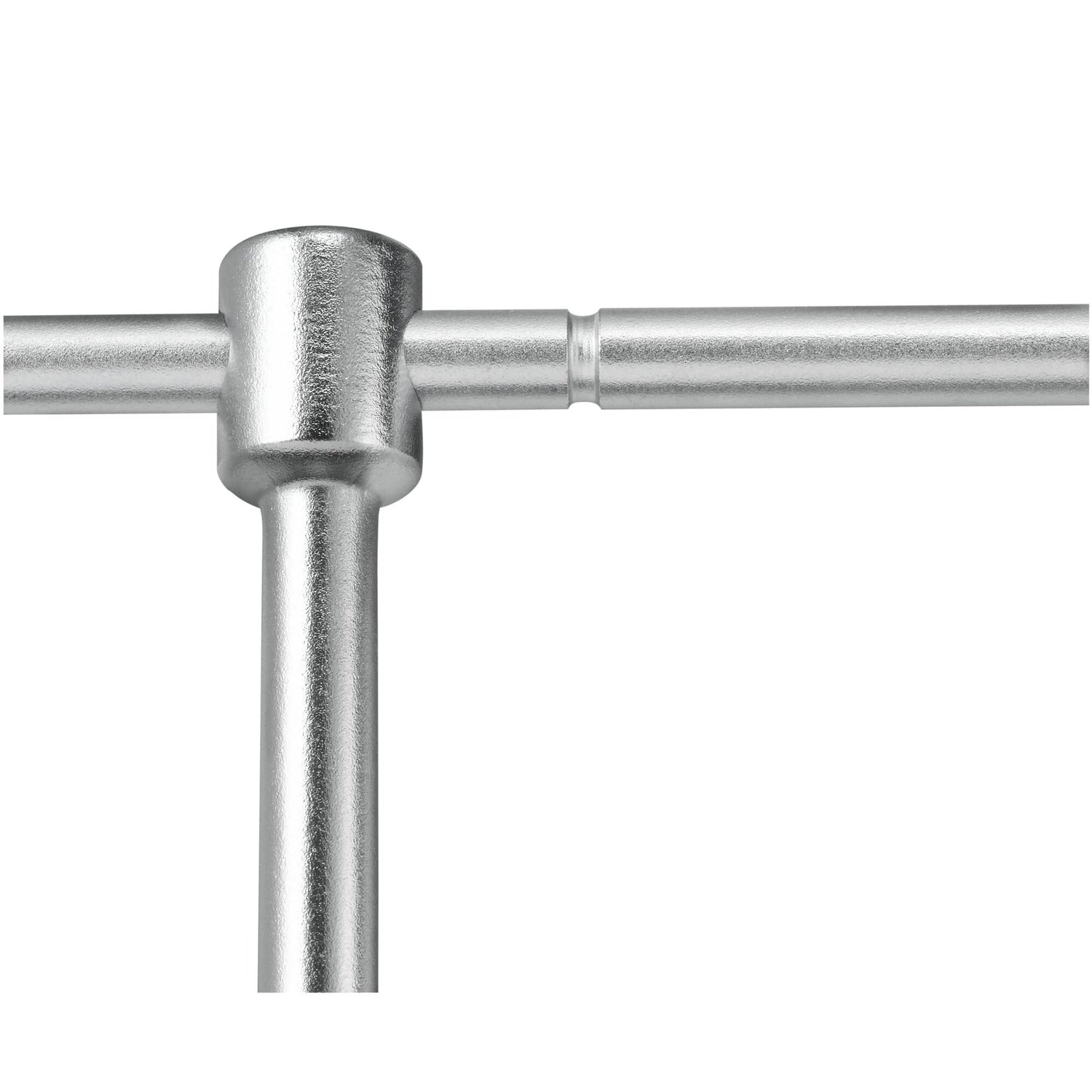

  • CONTROL - Sliding handle with groove: The middle position locking groove allows for rapid approach by rotation between the fingers: "rolling effect". The rod in the extreme position allows a "lever arm" use for powerful unlocking or for clearance in confined locations.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

ISO 1711-1, ISO 2236, ISO 691, NF ISO 1711-1, NF ISO 2236, NF ISO 691

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • POWER & SPEED - Sliding tee handle: ideal for unlocking requiring access or fast execution.
  • CONTROL - Sliding handle with groove: The middle position locking groove allows for rapid approach by rotation between the fingers: "rolling effect". The rod in the extreme position allows a "lever arm" use for powerful unlocking or for clearance in confined locations.

Specifications
  • Anneau d'arrêtNon
  • AntidéflagrantNon
  • AttachéNon
  • FinitionChrome satin
  • Isolation 1000VNon
  • Longueur du produit235 mm
  • Poids net0.16 Kg
  • Profil6 pans
  • Tête flexibleNon

Technical drawing and dimensions

A (mm)D1 (mm)D2 (mm)D3 (mm)L1 (mm)L (mm)
98B.8 [98B.8] SOCKET TEE HANDLE WRENCH - 98B - Sliding Handle - Satin Chrome Finish - 8 mm 8.0012.507.007.00165.00235.00
98B.10 [98B.10] SOCKET TEE HANDLE WRENCH - 98B - Sliding Handle - Satin Chrome Finish - 10 mm 10.0015.008.008.00175.00260.00
98B.12 [98B.12] SOCKET TEE HANDLE WRENCH - 98B - Sliding Handle - Satin Chrome Finish - 12 mm 12.0017.609.009.00180.00260.00
98B.13 [98B.13] SOCKET TEE HANDLE WRENCH - 98B - Sliding Handle - Satin Chrome Finish - 13 mm 13.0019.259.009.00180.00260.00
98B.14 [98B.14] SOCKET TEE HANDLE WRENCH - 98B - Sliding Handle - Satin Chrome Finish - 14 mm 14.0020.5010.0010.00200.00260.00

Documents

98B - Tee Socket Wrenches

References available

  • [98B.8] SOCKET TEE HANDLE WRENCH - 98B - Sliding Handle - Satin Chrome Finish - 8 mm
  • [98B.10] SOCKET TEE HANDLE WRENCH - 98B - Sliding Handle - Satin Chrome Finish - 10 mm
  • [98B.12] SOCKET TEE HANDLE WRENCH - 98B - Sliding Handle - Satin Chrome Finish - 12 mm
  • [98B.13] SOCKET TEE HANDLE WRENCH - 98B - Sliding Handle - Satin Chrome Finish - 13 mm
  • [98B.14] SOCKET TEE HANDLE WRENCH - 98B - Sliding Handle - Satin Chrome Finish - 14 mm

Lieu de fabrication

N/A

Normes & certifications

ISO 1711-1, ISO 2236, ISO 691, NF ISO 1711-1, NF ISO 2236, NF ISO 691

Période de garantie

Lifetime warranty on the tool (replacement)
