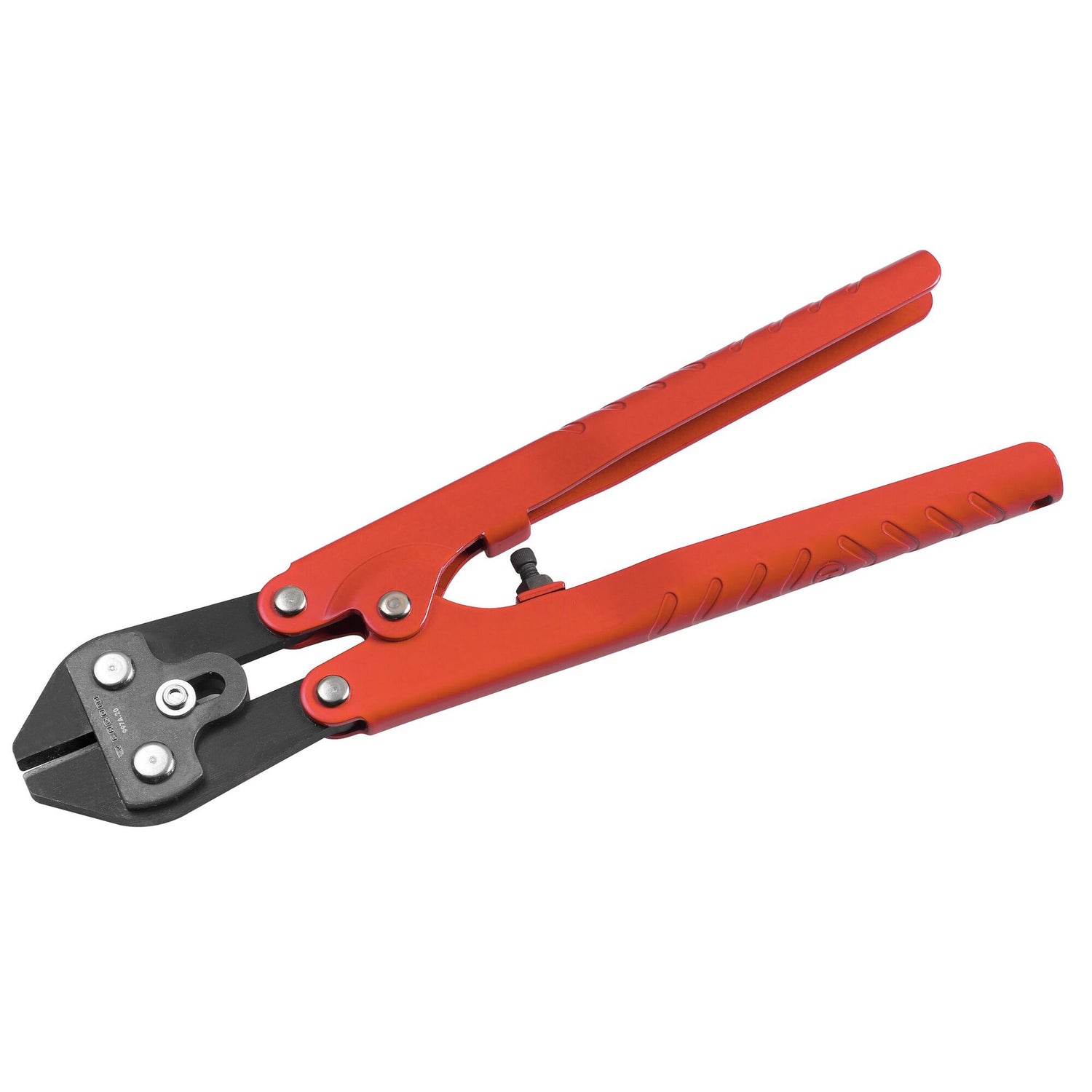

Small bolt cropper
SKU:
997A.20
- Compact, lightweight tool with demultiplication system designed to cut hard and semi-hard wire: piano wire, bolts, rivets, pins and nails, etc.
- Forged, hardened blades.
- Cutting capacity: - Piano wire: max. diameter 2 mm to 200 kg/mm². - Soft wire: max. diameter 4 mm to 60 kg/mm².
- Ergonomic hardened pressed-steel handles with adjustable, shock-absorbing end stop.
- Spring-assisted opening.
- Blades lock in closed position.
- Finish: bronzed blades, painted grips.
Warranty
Warranty
This product is: Lifetime warranty on the tool (replacement)
Click here to learn more about our warranties.
Description
Description
- Compact, lightweight tool with demultiplication system designed to cut hard and semi-hard wire: piano wire, bolts, rivets, pins and nails, etc.
- Forged, hardened blades.
- Cutting capacity: - Piano wire: max. diameter 2 mm to 200 kg/mm². - Soft wire: max. diameter 4 mm to 60 kg/mm².
- Ergonomic hardened pressed-steel handles with adjustable, shock-absorbing end stop.
- Spring-assisted opening.
- Blades lock in closed position.
- Finish: bronzed blades, painted grips.
Specifications
Specifications
- Capacité de coupe maximale2 mm
- GripMétal
- Hauteur du produit57 mm
- Longueur du ruban54.5 mm
- Largeur de la tête40
- Longueur du produit210 mm
- Matériau de la lameAluminium
- Mâchoire crantéeOui
- Nombre de pièces1
- Poids net0.275 Kg
- Type de coupeLisse
- Type de coupeCoupe par poussée
- Type de mâchoireStandard
- Type de poignéePas de poignée
- VDE 1000 VNon
Technical drawing and dimensions
Technical drawing and dimensions
-
A (mm)54.50
-
B (mm)40.00
-
E (mm)4.50
-
L1 (mm)57.00
-
L (mm)210.00
