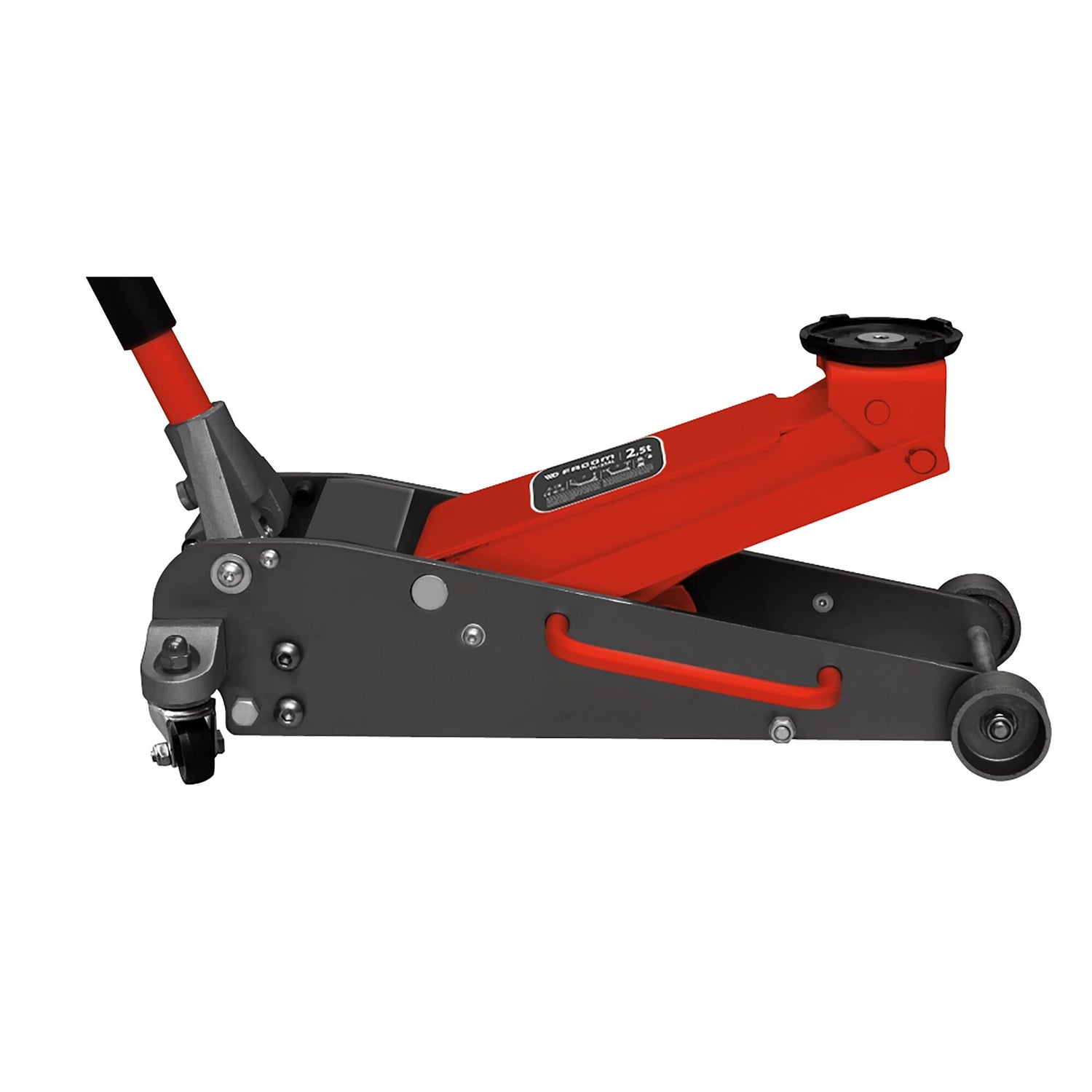

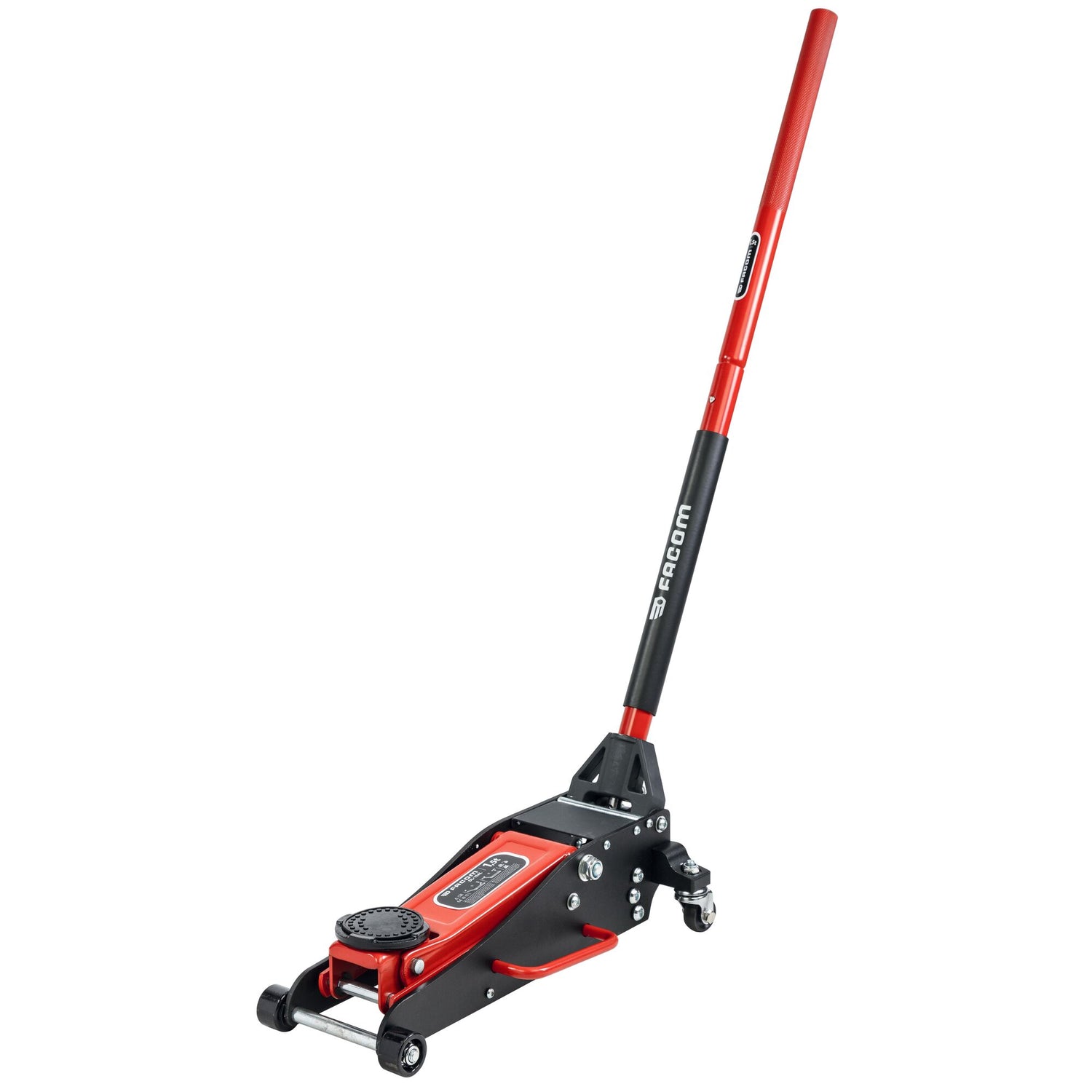

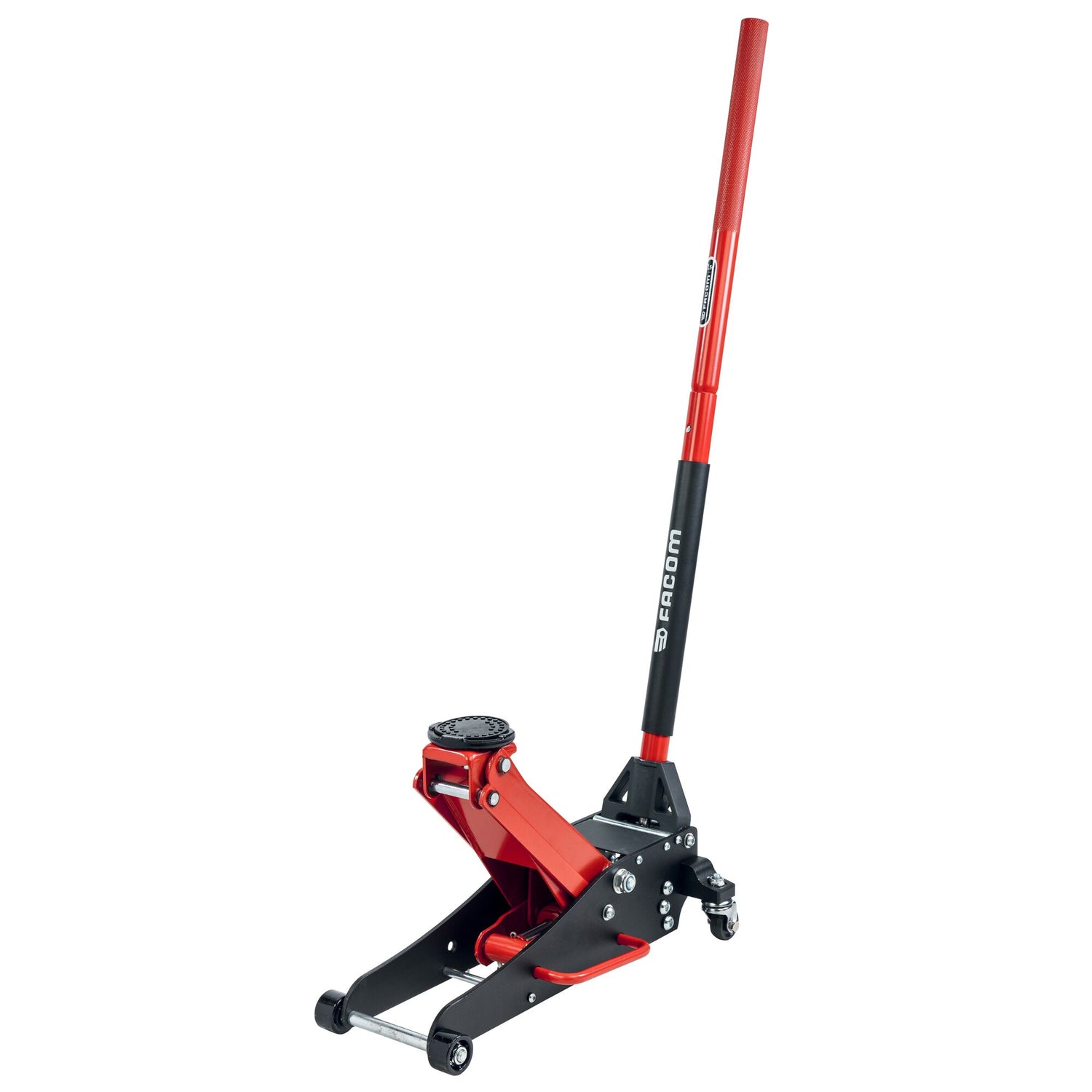

Aluminium rolling jack, 2,5 t

SKU: DL.25AL  -  Barcode: 3662424059681
  • Load capacity: 2.5 t.
  • Maximum lifting height: 450 mm.
  • Minimum height under body: 100 mm.
  • Double piston for fast lifting.
  • Side handle for easier carrying and installation.
  • Tube fitted with protection foam.
  • Supplied with steel / rubber under-body bearing plate.
  • Overload valve.
  • Dimensions (L. x W x H.): 591 x 308 x 173 mm.
  • CE compliance Standard EN1494+A1.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

EN 1494, EN1494+A1, MSD 2006/42/CE

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description
  • Load capacity: 2.5 t.
  • Maximum lifting height: 450 mm.
  • Minimum height under body: 100 mm.
  • Double piston for fast lifting.
  • Side handle for easier carrying and installation.
  • Tube fitted with protection foam.
  • Supplied with steel / rubber under-body bearing plate.
  • Overload valve.
  • Dimensions (L. x W x H.): 591 x 308 x 173 mm.
  • CE compliance Standard EN1494+A1.

Specifications
  • Appareil connectéNon
  • Bluetooth®Non
  • Conformité ECNon
  • Capacité de levage2.5 t
  • Charge maximale du châssis173 mm
  • Charge maximale25000 Kg
  • Empreinte au sol665 mm
  • Hauteur maximale1370 mm
  • Hauteur du produit450 mm
  • Longueur du produit591.5 mm
  • Largeur du produit308 mm
  • Marquage CEOui
  • MatériauAluminium
  • Nombre de pièces1
  • Nombre de roues4
  • Presse d’établiNon
  • Pour poids lourds-véhicules industrielsNon
  • Poids lourds-véhicules industrielsNon
  • Poids net32 Kg
  • Rangement des outilsNon
  • Surface magnétiséeNon
  • Source d’alimentationManuel
  • Type de fonctionHydraulique
  • Usage intensifNon
  • VoitureOui

Spare parts

RUBBER PAD - D.25AL-46
WHEEL FRONT - DL.25AL-1
WHEEL PIVOT - DL.25AL-14
FORK - DL.25AL-21
RAM - DL.25AL-24
HANDLE TUBE LOWER - DL.25AL-25
HANDLE TUBE - DL.25AL-26
HANDLE TUBE UPPER - DL.25AL-27
SADDLE - DL.25AL-33
SEALS KIT - DL.25AL-SEAL

Documents
User Guide

Aluminium rolling jack, 2,5 t

References available

  • [DL.25AL] 2.5t Aluminium Rolling Jack

Lieu de fabrication

N/A

Normes & certifications

EN 1494, EN1494+A1, MSD 2006/42/CE
