Facom - The Art of Precision since 1918.

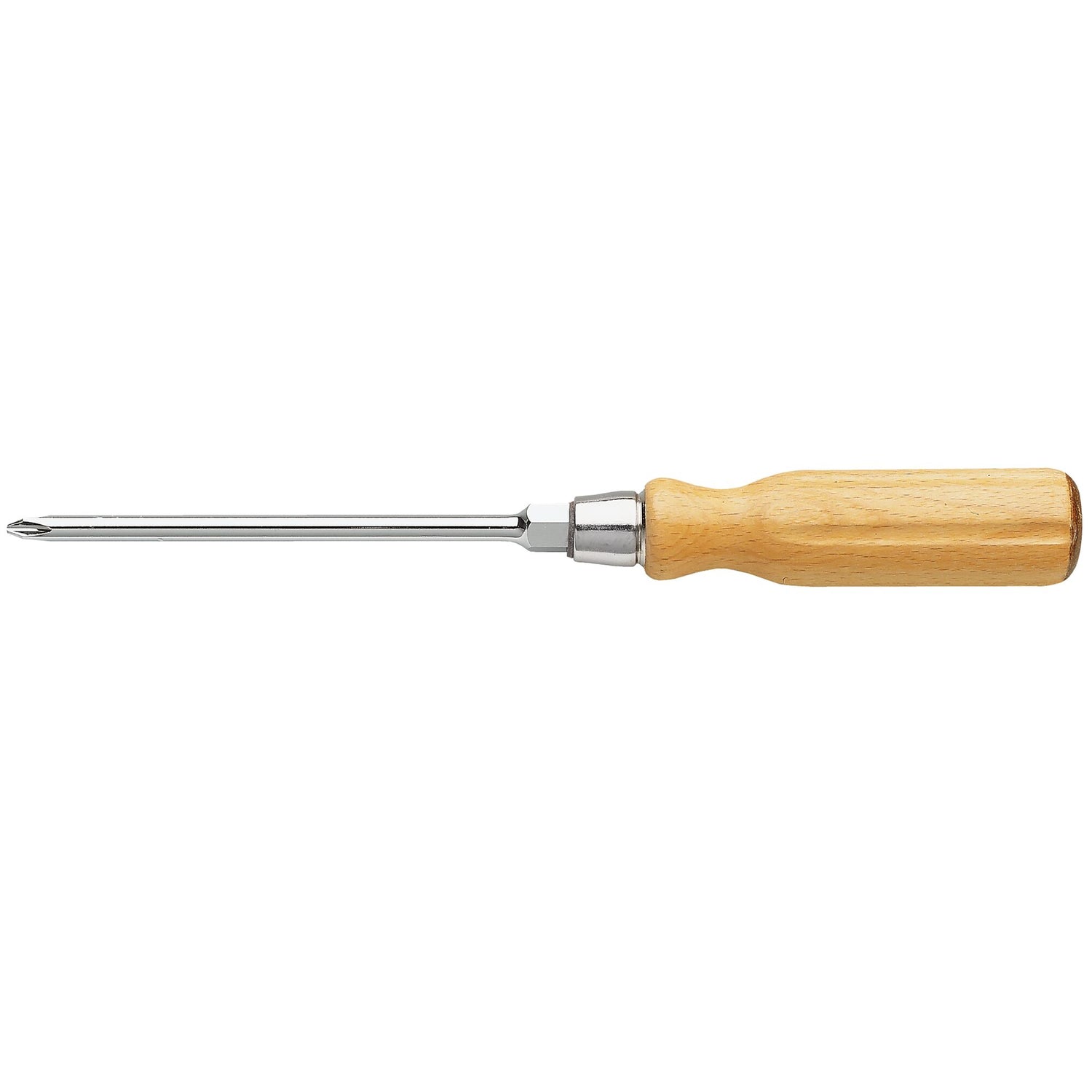

ATHH.P - Screwdrivers for Phillips® hexagonal forged blades with wood handle

SKU: ATHH.P2  -  Barcode: 3148510117300
  • Through blade allows separation of locked screws by means of light impacts.
  • Forged and treated hexagonal blade for locking or unlocking with a wrench.
  • Handle blade linked by fins.
  • On the blade side, the handle includes a crimped steel ferrule with dampener, at the opposite side, a copper ring protects wood from impacts.
  • Finish: polished chromed.
  • 10 x 175 mm.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

ISO 8764-1, ISO 8764-2

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Through blade allows separation of locked screws by means of light impacts.
  • Forged and treated hexagonal blade for locking or unlocking with a wrench.
  • Handle blade linked by fins.
  • On the blade side, the handle includes a crimped steel ferrule with dampener, at the opposite side, a copper ring protects wood from impacts.
  • Finish: polished chromed.
  • 10 x 175 mm.

Specifications
  • Code couleurNon
  • Hauteur du produit125 mm
  • Isolation électrique 1000 VNon
  • Longueur du produit235 mm
  • Largeur du produit26 mm
  • Matériau de la lameChrome
  • Nombre de pièces1
  • Produits BorneoNon
  • Pointe magnétiqueNon
  • Poids net0.092 Kg
  • Stockage interne des embouts ( multi-embouts seulement)Non
  • Surmoulage sur la poignéeNon
  • Type de lameLame forgée
  • Tournevis à chocNon
  • Type d'empreinte Phillips®PH2
  • Type d'empreinte de l'embout de vissagePhillips®

Technical drawing and dimensions

D1 (mm)L1 (mm)L2 (mm)L (mm)
ATHH.P2 [ATHH.P2] 6 x 125 mm Screwdriver for Phillips® Hexagonal Forged Blade With Wood Handle 6.00125.00110.00235.00
ATHH.P3 [ATHH.P3] 8 x 150 mm Screwdriver for Phillips® Hexagonal Forged Blade With Wood Handle 8.00150.00120.00270.00

Documents

ATHH.P - Screwdrivers for Phillips® hexagonal forged blades with wood handle

References available

  • [ATHH.P2] 6 x 125 mm Screwdriver for Phillips® Hexagonal Forged Blade With Wood Handle
  • [ATHH.P3] 8 x 150 mm Screwdriver for Phillips® Hexagonal Forged Blade With Wood Handle

Lieu de fabrication

N/A

Normes & certifications

ISO 8764-1, ISO 8764-2

Période de garantie

Lifetime warranty on the tool (replacement)
