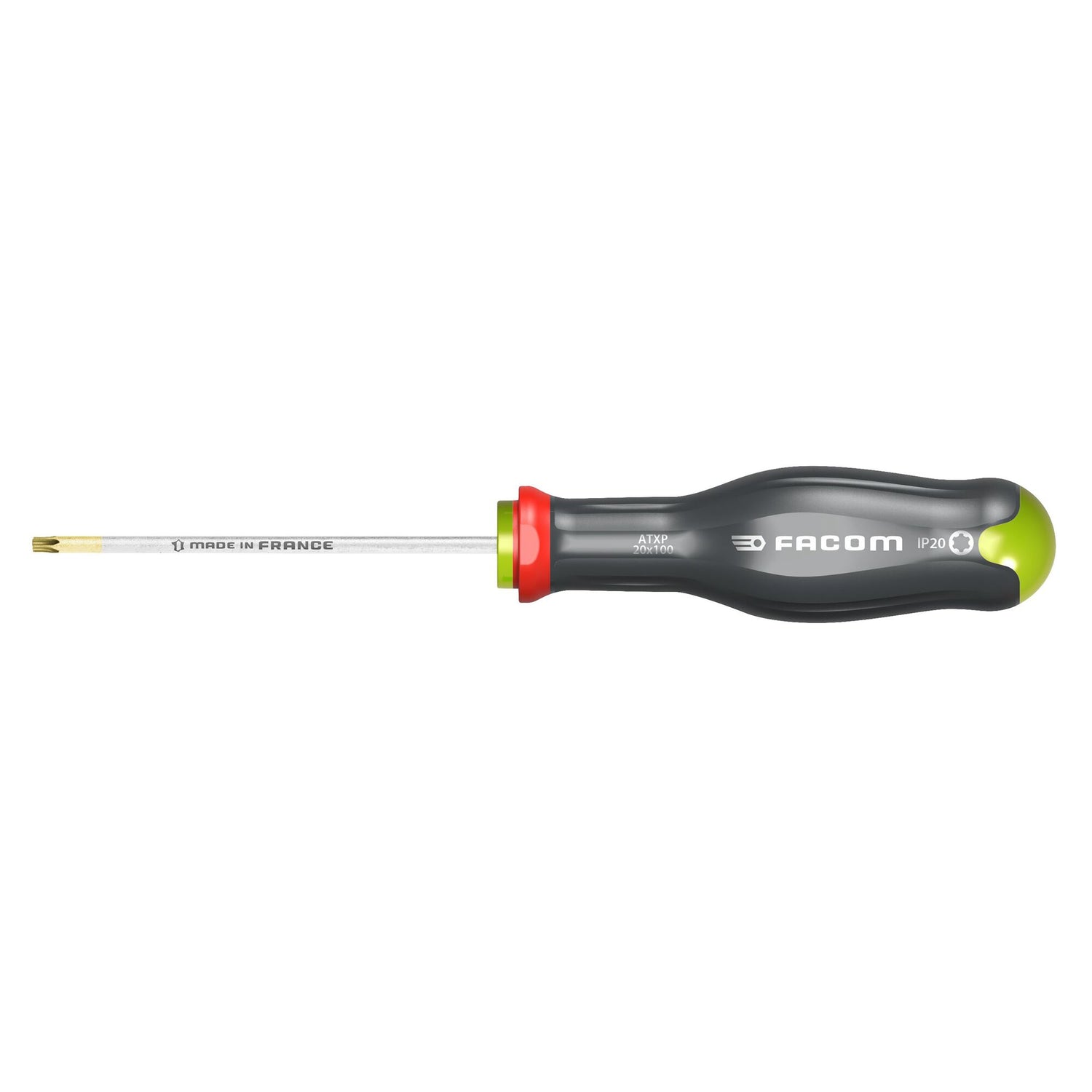

ATXP - PROTWIST® Screwdrivers for Torx Plus® Screws

SKU: ATXP5X50  -  Barcode: 3662424097843
  • Compliant with Torx® specifications.
  • Inline Hardening Process – +100% Tip Life and +100% Bar Strength.
  • Handle Material - Softer for more Comfort and still Chemical Resistant.
  • Blade " tri-coating " treatment (Zinc-Nickel-Chromium) - 4x Corrosion Resistance.
  • Handle ‘Channel’ - +10% Torque.
  • Laser Marking - gives virtually Permanent Marking.
  • CNC tip machining - gives better Screw Fit increasing Torque Transfer and Reducing Wear.
Full product description
Reference comparison

Made in France

This product is Made in France in our factories.

Click here to learn more about Our Factories.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Compliant with Torx® specifications.
  • Inline Hardening Process – +100% Tip Life and +100% Bar Strength.
  • Handle Material - Softer for more Comfort and still Chemical Resistant.
  • Blade " tri-coating " treatment (Zinc-Nickel-Chromium) - 4x Corrosion Resistance.
  • Handle ‘Channel’ - +10% Torque.
  • Laser Marking - gives virtually Permanent Marking.
  • CNC tip machining - gives better Screw Fit increasing Torque Transfer and Reducing Wear.

Specifications
  • Code couleurOui
  • Hauteur du produit144 mm
  • Isolation électrique 1000 VNon
  • Longueur du produit144 mm
  • Largeur du produit19 mm
  • Matériau de la lameAcier
  • Marquage du mancheMarquage laser
  • Nombre de pièces1
  • Produits BorneoNon
  • Pointe magnétiqueNon
  • Poids net0.02 Kg
  • Stockage interne des embouts ( multi-embouts seulement)Non
  • Surmoulage sur la poignéeOui
  • Type de lameBouts arrondis
  • Tournevis à chocNon
  • Type de manche du tournevisPrise en main confortable
  • Type d'empreinte de l'embout de vissageTorx®
  • Type de tournevisPoignée bi-matière antichoc
  • Traitement de la pointeDurci

Technical drawing and dimensions

A (mm)D1 (mm)L1 (mm)L2 (mm)L (mm)
ATXP5X50 [ATXP5X50] Screwdriver PROTWIST® for TORX Plus®, 5X50 mm 1.422.5050.0095.00144.00
ATXP6X50 [ATXP6X50] Screwdriver PROTWIST® Screwdriver for TORX Plus®, 6X50 mm 1.652.5050.0095.00144.00
ATXP8X50 [ATXP8X50] Screwdriver PROTWIST® for TORX Plus®, 8X50 mm 2.302.5050.00103.00153.00
ATXP9X75 [ATXP9X75] PROTWIST® Screwdriver for TORX Plus®, 9X75 mm 2.483.0075.00103.00178.00
ATXP10X75 [ATXP10X75] PROTWIST® Screwdriver for TORX Plus®, 10X75 mm 2.743.0075.00109.00184.00
ATXP15X75 [ATXP15X75] PROTWIST® Screwdriver for TORX Plus®, 15X75 mm 3.263.5075.00110.00184.00
ATXP20X100 [ATXP20X100] PROTWIST® Screwdriver for TORX Plus®, 20X100 mm 3.844.00100.00120.00220.00
ATXP25X100 [ATXP25X100] PROTWIST® 25 x 100mm Screwdriver for TORX Plus® 4.405.00100.00120.00220.00
ATXP30X125 [ATXP30X125] PROTWIST® Screwdriver for TORX Plus®, 30X125 mm 5.496.00125.00120.00245.00
ATXP40X150 [ATXP40X150] Screwdriver PROTWIST® for TORX Plus®, 40X150 mm 6.607.00150.00125.00275.00

Documents

ATXP - PROTWIST® Screwdrivers for Torx Plus® Screws

References available

  • [ATXP5X50] Screwdriver PROTWIST® for TORX Plus®, 5X50 mm
  • [ATXP6X50] Screwdriver PROTWIST® Screwdriver for TORX Plus®, 6X50 mm
  • [ATXP8X50] Screwdriver PROTWIST® for TORX Plus®, 8X50 mm
  • [ATXP9X75] PROTWIST® Screwdriver for TORX Plus®, 9X75 mm
  • [ATXP10X75] PROTWIST® Screwdriver for TORX Plus®, 10X75 mm
  • [ATXP15X75] PROTWIST® Screwdriver for TORX Plus®, 15X75 mm
  • [ATXP20X100] PROTWIST® Screwdriver for TORX Plus®, 20X100 mm
  • [ATXP25X100] PROTWIST® 25 x 100mm Screwdriver for TORX Plus®
  • [ATXP30X125] PROTWIST® Screwdriver for TORX Plus®, 30X125 mm
  • [ATXP40X150] Screwdriver PROTWIST® for TORX Plus®, 40X150 mm

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
