Facom - The Art of Precision since 1918.

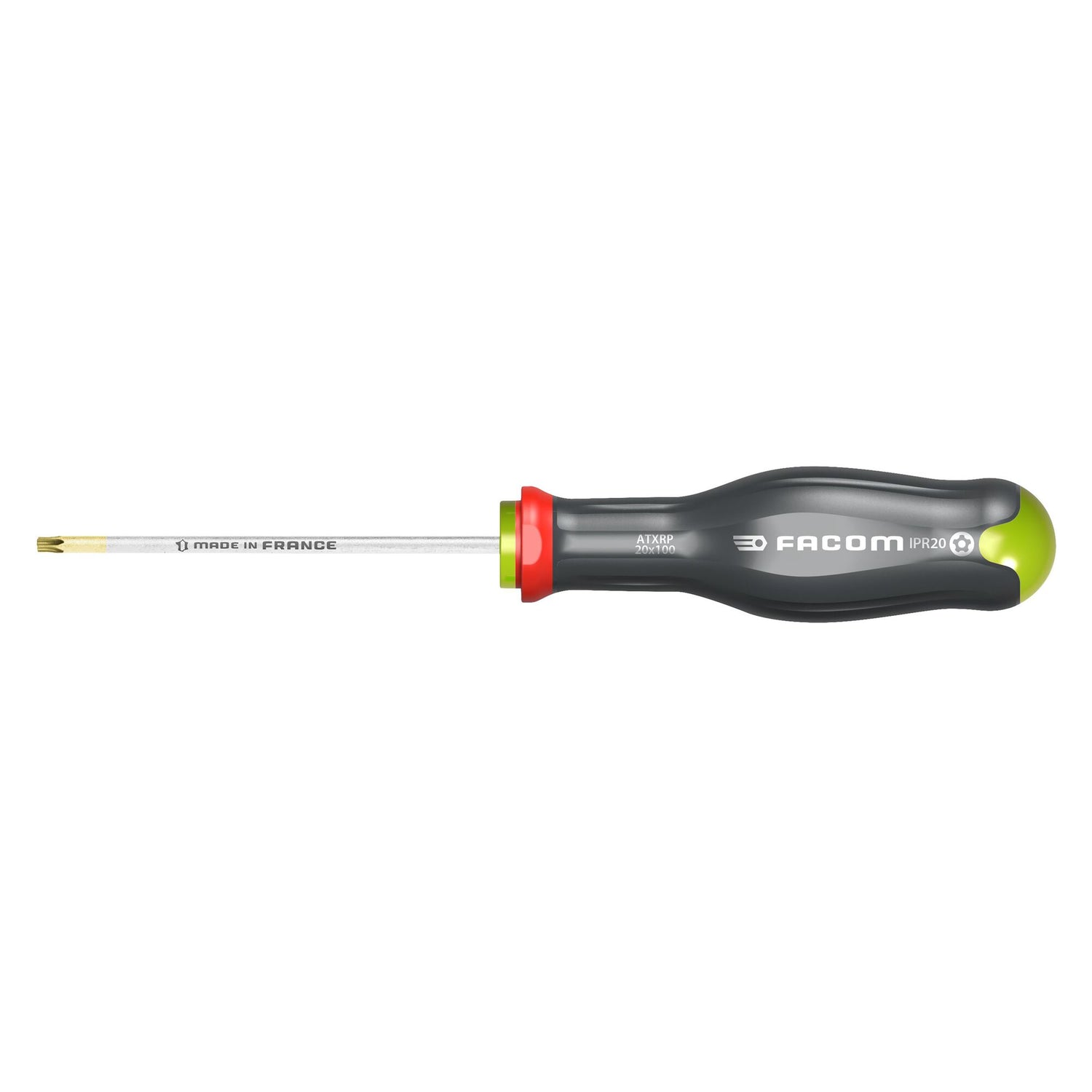

ATXRP - PROTWIST® Screwdrivers for Tamper Resistant Torx Plus® Screws

SKU: ATXRP10X75  -  Barcode: 3662424098154
  • Compliant with Tamper Resistant Torx Plus® specifications.
  • Inline Hardening Process – +100% Tip Life and +100% Bar Strength.
  • Handle Material - Softer for more Comfort and still Chemical Resistant.
  • Blade " tri-coating " treatment (Zinc-Nickel-Chromium) - 4x Corrosion Resistance.
  • Handle ‘Channel’ - +10% Torque.
  • Laser Marking - gives virtually Permanent Marking.
  • CNC tip machining - gives better Screw Fit increasing Torque Transfer and Reducing Wear.
Full product description
Reference comparison

Made in France

This product is Made in France in our factories.

Click here to learn more about Our Factories.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Compliant with Tamper Resistant Torx Plus® specifications.
  • Inline Hardening Process – +100% Tip Life and +100% Bar Strength.
  • Handle Material - Softer for more Comfort and still Chemical Resistant.
  • Blade " tri-coating " treatment (Zinc-Nickel-Chromium) - 4x Corrosion Resistance.
  • Handle ‘Channel’ - +10% Torque.
  • Laser Marking - gives virtually Permanent Marking.
  • CNC tip machining - gives better Screw Fit increasing Torque Transfer and Reducing Wear.

Specifications
  • Code couleurOui
  • Hauteur du produit184 mm
  • Isolation électrique 1000 VNon
  • Longueur du produit184 mm
  • Largeur du produit30 mm
  • Matériau de la lameAcier
  • Marquage du mancheMarquage laser
  • Nombre de pièces1
  • Produits BorneoNon
  • Pointe magnétiqueNon
  • Poids net0.05 Kg
  • Stockage interne des embouts ( multi-embouts seulement)Non
  • Surmoulage sur la poignéeOui
  • Type de lameBouts arrondis
  • Tournevis à chocNon
  • Type de manche du tournevisPrise en main confortable
  • Type d'empreinte de l'embout de vissageTorx®
  • Type de tournevisPoignée bi-matière antichoc
  • Traitement de la pointeDurci
  • Taille de l'empreinte Torx®Fits T10

Technical drawing and dimensions

A (mm)D1 (mm)L1 (mm)L2 (mm)L (mm)
ATXRP10X75 [ATXRP10X75] PROTWIST® Screwdriver for Tamper TORX Plus®, 10X75 mm 2.743.0075.00109.00184.00
ATXRP15X75 [ATXRP15X75] PROTWIST® 15X75 mm Screwdriver for Tamper TORX Plus®, 3.263.5075.00110.00185.00
ATXRP20X100 [ATXRP20X100] Screwdriver PROTWIST® for Tamper TORX Plus®, 20X100 mm 3.844.00100.00120.00220.00
ATXRP25X100 [ATXRP25X100] Screwdriver PROTWIST® for Tamper TORX Plus®, 25X100 mm 4.405.00100.00120.00220.00
ATXRP27X100 [ATXRP27X100] Screwdriver PROTWIST® for Tamper TORX Plus®, 27X100 mm 4.965.50100.00120.00220.00
ATXRP30X125 [ATXRP30X125] PROTWIST® 30mm x 125mm Screwdriver for Tamper TORX Plus® 5.496.00125.00120.00245.00
ATXRP40X150 [ATXRP40X150] PROTWIST® Screwdriver for Tamper TORX Plus®, 40X150 mm 6.607.00150.00125.00275.00

Documents

ATXRP - PROTWIST® Screwdrivers for Tamper Resistant Torx Plus® Screws

References available

  • [ATXRP10X75] PROTWIST® Screwdriver for Tamper TORX Plus®, 10X75 mm
  • [ATXRP15X75] PROTWIST® 15X75 mm Screwdriver for Tamper TORX Plus®,
  • [ATXRP20X100] Screwdriver PROTWIST® for Tamper TORX Plus®, 20X100 mm
  • [ATXRP25X100] Screwdriver PROTWIST® for Tamper TORX Plus®, 25X100 mm
  • [ATXRP27X100] Screwdriver PROTWIST® for Tamper TORX Plus®, 27X100 mm
  • [ATXRP30X125] PROTWIST® 30mm x 125mm Screwdriver for Tamper TORX Plus®
  • [ATXRP40X150] PROTWIST® Screwdriver for Tamper TORX Plus®, 40X150 mm

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
