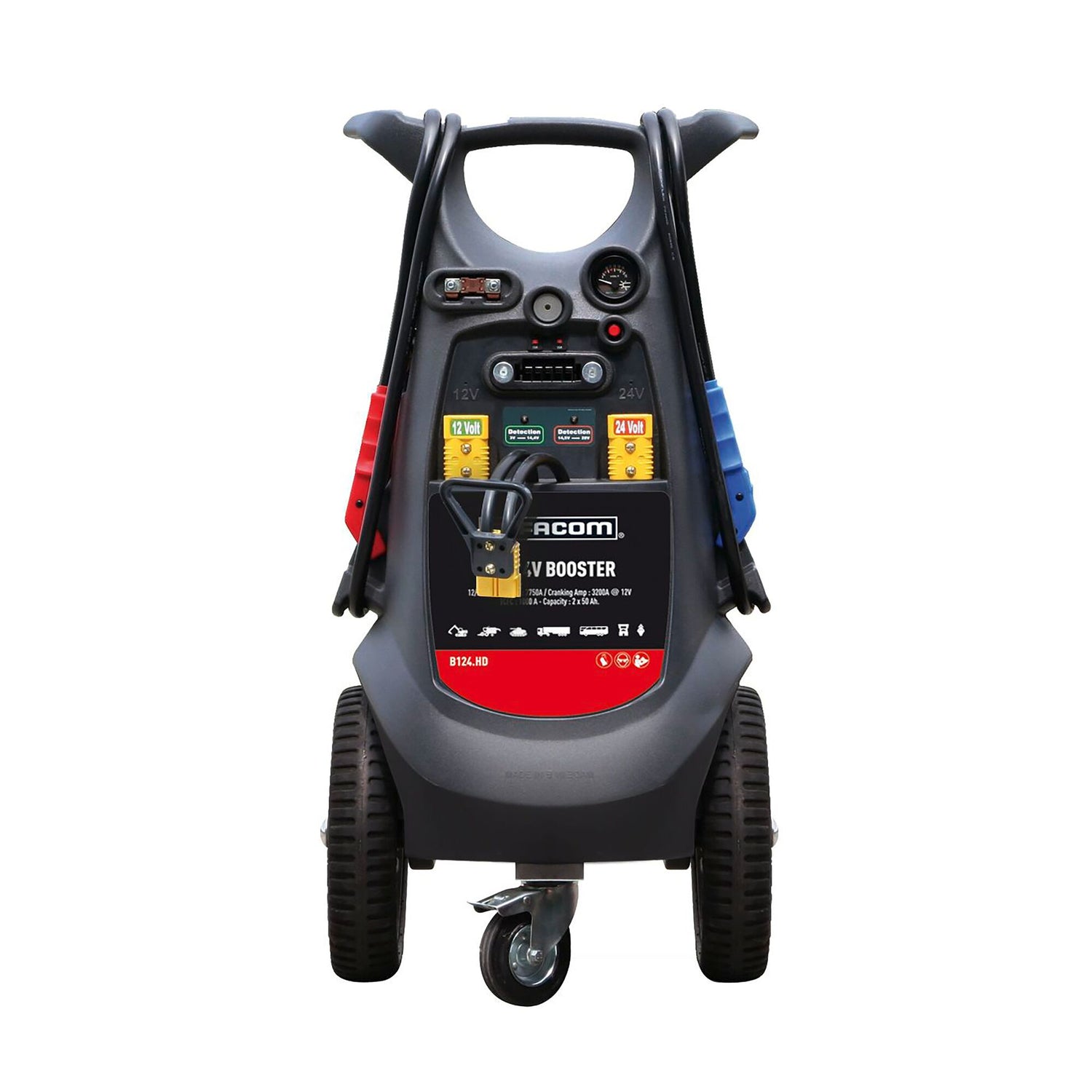

12V - 24V Heavy Duty Jump Starter

SKU: B124.HD - Barcode: 3662424085581

Starting booster.
Operating voltage 12V - 24V.
Power safety and reversed polarity alarm.
Voltage selection by power plug.
Auxiliary power plug. (For cables in option).
Capacity 2 X 50 Ah.
Sealed internal AGM battery.
Mac 'Peak' current: 7750A.
Max starting current: 3200A.
TCFC: 1700A.
Double insulation copper cables 70 mm² 2.10 m long.
Curved pliers 850A.
Protection by 500A timed fuse.
Analog charge control voltmeter.
Automatic charger 7A.

Full product description

Standards and certifications

This product complies with the following standards and certifications:

2011/65/EU (RoHS), 2012/19/EU (WEEE), 2014/30/EU (EMC), 2014/35/EU (LVD)

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Starting booster.
Operating voltage 12V - 24V.
Power safety and reversed polarity alarm.
Voltage selection by power plug.
Auxiliary power plug. (For cables in option).
Capacity 2 X 50 Ah.
Sealed internal AGM battery.
Mac 'Peak' current: 7750A.
Max starting current: 3200A.
TCFC: 1700A.
Double insulation copper cables 70 mm² 2.10 m long.
Curved pliers 850A.
Protection by 500A timed fuse.
Analog charge control voltmeter.
Automatic charger 7A.

Specifications

Allume-cigare sécuriséNon
Booster de démarrageNon
Clips fournisPinces Kelvin
CourantNon
Nombre de pièces1
Outils à batterieNon
Prise d’alimentationNon
Poids net76.7 Kg
Protection par fusible à retardementOui
Sécurité de l’alimentation et alarme de polarité inverséeOui
Sélection d'outilsNon
Testeur de batterieNon
Voltmètre de contrôle de charge analogiqueOui
Voltage de la batterie24 V

Spare parts

GAUGE - 1004730-04
BUTTON - 1004730-05
FUSE - 1004730-10
TESTER - 1004730-99
BUZZER - 1004733-23
LED - 1004733-24
PLUG - 1004733-25
HANDLE - 1004733-26
FUSE - 1004737-26
BATTERY - 1004737-27
CLAMP SA - 1004737-28
CLAMP SA - 1004737-29
CONNECTOR FEMALE - 1004737-30
CONNECTOR MALE - 1004737-31
CHARGER - 1004737-32
AXLE - 1004737-33
WHEEL - 1004737-34
WHEEL PIVOT - 1004737-35
PCB SA - 1004737-36
PLUG - 1004737-37

Documents

User manual
