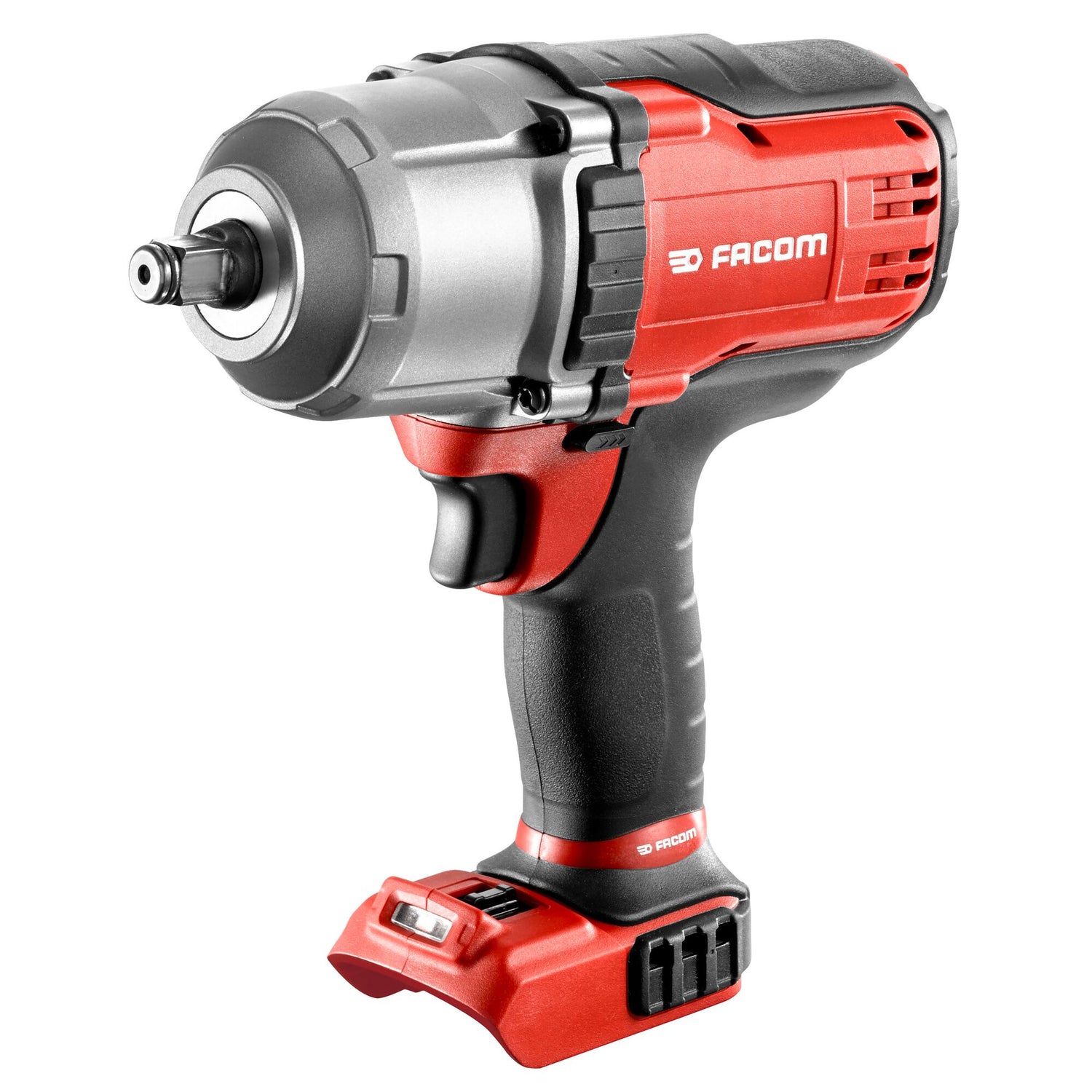

18V 1/2 in. High Torque Impact Wrench (Bare)

SKU: CL3.CH18SD - Barcode: 3662424051180

Delivers a torque of 1625 N.m for heavy duty applications.
Brushless motor offering superb runtime and durability.
3 speed settings and variable trigger offer greater control.
Super-bright LED illuminates workspace.
GRP casing resistant to harsh chemicals.

Full product description

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description

Delivers a torque of 1625 N.m for heavy duty applications.
Brushless motor offering superb runtime and durability.
3 speed settings and variable trigger offer greater control.
Super-bright LED illuminates workspace.
GRP casing resistant to harsh chemicals.

Specifications

Composition chimique de la batterieLithium Ion
Cadence de frappe par minute2400
Couple maximal1625 Nm
Diamètre impérial1/2 in
Hauteur du produit229 mm
Lumière LEDOui
Longueur du produit224 mm
Largeur du produit85 mm
Marquage CEOui
Matériau de la poignéePrise en main confortable
MatériauComposite
Nombre de pièces1
Nombre de réglages de vitesse3
Pour poids lourds-véhicules industrielsNon
Poids lourds-véhicules industrielsNon
Poids net2.5 Kg
RouesNon
Source d’alimentationSans fil
Type de batterie18V MAX*
Type de fonctionÉlectrique
Tension18 V
Usage intensifOui
VoitureOui
Vitesse à vide (tr/mn)1900
Vanne de surchargeNon
Vitesse variableOui

Technical drawing and dimensions

H (mm)

229.00
L1 (mm)

85.00
L (mm)

224.00

Spare parts

O RING - 050056-00
CIRCLIP - 086947-00
SCREW - 330019-04
SCREW - 330019-16
GREASE - N017298
ROLL PIN - N071836
WASHER - N114027
BEARING - N158641
RUBBER PAD - N186764
PIN - N194994
LED LIGHT - N231799
GEARCASE - N363283
GEAR - N389396
GEAR - N389398
RING - N389400
DETENT - N392855
LENS - N394333
SEAL - N410641
O RING - N411414
ANVIL ASSEMBLY - N415875
ACTUATOR FWD/REV - N433557
SELECTOR - N433560
LABEL - N437674
CLAMSHELL SET - N457764
WASHER - N464079
GEAR - N470304
RATING LABEL - N473833
LABEL - N565167
MOTOR & SWITCH SA - N578553
IMPACTOR - N851243
NOSE - N866412
MOTOR & SWITCH SA - N875770
ANVIL ASSEMBLY - N882713
NOSE SA - N882721
CLAMSHELL SET - N906902
SCREW - NA002385
IMPACTOR - NA109167
RATING LABEL - NA203081
GREASE - NA218891

Documents

User manual
