Facom - The Art of Precision since 1918.

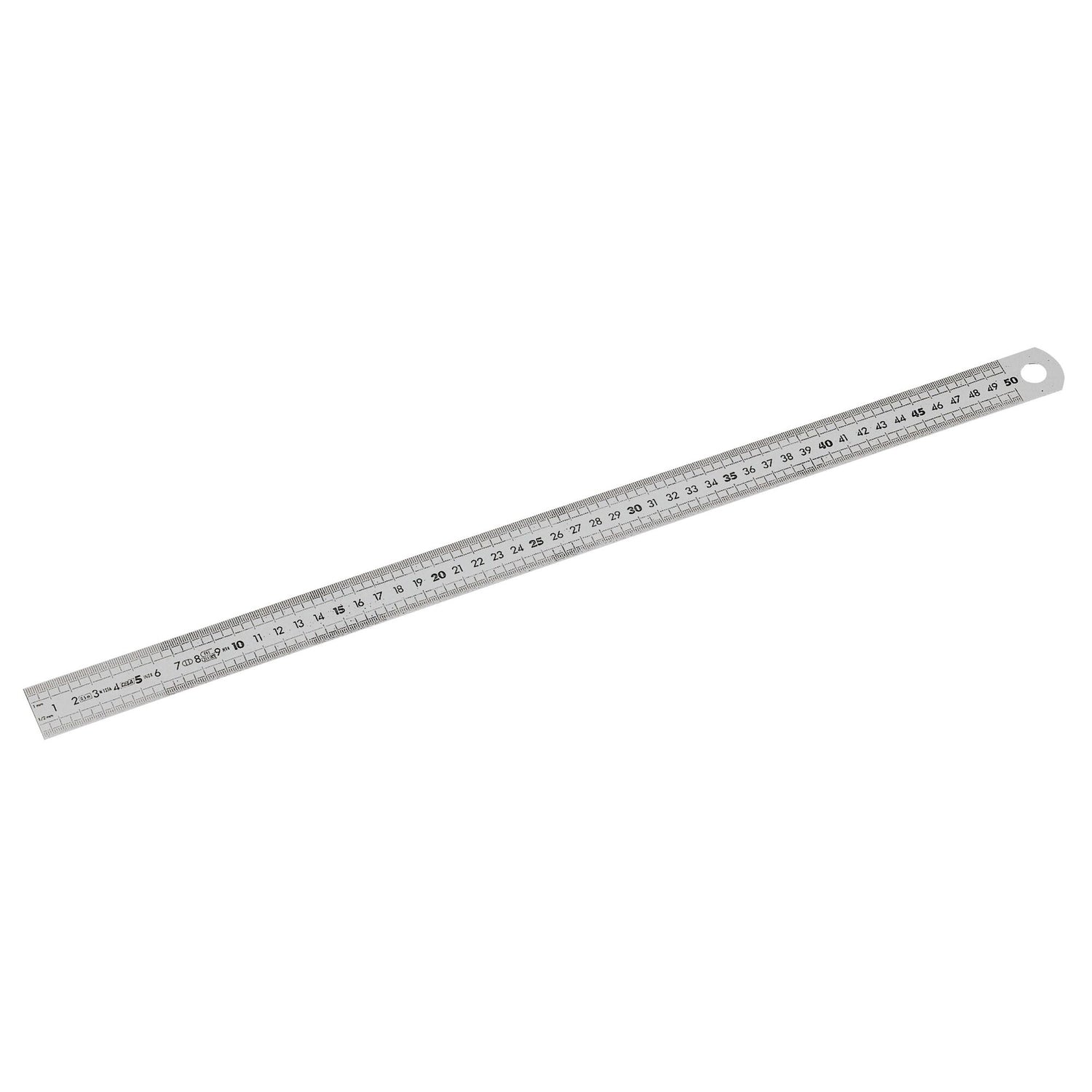

DELA.1056 - Stainless steel semi-rigid short rulers - 2 sides

SKU: DELA.1056.300  -  Barcode: 3662424023484
  • Engraved on both sides.
  • One edge in mm - One edge in 1/2 mm.
  • Stainless steel 18 % Cr - 8 % Ni.
  • Anti-reflection treatment.
  • Class II as per regulations applies to rules with a length above or equal to 500 mm.
  • Length: 200mm.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

MID 2014/32/EU

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by the statutory warranty

Click here to learn more about our warranties.

Description
  • Engraved on both sides.
  • One edge in mm - One edge in 1/2 mm.
  • Stainless steel 18 % Cr - 8 % Ni.
  • Anti-reflection treatment.
  • Class II as per regulations applies to rules with a length above or equal to 500 mm.
  • Length: 200mm.

Specifications
  • AttachéOui
  • Classe de précisionII
  • Couleur de la lameAcier
  • Épaisseur de la lame0.8 mm
  • Longueur du ruban300 mm
  • Largeur de la lame30 mm
  • Longueur du produit300 mm
  • Matériau de la lameAcier inoxydable
  • Marquage de la lameUn côté
  • Poids net0.06 Kg
  • Rigidité (règle plate)Semi-rigide
  • Type de règlesRègles plates

Technical drawing and dimensions

L1 (mm)L2 (mm)L (mm)
DELA.1056.300 [DELA.1056.300] 300mm Stainless Steel Semi-Rigid Short Rule, 1 Side 30.000.80300.00
DELA.1056.500 [DELA.1056.500] Stainless steel semi,rigid short rule, 1 side 500 mm 30.000.80500.00

Documents

DELA.1056 - Stainless steel semi-rigid short rulers - 2 sides

References available

  • [DELA.1056.300] 300mm Stainless Steel Semi-Rigid Short Rule, 1 Side
  • [DELA.1056.500] Stainless steel semi,rigid short rule, 1 side 500 mm

Lieu de fabrication

N/A

Normes & certifications

MID 2014/32/EU

Période de garantie

This product is covered by the statutory warranty
