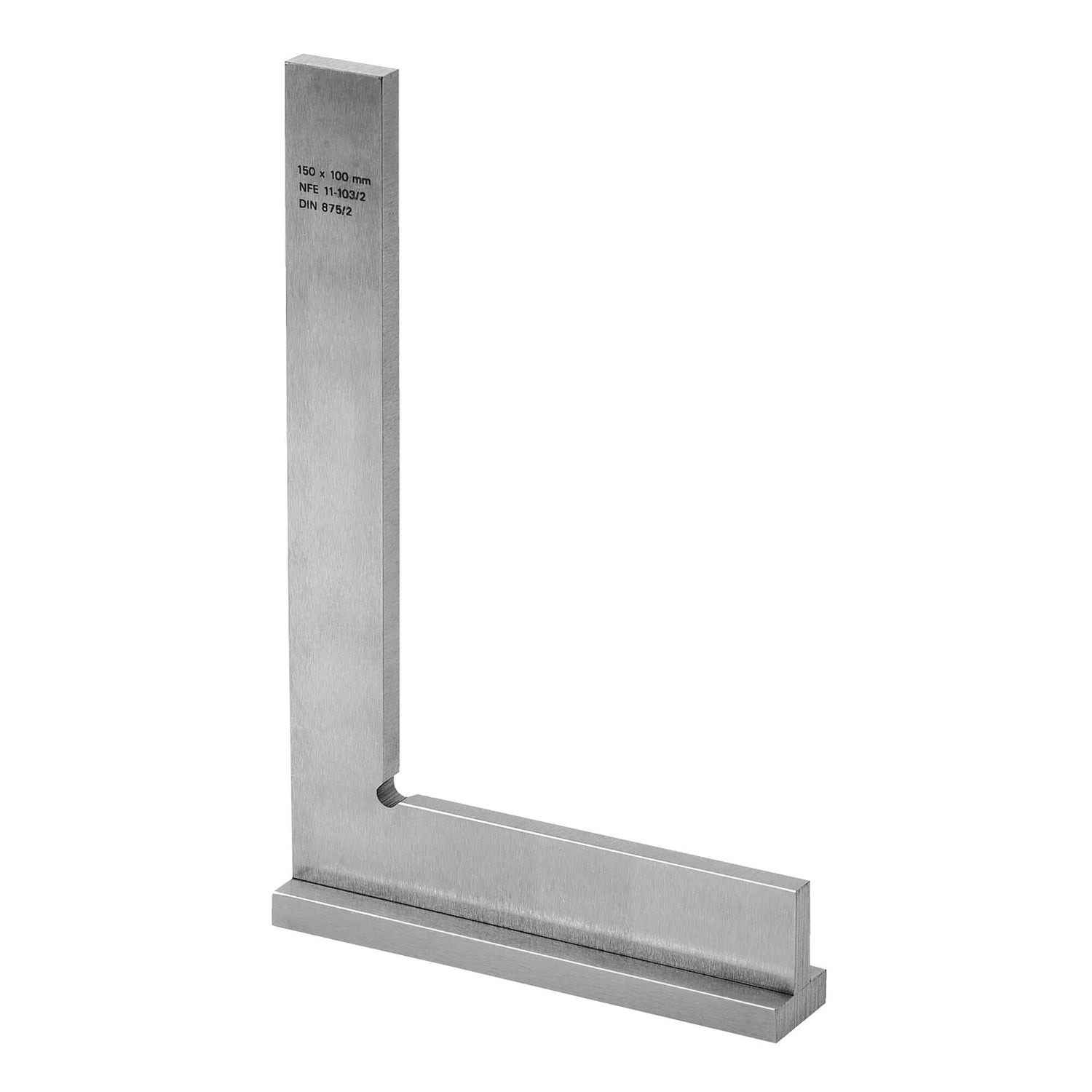

DELA.1257 - Basic flanged squares - Class II
SKU:
DELA.1257.02
DELA.1257 - Basic flanged squares - Class II - [DELA.1257.02] Basic flanged square Class II, 100x70 mm is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
DIN 875, NF E 11-103
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: This product is covered by the statutory warranty
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- AttachéNon
- Classe de précisionII
- Couleur de la lameAcier
- Épaisseur de la lame5 mm
- Hauteur du produit70 mm
- Longueur du ruban100 mm
- Largeur de la lame20 mm
- Longueur du produit100 mm
- Matériau de la lameAcier inoxydable
- Poids net0.2 Kg
Technical drawing and dimensions
Technical drawing and dimensions
| E1 (mm) | E (mm) | H (mm) | L1 (mm) | L (mm) | |||
|---|---|---|---|---|---|---|---|
| DELA.1257.02 | [DELA.1257.02] Basic flanged square Class II, 100x70 mm | 5.00 | 20.00 | 70.00 | 20.00 | 100.00 | |
| DELA.1257.04 | [DELA.1257.04] Basic flanged square Class II, 150x100 mm | 5.00 | 20.00 | 100.00 | 20.00 | 150.00 | |
| DELA.1257.06 | [DELA.1257.06] 200x130 mm Basic Flanged Square, Class II | 7.00 | 30.00 | 130.00 | 30.00 | 200.00 | |
| DELA.1257.07 | [DELA.1257.07] 250x165mm Class II Basic Flange Square | 7.00 | 30.00 | 165.00 | 30.00 | 250.00 | |
| DELA.1257.08 | [DELA.1257.08] Basic Flange Square Class II, 300x200 mm | 8.00 | 40.00 | 200.00 | 40.00 | 300.00 | |
| DELA.1257.10 | [DELA.1257.10] 500x330 mm Basic Flange Class II Square | 7.00 | 40.00 | 330.00 | 40.00 | 500.00 |
