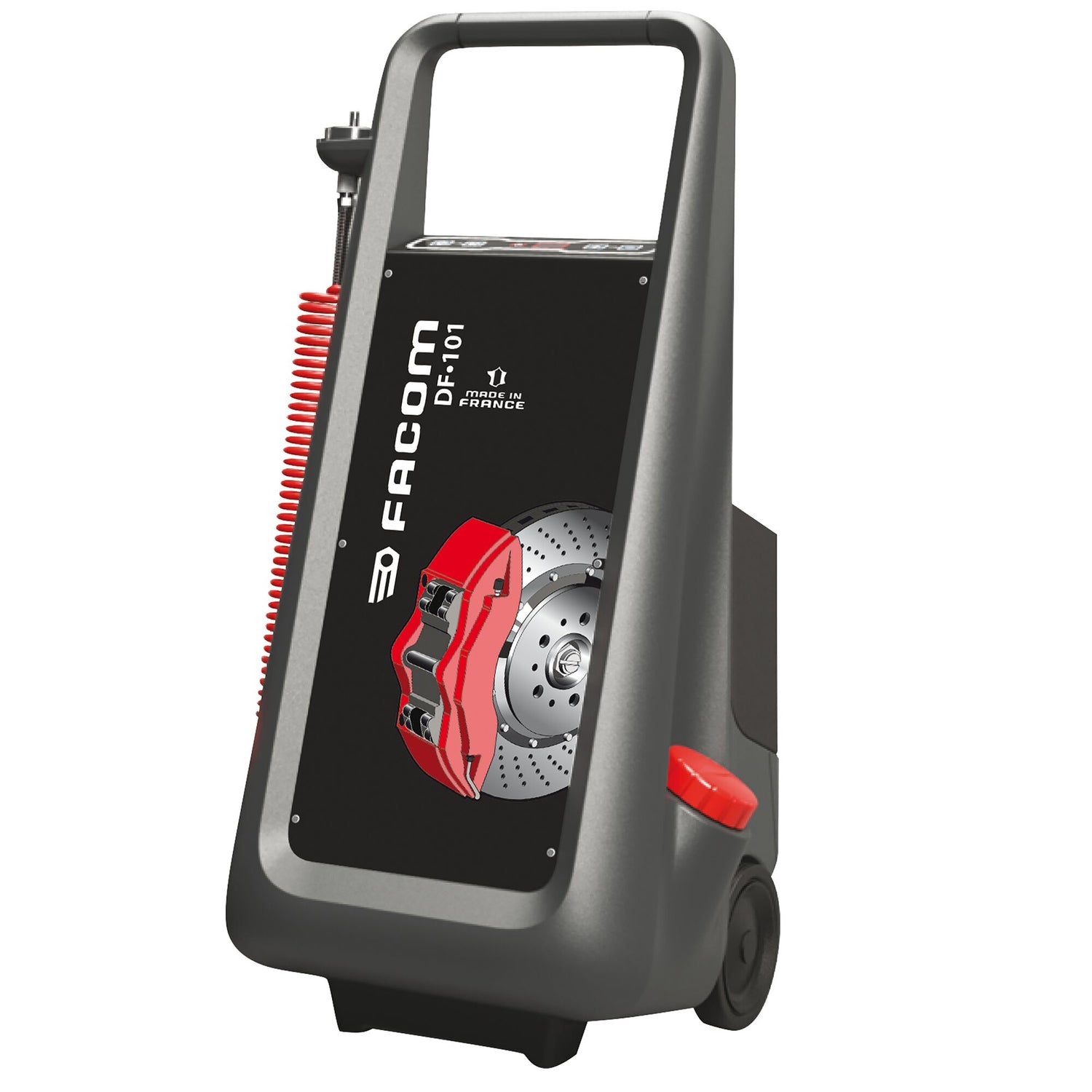

DF - Digital Brake Bleeder

SKU: DF.101 - Barcode: 3662424080692

Tank 10L.
Connects to the vehicle's 12 V battery.
'High volume' 1.5 litre /min pump (open circuit. allowing fast brake fluid renewal.
A vehicle battery can be integrated to make it stand-alone.
Digital controls for accurate pressure settings (pitch 0.1 bar).
Automatic depressurization when stopping the bleeder.
Low level indication with automatic stop.
'BA' type warning indicating the battery is low.
Lateral hose storage tab.
Certificate of compliance issued at end of manufacturing (individual check).

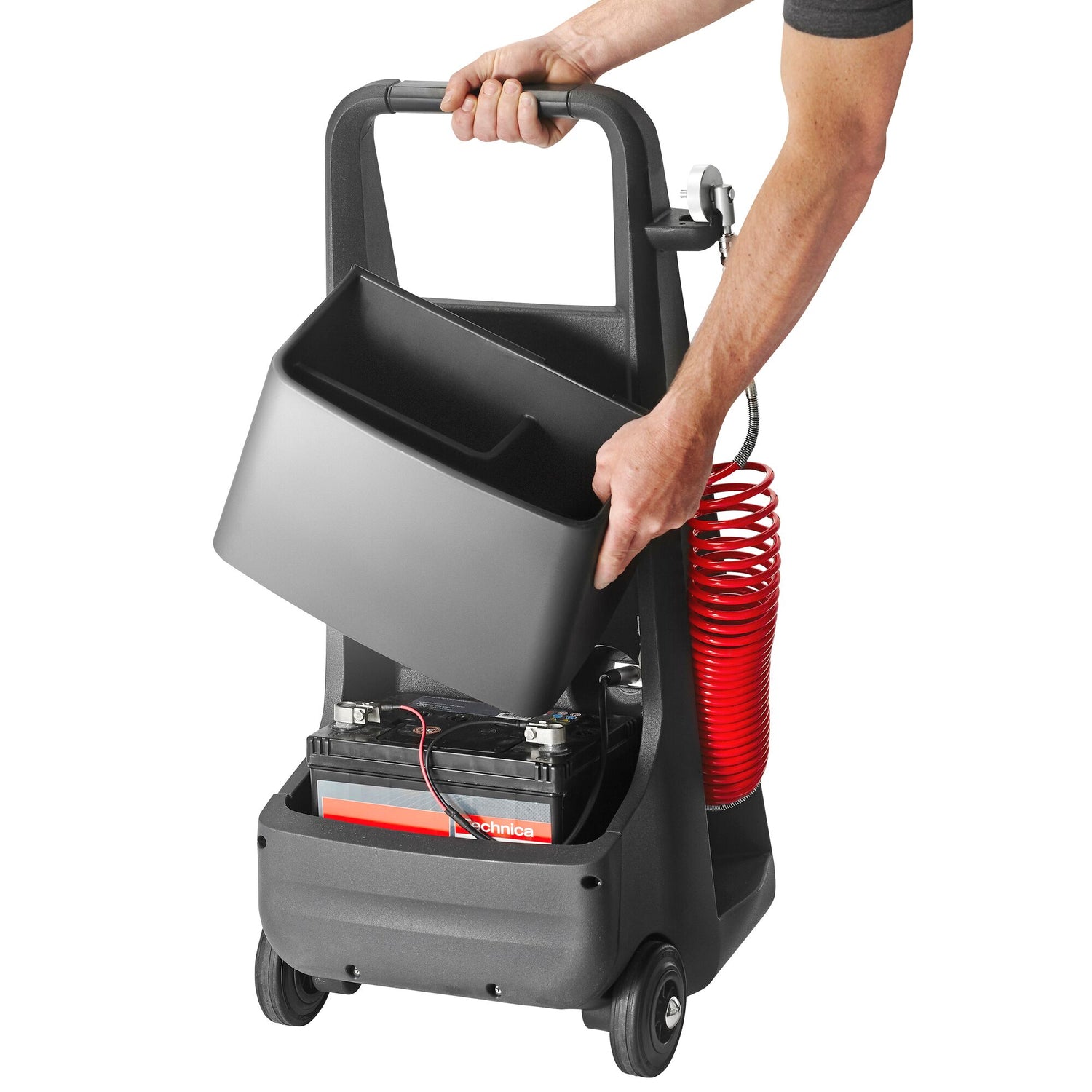

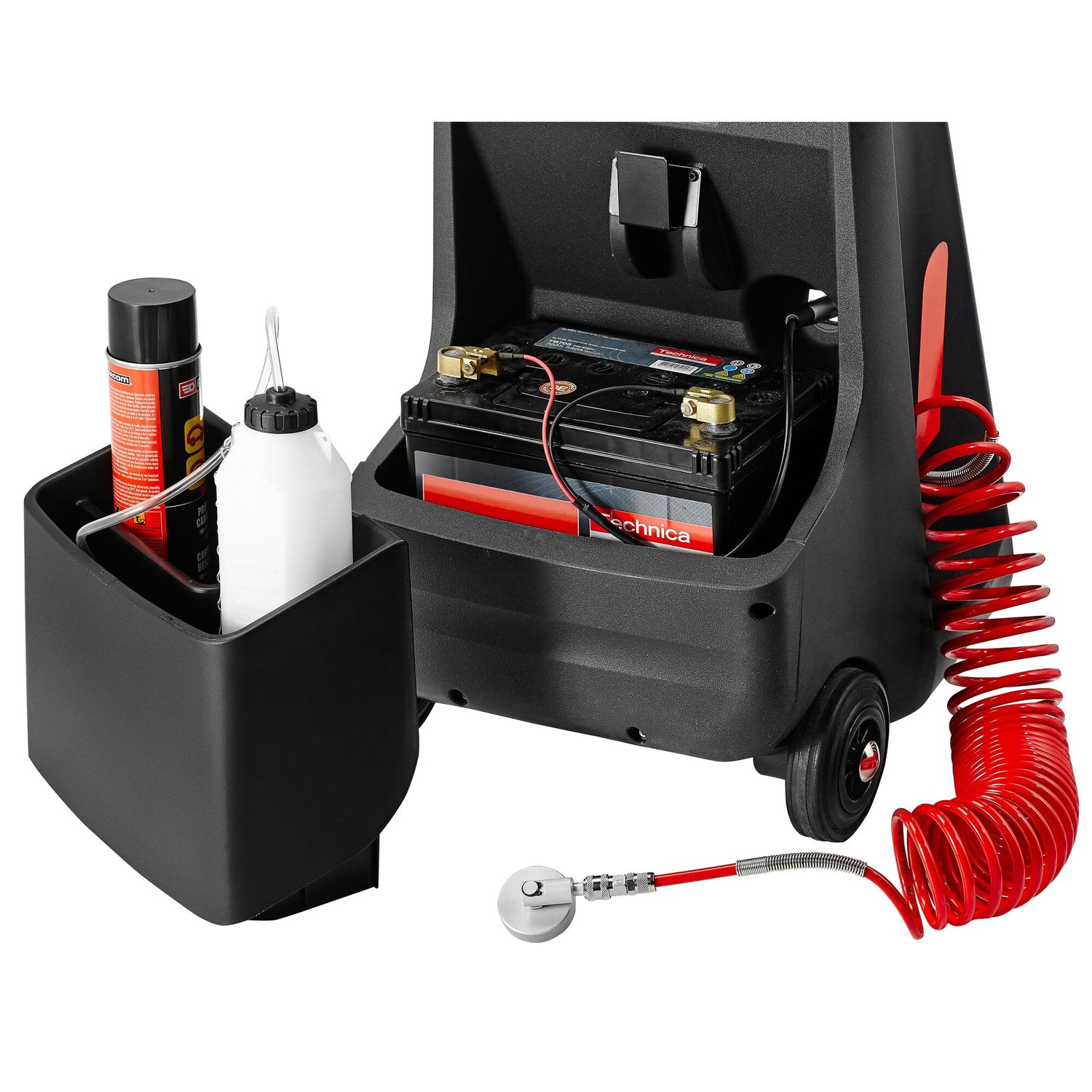

Storage tray covering the battery.
Regulated pressure adjustable from 0 to 4 bar.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

2011/65/EU (RoHS), 2012/19/EU (WEEE), 2014/30/EU (EMC)

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Tank 10L.
Connects to the vehicle's 12 V battery.
'High volume' 1.5 litre /min pump (open circuit. allowing fast brake fluid renewal.
A vehicle battery can be integrated to make it stand-alone.
Digital controls for accurate pressure settings (pitch 0.1 bar).
Automatic depressurization when stopping the bleeder.
Low level indication with automatic stop.
'BA' type warning indicating the battery is low.
Lateral hose storage tab.
Certificate of compliance issued at end of manufacturing (individual check).
Storage tray covering the battery.
Regulated pressure adjustable from 0 to 4 bar.

Specifications

Compatible avec remplissage automatiqueNon
Dépressurisation automatiqueNon
Indicateur automatique d’arrêt de niveau basNon
ModuleNon
Nombre de pièces1
Pour purger les embrayages de poids lourdsOui
Peut être utilisé sur véhicule légerOui
Peut être utilisé sur motoOui
Poids net17 Kg

Spare parts

CAP SA - DF.20-07
VALVES & SEALS KIT - DF.20-07-01
BOTTLE - DF.20-11
BRACKET - DF.UNI-G
SCREW - REP-DF.100-I
PANEL SA - REP-DF.101-A
PIPE SA - REP-DF.101-B
CONTROL PANEL - REP-DF.101-C
CONNECTOR - REP-DF.101-D
REGULATOR - REP-DF.101-E
PCB SA - REP-DF.101-F
PANEL SA - REP-DF.101-G
PANEL FRONT - REP-DF.101-H
KIT SA - REP-DF.101-J
TUBE - REP-DF.101-K
TUBE - REP-DF.101-L
TUBE - REP-DF.101-M
WIRE HARNESS - REP-DF.UNI-A
WHEEL SET - REP-DF.UNI-C
SCREW TORX - REP-DF.UNI-H
SCREW TORX - REP-DF.UNI-I
FRAME - REP-DF.UNI-J
CAP - REP-DF.UNI-L
CABLE - REP-DF.UNI-M
HOSE SA - REP-DF.UNI-P
TUBE - REP-DF.UNI-Q
TUBE - REP-DF.UNI-R
PUMP - REP-DF.UNI-T

Documents

User Guide
