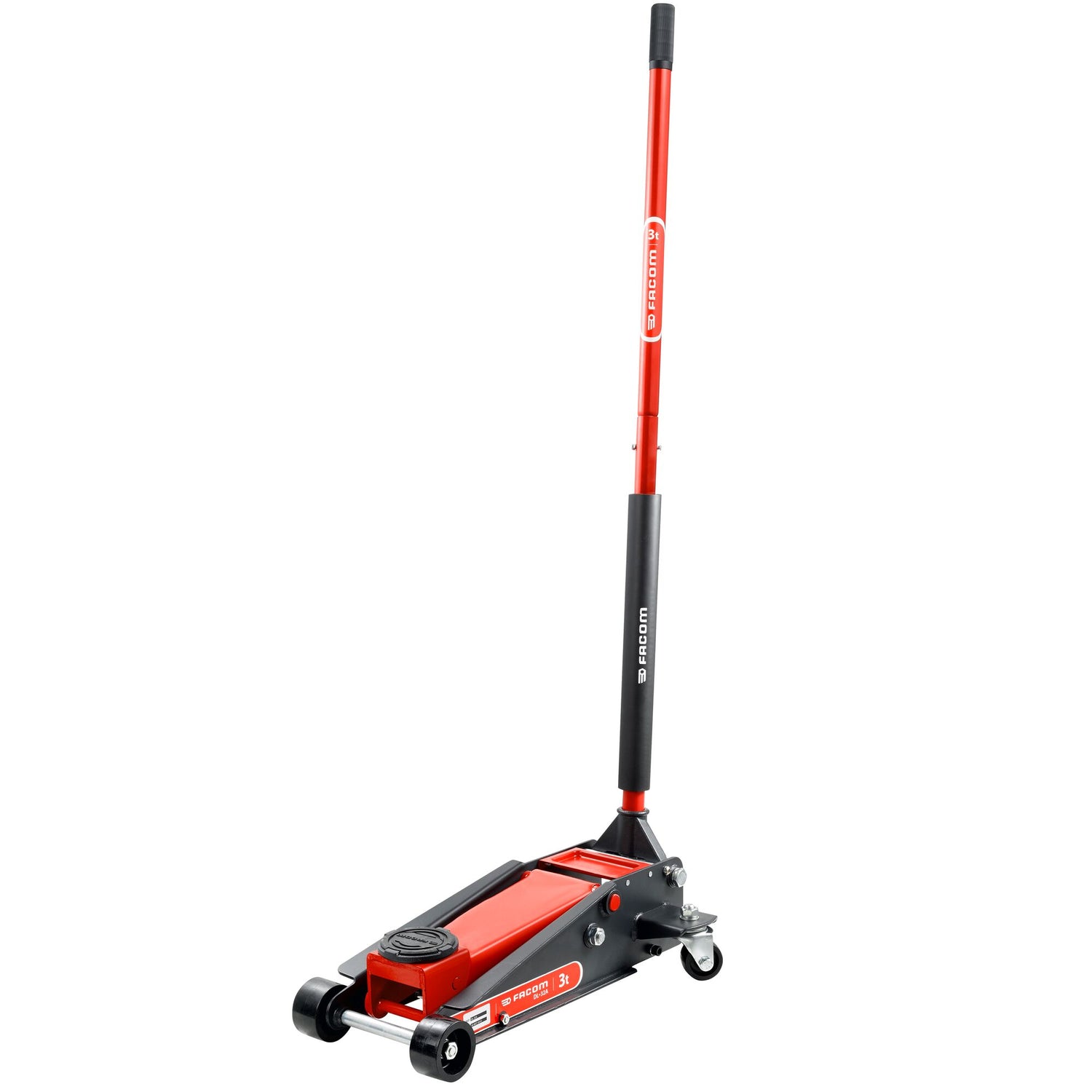

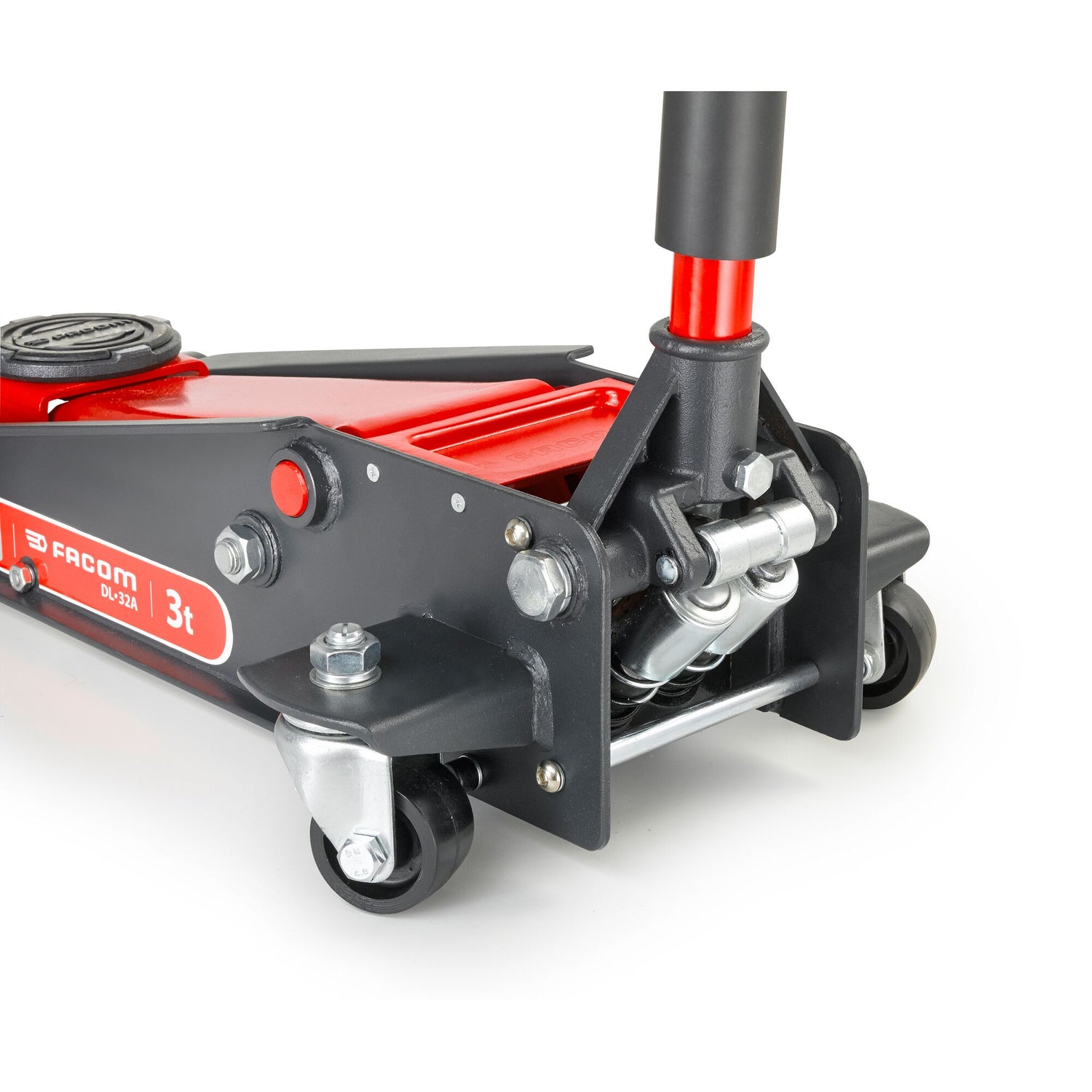

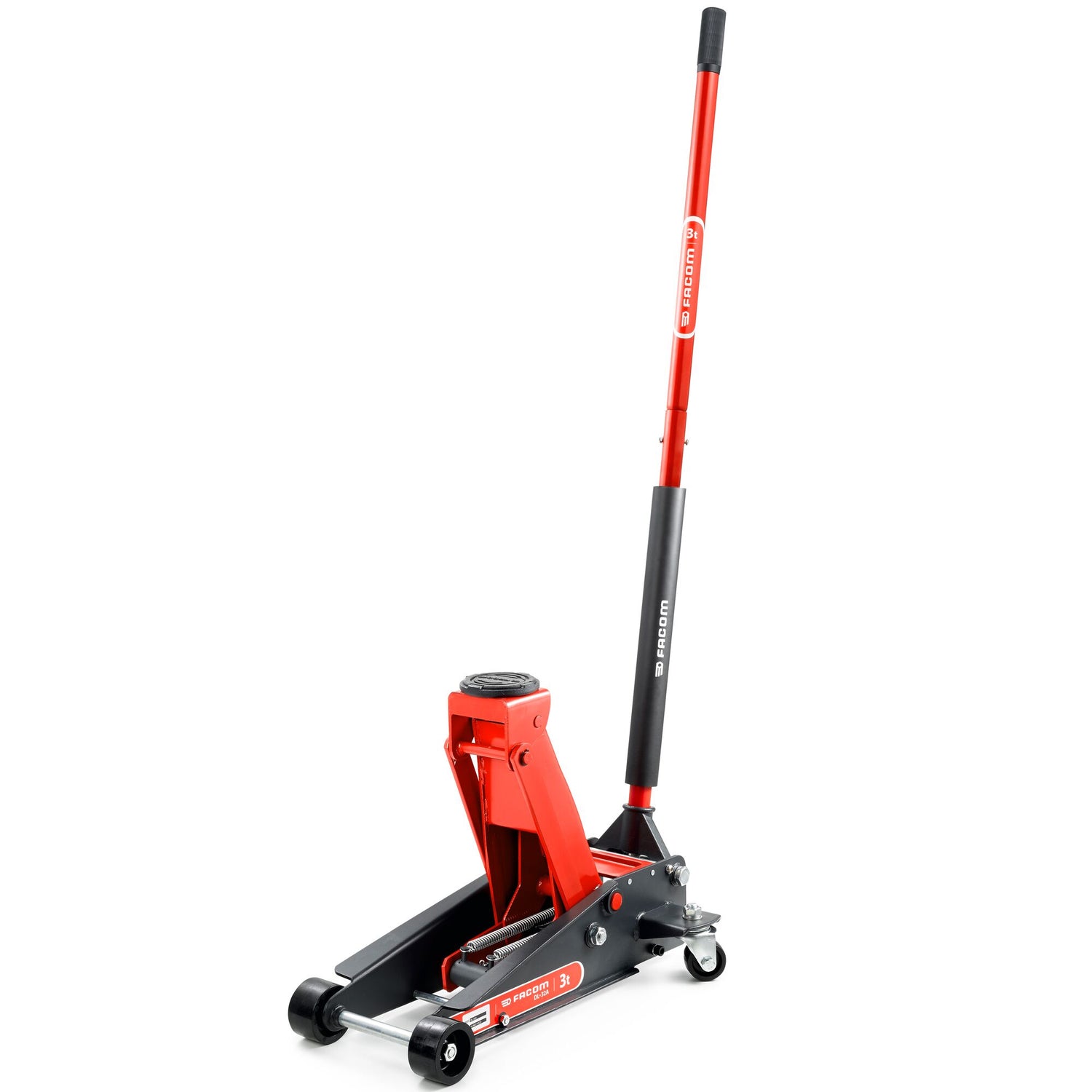

3 t floor jack
SKU:
DL.32APB
- Force: 3 t.
- Maximum lift: 465 mm.
- Minimum under-body clearance: 133 mm.
- Quick-lift device brings jack into contact in a single movement.
- Under-body rubber plate.
- Tube fitted with protection foam.
- Silent-running nylon tyred wheels.
- Dimensions (L. x W x H.): 690 x 337 x 163 mm.
- EC standard EN1494-ASME-PASE.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
EN 1494, EN 1494-ASME-PASE, MSD 2006/42/CE
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: This product is covered by a 2-year warranty
Click here to learn more about our warranties.
Description
Description
- Force: 3 t.
- Maximum lift: 465 mm.
- Minimum under-body clearance: 133 mm.
- Quick-lift device brings jack into contact in a single movement.
- Under-body rubber plate.
- Tube fitted with protection foam.
- Silent-running nylon tyred wheels.
- Dimensions (L. x W x H.): 690 x 337 x 163 mm.
- EC standard EN1494-ASME-PASE.
Specifications
Specifications
- Appareil connectéNon
- Bluetooth®Non
- Capacité de levage3 t
- Charge maximale du châssis220 mm
- Charge maximale30000 Kg
- Coussin rembourréOui
- Empreinte au sol680 mm
- Hauteur maximale1305 mm
- Hauteur du produit163 mm
- Levage maximum465 mm
- Longueur du produit337 mm
- Largeur du produit220 mm
- Marquage CEOui
- MatériauAluminium
- Nombre de pièces1
- Nombre de roues4
- Presse d’établiOui
- Pour poids lourds-véhicules industrielsOui
- Poids lourds-véhicules industrielsOui
- Poids net30.5 Kg
- Rangement des outilsNon
- Surface magnétiséeNon
- Type de fonctionHydraulique
- Type de presses hydrauliquesPoussoirs
- Usage intensifNon
- VoitureNon
- Vanne de surchargeOui
Technical drawing and dimensions
Technical drawing and dimensions
-
A (mm)615.00
-
B1 (mm)255.00
-
B (mm)344.00
-
C1 (mm)220.00
-
C (mm)133.00
-
E (mm)48.00
-
H (mm)163.00
-
L (mm)690.00
