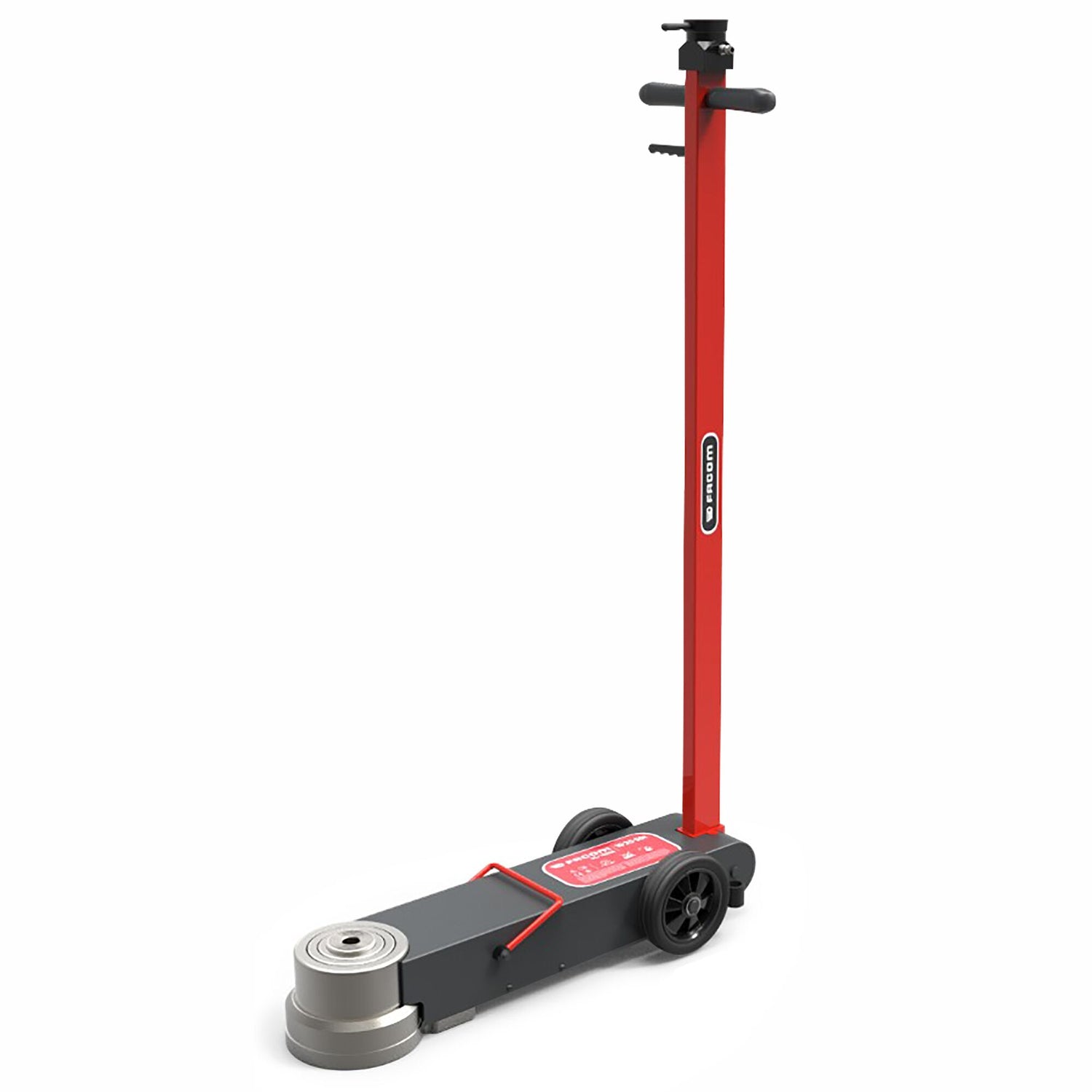

DL.A - Heavy-Duty Trolley Jacks, 10 - 50 Tons

SKU: DL.1050A  -  Barcode: 3662424144721
  • 10-25-50 tons heavy duty long reach jack.
  • Robust construction.
  • Long handle, foldable.
  • 2 large wheels for better maneuverability.
  • Minimum height 160 mm.
  • Maximum height 471 mm.
  • 3 Floors:.
  • - 1 st floor: 221 mm 50 tons.
  • - 2 nd floor: 282 mm 25 tons.
  • - 3 rd floor: 351 mm 10 tons.
  • Air control at the handle.
  • Reclining handle, 3 positions.
  • Includes 2 adapters 75mm and 45 mm to increase lifting height.
  • CE conformity.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

EN 1494, EN 1494-ASME-PASE, MSD 2006/42/CE

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description
  • 10-25-50 tons heavy duty long reach jack.
  • Robust construction.
  • Long handle, foldable.
  • 2 large wheels for better maneuverability.
  • Minimum height 160 mm.
  • Maximum height 471 mm.
  • 3 Floors:.
  • - 1 st floor: 221 mm 50 tons.
  • - 2 nd floor: 282 mm 25 tons.
  • - 3 rd floor: 351 mm 10 tons.
  • Air control at the handle.
  • Reclining handle, 3 positions.
  • Includes 2 adapters 75mm and 45 mm to increase lifting height.
  • CE conformity.

Specifications
  • Appareil connectéNon
  • Bluetooth®Non
  • Conformité ECNon
  • Capacité de levage10-25-50 t
  • Charge maximale du châssis361 mm
  • Empreinte au sol361 mm
  • Hauteur du produit1370 mm
  • Longueur du produit825 mm
  • Largeur du produit275 mm
  • Marquage CEOui
  • MatériauAluminium
  • Nombre de pièces1
  • Nombre de roues2
  • Presse d’établiNon
  • Pour poids lourds-véhicules industrielsOui
  • Poids lourds-véhicules industrielsOui
  • Poids net61 Kg
  • Rangement des outilsNon
  • Surface magnétiséeNon
  • Source d’alimentationPneumatique
  • Type de fonctionHydraulique
  • Type de presses hydrauliquesPresses hydropneumatiques
  • Usage intensifOui
  • VoitureNon
  • Vanne de surchargeNon

Spare parts

HOSE SA - 1004760-66
VALVE - 1004760-67
LEVER SA - 1004760-68
FILTER - 1004760-69
SCREW KIT - 1004760-70
PUMP SA - 1004760-71
WHEEL SA RIGHT - 1004760-72
HANDLE SA - 1004760-73
WHEEL SA LEFT - 1004760-74
EXTENSION - DL.1050A-A
EXTENSION - DL.1050A-B
GRUB SCREW - L04009

Documents
User Guide

DL.A - Heavy-Duty Trolley Jacks, 10 - 50 Tons

References available

  • [DL.1050A] 10 - 50t Air Hydraulic Jack
  • [DL.1530CA] 15 - 30t Air Hydraulic Jack

Lieu de fabrication

N/A

Normes & certifications

EN 1494, EN 1494-ASME-PASE, MSD 2006/42/CE

Période de garantie

This product is covered by a 2-year warranty
View product
