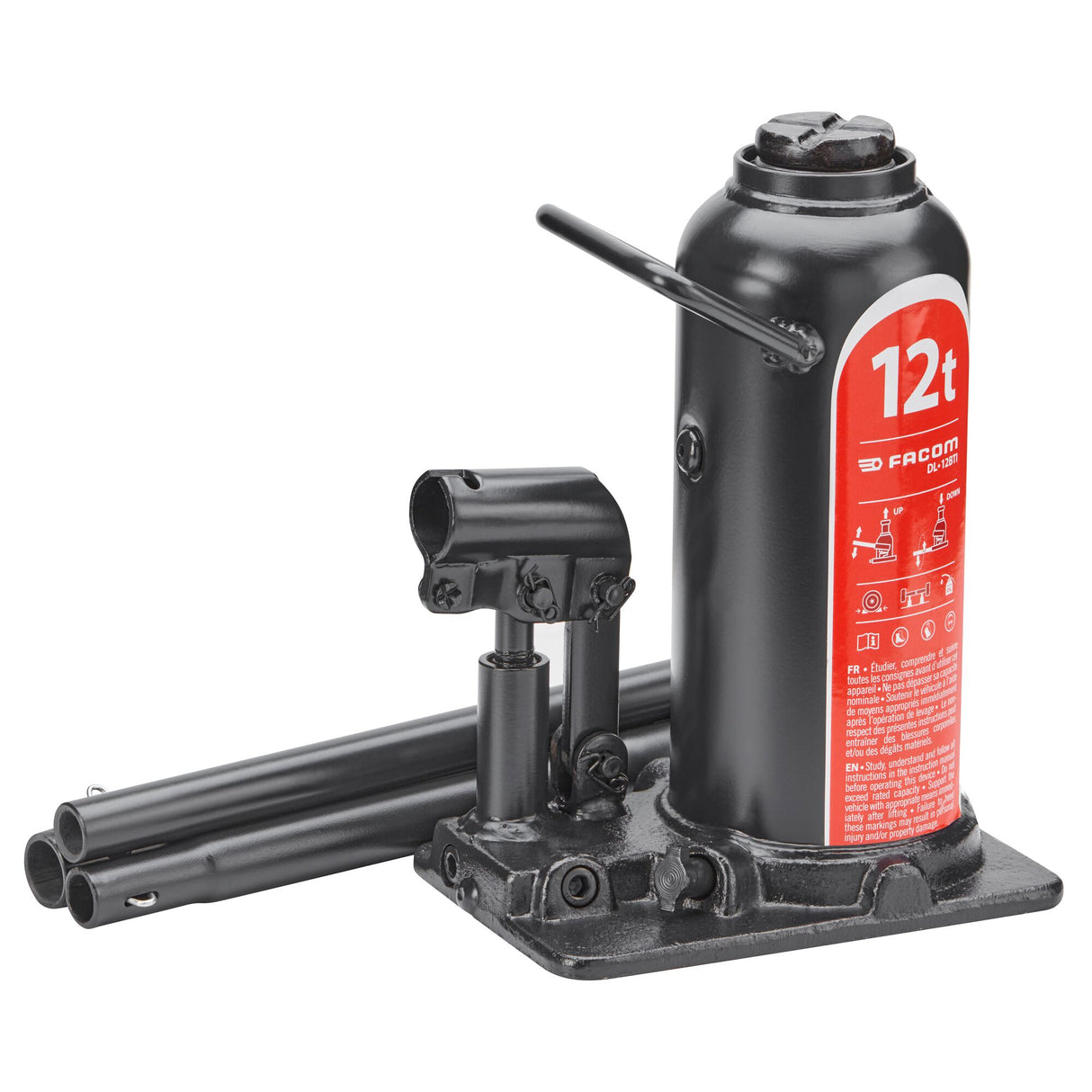

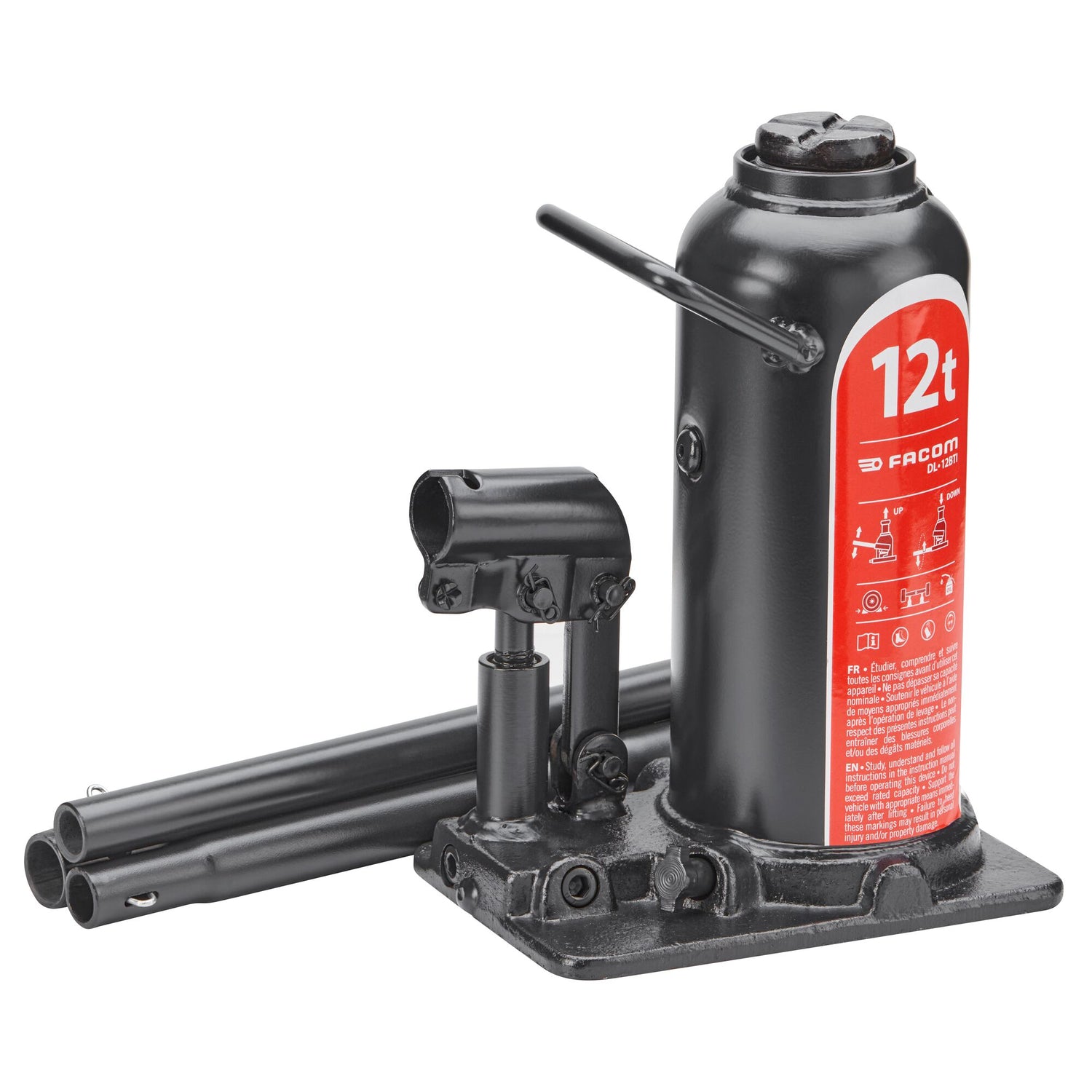

DL.BTI - Heavy duty series bottle jacks

SKU: DL.2BTI  -  Barcode: 3662424059858
  • Capacity: 12t.
  • Designed for heavy-duty professional use.
  • Welded base plate jacks, control in the axis: Stronger, more stable, less leaks.
  • Heat and surface treated pump shaft and actuator.

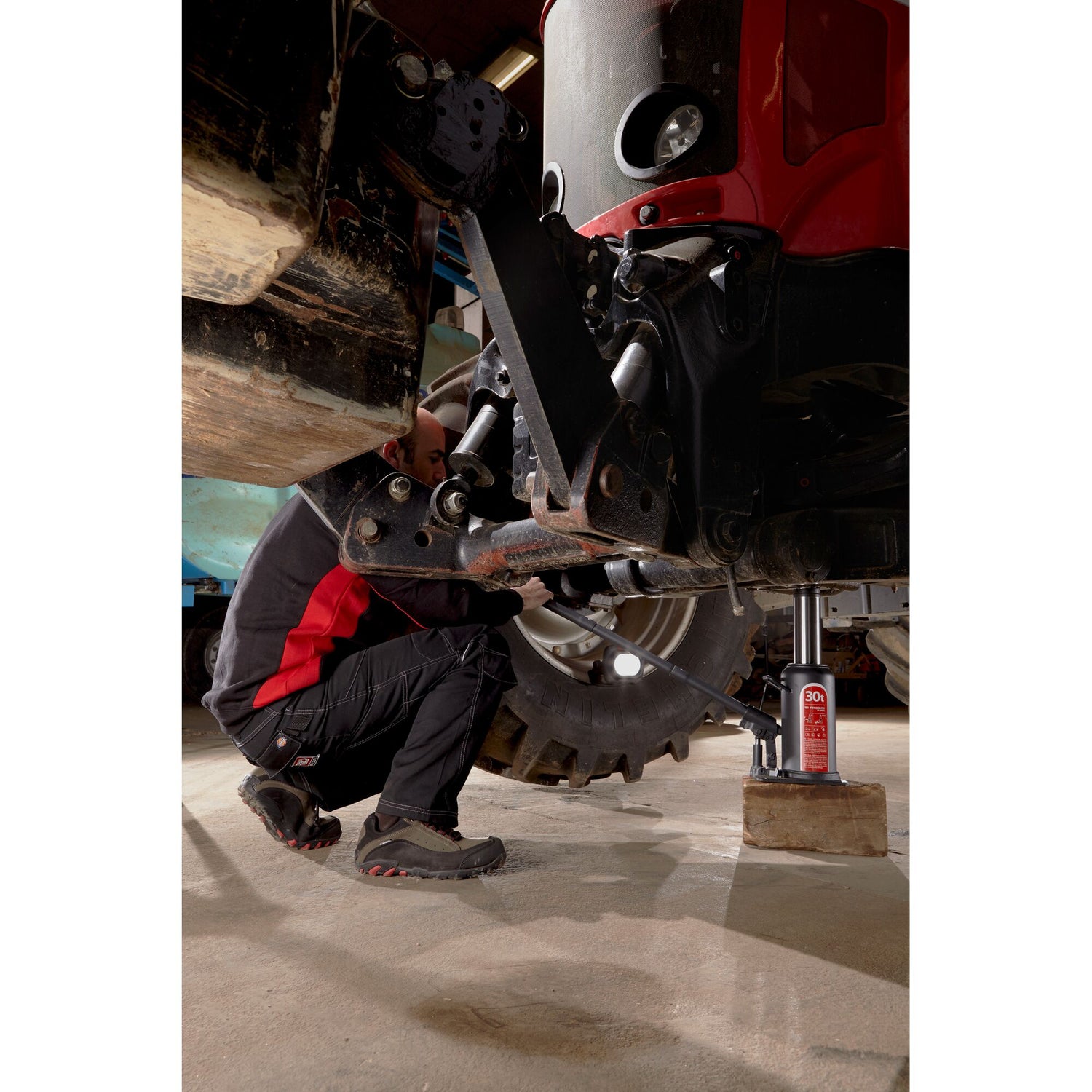

  • Allows for horizontal use as a pusher jack.
  • Complies with directive on machinery 2006/42/CE.
  • Mini-Maxi:238-468 mm.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

2006/42/CE

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description
  • Capacity: 12t.
  • Designed for heavy-duty professional use.
  • Welded base plate jacks, control in the axis: Stronger, more stable, less leaks.
  • Heat and surface treated pump shaft and actuator.
  • Allows for horizontal use as a pusher jack.
  • Complies with directive on machinery 2006/42/CE.
  • Mini-Maxi:238-468 mm.

Specifications
  • Appareil connectéNon
  • Bluetooth®Non
  • Capacité2 l
  • Conformité ECNon
  • Capacité de levage2 t
  • Hauteur maximale317 mm
  • Largeur de la tête177
  • Levage maximum52 mm
  • Marquage CEOui
  • MatériauAluminium
  • Nombre de pièces1
  • Presse d’établiNon
  • Pour poids lourds-véhicules industrielsOui
  • Poids lourds-véhicules industrielsOui
  • Poids net2.4 Kg
  • Rangement des outilsNon
  • Surface magnétiséeNon
  • Source d’alimentationManuel
  • Type de fonctionHydropneumatique
  • Type de presses hydrauliquesPresses hydropneumatiques
  • Usage intensifOui
  • VoitureNon
  • Vanne de surchargeNon

Technical drawing and dimensions

A (mm)B (mm)C (mm)
DL.2BTI [DL.2BTI] 2t Heavy Duty Series Bottle Jack 178.00177.0052.00
DL.5BTI [DL.5BTI] 5t Heavy Duty Series Bottle Jack 198.00122.0070.00
DL.8BTI [DL.8BTI] Heavy duty series bottle jack, 8 t 198.00124.0072.00
DL.12BTI [DL.12BTI] 12t Heavy Duty Series Bottle Jack 238.00160.0080.00
DL.20BTI [DL.20BTI] 20t Heavy Duty Series Bottle Jack 270.00160.00
DL.30BTI [DL.30BTI] 30t Heavy Duty Series Bottle Jack 280.00165.00

Spare parts

PLUNGER - DL.2BTI-19
VALVE - DL.2BTI-2
SLEEVE SA - DL.2BTI-22
HANDLE - DL.2BTI-27
FILLER CAP - DL.2BTI-8

Documents
User Guide

DL.BTI - Heavy duty series bottle jacks

References available

  • [DL.2BTI] 2t Heavy Duty Series Bottle Jack
  • [DL.5BTI] 5t Heavy Duty Series Bottle Jack
  • [DL.8BTI] Heavy duty series bottle jack, 8 t
  • [DL.12BTI] 12t Heavy Duty Series Bottle Jack
  • [DL.20BTI] 20t Heavy Duty Series Bottle Jack
  • [DL.30BTI] 30t Heavy Duty Series Bottle Jack

Lieu de fabrication

N/A

Normes & certifications

2006/42/CE

Période de garantie

This product is covered by a 2-year warranty
