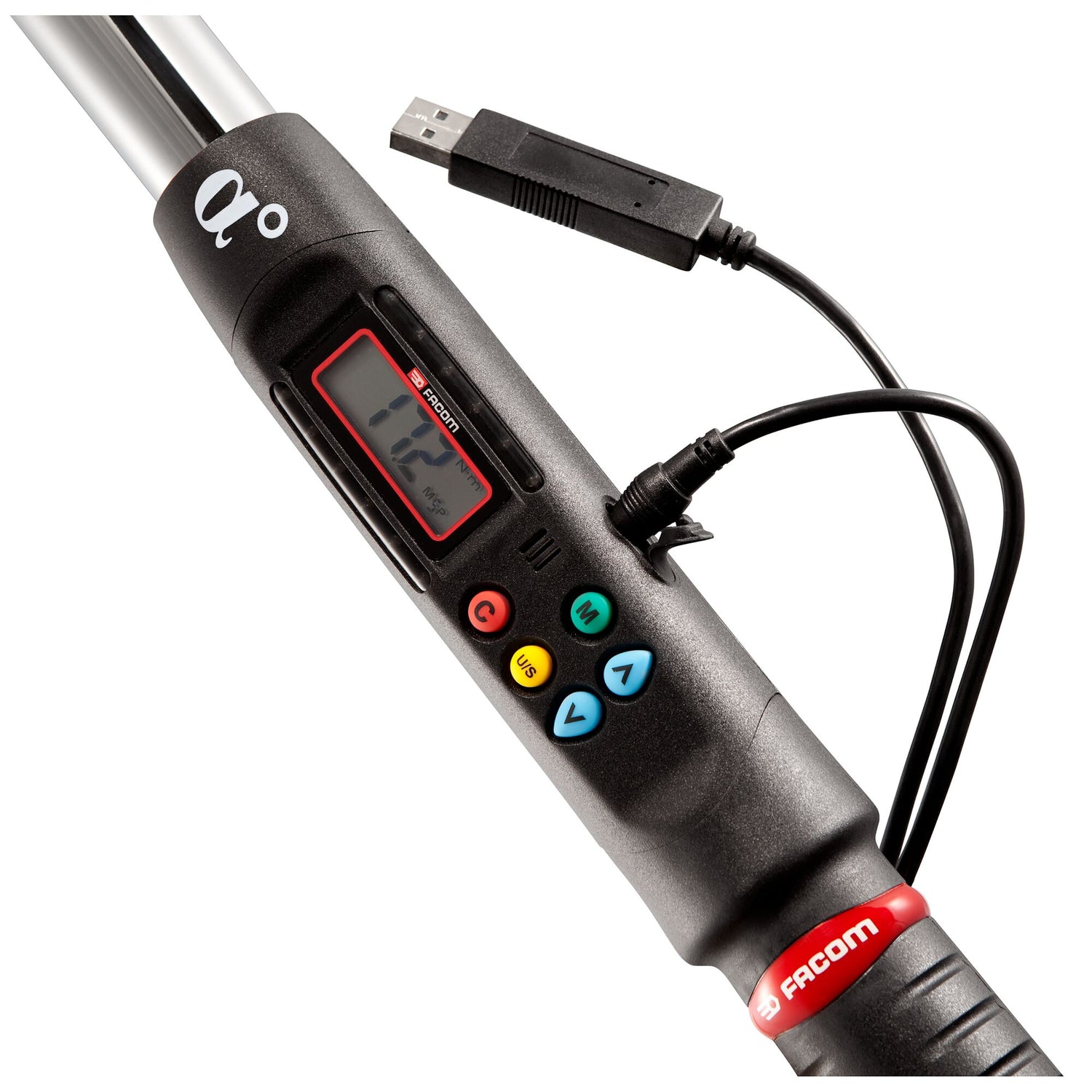

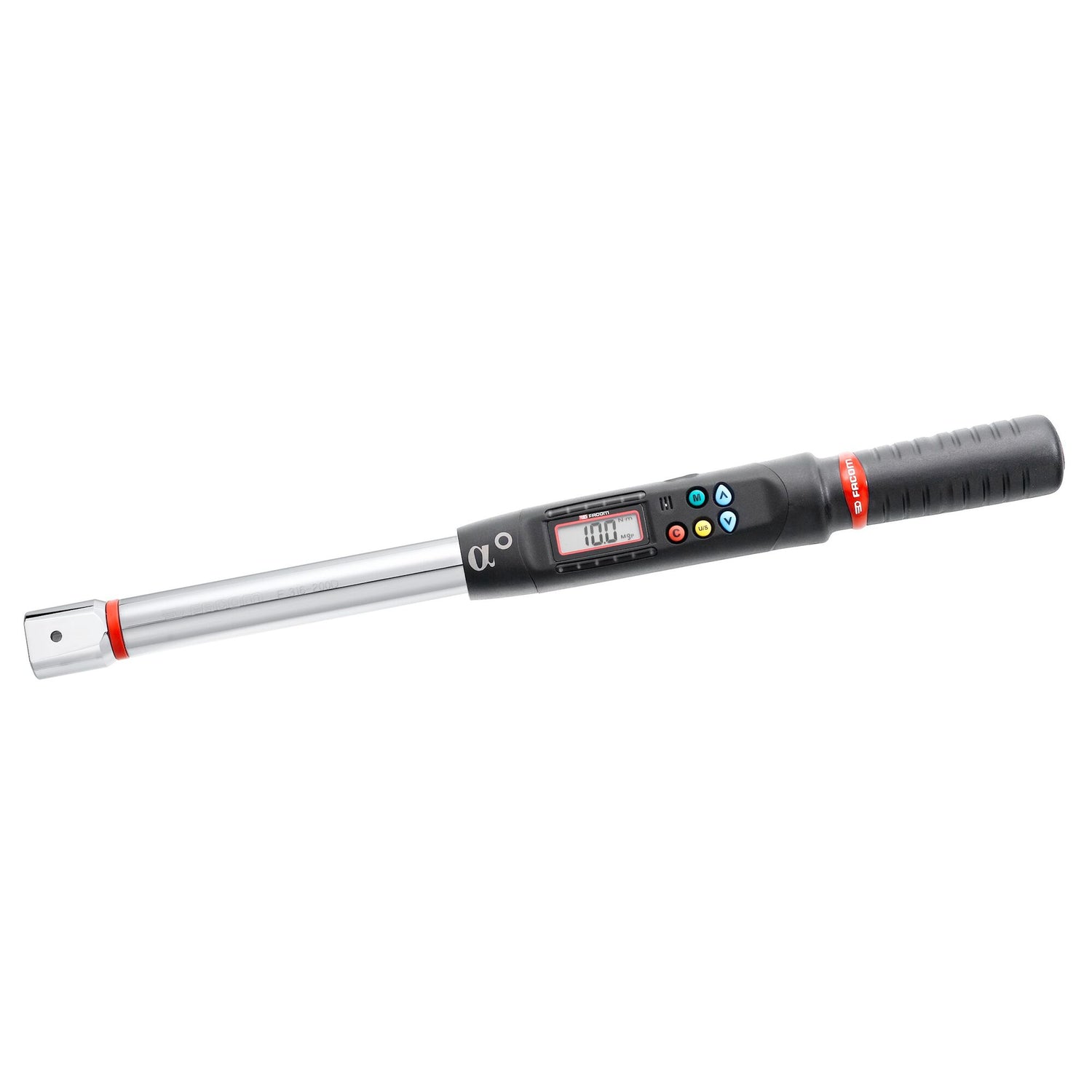

E.316D - Angled Electronic Torque Wrenches

SKU: E.316-30D - Barcode: 3148518450119

ACCURACY: - Torque: ± 2% between 20% and 100% wrench capacity. - Angle: ± 2°.
FITTING: 9 x 12 and 14 x 18 mm.
MODE: Measuring mode, peak or follower.
ACCESS: Locking keypad (the operator has access only to program choices and result memorising).
UNITS: Measuring unit, N.m, lbf.ft, lbf.in, kg.cm and deg.
PRESET: Presetting possible of 9 torque values.
MEMORY: 250 values with PC USB link.
CERTIFICATION: Supplied with calibration certificate.
STORAGE: Supplied in plastic case with foam module.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description

ACCURACY: - Torque: ± 2% between 20% and 100% wrench capacity. - Angle: ± 2°.
FITTING: 9 x 12 and 14 x 18 mm.
MODE: Measuring mode, peak or follower.
ACCESS: Locking keypad (the operator has access only to program choices and result memorising).
UNITS: Measuring unit, N.m, lbf.ft, lbf.in, kg.cm and deg.
PRESET: Presetting possible of 9 torque values.
MEMORY: 250 values with PC USB link.
CERTIFICATION: Supplied with calibration certificate.
STORAGE: Supplied in plastic case with foam module.

Specifications

Spare parts

END CAP - AWKC-RSBC
