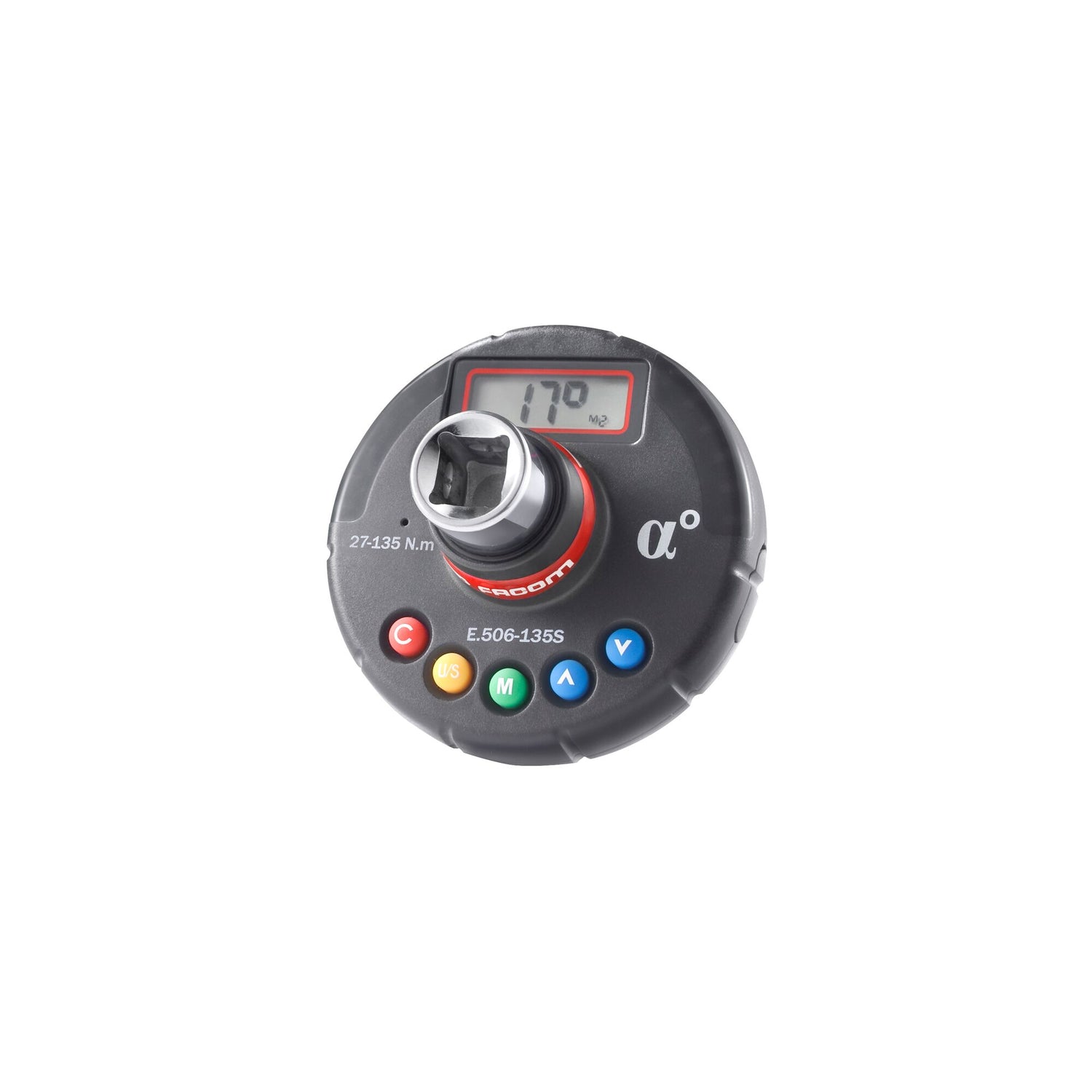

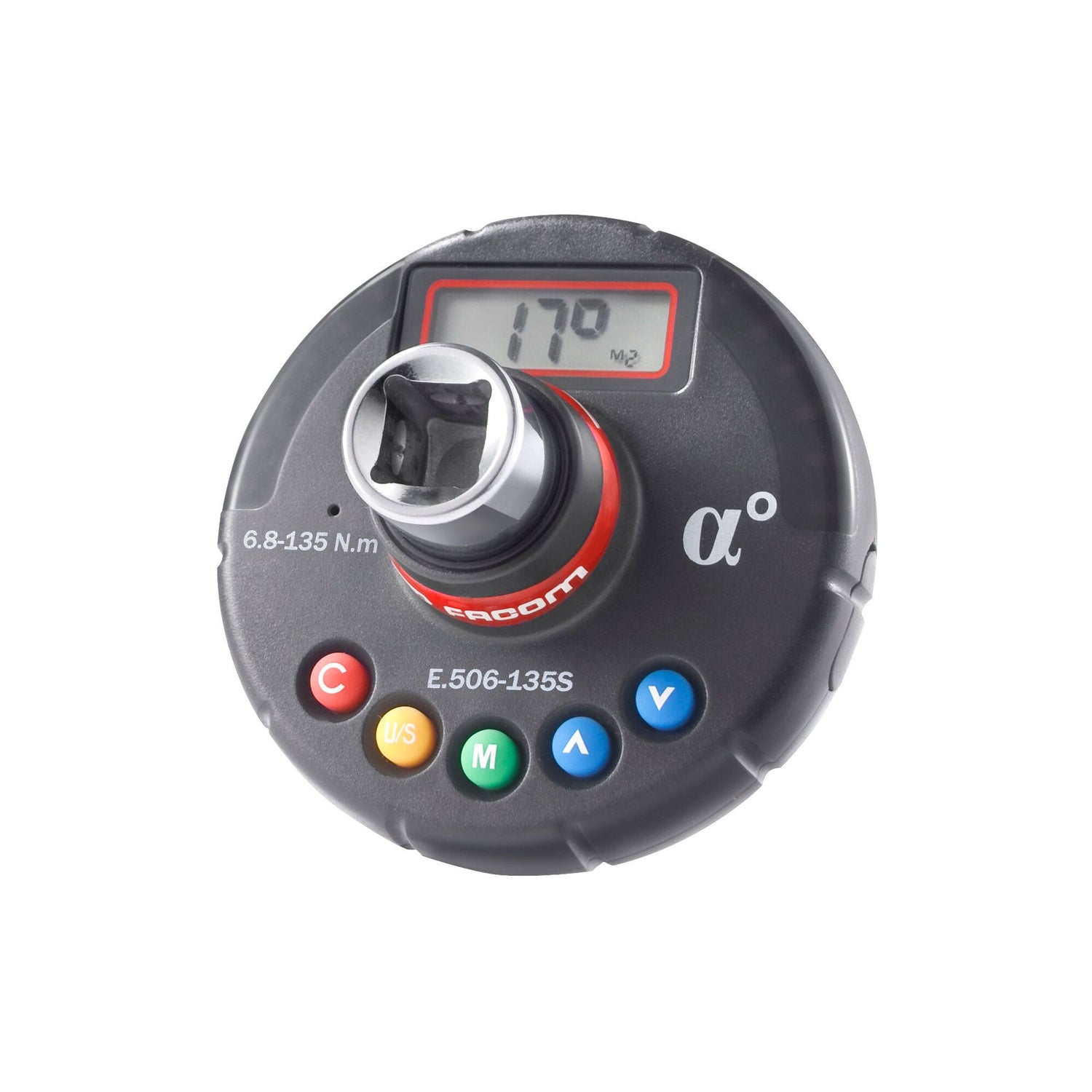

E.506 - Angle electronic torque adapters

SKU: E.506-135S - Barcode: 3148519036053

ACCURACY: Torque: ± 3% between 20% and 100% wrench capacity. - Angle: ± 2°.
MODE: Measuring mode, peak or follower.
PRECISION: Cycle counter.
ACCESS: Locking keypad (the operator has access only to program choices and result memorising).
UNITS: Measuring unit, N.m, lbf.ft, lbf.in, kg.cm and deg.
PRESET: Presetting possible of 9 torque values.
MEMORY: Memory 50 values.
CERTIFICATION: Supplied with calibration certificate.
STORAGE: Supplied in plastic case.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description

ACCURACY: Torque: ± 3% between 20% and 100% wrench capacity. - Angle: ± 2°.
MODE: Measuring mode, peak or follower.
PRECISION: Cycle counter.
ACCESS: Locking keypad (the operator has access only to program choices and result memorising).
UNITS: Measuring unit, N.m, lbf.ft, lbf.in, kg.cm and deg.
PRESET: Presetting possible of 9 torque values.
MEMORY: Memory 50 values.
CERTIFICATION: Supplied with calibration certificate.
STORAGE: Supplied in plastic case.

Specifications

Documents

User Guide
