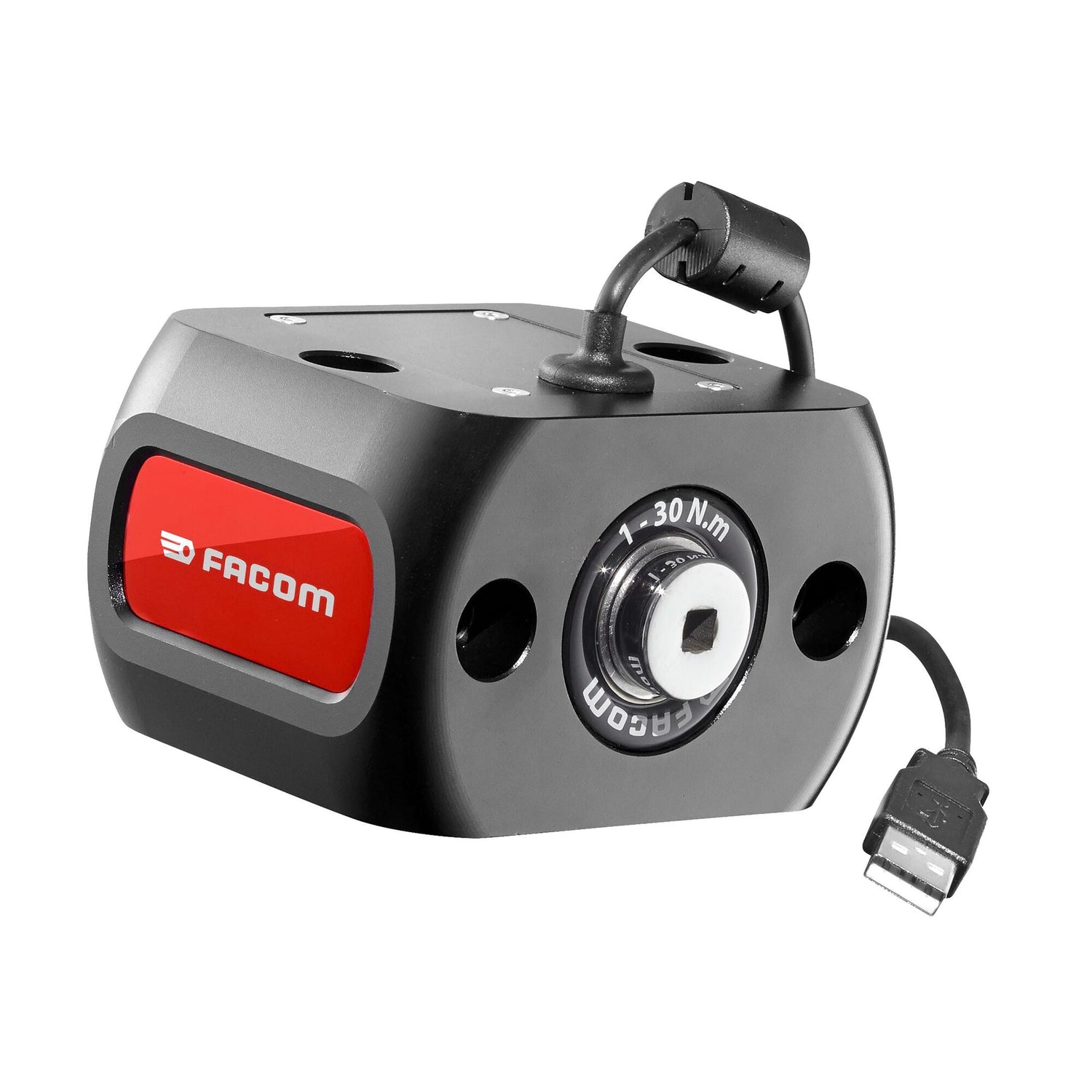

E.6000 - Torque Calibration Sensors

SKU: E.6000-C30 - Barcode: 3662424077944

CAPACITY: Modular system up to 1000 N.m capacity.
ACCURACY: Accuracy exceeds ± 1% in line with ISO 6789.
RANGE: Less than 0.5% from 10-100% of the range.
COMPATABLITY: For use stand alone or with CD12.A calibration bench.
MOUNTING: 2 sets of mounting holes, horizontal or vertical.
SOFTWARE: Requires FACOM control software to be installed on a Windows PC with a spare USB port.
CONNECTION: USB connection to host required for data and power.
CONTENTS: Included square drive adaptors accommodate all drive sizes.
CERTIFATION: Supplied in a durable blow moulded storage case, with a calibration certificate.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

2014/30/EU (EMC), ISO 6789-1:2017

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

CAPACITY: Modular system up to 1000 N.m capacity.
ACCURACY: Accuracy exceeds ± 1% in line with ISO 6789.
RANGE: Less than 0.5% from 10-100% of the range.
COMPATABLITY: For use stand alone or with CD12.A calibration bench.
MOUNTING: 2 sets of mounting holes, horizontal or vertical.
SOFTWARE: Requires FACOM control software to be installed on a Windows PC with a spare USB port.
CONNECTION: USB connection to host required for data and power.
CONTENTS: Included square drive adaptors accommodate all drive sizes.
CERTIFATION: Supplied in a durable blow moulded storage case, with a calibration certificate.
