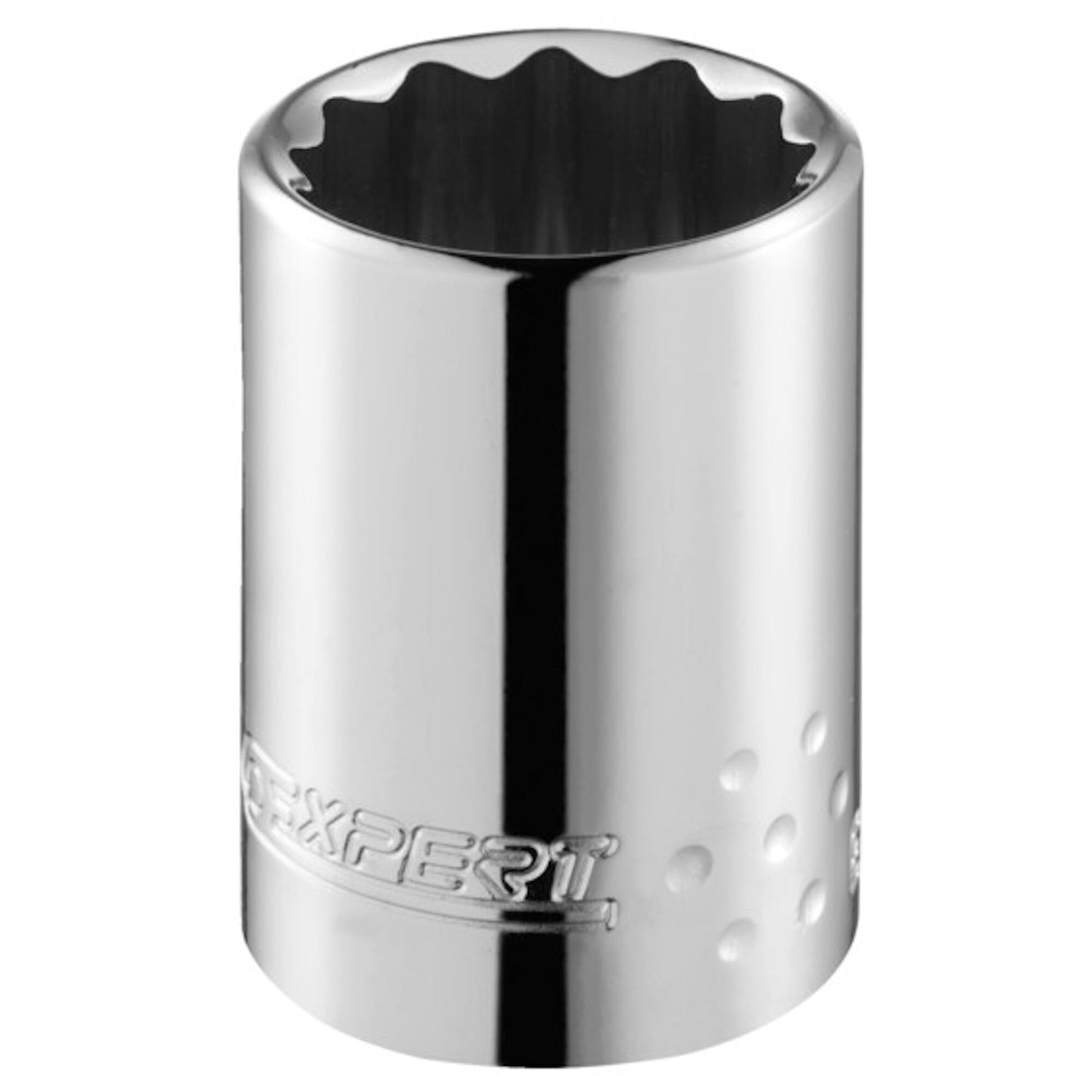

EXPERT by FACOM® 1/2 in. 12-point Sockets

SKU: E032001 - Barcode: 3258950320014

ISO 2725-1.
DIN 3124.
ISO 1174-1.
ISO 1711-1.
ISO 691.
1/2" 12-point sockets - Metric: 36mm.
Chrome vanadium steel.
OGV® profile: tightening torque applied to the sides rather than to the angles of the nut.
High Chrome finish.
For manual use.

Full product description

Warranty

This product is: This product is covered by the statutory warranty

Click here to learn more about our warranties.

Description

ISO 2725-1.
DIN 3124.
ISO 1174-1.
ISO 1711-1.
ISO 691.
1/2" 12-point sockets - Metric: 36mm.
Chrome vanadium steel.
OGV® profile: tightening torque applied to the sides rather than to the angles of the nut.
High Chrome finish.
For manual use.

Specifications

Longueur du produit57.2 mm
Poids net0.462 Kg

Technical drawing and dimensions

		A (mm)	D1 (mm)	D2 (mm)	L1 (mm)	L (mm)
E032001	[E032001] EXPERT by FACOM® 1/2 in. 12-point Socket (36mm)	360	49.80	49.80	27.00	57.20
E117051	[E117051] EXPERT by FACOM® 1/2 in. 12-point socket, Metric 8 mm	80	21.80	12.40	9.00	38.00
E117052	[E117052] EXPERT by FACOM® 1/2 in. 12-point Socket, 9 mm	90	21.80	14.00	10.00	38.00
E117053	[E117053] EXPERT by FACOM® 1/2 in. 12-point Socket, 10 mm	100	21.80	15.50	10.00	38.00
E117054	[E117054] EXPERT by FACOM® 1/2 in. 12-point socket, Metric 11 mm	110	21.80	16.70	10.00	38.00
E117055	[E117055] EXPERT by FACOM® 1/2 in. 12-point Socket, 12 mm	120	21.80	18.00	10.00	38.00
E117056	[E117056] EXPERT by FACOM® 1/2 in. 12-point socket, Metric 13 mm	130	21.80	19.20	10.00	38.00
E117057	[E117057] EXPERT by FACOM® 1/2 in. 12-point Socket, Metric 14 mm	140	21.80	20.50	10.00	38.00
E117058	[E117058] EXPERT by FACOM® 1/2 in. 12-point socket, Metric 15 mm	150	21.80	21.00	14.00	38.00
E117059	[E117059] EXPERT by FACOM® 1/2 in. 12-point Socket, Metric 16 mm	160	23.30	22.50	14.00	38.00
E117060	[E117060] EXPERT by FACOM® 1/2 in. 12-point Socket, Metric 17 mm	170	24.00	24.00	14.00	38.00
E117061	[E117061] EXPERT by FACOM® 1/2 in. 12-point Socket, 18 mm	180	24.80	24.80	14.00	38.00
E117062	[E117062] EXPERT by FACOM® 1/2 in. 12-point socket, Metric 19 mm	190	26.30	26.30	16.70	38.00
E117063	[E117063] EXPERT by FACOM® 1/2 in. 12-point Socket, 20 mm	200	26.80	26.80	17.30	38.00
E117064	[E117064] EXPERT by FACOM® 1/2 in. 12-point Socket, Metric 21 mm	210	27.70	27.70	18.00	38.00
E117065	[E117065] EXPERT by FACOM® 1/2 in. Drive 22mm 12-Point Socket	220	29.80	29.80	18.00	40.00
E117066	[E117066] EXPERT by FACOM® 1/2 in. 12-point socket, Metric 23 mm	230	30.80	30.80	18.00	40.00
E117067	[E117067] EXPERT by FACOM® 1/2 in. 12-point socket, Metric 24 mm	240	31.80	31.80	18.00	40.00
E117068	[E117068] EXPERT by FACOM® 1/2 in. 12-point Socket, Metric 26 mm	260	33.80	33.80	20.00	41.00
E117069	[E117069] EXPERT by FACOM® 1/2 in. 12-point Socket, Metric 27 mm	270	35.80	35.80	20.00	41.00
E117070	[E117070] EXPERT by FACOM® 1/2 in. 12-point socket, Metric 28 mm	280	37.60	37.60	20.00	41.00
E117071	[E117071] EXPERT by FACOM® 1/2 in. 12-point Socket, 29 mm	290	37.80	37.80	20.00	41.00
E117072	[E117072] EXPERT by FACOM® 1/2 in. 12-point Socket, 30 mm	300	39.80	39.80	20.00	41.00
E117073	[E117073] EXPERT by FACOM® 1/2 in. 12-point Socket, Metric 32 mm	320	41.80	41.80	20.00	41.00
