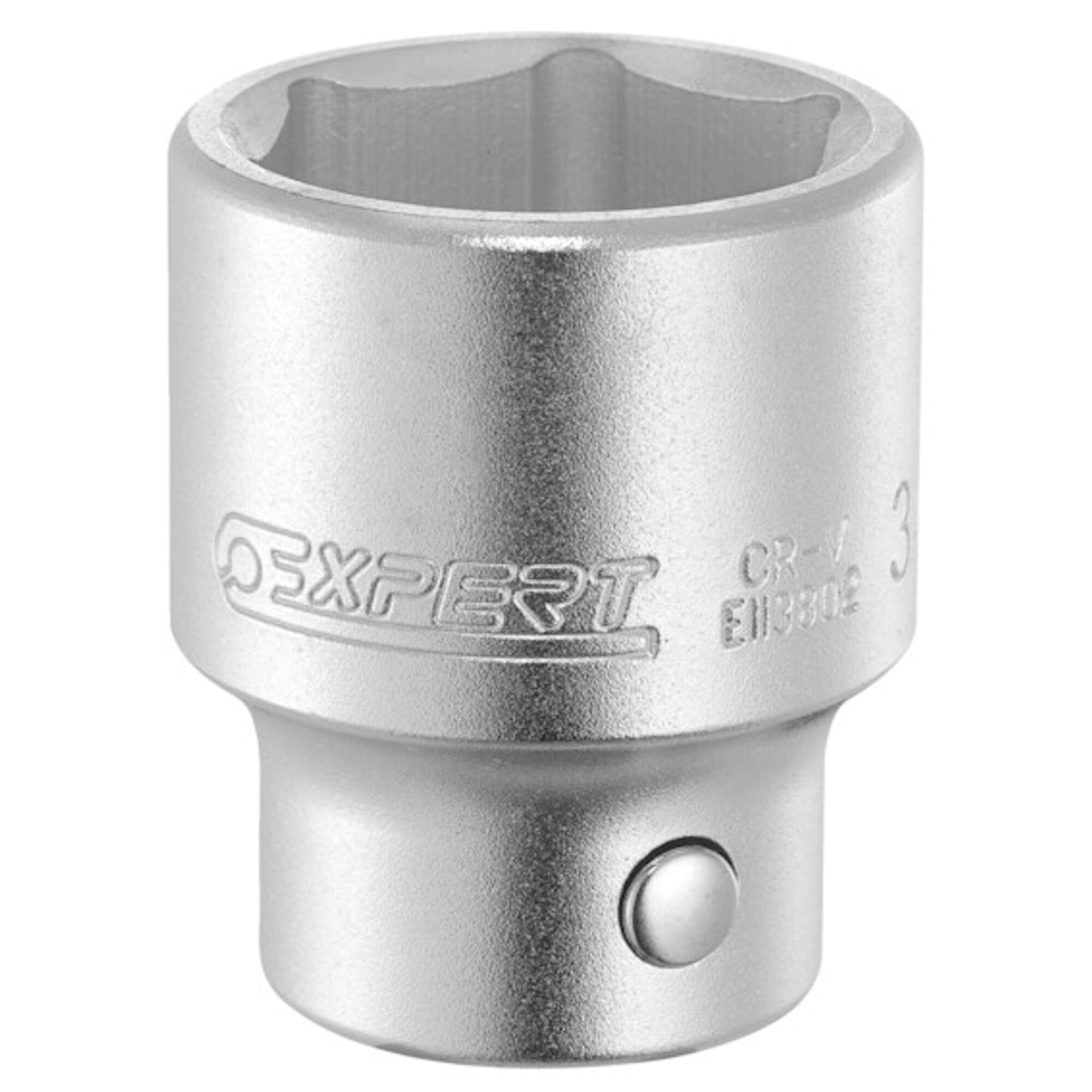

EXPERT by FACOM® 3/4 in. 6 Point Socket, Metric
SKU:
E113790
EXPERT by FACOM® 3/4 in. 6 Point Socket, Metric - [E113790] EXPERT by FACOM® 3/4 in. 6 Point Socket 19 mm is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
ASME B107.110, ISO 2725-1, ISO 691
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: This product is covered by the statutory warranty
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Longueur du produit50 mm
- Poids net0.207 Kg
Technical drawing and dimensions
Technical drawing and dimensions
| A (mm) | D1 (mm) | D2 (mm) | L1 (mm) | L (mm) | |||
|---|---|---|---|---|---|---|---|
| E113790 | [E113790] EXPERT by FACOM® 3/4 in. 6 Point Socket 19 mm | 19.00 | 33.00 | 27.20 | 14.00 | 50.00 | |
| E113791 | [E113791] EXPERT by FACOM® 3/4 in. 6-point Socket, 21 mm | 21.00 | 33.00 | 31.20 | 16.50 | 50.00 | |
| E113792 | [E113792] EXPERT by FACOM® 3/4 in. 6 Point Socket 22 mm | 22.00 | 36.00 | 32.20 | 16.50 | 50.00 | |
| E113793 | [E113793] EXPERT by FACOM® 3/4 in. 6-point Socket, 23 mm | 23.00 | 36.00 | 33.20 | 16.50 | 50.00 | |
| E113794 | [E113794] EXPERT by FACOM® 3/4 in. Drive 6-Point 24mm Socket | 23.00 | 36.00 | 34.20 | 16.50 | 51.00 | |
| E113796 | [E113796] EXPERT by FACOM® 3/4 in. 6-point Socket, 27 mm | 27.00 | 36.00 | 38.00 | 22.00 | 52.00 | |
| E113799 | [E113799] EXPERT by FACOM® 3/4 in. 6-point Socket, 30 mm | 30.00 | 36.00 | 42.00 | 24.00 | 54.00 | |
| E113800 | [E113800] EXPERT by FACOM® 3/4 in. 6-point Socket, 32 mm | 32.00 | 36.00 | 44.00 | 24.00 | 56.00 | |
| E113801 | [E113801] EXPERT by FACOM® 3/4 in. 6 Point Socket 33 mm | 33.00 | 36.00 | 46.00 | 26.00 | 56.00 | |
| E113802 | [E113802] EXPERT by FACOM® 3/4 in. 6-point Socket, 34 mm | 34.00 | 36.00 | 47.00 | 26.00 | 56.00 | |
| E113804 | [E113804] EXPERT by FACOM® 3/4 in. 6-point Socket, 36 mm | 36.00 | 38.00 | 50.00 | 28.00 | 58.00 | |
| E113805 | [E113805] EXPERT by FACOM® 3/4 in. 6-point Socket, 38 mm | 38.00 | 38.00 | 52.00 | 28.00 | 60.00 | |
| E113806 | [E113806] EXPERT by FACOM® 3/4 in. 6-point Socket, 40 mm | 40.00 | 40.00 | 54.00 | 30.00 | 62.00 | |
| E113807 | [E113807] EXPERT by FACOM® 3/4 in. 6 Point Socket (41 mm) | 41.00 | 40.00 | 56.00 | 30.00 | 64.00 | |
| E113808 | [E113808] EXPERT by FACOM® 3/4 in. 6 Point Socket 42 mm | 42.00 | 40.00 | 57.00 | 30.00 | 64.00 | |
| E113810 | [E113810] EXPERT by FACOM® 3/4 in. 6 Point Socket 46 mm | 46.00 | 42.00 | 62.00 | 32.00 | 66.00 | |
| E113811 | [E113811] EXPERT by FACOM® 3/4 in. 6 -point Socket, 50 mm | 50.00 | 42.00 | 68.00 | 34.00 | 70.00 | |
| E113813 | [E113813] EXPERT by FACOM® 3/4 in. 6-point Socket, 55 mm | 55.00 | 45.00 | 75.00 | 36.00 | 75.00 |
