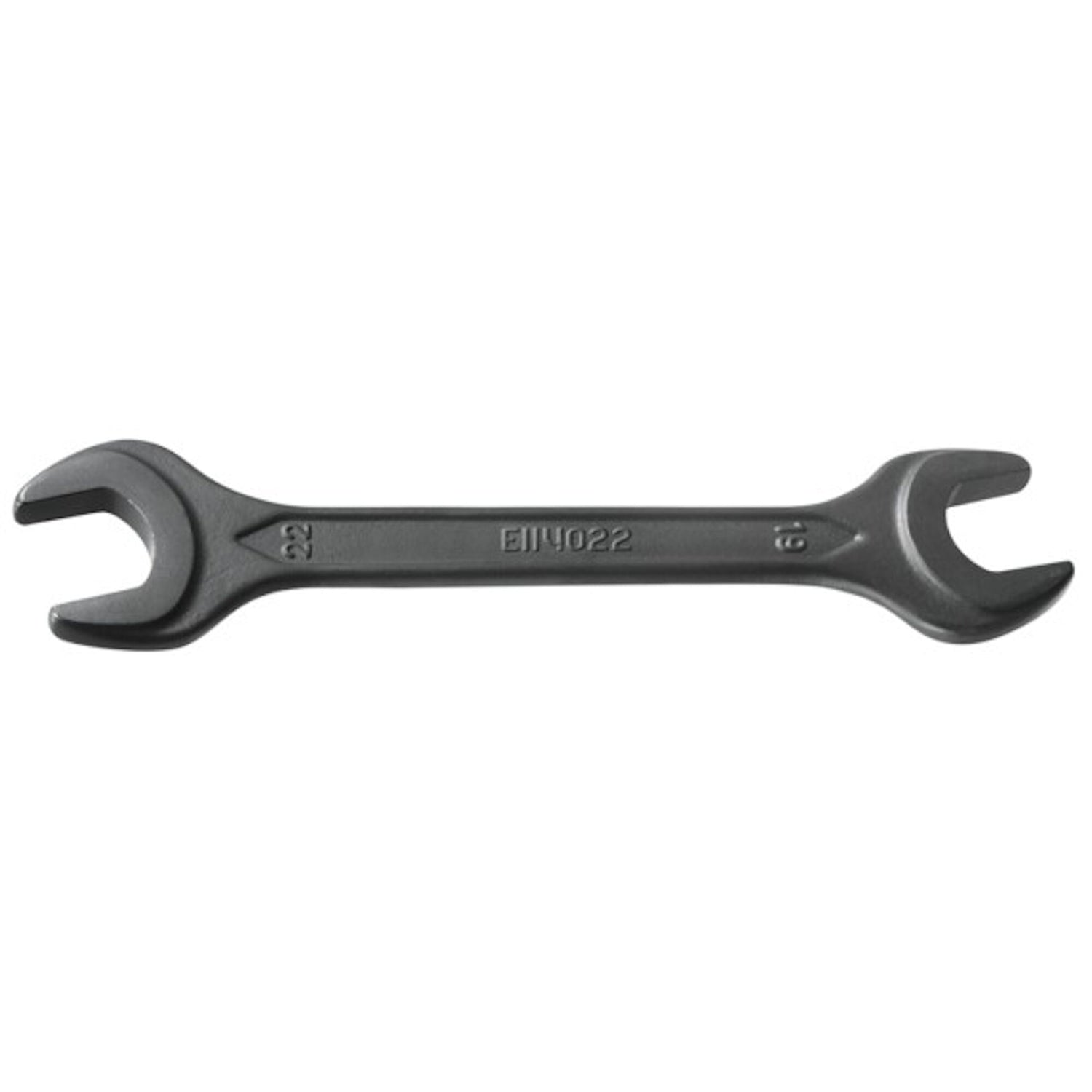

EXPERT by FACOM® DIN Open-End Wrenches

SKU: E114001 - Barcode: 3258951140017

DIN 894.
ISO 272.
ISO 1711-1.
ISO 691.
ISO 3318.
DIN open-end wrench: 5.5x7mm.
Open end with 15° angle with respect to the handle's axis.
(30° increment).
Forged in high grade alloy steel.
Black phosphate finish.

Full product description

Warranty

This product is: This product is covered by the statutory warranty

Click here to learn more about our warranties.

Description

DIN 894.
ISO 272.
ISO 1711-1.
ISO 691.
ISO 3318.
DIN open-end wrench: 5.5x7mm.
Open end with 15° angle with respect to the handle's axis.
(30° increment).
Forged in high grade alloy steel.
Black phosphate finish.

Specifications

Longueur du produit93 mm
Poids net0.012 Kg

Technical drawing and dimensions

		A (mm)	B1 (mm)	B (mm)	C (mm)	L (mm)
E114001	[E114001] EXPERT by FACOM® DIN Open-end Wrench, 5.5X7 mm	5.50	15.00	13.00	3.00	93.00
E114005	[E114005] EXPERT by FACOM® 8X9 mm DIN Open-End Wrench	80	19.00	17.00	3.40	101.00
E114006	[E114006] EXPERT by FACOM® 8 x 10mm DIN Open-End Wrench	80	21.00	17.00	3.80	111.00
E114007	[E114007] EXPERT by FACOM® DIN Open-End Wrench, 9 x 10 mm	90	21.00	19.00	3.80	111.00
E114008	[E114008] EXPERT by FACOM® DIN Open-End Wrench, 10X11 mm	100	24.00	21.00	4.70	120.00
E114012	[E114012] EXPERT by FACOM® 12X13 mm DIN Open-End Wrench	120	27.00	25.00	5.20	130.00
E114016	[E114016] EXPERT by FACOM® DIN Open-End Wrench, 13X17 mm	130	34.50	27.00	6.00	155.00
E114017	[E114017] EXPERT by FACOM® DIN 14X15 mm Open-End Wrench	140	30.50	28.50	5.50	150.00
E114019	[E114019] EXPERT by FACOM® 16 x 18mm DIN Open-End Wrench	160	33.50	32.50	6.20	162.00
E114020	[E114020] EXPERT by FACOM® DIN open-end wrench 17X19 mm	170	38.50	34.50	6.20	172.00
E114022	[E114022] EXPERT by FACOM® 19X22 mm DIN Open-End Wrench	190	44.00	38.50	6.50	184.00
E114023	[E114023] EXPERT by FACOM® DIN Open-End Wrench 19X24 mm	190	48.00	38.50	7.50	201.00
E114025	[E114025] EXPERT by FACOM® DIN Open-End Wrench, 24X27 mm	240	53.00	48.00	8.50	236.00
E114026	[E114026] EXPERT by FACOM® 24 x 30 mm DIN Open-End Wrench	240	60.00	48.00	9.20	276.00
E114027	[E114027] EXPERT by FACOM® 27 X 30 mm DIN Open-End Wrench	270	60.00	53.00	9.20	275.00
E114028	[E114028] EXPERT by FACOM® DIN 30 x 32mm Open-End Wrench	300	64.00	60.00	10.20	275.00
E114029	[E114029] EXPERT by FACOM® 30 X 34mm DIN Open-End Wrench	300	68.00	60.00	10.60	280.00
E114030	[E114030] EXPERT by FACOM® DIN Open-End Wrench, 32X36 mm	320	71.00	64.00	11.20	297.00
E114031	[E114031] EXPERT by FACOM® DIN open-end wrench 36X41 mm	360	81.00	71.00	12.50	335.00
E114032	[E114032] EXPERT by FACOM® DIN open-end wrench 41X46 mm	410	92.00	81.00	12.50	374.00
E114033	[E114033] EXPERT by FACOM® 46 x 50mm DIN Open-End Wrench	460	100.00	92.00	13.00	414.00
E114034	[E114034] EXPERT by FACOM® 55 x 60 mm DIN Open-End Wrench	550	120.00	110.00	14.40	480.00
