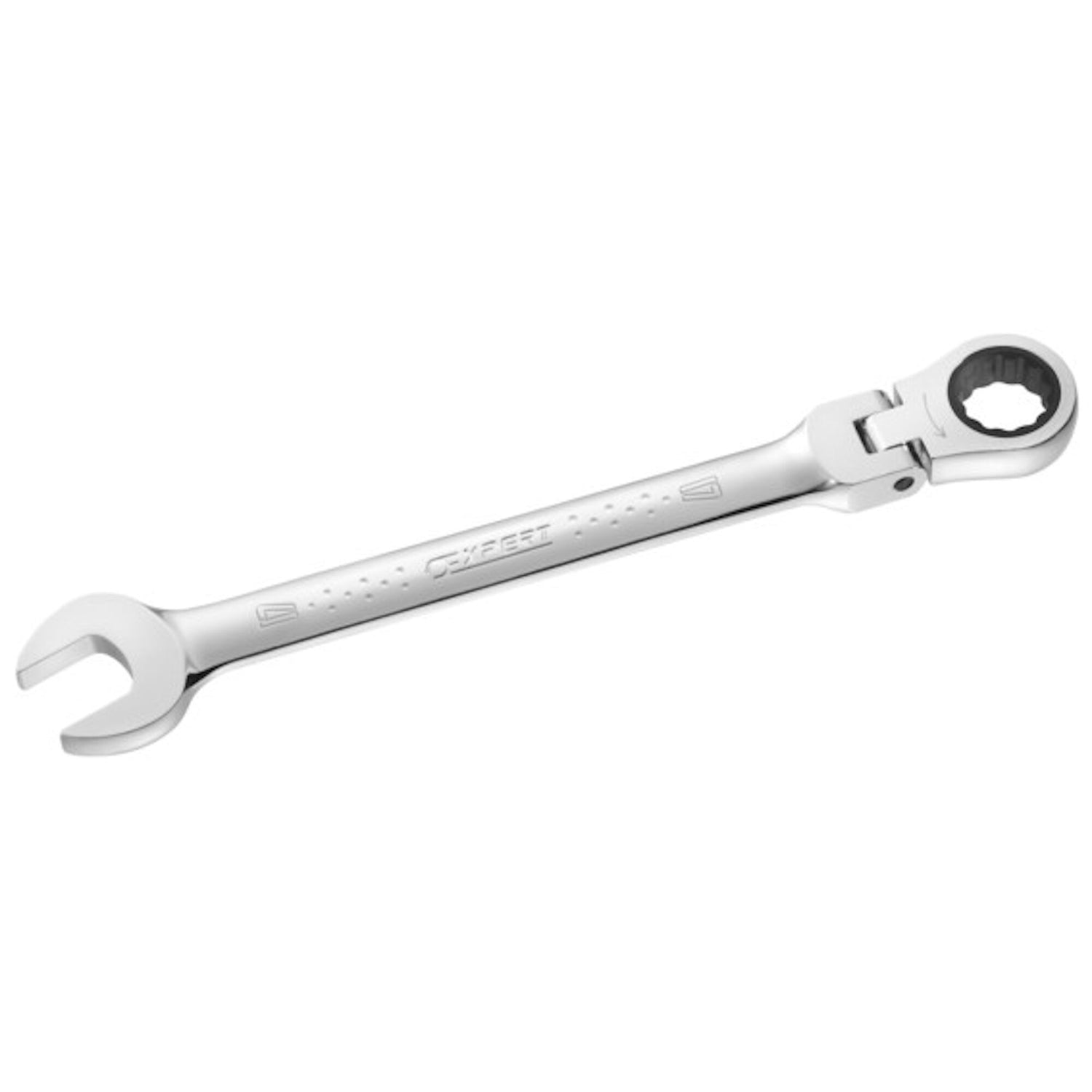

Expert Metric Flex Head Ratcheting Combination Wrenches, Metric

SKU: E110901 - Barcode: 3258951109014

ISO 691.
ISO 1711-1.
Metric: 8mm.
5° increment.
12-point OGV® ring end flexible through 180°.
Open end angled at 15° from the handle axis (increment angle 30°).
OGV® Ring profile maximizing contact surface with the nut for a longer lifetime.
Switch of direction by turning the wrench.
Forged in Chrome Vanadium steel.
High chrome finish.
ISO 1711-1.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.100, ISO 1711-1, ISO 21982, ISO 691

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by the statutory warranty

Click here to learn more about our warranties.

Description

ISO 691.
ISO 1711-1.
Metric: 8mm.
5° increment.
12-point OGV® ring end flexible through 180°.
Open end angled at 15° from the handle axis (increment angle 30°).
OGV® Ring profile maximizing contact surface with the nut for a longer lifetime.
Switch of direction by turning the wrench.
Forged in Chrome Vanadium steel.
High chrome finish.
ISO 1711-1.

Specifications

Technical drawing and dimensions

		A (mm)	B1 (mm)	B (mm)	C (mm)	E1 (mm)	E2 (mm)	L (mm)
E110901	[E110901] EXPERT by FACOM® 8mm Ratcheting Hinged Combination Wrench, Metric 8 mm	80	17.50	17.00	5.50	5.50	7.00	136.00
E110902	[E110902] EXPERT by FACOM® 9mm Ratcheting Hinged Combination Wrench, Metric	90	19.30	19.20	5.80	5.80	7.60	143.00
E110903	[E110903] EXPERT by FACOM® Ratcheting Hinged Combination Wrench, Metric 10 mm	100	21.00	21.30	6.10	6.10	7.70	160.00
E110904	[E110904] EXPERT by FACOM® 11mm Ratcheting Hinged Combination Wrench	110	22.70	23.70	6.40	6.40	8.20	168.00
E110905	[E110905] EXPERT by FACOM® Ratcheting Hinged Combination Wrench, 12 mm	120	24.00	25.80	6.70	6.70	8.70	174.00
E110906	[E110906] EXPERT by FACOM® Ratcheting Hinged Combination Wrench, Metric 13 mm	130	26.00	26.80	7.00	7.00	9.30	180.00
E110907	[E110907] EXPERT by FACOM® 14mm Ratcheting Hinged Combination Wrench	140	27.70	30.40	7.30	7.30	9.40	193.00
E110908	[E110908] EXPERT by FACOM® 15mm Ratcheting Hinged Combination Wrench	150	29.10	32.10	7.70	7.70	10.00	200.00
E110909	[E110909] EXPERT by FACOM® 16mm Ratcheting Hinged Combination Wrench	160	30.70	33.00	8.00	8.00	10.60	216.00
E110910	[E110910] EXPERT by FACOM® 17mm Ratcheting Hinged Combination Wrench	170	32.60	37.00	8.00	8.30	10.90	233.00
E110911	[E110911] EXPERT by FACOM® 18 mm Ratcheting Hinged Combination Wrench	180	33.00	38.00	8.60	8.60	11.20	239.00
E110912	[E110912] EXPERT by FACOM® 19mm Ratcheting Hinged Combination Wrench	190	34.00	40.00	9.00	9.00	11.50	250.00
