Facom - The Art of Precision since 1918.

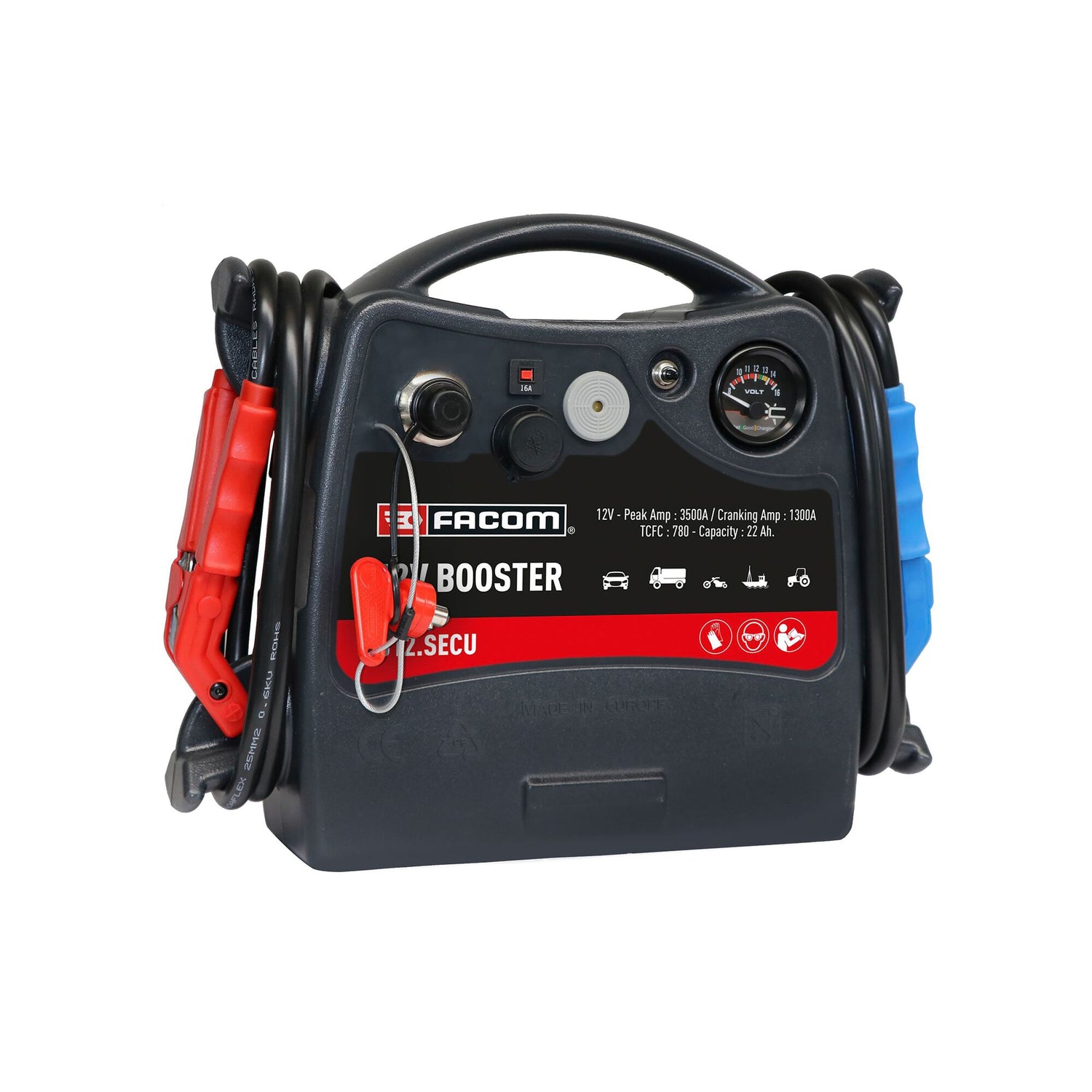

Heavy duty 12V starting booster

SKU: B12.SECU  -  Barcode: 3662424085567
  • Starting booster.
  • Operating voltage 12V.
  • Safety switch and reversed polarity alarm.
  • Capacity 22 Ah.
  • Sealed internal AGM battery.
  • Mac 'Peak' current: 3500A.
  • Max starting current: 1300A.
  • TCFC: 780A.
  • Double insulation copper cables 25 mm² 1.55 m long.
  • Straight pliers 650A.
  • Protection by 300A timed fuse.
  • Analog charge control voltmeter.
  • Cigar lighter protected by a 16A re-arming fuse.
  • Automatic charger 2A.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

2011/65/EU (RoHS), 2012/19/EU (WEEE), 2014/30/EU (EMC), 2014/35/EU (LVD)

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description
  • Starting booster.
  • Operating voltage 12V.
  • Safety switch and reversed polarity alarm.
  • Capacity 22 Ah.
  • Sealed internal AGM battery.
  • Mac 'Peak' current: 3500A.
  • Max starting current: 1300A.
  • TCFC: 780A.
  • Double insulation copper cables 25 mm² 1.55 m long.
  • Straight pliers 650A.
  • Protection by 300A timed fuse.
  • Analog charge control voltmeter.
  • Cigar lighter protected by a 16A re-arming fuse.
  • Automatic charger 2A.

Specifications
  • Allume-cigare sécuriséOui
  • Booster de démarrageNon
  • Chargeur automatique2A
  • Clips fournisPinces Kelvin
  • Nombre de pièces1
  • Outils à batterieNon
  • Prise d’alimentationOui
  • Poids net11.7 Kg
  • Protection par fusible à retardementOui
  • Sécurité de l’alimentation et alarme de polarité inverséeOui
  • Sélection d'outilsNon
  • Testeur de batterieNon
  • Voltmètre de contrôle de charge analogiqueNon
  • Voltage de la batterie12 V

Spare parts

FUSE - 1004730-03
GAUGE - 1004730-04
BUTTON - 1004730-05
FUSE - 1004730-10
TESTER - 1004730-99
BUZZER - 1004733-23
CHARGER 12V QW - 1004737-21
BATTERY - 1004737-22
CABLE - 1004737-23
CABLE CLAMP - 1004737-24
SWITCH - 1004737-25
PLUG - 1004740-32
KEY - 5170070-57

Documents
User Guide

Heavy duty 12V starting booster

References available

  • [B12.SECU] 12V Heavy Duty Starting Booster

Lieu de fabrication

N/A

Normes & certifications

2011/65/EU (RoHS), 2012/19/EU (WEEE), 2014/30/EU (EMC), 2014/35/EU (LVD)
