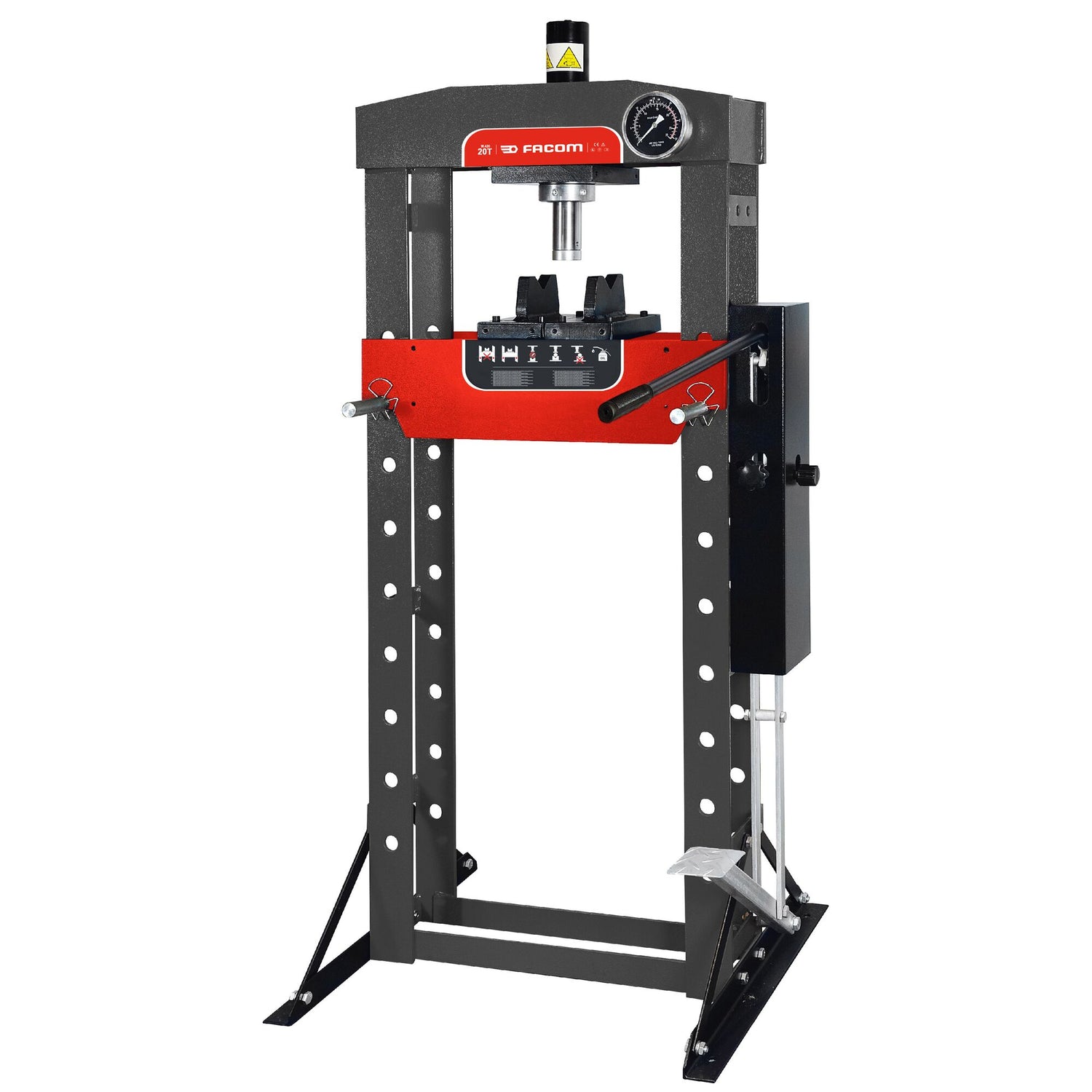

Hydraulic shop press, capacity 20 t

SKU: W.420 - Barcode: 3662424060045

Double pump for fast approach.
Foot and hand control.
Eye-level pressure gauge.
Piston with automatic return.
Piston travel: 185 mm.Side travel 179 mm.
Supplied with pair of reversible V and set of pushers.
Floor dimensions: 730 x 560 mm.
CE compliance Standard EN1494+A1.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

EN 1494, EN1494+, MSD 2006/42/CE

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Double pump for fast approach.
Foot and hand control.
Eye-level pressure gauge.
Piston with automatic return.
Piston travel: 185 mm.Side travel 179 mm.
Supplied with pair of reversible V and set of pushers.
Floor dimensions: 730 x 560 mm.
CE compliance Standard EN1494+A1.

Specifications

Appareil connectéNon
Bluetooth®Non
Conformité ECNon
Capacité de levage20 t
Coussin rembourréNon
Course du piston1
Diamètre1626 mm
Empreinte au sol560 mm
Hauteur maximale1519 mm
Hauteur du produit560 mm
Largeur de la tête560
Marquage CEOui
MatériauAluminium
Nombre de pièces1
Nombre de roues0
Presse d’établiNon
Pour poids lourds-véhicules industrielsNon
Poids lourds-véhicules industrielsNon
Poids net112 Kg
Rangement des outilsNon
Surface magnétiséeNon
Source d’alimentationManuel
Type de fonctionHydraulique
Type de presses hydrauliquesPresses hydrauliques
Usage intensifNon
VoitureOui

Spare parts

SEALS KIT - 1004742-50
SPRING SA - 1004757-70
BLOCK - W.420-1
PUNCH - W.420-12A
RAM SA - W.420-19A
HOSE SA - W.420-26A
MANOMETER - W.420-27
AXLE - W.420-3
PEDAL - W.420-38
PUMP SA - W.420-48A
HANDLE SA - W.420-52A
SEALS KIT - W.420-SEALA
PROTECTOR SA - W.PROTECT20

Documents

User Guide
