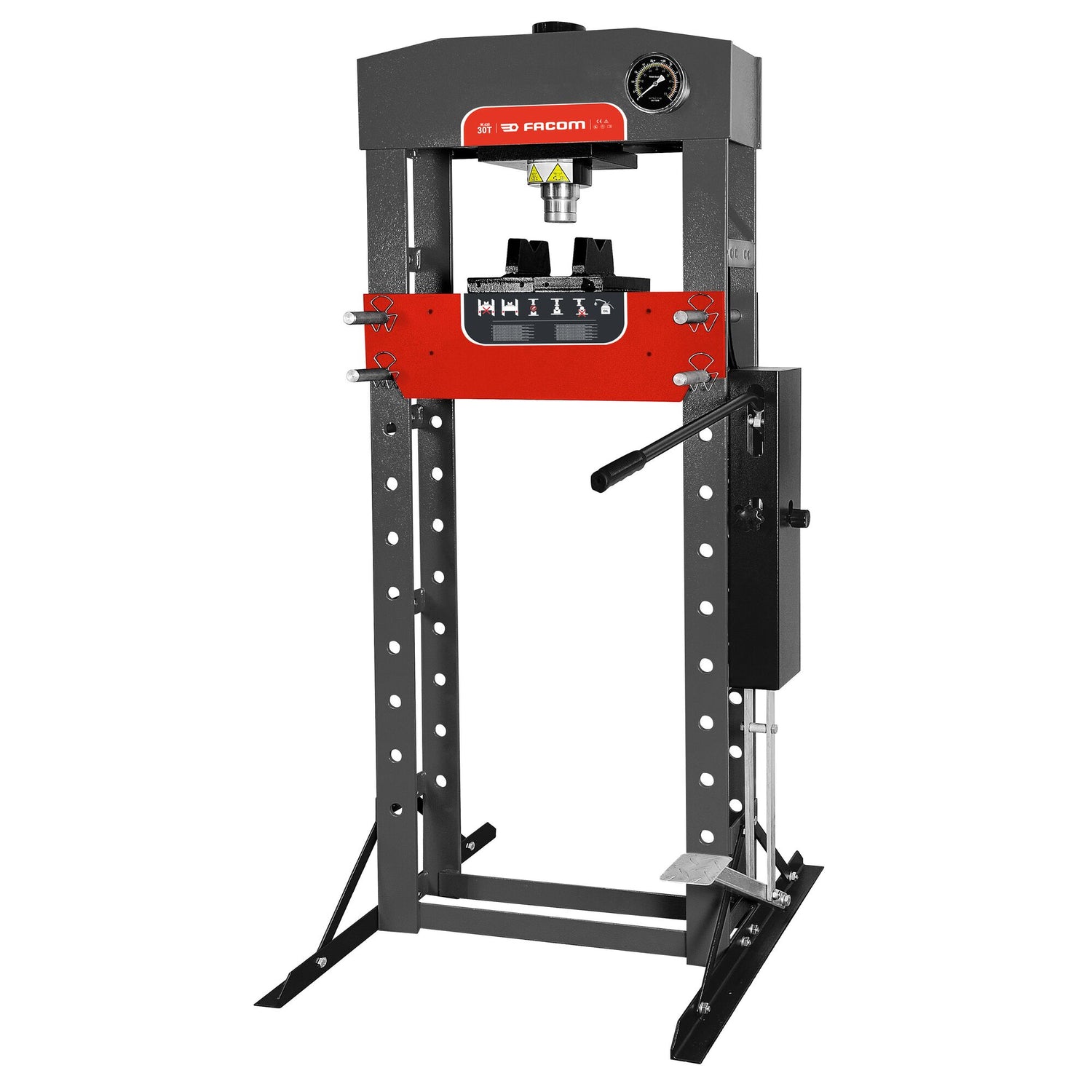

Hydraulic shop press, capacity 30 t

SKU: W.430 - Barcode: 3662424060052

Double pump for fast approach.
Foot and hand control.
Eye-level pressure gauge.
Piston with automatic return.
Piston travel: 150 mm.Side travel 200 mm.
Supplied fitted with pair of reversible V and set of pushers.
CE.EN1494A+.
Floor dimensions: 730 x 560 mm.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

EN 1494, EN1494+, MSD 2006/42/CE

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Double pump for fast approach.
Foot and hand control.
Eye-level pressure gauge.
Piston with automatic return.
Piston travel: 150 mm.Side travel 200 mm.
Supplied fitted with pair of reversible V and set of pushers.
CE.EN1494A+.
Floor dimensions: 730 x 560 mm.

Specifications

Appareil connectéNon
Bluetooth®Non
Conformité ECNon
Capacité de levage30 t
Coussin rembourréNon
Course du piston1
Diamètre1830 mm
Empreinte au sol700 mm
Hauteur maximale1773 mm
Hauteur du produit700 mm
Largeur de la tête700
Marquage CEOui
MatériauAluminium
Nombre de pièces1
Nombre de roues0
Presse d’établiNon
Pour poids lourds-véhicules industrielsNon
Poids lourds-véhicules industrielsNon
Poids net167 Kg
Rangement des outilsNon
Surface magnétiséeNon
Source d’alimentationManuel
Type de fonctionHydraulique
Type de presses hydrauliquesPresses hydrauliques
Usage intensifNon
VoitureOui

Spare parts

SEALS KIT - 1004742-51
SPRING SA - 1004757-71
BLOCK - W.430-1
RAM SA - W.430-20
HOSE SA - W.430-27A
MANOMETER - W.430-28
PEDAL - W.430-30
HANDLE SA - W.430-40A
PUMP SA - W.430-55A
AXLE - W.430-7
PUNCH SA - W.430-R12
SEALS KIT - W.430-SEALA
PROTECTOR SA - W.PROTECT30

Documents

User Guide
