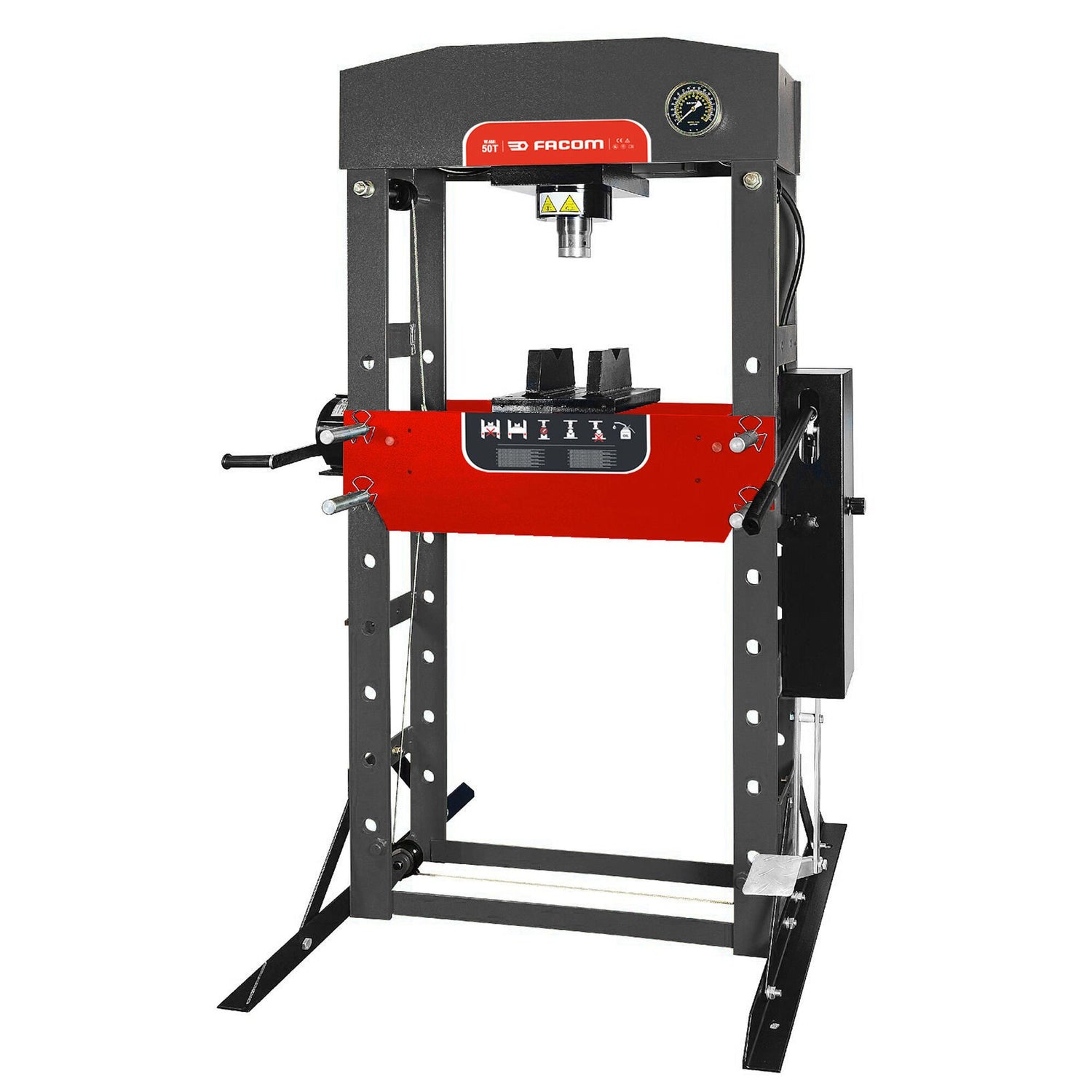

Hydraulic shop press, capacity 50 t

SKU: W.450 - Barcode: 3662424060069

Double pump for fast approach.
Foot and hand control.
Eye-level pressure gauge.
Piston with automatic return.
Piston travel: 200 mm.Side travel 245 mm.
Supplied fitted with pair of reversible V and set of pushers.
CE Compliance Standard EN1494A+.
Floor dimensions: 730 x 560 mm.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

EN1494+

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Double pump for fast approach.
Foot and hand control.
Eye-level pressure gauge.
Piston with automatic return.
Piston travel: 200 mm.Side travel 245 mm.
Supplied fitted with pair of reversible V and set of pushers.
CE Compliance Standard EN1494A+.
Floor dimensions: 730 x 560 mm.

Specifications

Appareil connectéNon
Bluetooth®Non
Conformité ECNon
Capacité de levage50 t
Coussin rembourréNon
Course du piston1
Diamètre1877 mm
Empreinte au sol800 mm
Hauteur maximale1831 mm
Hauteur du produit800 mm
Largeur de la tête800
Marquage CEOui
MatériauAluminium
Nombre de pièces1
Nombre de roues0
Presse d’établiNon
Pour poids lourds-véhicules industrielsNon
Poids lourds-véhicules industrielsNon
Poids net300 Kg
Rangement des outilsNon
Surface magnétiséeNon
Source d’alimentationManuel
Type de fonctionHydraulique
Type de presses hydrauliquesPresses hydrauliques
Usage intensifNon
VoitureOui

Spare parts

SEALS KIT - 1004742-52
SPRING SA - 1004757-72
BLOCK - W.450-1
CRANK - W.450-20
AXLE - W.450-25
WHEELS - W.450-31
PEDAL - W.450-36
PUNCH SA - W.450-38
RAM SA - W.450-41
HOSE SA - W.450-52A
MANOMETER - W.450-58
PUMP SA - W.450-75A
HANDLE SA - W.450-79A
CABLE SA - W.450-84
SEALS KIT - W.450-SEALA
PROTECTOR SA - W.PROTECT50
