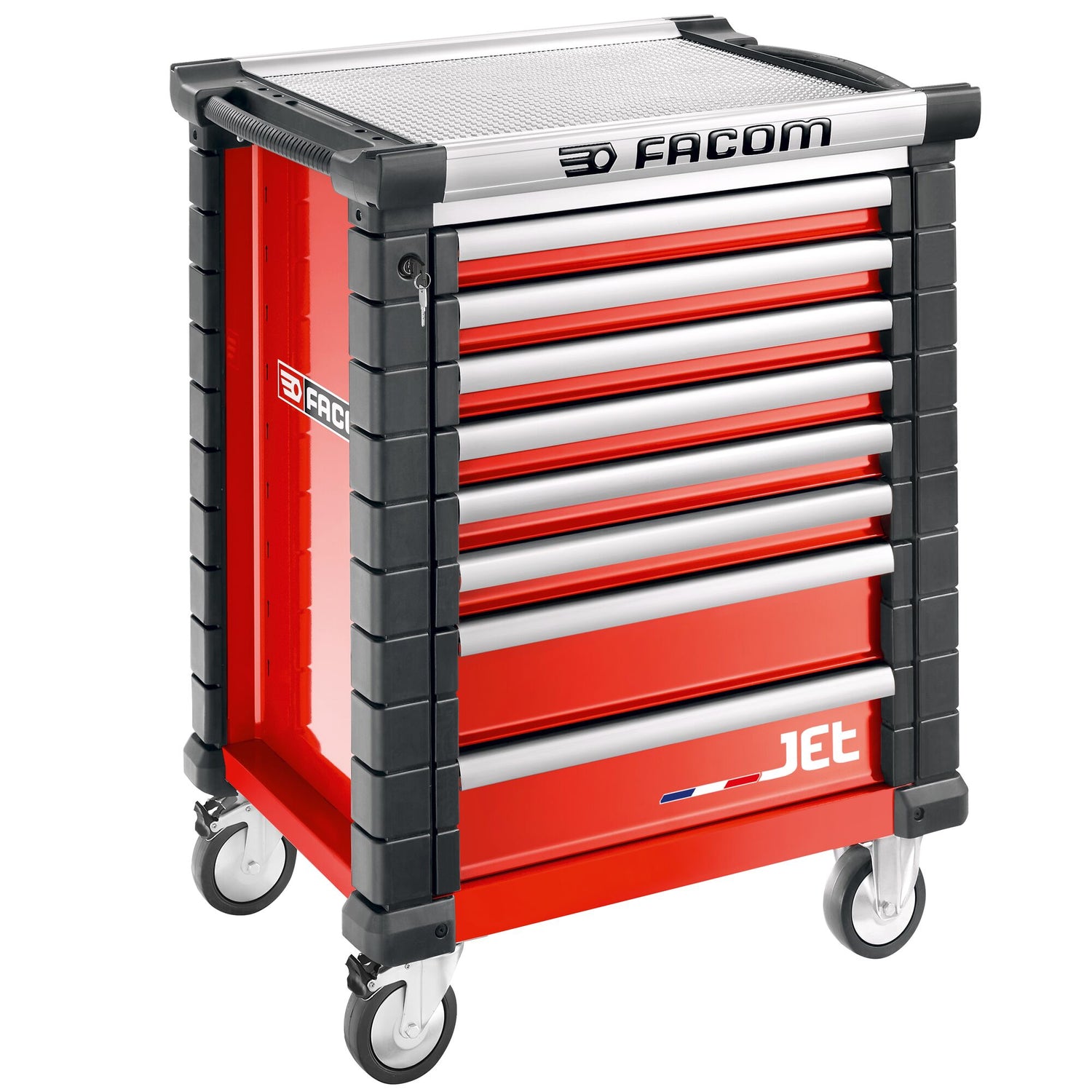

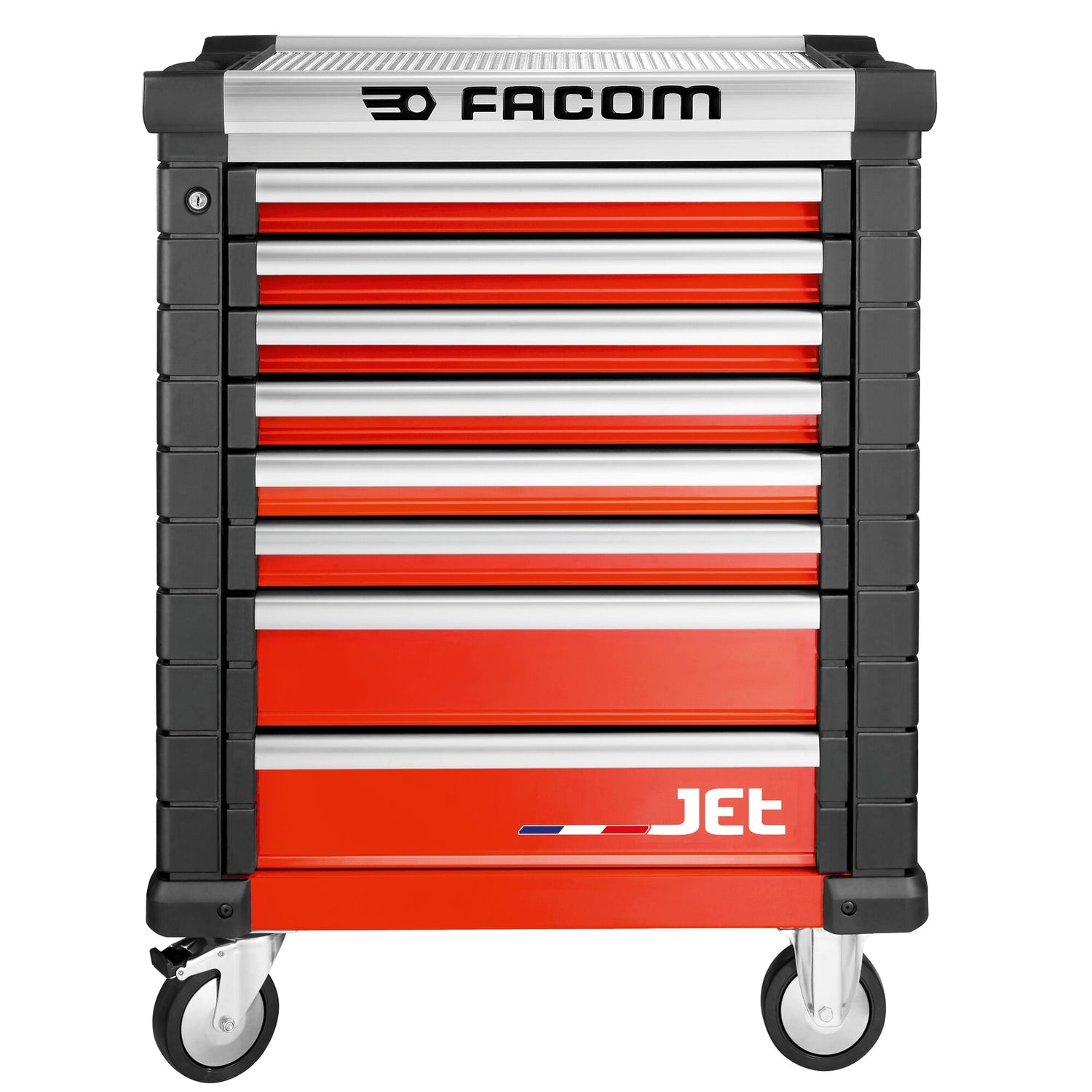

Roller Cabinet, 8 Drawers, L 569 x H 421 mm, 3 Modules Per Drawer, 0,28 m® Top

• Servante 8 tiroirs = 24 modules répartis dans les tiroirs de 60 et 130 mm.
• 6 tiroirs hauteur 60 mm = 18 modules.
• 2 tiroirs hauteur 130 mm = 6 modules.
• The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system.
• Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 20/25 kg.
• The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use.
• Total load capacity of the drawers: 170 kg.
• Total storage capacity: 150 litres.
• Usable drawer dimensions: L 569 x D 421 x H 60/130/270 mm.
• Supplied with 2 JET2.15 partitions for 60mm drawers and 2 JET2.16 partitions for 130mm drawers.
• Additional partitions can be purchased as an option if required.
• Worktop: Extra large work surface, usable area 605 x 461 mm, 0,28 m². +25% vs JET.
• High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 900 kg.
• Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles.
• Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system.
• The installation of accessories is fast and secure.
• A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation.
• Dedicated slots for 8 screwdrivers.
• Integrated ledges prevent tools from falling out while moving.
• Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion.
• The high-quality self-closing system ensures closure and increases safety.
• Central locking system with key lock, supplied with 2 keys, 1 of which is hinged.
• Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect.
• Manoeuvrability: Low starting effort, long life, high resistance to heavy loads.
• 4 wheels diameter 125 mm, 2 fixed and 2 swivel, each equipped with a brake for more stability when working at a standstill.
• The trolley is delivered with the wheels already mounted.
• Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated.
• Top chest available as optional unit for added volume and flexibility.

LOCK - 2840.17
WHEEL FIXED - JET3-RF125
WHEEL PIVOT - BRAKE - JET3-RPF125
HANDLE - JET4-01
BUMPER - JET4-02
BUMPER - JET4-03
HOOK - JET4-04
BAR - JET4-05
BUMPER - JET4-07
BUMPER - JET4-08
BUMPER - JET4-09
HANDLE - JET4-10M3
RAIL - JET4-11M3
DRAWER - JET4-130M3R2
TOP - JET4-13M3
DRAWER - JET4-60M3R2
TRACK - SER.GLSC30
