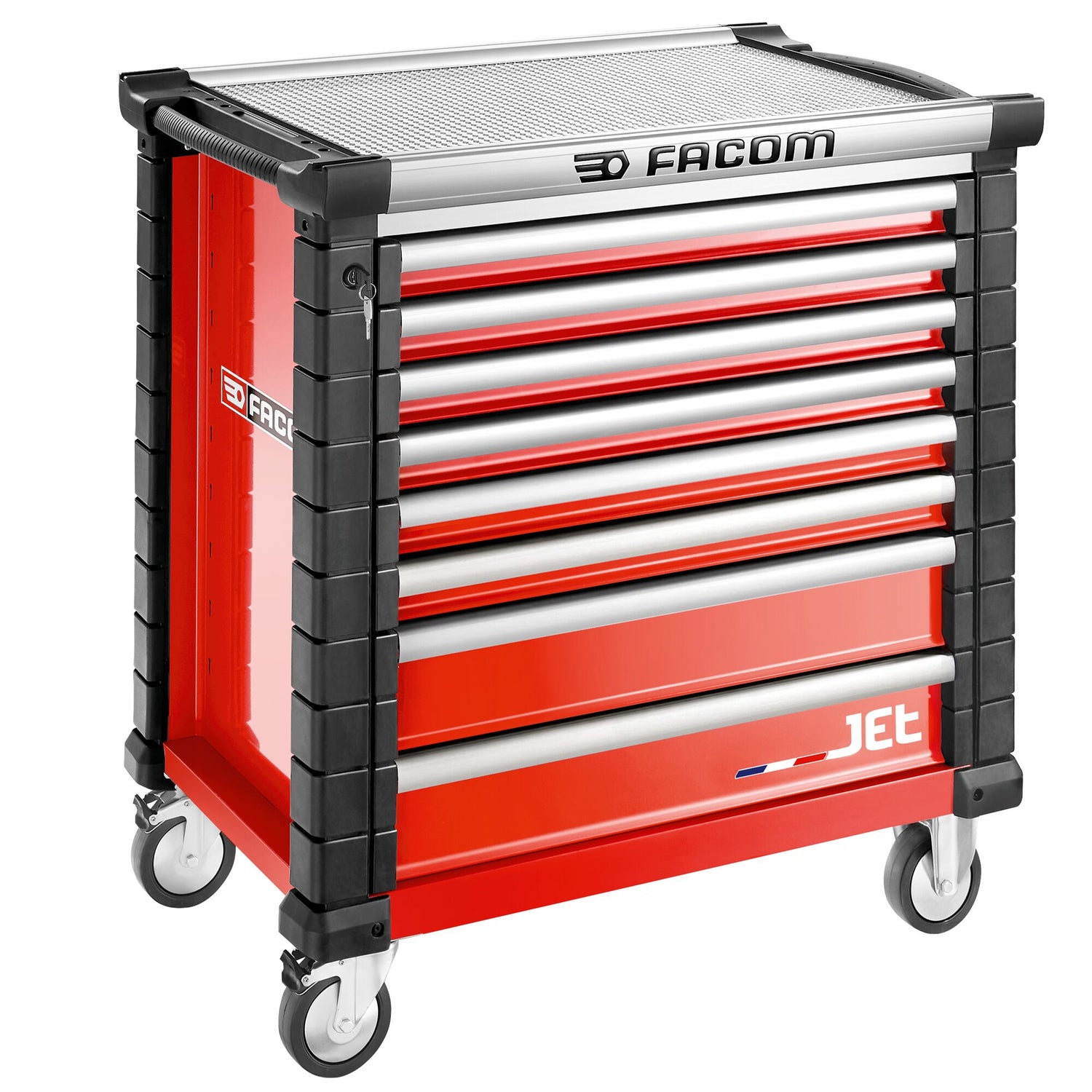

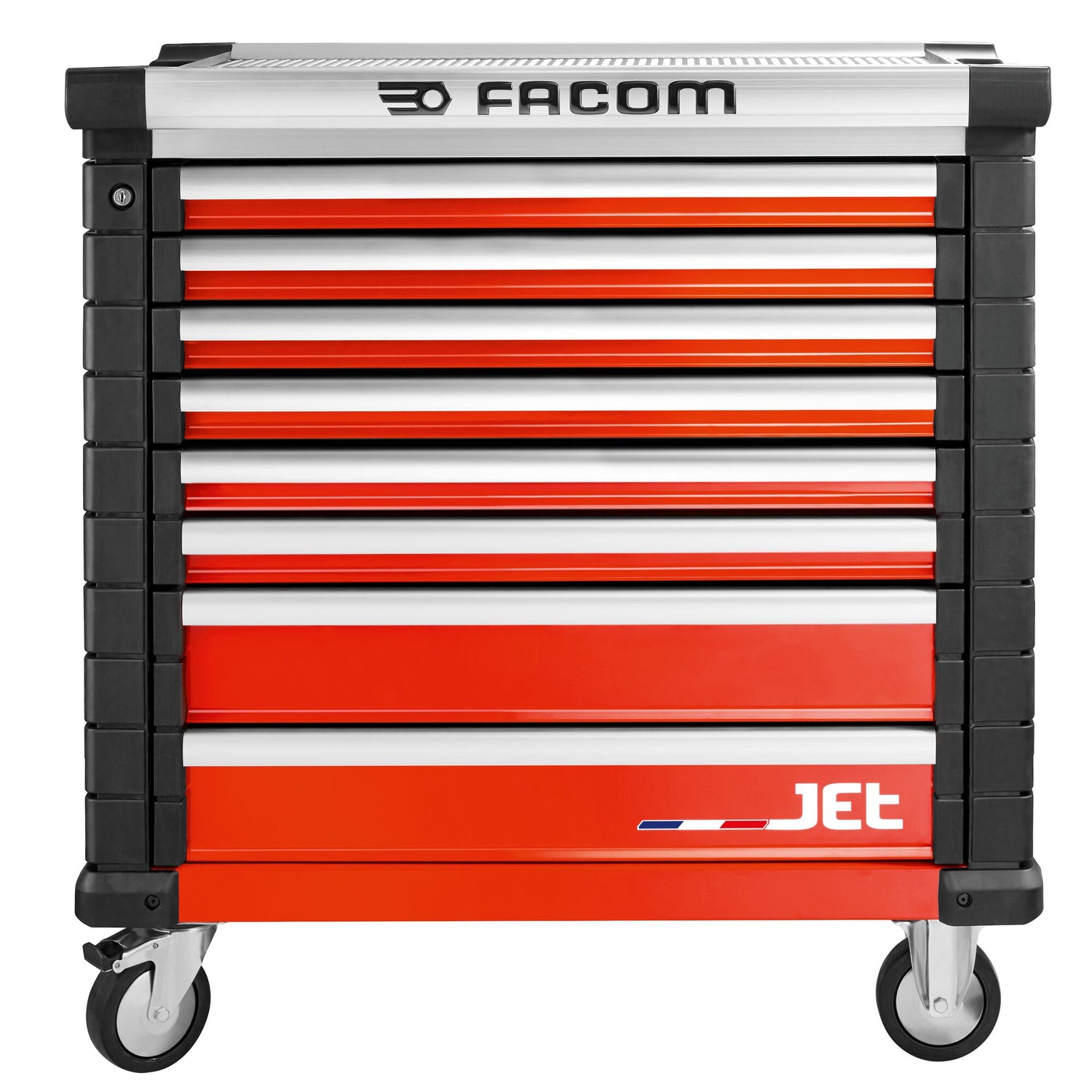

JET.8M4A - Roller cabinet, 8 drawers, l 759 x h 421 mm, 4 modules per drawer, 0,37 m² top

SKU: JET.8M4A - Barcode: 3662424106835

8 drawer roller cabinet = 32 modules in 60 and 130 mm drawers.
6 drawers height 60 mm = 24 modules.
2 drawers height 130 mm = 8 modules.
The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system.
The 200 and 270 mm drawers can also be fitted with modules.
Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 20/30 kg.
The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use.
Total load capacity of the drawers: 210 kg.
Total storage capacity: 200 litres.
Usable drawer dimensions: L 759 x D 421 x H 60/130/200 mm.
Supplied with 3 JET2.15 partitions for 60 mm drawers and 3 JET2.16 partitions for 130 mm drawers.
Additional partitions can be purchased as an option if required.
Worktop: Extra large work surface, usable area 797 x 461 mm, 0,37 m². +25% vs JET.
High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 1000 kg.
Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles.
Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system.
The installation of accessories is fast and secure.
A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation.
Dedicated slots for 8 screwdrivers.
Integrated ledges prevent tools from falling out while moving.
Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion.
The high-quality self-closing system ensures closure and increases safety.
Central locking system with key lock, supplied with 2 keys, 1 of which is hinged.
Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect.
Manoeuvrability: Low starting effort, long life, high resistance to heavy loads.
4 wheels diameter 125 mm, 2 fixed and 2 swivel, each equipped with a brake for more stability when working at a standstill.
The trolley is delivered with the wheels already mounted.
Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated.

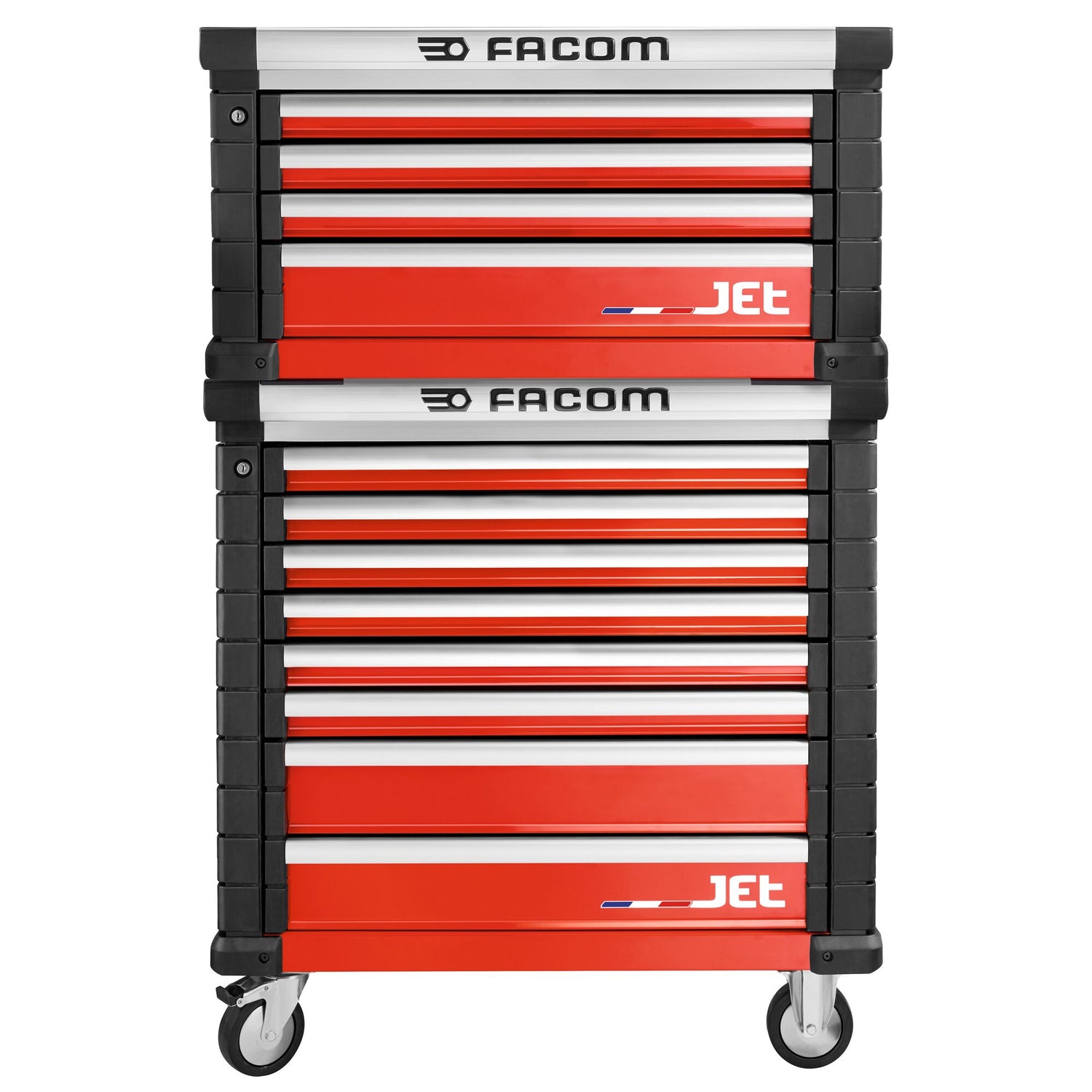

Top chest available as optional unit for added volume and flexibility.

Full product description

References available Reference comparison

Product variants

Made in France

This product is Made in France in our factories.

Click here to learn more about Our Factories.

Warranty

This product is: This product is covered by a 5-year warranty

Click here to learn more about our warranties.

Description

8 drawer roller cabinet = 32 modules in 60 and 130 mm drawers.
6 drawers height 60 mm = 24 modules.
2 drawers height 130 mm = 8 modules.
The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system.
The 200 and 270 mm drawers can also be fitted with modules.
Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 20/30 kg.
The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use.
Total load capacity of the drawers: 210 kg.
Total storage capacity: 200 litres.
Usable drawer dimensions: L 759 x D 421 x H 60/130/200 mm.
Supplied with 3 JET2.15 partitions for 60 mm drawers and 3 JET2.16 partitions for 130 mm drawers.
Additional partitions can be purchased as an option if required.
Worktop: Extra large work surface, usable area 797 x 461 mm, 0,37 m². +25% vs JET.
High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 1000 kg.
Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles.
Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system.
The installation of accessories is fast and secure.
A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation.
Dedicated slots for 8 screwdrivers.
Integrated ledges prevent tools from falling out while moving.
Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion.
The high-quality self-closing system ensures closure and increases safety.
Central locking system with key lock, supplied with 2 keys, 1 of which is hinged.
Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect.
Manoeuvrability: Low starting effort, long life, high resistance to heavy loads.
4 wheels diameter 125 mm, 2 fixed and 2 swivel, each equipped with a brake for more stability when working at a standstill.
The trolley is delivered with the wheels already mounted.
Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated.
Top chest available as optional unit for added volume and flexibility.

Specifications

Capacité de rotation de 360°Oui
CouleurRed 3020
Capacité du tiroir210 Kg
Capacité totale du tiroir210 Kg
Charge maximale du plan de travail1000 Kg
Capacité de charge totale statique900 Kg
Épaisseur du corps en métal1 mm
Effet pare-chocsOui
Hauteur du tiroir60-130 mm
Hauteur du produit1005 mm
Longueur du tiroir759 mm
Longueur du produit1004 mm
Matériau des protections d'angle de boîtePlastique dur
Matériau des protections d'angle de tiroirPlastique souple
Matériau des glissièresMétal
Nombre de séparateurs de tiroirs32
Nombre de tiroirs8
Nombre de roues fixes avec frein1
Nombre de roues fixes sans frein1
Nombre de poignées1
Nombre de roues pivotantes sans frein1
Nombre de roues4
Ouverture des tiroirs à 100%Oui
Profondeur du tiroir421 mm
Possibilité d’accessoirisationNon
Poids net95 Kg
Poignée pivotanteNon
Séparateurs de tiroirsOui
Système de verrouillageCentral
Tapis de tiroirNon
Type de poignéePlastique
Traitement de surfacePlastifié
Un coffre supplémentaire peut être ajouté sur le dessusNon

Spare parts

LOCK - 2840.17
WHEEL FIXED - JET3-RF125
WHEEL PIVOT - BRAKE - JET3-RPF125
HANDLE - JET4-01
BUMPER - JET4-02
BUMPER - JET4-03
HOOK - JET4-04
BAR - JET4-05
BUMPER - JET4-07
BUMPER - JET4-08
BUMPER - JET4-09
HANDLE - JET4-10M4
RAIL - JET4-11M4
DRAWER - JET4-130M4R2
TOP - JET4-13M4
DRAWER - JET4-60M4R2
TRACK - SER.GLSC30

Documents

User Guide
