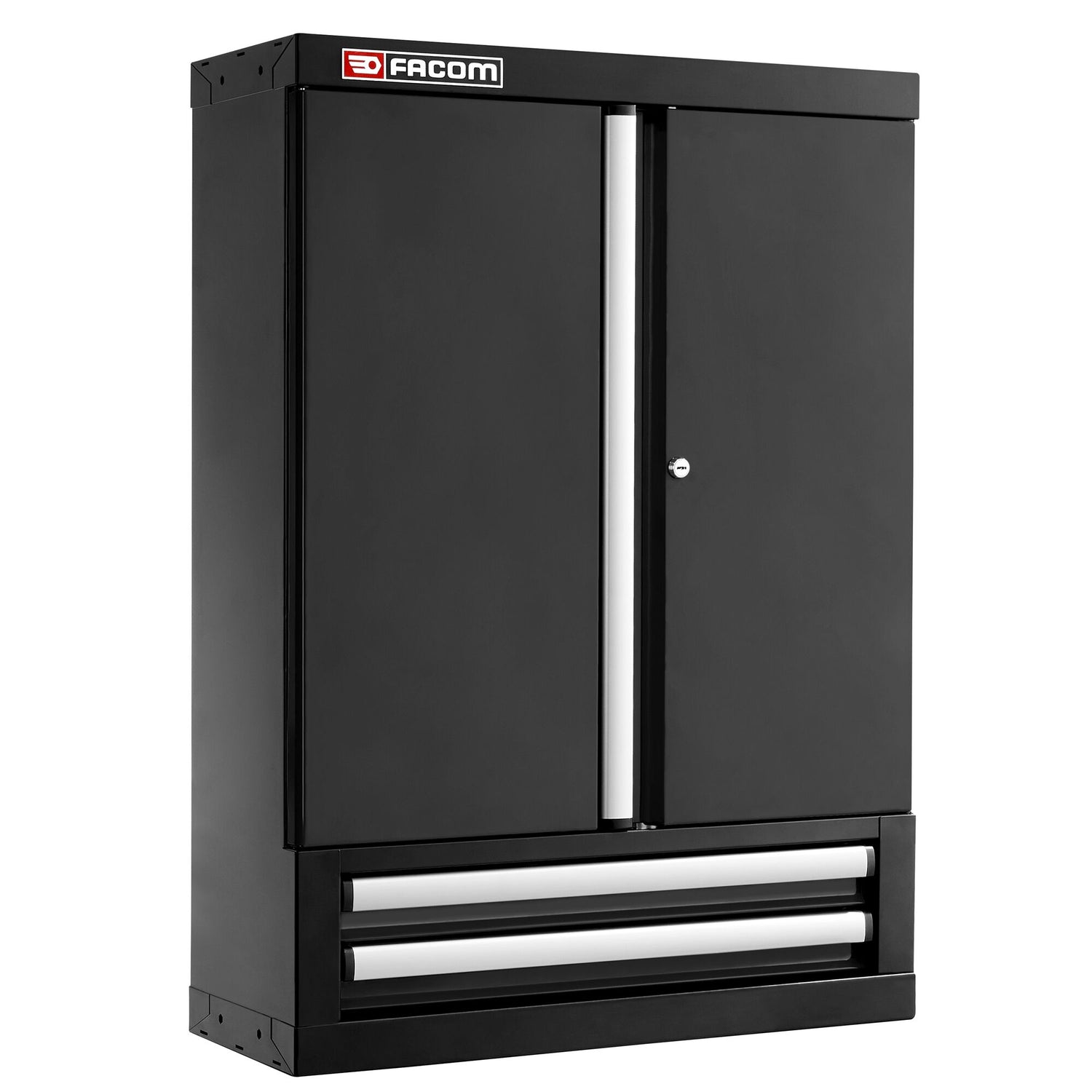

Single Top Unit, 2 Solid Doors, 2 Drawers, Black

• Cabinet with vertical hanging and 2 drawers section.

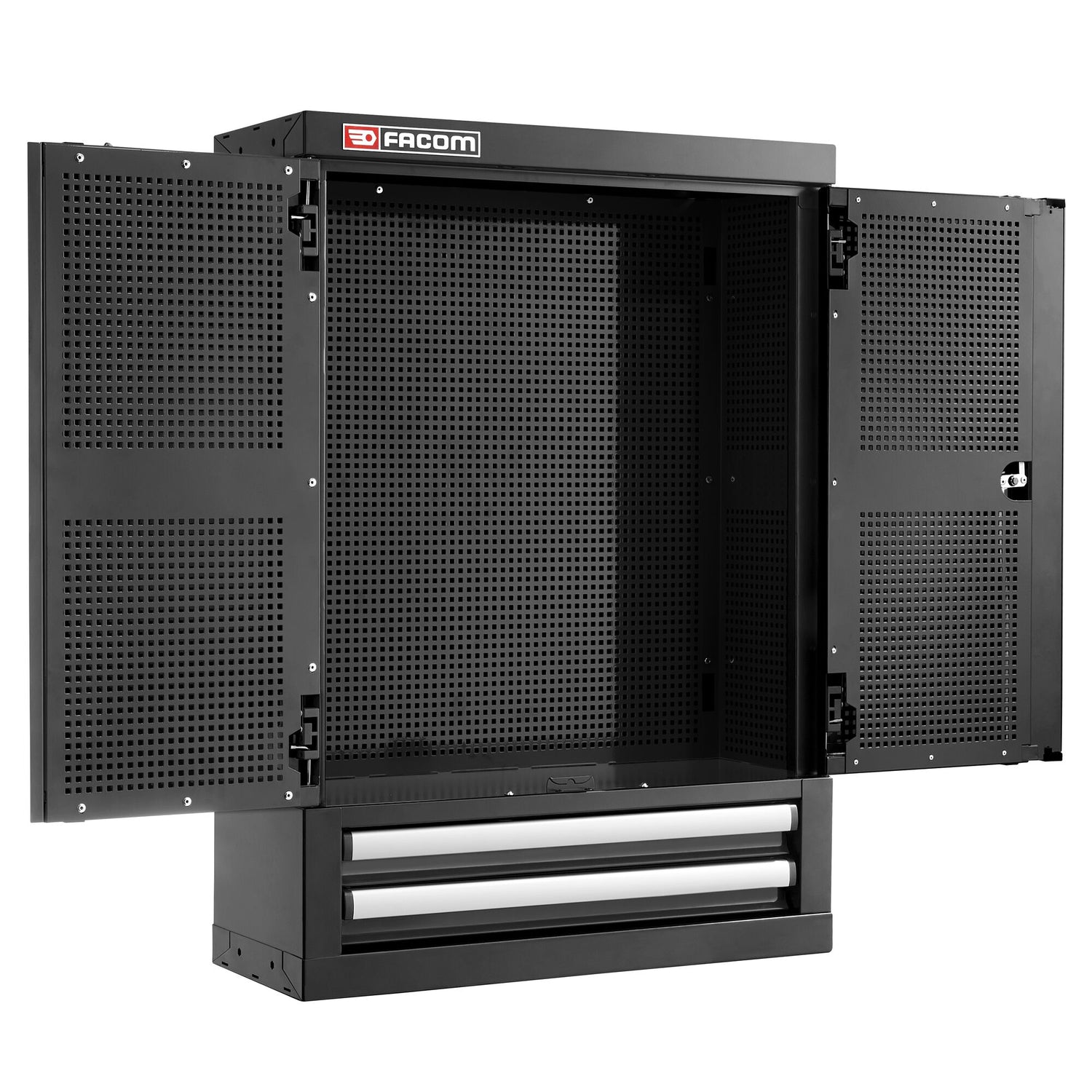

• Vertical fastening part: Storage surface area 1,8 m². The base and sides of the cabinet, door liners, as the 2 additional panels are perforated for hanging tools using the CKS system.
• 2 hinged doors, epoxy painted sheet steel 12/10th, mounted on invisible pin hinges offering a 180° opening for maximum visibility and accessibility.
• The doors are tested for 10000 opening/closing cycles.
• 2 fully opening drawers: Thanks to the ball bearing slides, the drawers open fully.
• Drawer useful dimensions: L 569 x D 210 x H 60 mm.
• Easy and direct fastening on a base unit with worktop.
• Centralized locking, jointed keylock. Interchangeable lock. One key option under request.
• Colour: BLACK 9005.
• Overall dimensions: L 719 x D 278 x H 1005 mm.
• Weight: 36 kg.

SLIDE - JLS2-2201.01
LOCK SA - JLS2-A1000PP.05
DRAWER - JLS3-2202.01BS
DOOR - JLS3-2202.02BS
DOOR - JLS3-2202.03BS
HANDLE - JLS3-2202.04
LOCK - JLS3-A1000PP.04
CAP - JLS3-MBS.02
HANDLE - JLS3-MBS.03
GUIDE - JLS3-MBSPP.06
