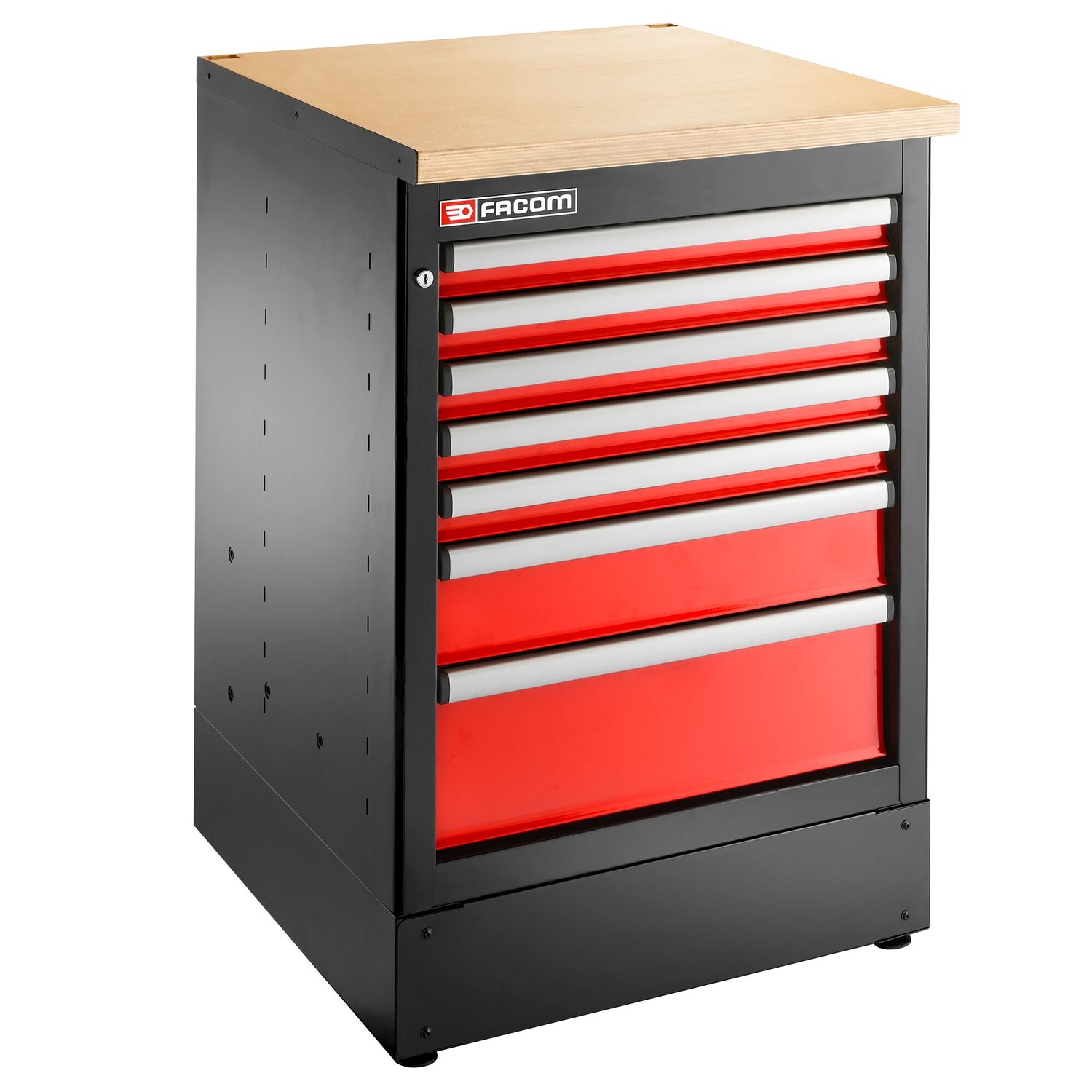

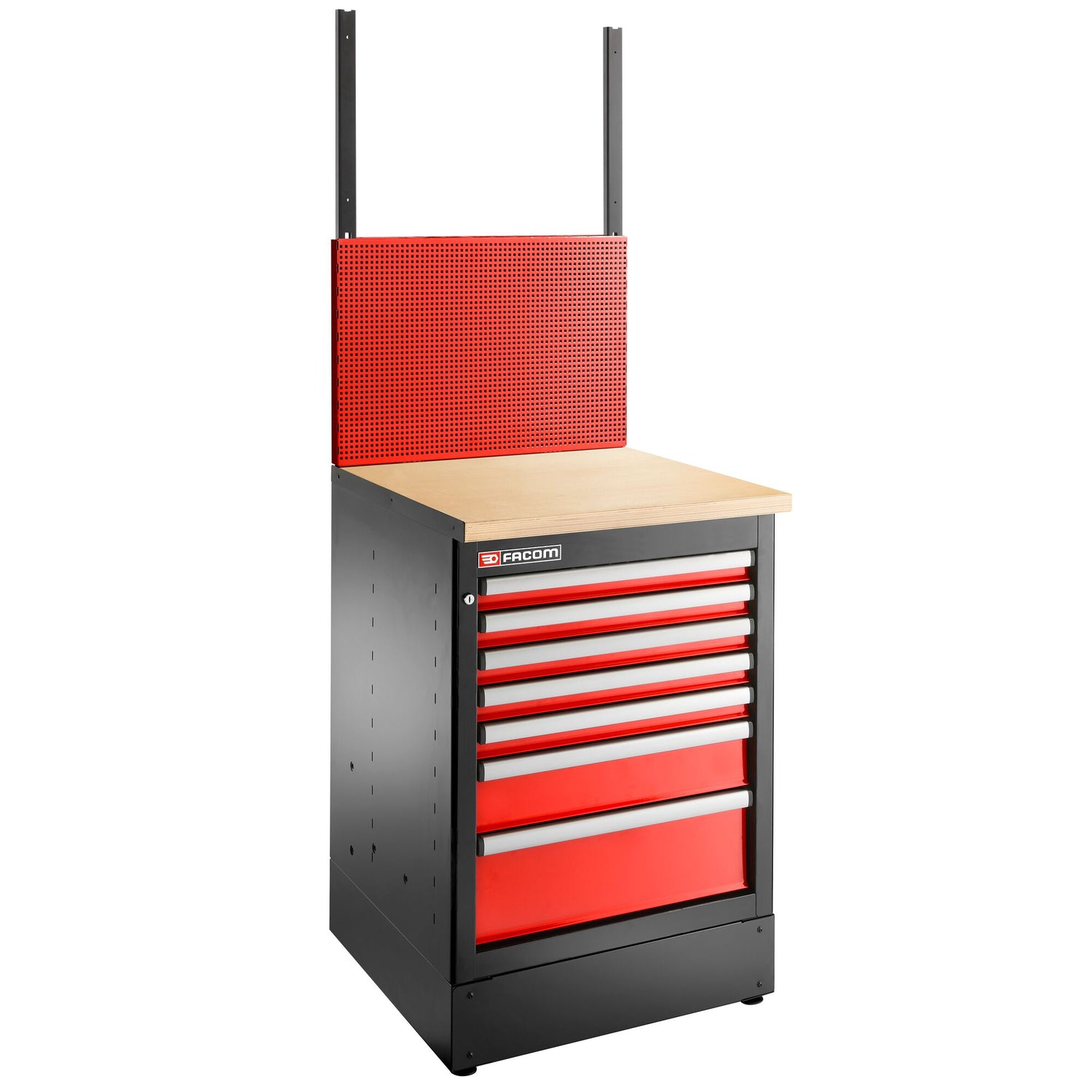

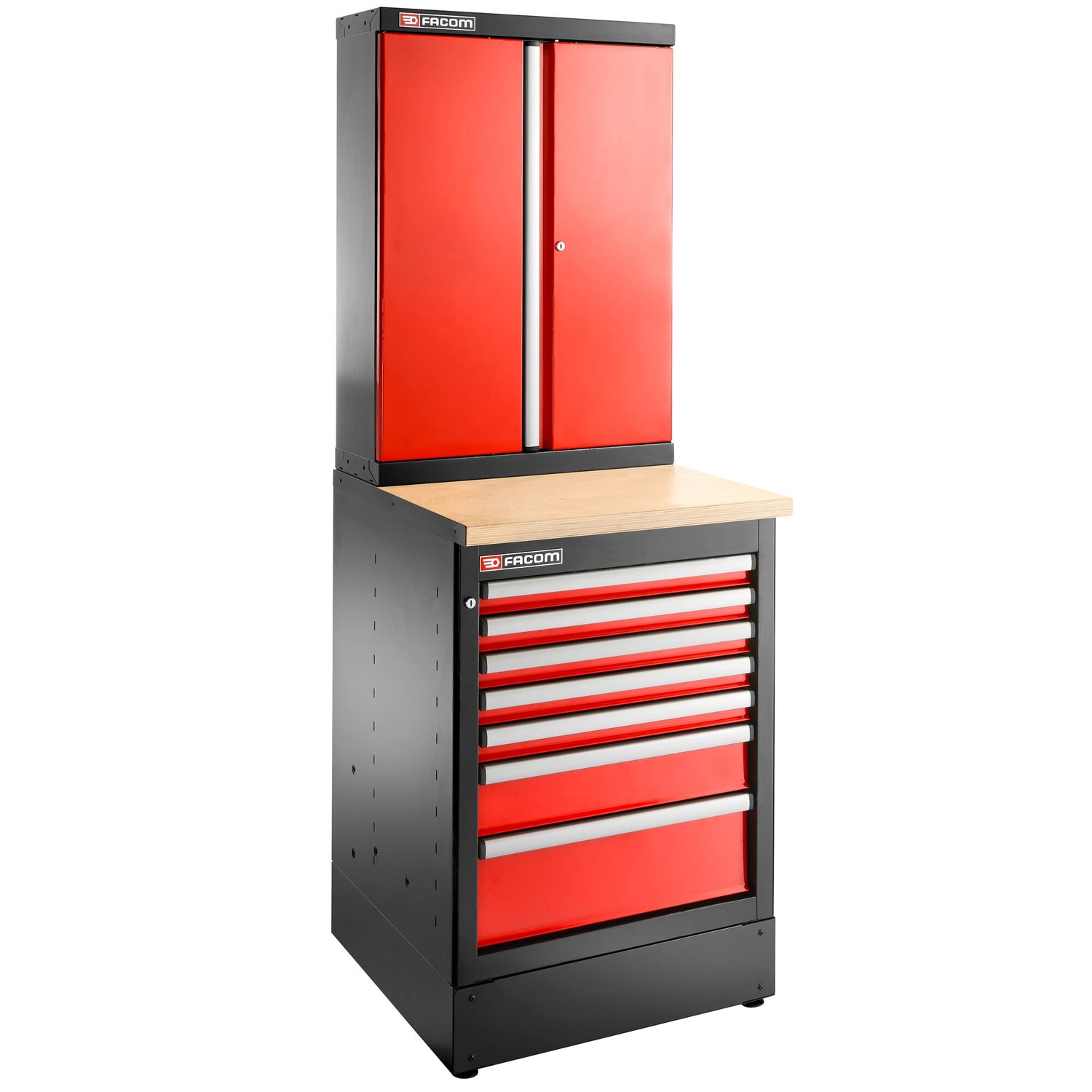

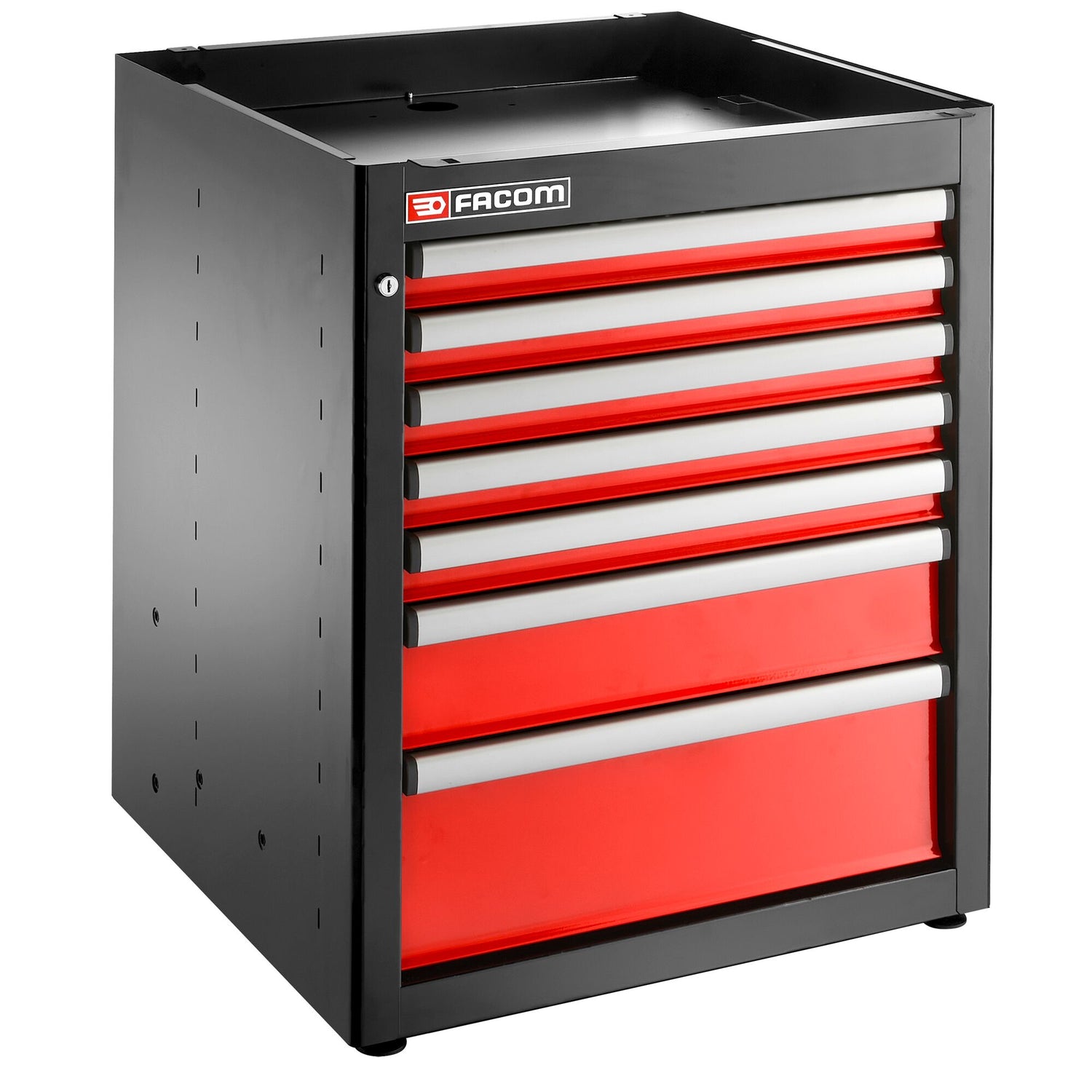

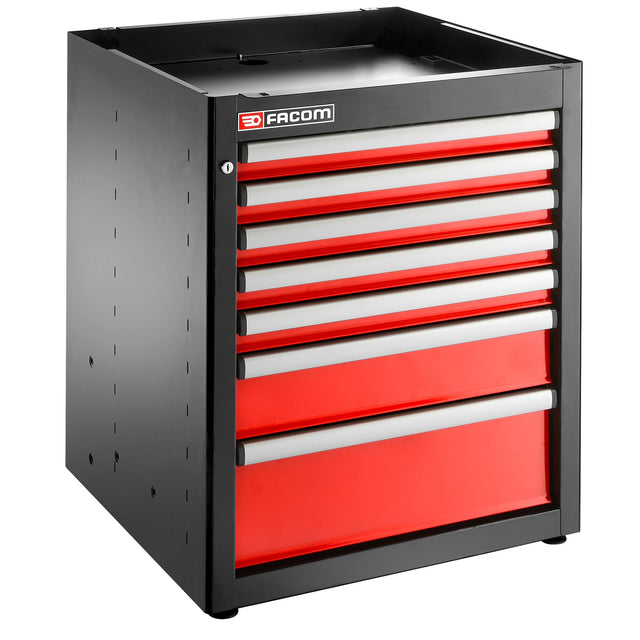

Single Base Unit, 7 Drawers, 569 x 421 mm, Red

• 5 drawers: 60 mm high = 15 modules.
• 1 drawer: 130 mm high = 3 modules.
• 1 drawer: 200 mm high.
• Drawer useful size: L 569 x D 421 x H 60/130/270 mm.

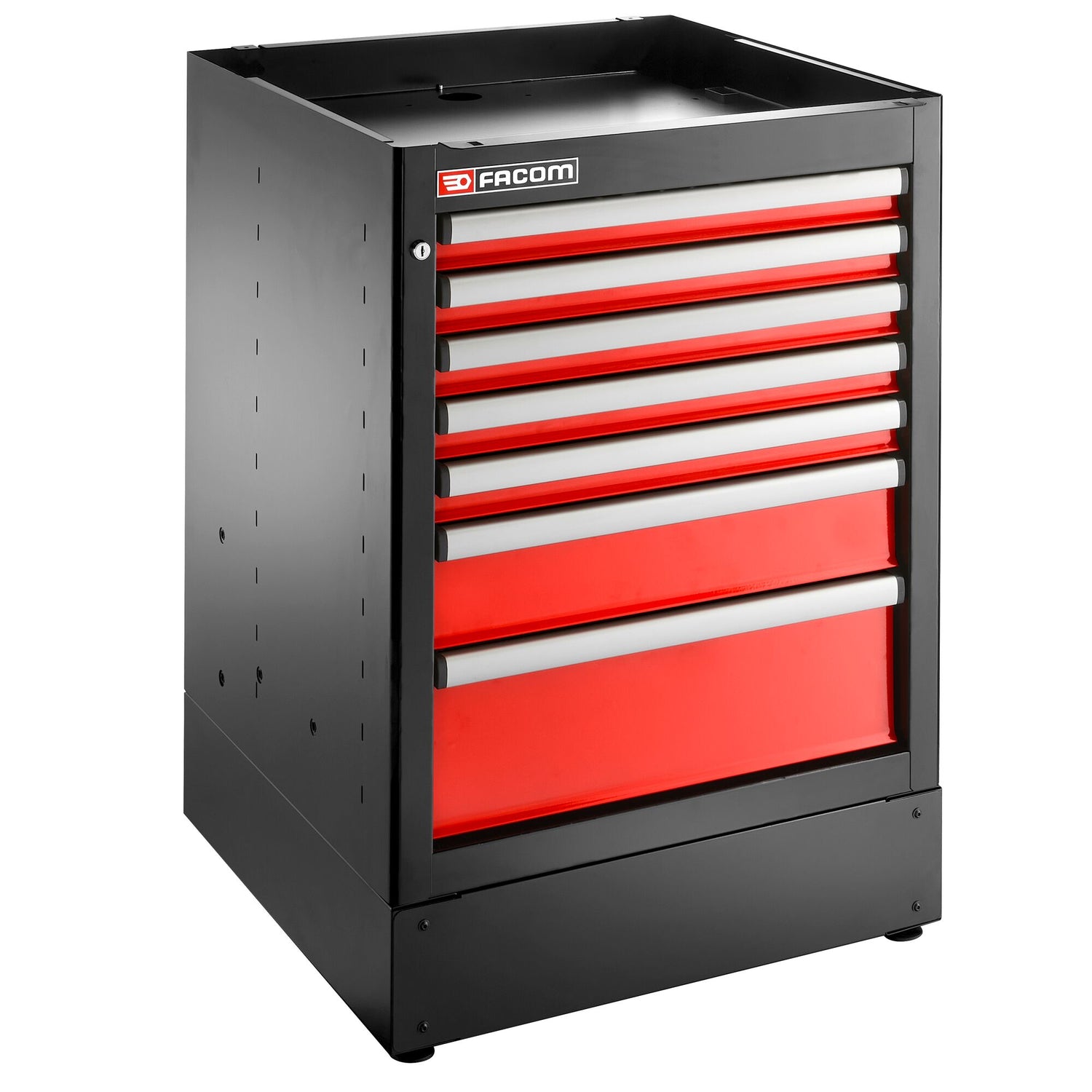

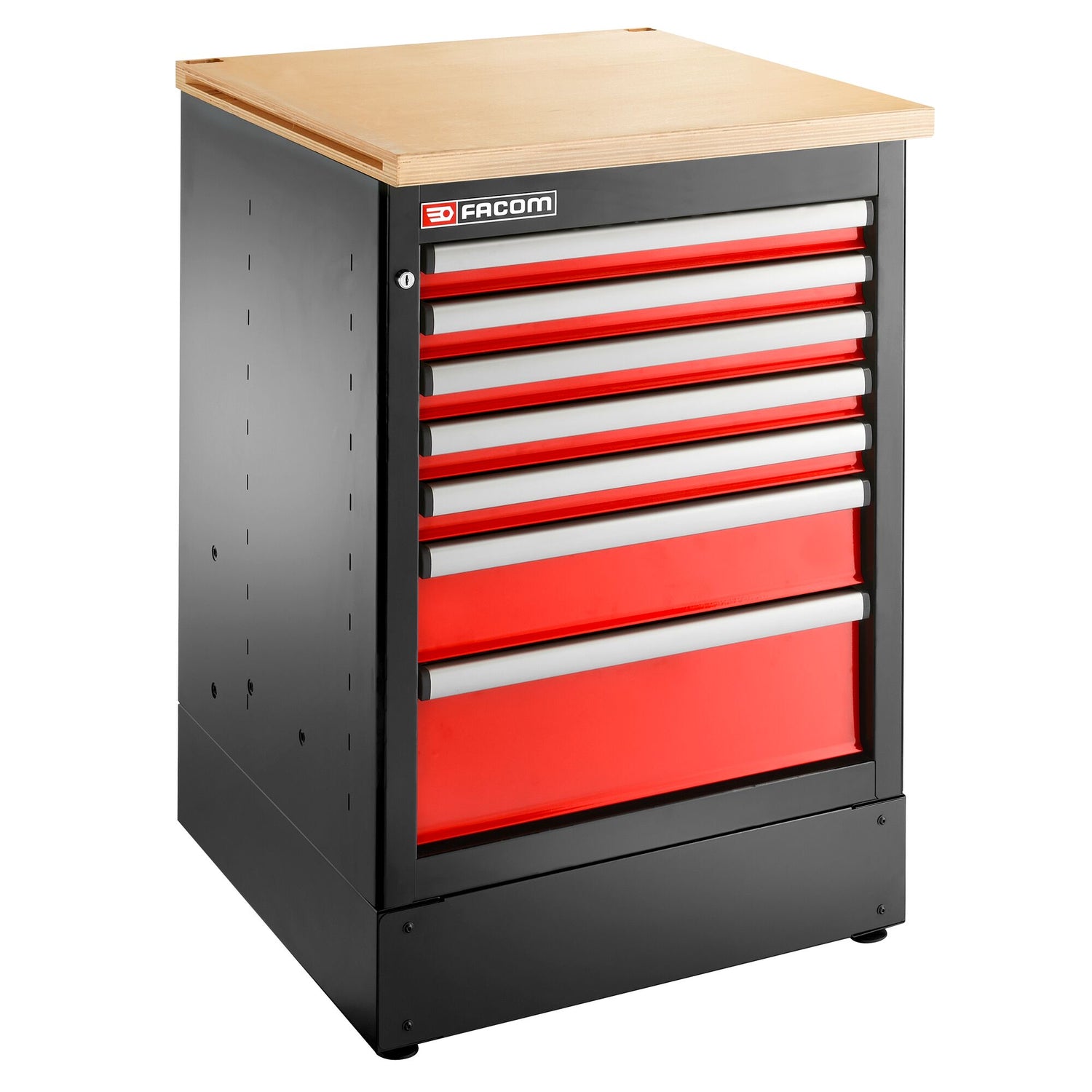

• Base unit raising base can be used to increase the height from 880 mm to 1055 mm (including the 40 mm worktop).
• Centralized locking, jointed keylock. Interchangeable lock. One Key option under request.
• Fitted with 4 pivoting jacks with ball joint for an optimal stability, irrespective of the type of the floor.
• Sides of the base unit can receive JET lateral accessories.
• Worktop need to be assembled separately.
• Supplied with 3 sets of partitions for drawers 60 mm high and 1 set of partitions for drawers 130 mm high.
• Anodised drawer handles.
• Self closing drawers fitted with auto-return ball bearing slides.
• Colour RED 3020.
• Overall dimensions: L 722 x D 701 x H 840 mm.
• Weight: 80 kg.

SEPARATOR - JET2.15
SEPARATOR - JET2.16
FEET - JLS2.03
LOCK SA - JLS2-MBS.01
CAP - JLS3-MBS.02
HANDLE - JLS3-MBS.03
INSERT - JLS3-MBSPP.07
DRAWER - JLS3-MBST.130
DRAWER - JLS3-MBST.200
DRAWER - JLS3-MBST.60
TRACK - SER.GLSC30
