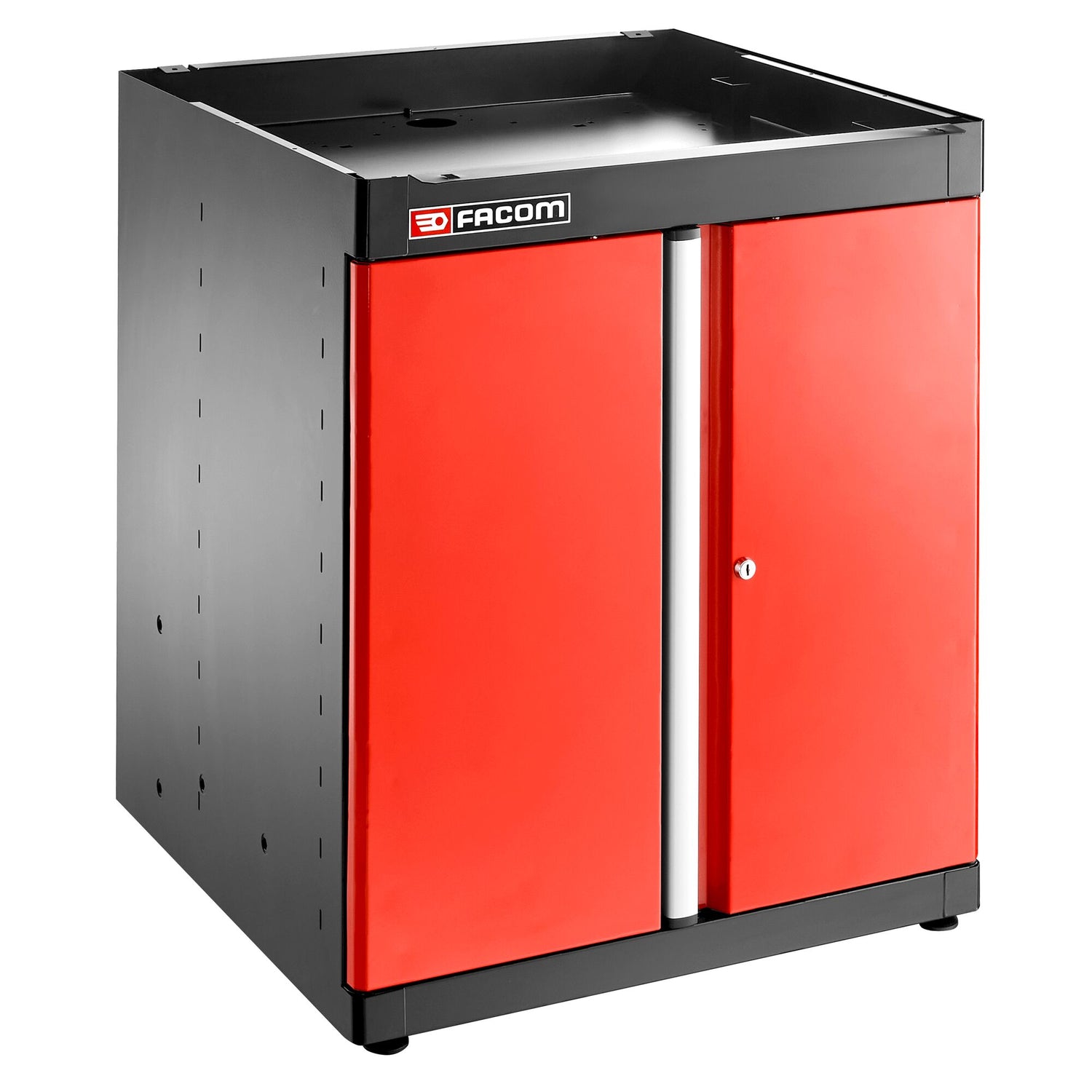

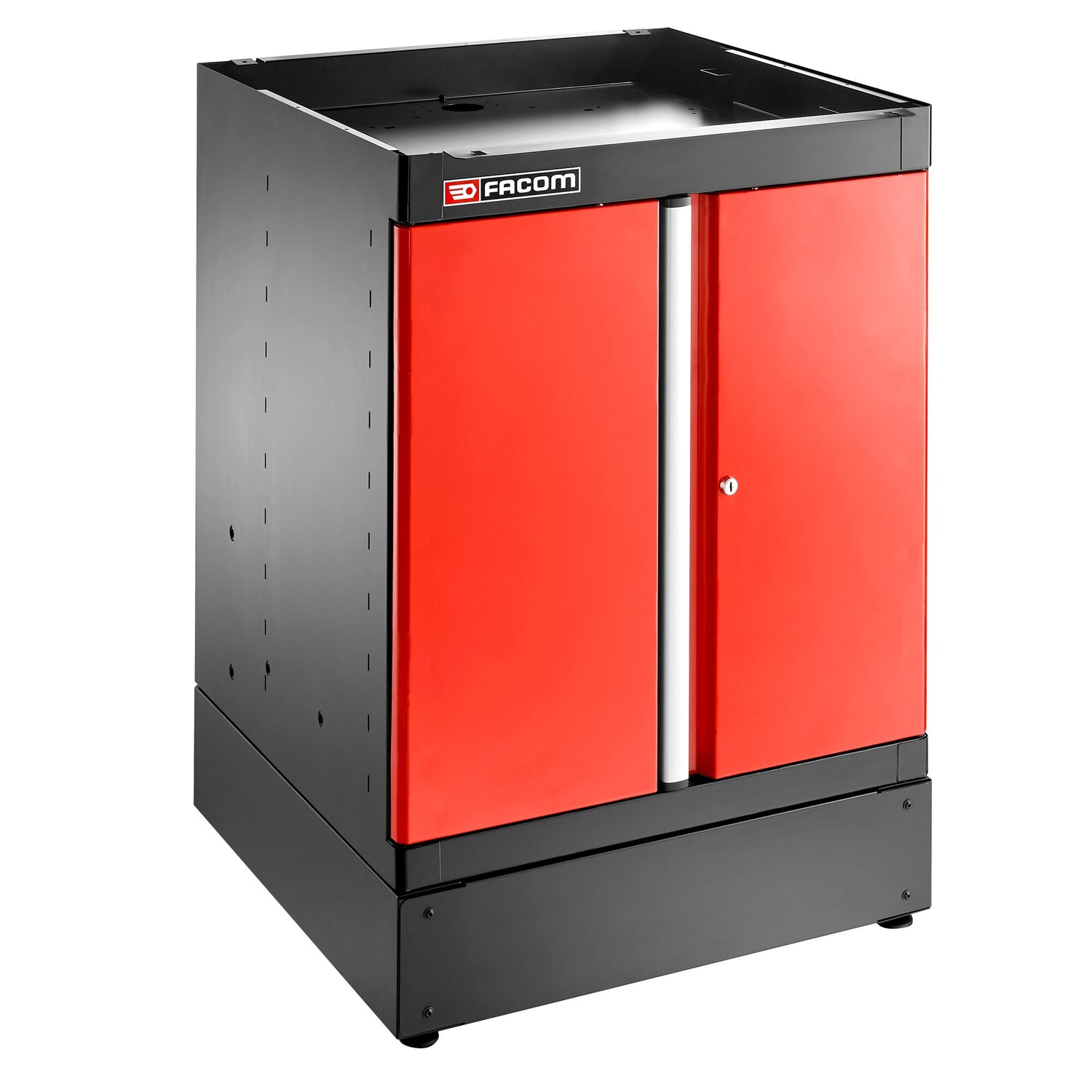

Single Base Unit, 2 Solid Doors, 1 Shelf, Red

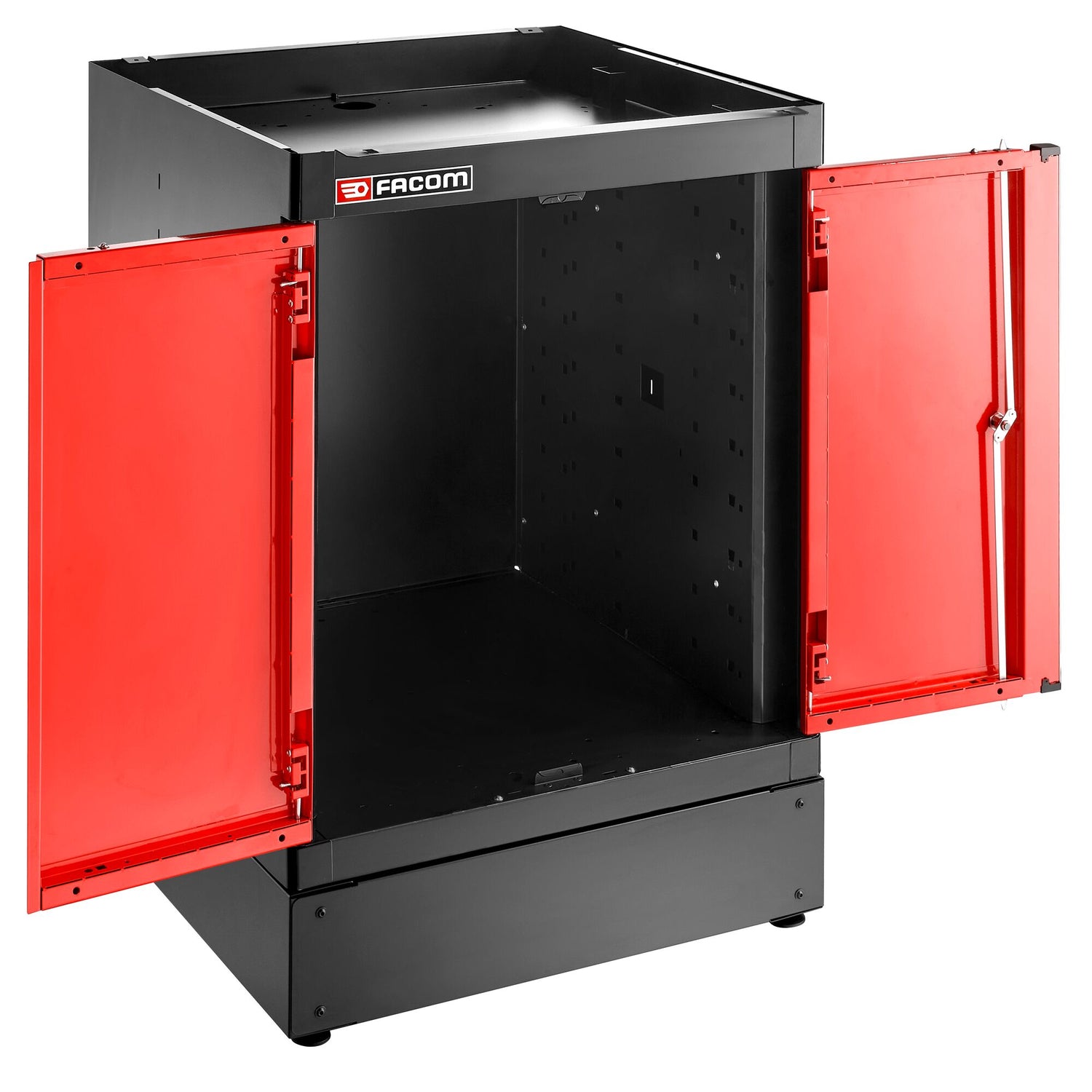

• 2 hinged doors, thickness 3 mm, mounted on invisible pin hinges offering a 180-degree opening for maximum visibility and accessibility.
• The doors are tested for 10000 opening/closing cycles.

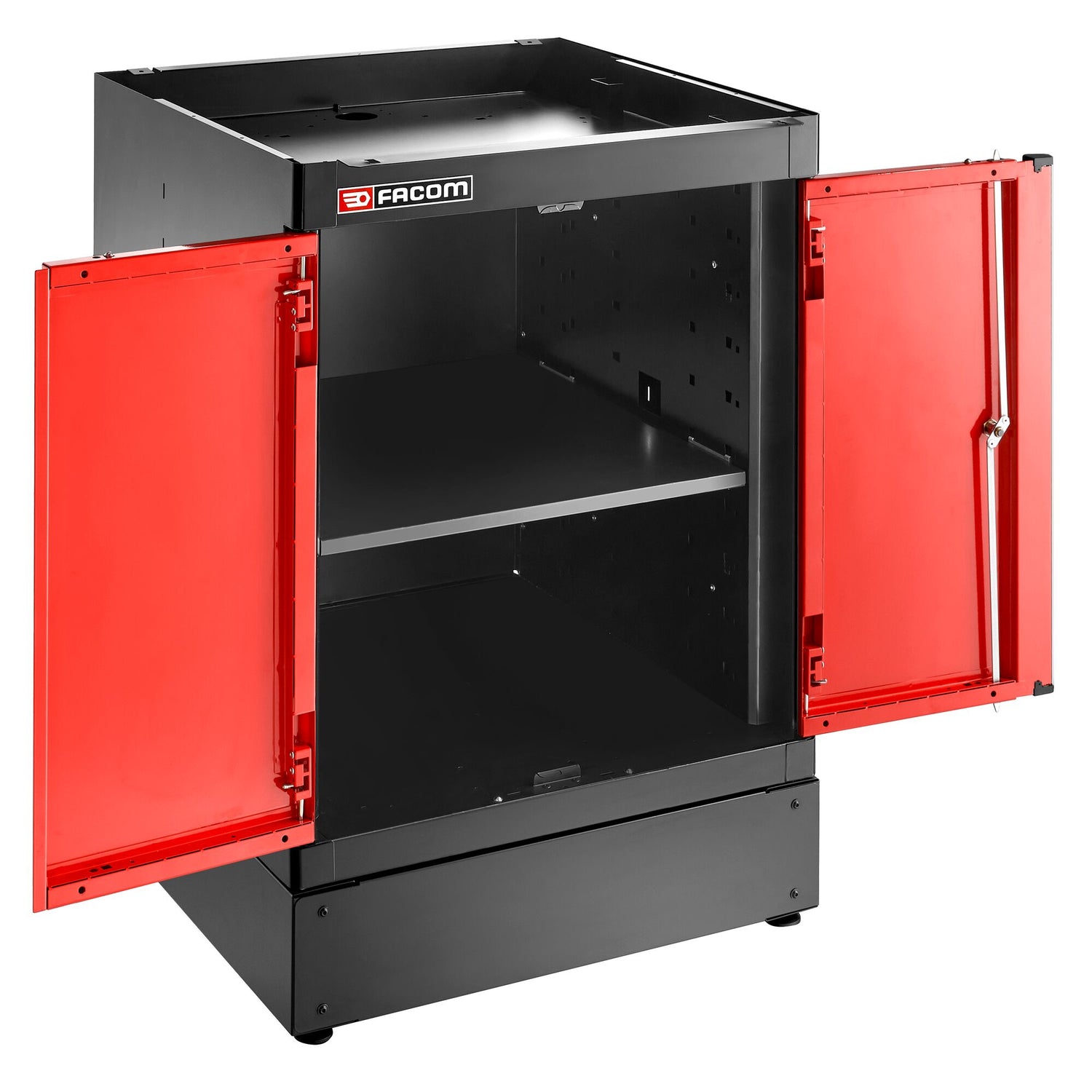

• 1 epoxy painted shelf, adjustable in height withstanding 50 kg loads.

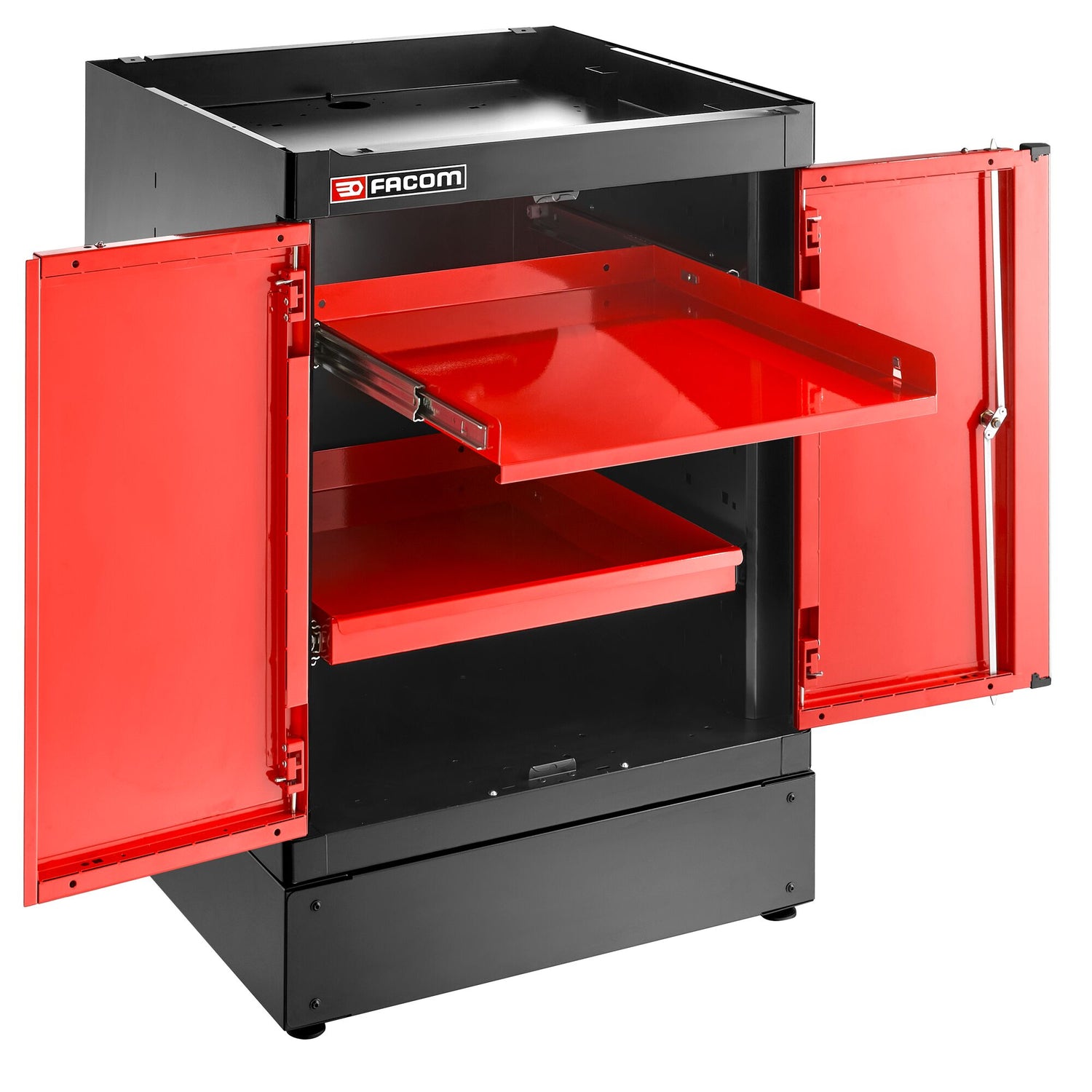

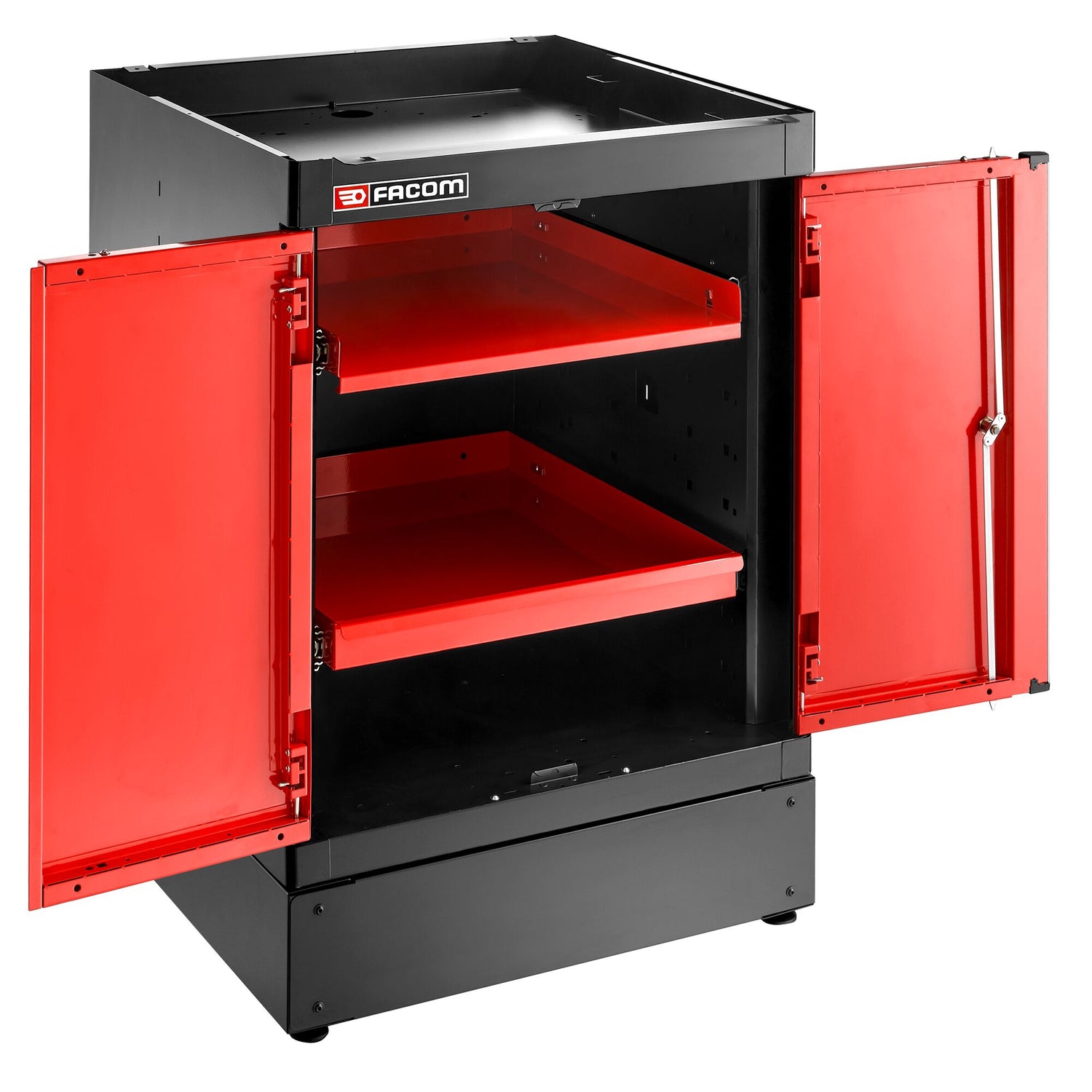

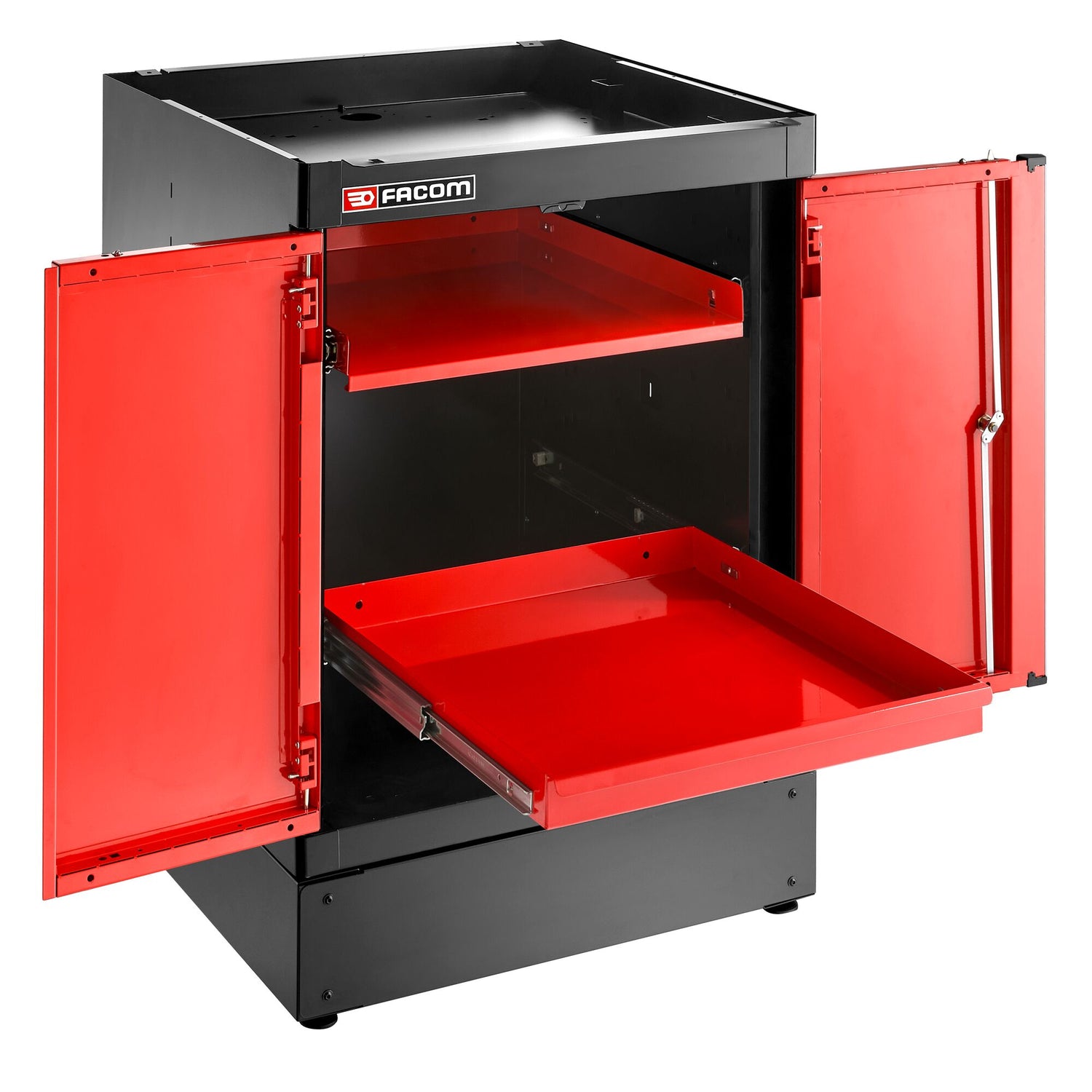

• As an option, the unit can be completed with an internal sliding shelf JLS3-MBSPPSSH or a 70 mm high drawer JLS3-MBSPPDR70 for easy access. The shelf withstands a load of 50 kg, the drawer a load of 70 kg. Quick and easy assembly. The fixed shelf can be kept or removed according the users needs.

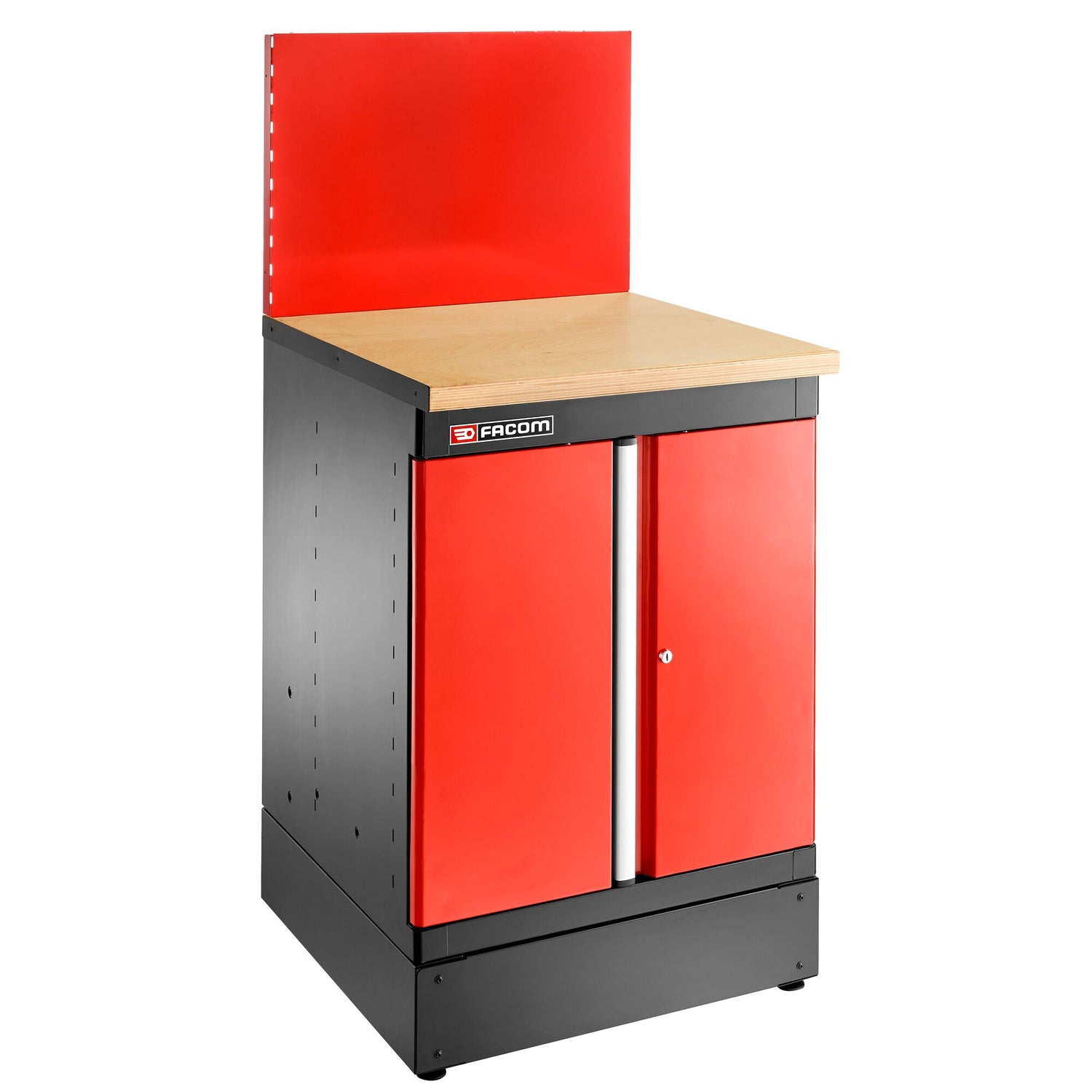

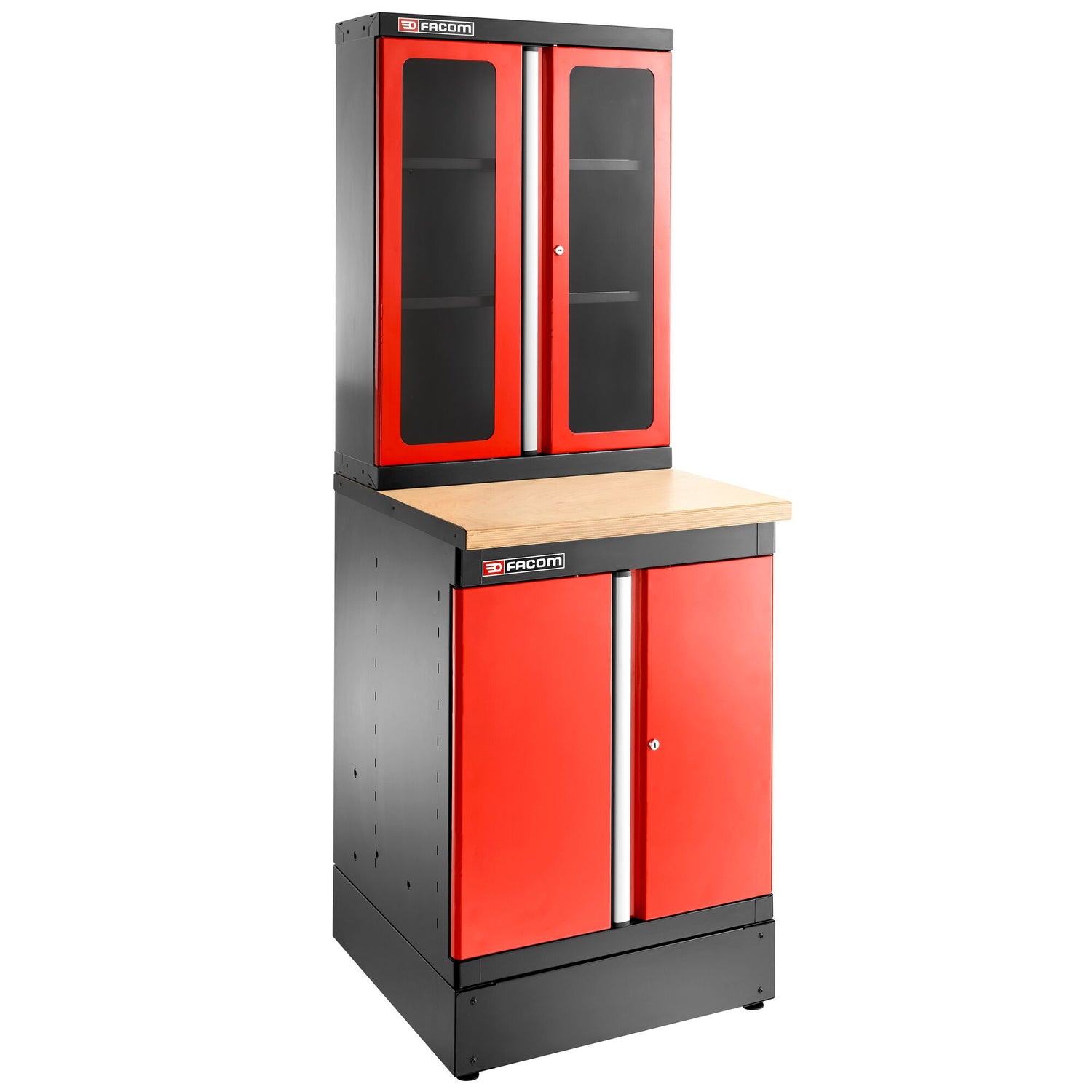

• Base unit raising base can be used to increase the height from 880 mm to 1055 mm (including the 40 mm worktop).
• Centralized locking, jointed keylock. Interchangeable lock. One Key option under request.
• Fitted with 4 pivoting jacks with ball joint for an optimal stability, irrespective of the type of the floor.
• Sides of the base unit can receive JET lateral accessories.
• Worktop need to be assembled separately.
• Colour RED 3020.
• Overall dimensions: L 722 x D 701 x H 840 mm.
• Weight: 59 kg.

FEET - JLS2.03
LOCK SA - JLS2-MBS.01
LOCK - JLS3-A1000PP.04
CAP - JLS3-MBS.02
SHELF - JLS3-MBSPP.01
DOOR - JLS3-MBSPP.02
DOOR - JLS3-MBSPP.03
HANDLE - JLS3-MBSPP.04
HOOK - JLS3-MBSPP.05
GUIDE - JLS3-MBSPP.06
INSERT - JLS3-MBSPP.07
