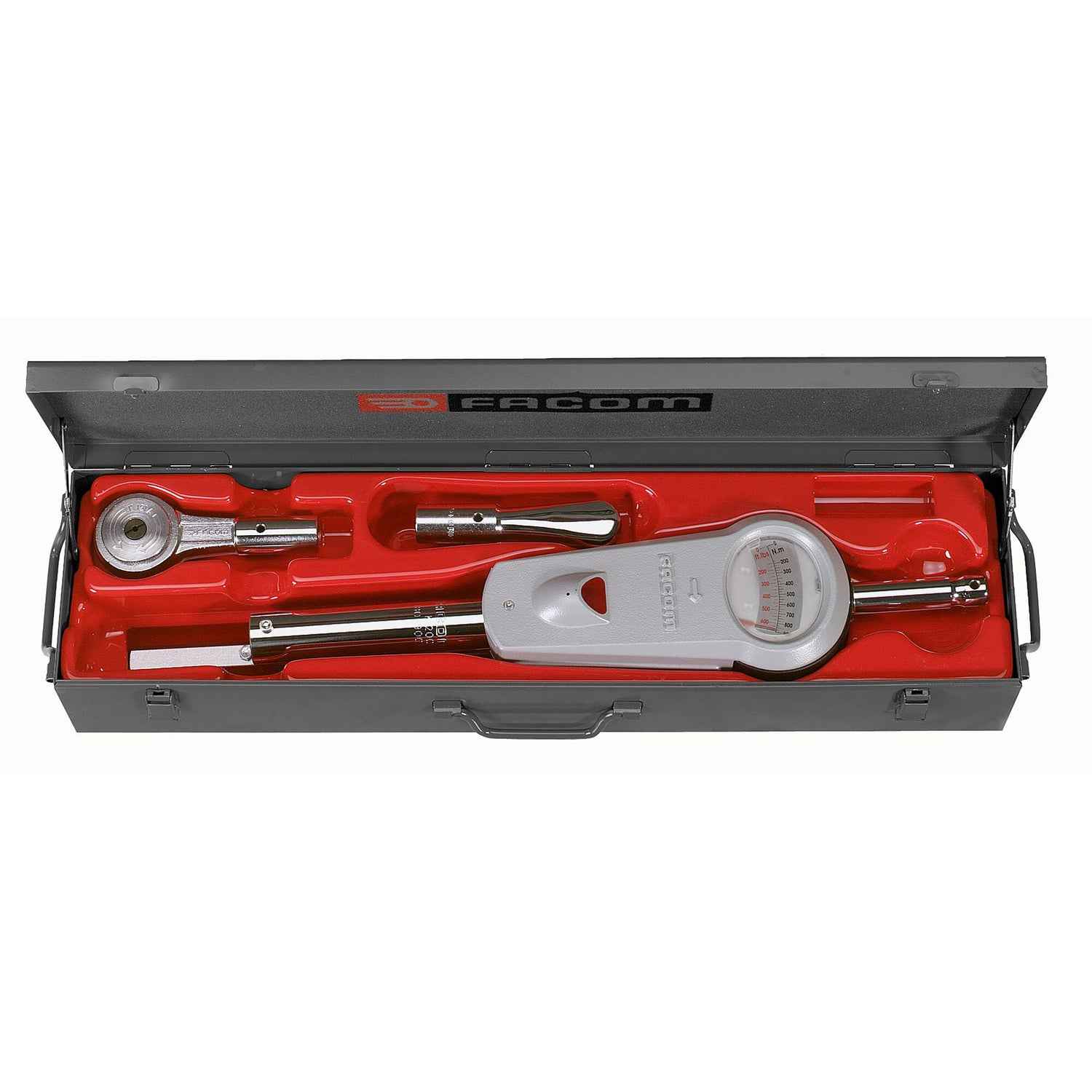

KM.B - Torque Wrench & Square Drive Ratchet Set

SKU: K.201B - Barcode: 3148515067068

ACCUARCY: ± 4 % value displayed.
UNITS: N.m and lbf.ft.
READABILITY: Large size dial.
NOTIFICATION: Light alarm when reaching torque.
ACCESSORY: Cylindrical attachment diameter 30 mm.
CERTIFICATION: Numbered wrenches supplied with calibration certificate.
STORAGE: Wrenches supplied in metal case with storage module.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Click here to learn more about the different standards and certifications.

Warranty

This product is: Please refer to the warranty for each item included in this set

Click here to learn more about our warranties.

Description

ACCUARCY: ± 4 % value displayed.
UNITS: N.m and lbf.ft.
READABILITY: Large size dial.
NOTIFICATION: Light alarm when reaching torque.
ACCESSORY: Cylindrical attachment diameter 30 mm.
CERTIFICATION: Numbered wrenches supplied with calibration certificate.
STORAGE: Wrenches supplied in metal case with storage module.

Specifications

Accessoires fournisCoffret de rangement
AttachéNon
Certificat d’étalonnage fourniOui
Indication de cibleLumière
Longueur du produit1019 mm
Précision sens horaire sortie d'usine+/-4%
Poids net8 Kg
Taille du carré conducteur3/4 in

Spare parts

CIRCLIP - K.200DA03-04
CIRCLIP - K.200DA05-07
SPACER - K.200DB02-03
SPACER - K.200DB02-04
ARM - K.200DB04
CONTROL SCREW - K.200DB05
SPRING - K.200DB06
PIN - K.200DB08
PCB SA - K.200DB09
HOUSING UPPER - K.200DB10-01
HOUSING LOWER - K.200DB10-02
BUMPER - K.200DB10-03
SPACER - K.200DB10-04
INDICATOR - K.200DB10-05
GLASS PANEL - K.200DB10-06
SPACER - K.200DB10-07
SEAL - K.200DB10-08
BATTERY COVER - K.200DB15

Documents

User Guide
