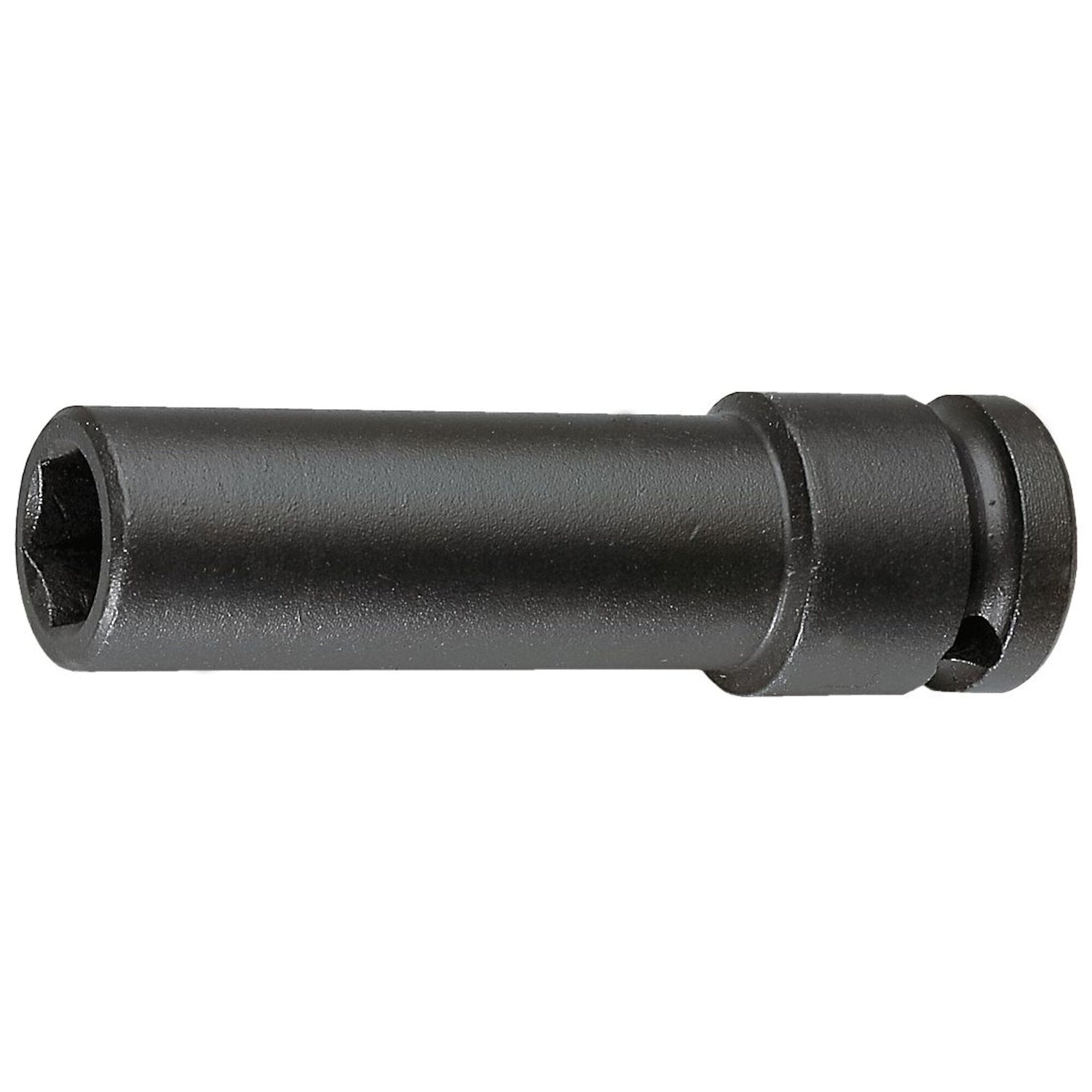

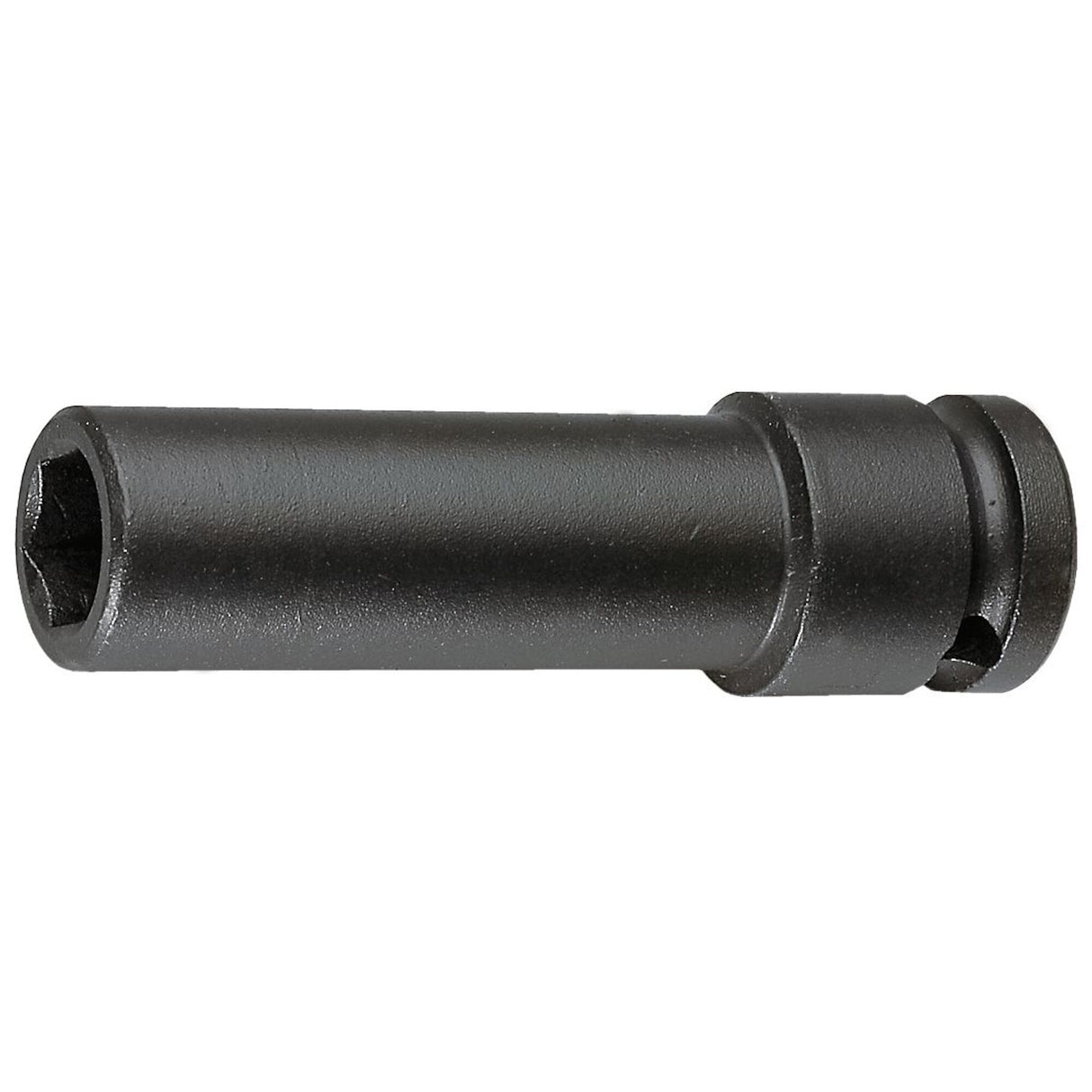

NK.LA - 3/4" long impact socket 6-points, metric

SKU: NK.17LA - Barcode: 3148516565013

HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
IMPACT TOOL - Use with energised tools.
OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
TREATEMENT - Molybdenum chrome steel tempered with heat treatment.
HIGH PROTECTION - Coated with manganese phosphate for higher protection and corrosion resistance.

Full product description

Standards and certifications

This product complies with the following standards and certifications:

DIN 3129, ISO 1711-2, ISO 2725-2, NF ISO 1711-2, NF ISO 2725-2

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
IMPACT TOOL - Use with energised tools.
OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
TREATEMENT - Molybdenum chrome steel tempered with heat treatment.
HIGH PROTECTION - Coated with manganese phosphate for higher protection and corrosion resistance.

Specifications

AttachéNon
Clé à chocsOui
Diamètre44 mm
\"Extensible
Non\"
\"Entrainement carré (femelle)
3/4\"\"
FinitionPhosphate
FlexibleNon
Isolation 1000VNon
Longueur du produit90 mm
MagnétiqueNon
Pour visseuse à chocNon
Poids net550 g
Taille de la douille17 mm
Type de douilleLong

Technical drawing and dimensions

		A (mm)	D1 (mm)	D (mm)	L1 (mm)	L (mm)
NK.17LA	[NK.17LA] 3/4" long impact socket 6-point, 17 mm	17.00	31.00	44.00	20.00	90.00
NK.19LA	[NK.19LA] 3/4 in. Long Impact Socket, 6-point, 19 mm	19.00	33.00	44.00	24.00	90.00
NK.21LA	[NK.21LA] 3/4 in. Long Impact Socket, 6-point, 21 mm	21.00	35.00	44.00	24.00	90.00
NK.22LA	[NK.22LA] 3/4 in. Long Impact Socket 6-point, 22 mm	22.00	37.00	44.00	24.00	90.00
NK.23LA	[NK.23LA] 3/4" long impact socket 6-point, 23 mm	23.00	38.00	44.00	24.00	90.00
NK.24LA	[NK.24LA] 3/4 in. 6-point Long Impact Socket, 24 mm	24.00	39.00	44.00	40.00	90.00
NK.26LA	[NK.26LA] 3/4 in. Long Impact Socket, 6-point, 26 mm	26.00	41.00	44.00	40.00	90.00
NK.27LA	[NK.27LA] 3/4 in. Long Impact Socket 6-points, 27 mm	27.00	453.00	44.00	40.00	90.00
NK.29LA	[NK.29LA] 3/4 in. Long Impact Socket, 6-point, 29 mm	29.00	45.00	44.00	40.00	90.00
NK.30LA	[NK.30LA] 3/4 in. Long Impact Socket, 6-point, 30 mm	30.00	47.00	44.00	40.00	90.00
NK.32LA	[NK.32LA] 3/4" long impact socket 6-point, 32 mm	32.00	48.00	44.00	45.00	90.00
NK.33LA	[NK.33LA] 3/4 in. Long Impact Socket, 6-point, 33 mm	33.00	48.00	44.00	45.00	90.00
NK.34LA	[NK.34LA] 3/4 in. Long Impact Socket, 6-point, 34 mm	34.00	48.00	44.00	45.00	90.00
NK.35LA	[NK.35LA] 3/4" long impact socket 6-point, 35 mm	35.00	50.00	44.00	45.00	90.00
NK.36LA	[NK.36LA] 3/4" long impact socket 6-point, 36 mm	36.00	52.00	44.00	45.00	90.00
NK.38LA	[NK.38LA] 3/4 in. Long Impact Socket, 6-point, 38 mm	38.00	56.00	44.00	45.00	90.00
NK.41LA	[NK.41LA] 3/4 in. Long Impact Socket, 6-point, 41 mm	41.00	58.00	44.00	48.00	90.00
NK.42LA	[NK.42LA] 3/4 in. Long Impact Socket, 6-point, 42 mm	42.00	62.00	44.00	48.00	90.00
NK.46LA	[NK.46LA] 3/4" long impact socket 6-point, 46 mm	46.00	65.00	44.00	48.00	100.00
