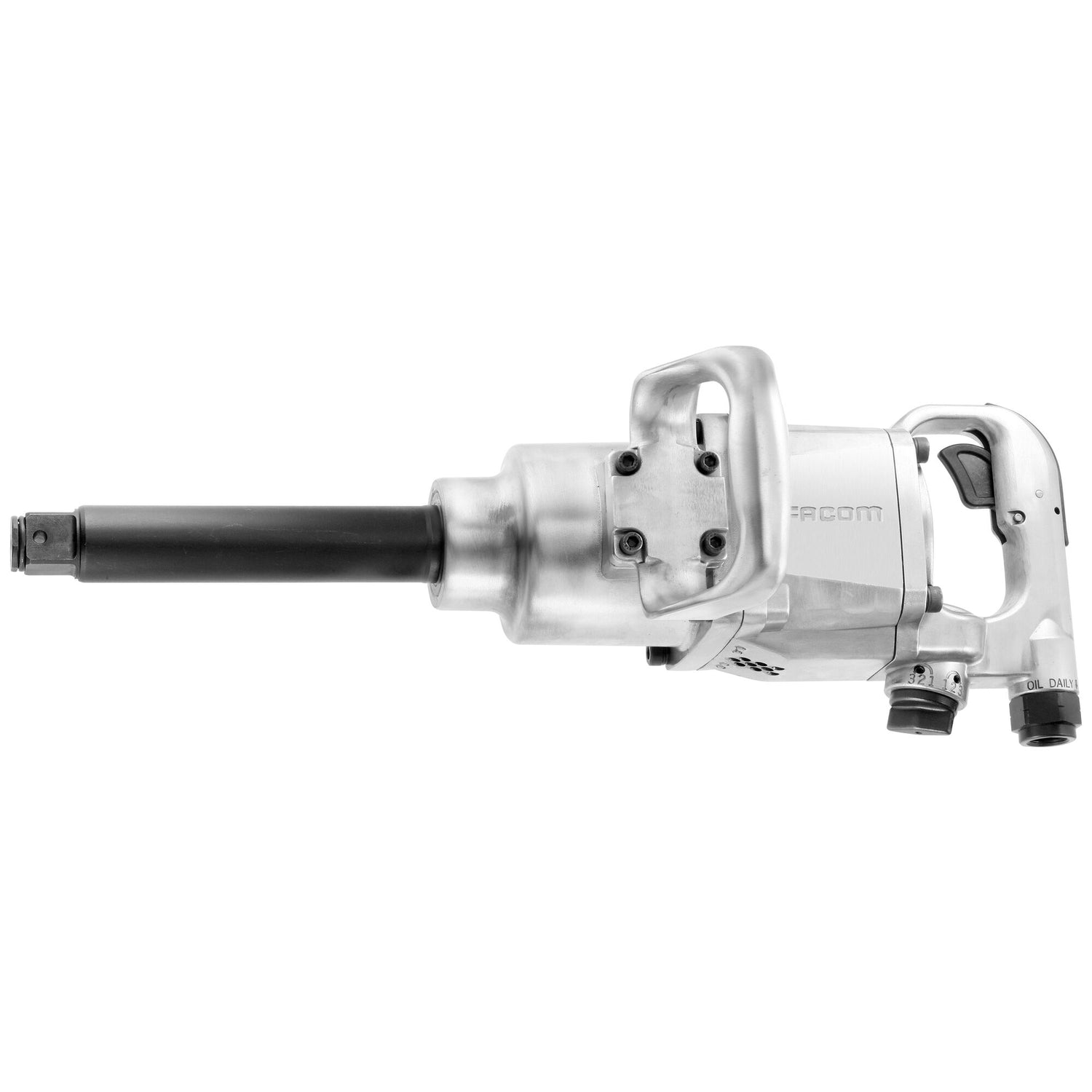

1 in. Extended Anvil Impact Wrench

SKU: NM.1010LF2 - Barcode: 3148519190250

Durable twin hammer mechanism for tool durability.
Feather teasing trigger for optimal speed control.
Integrated regulator with 3 positions forward and reverse.
Angled exhaust to blow air away from workstation.
Socket ring retainer combined with thru-hole for safety.

Full product description

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Durable twin hammer mechanism for tool durability.
Feather teasing trigger for optimal speed control.
Integrated regulator with 3 positions forward and reverse.
Angled exhaust to blow air away from workstation.
Socket ring retainer combined with thru-hole for safety.

Specifications

Cadence de frappe par minute720
Couple maximal3500 Nm
Diamètre impérial1 in
Hauteur du produit172 mm
Lumière LEDNon
Longueur du produit525 mm
Largeur du produit203 mm
Marquage CEOui
Matériau de la poignéeAluminium
MatériauAluminium
Nombre de pièces1
Pour poids lourds-véhicules industrielsNon
Poids lourds-véhicules industrielsNon
Poids net11.3 Kg
Source d’alimentationPneumatique
Type de fonctionPneumatique
Usage intensifOui
VoitureOui
Vitesse à vide (tr/mn)4000
Vanne de surchargeNon

Technical drawing and dimensions

H (mm)

172.00
L1 (mm)

202.00
L (mm)

523.00

Spare parts

ANVIL ASSEMBLY - 31D200040
SOCKET RETAINER KIT - 31K100038
SCREW KIT - 31K100039
SEALS KIT - 31K100040
THROTTLE CONTROL - 31K100041
REVERSER - 31K100042
TRIGGER - 31K100043
PLATE KIT - 31K100044
IMPACTOR - 31K100045
BEARING SET - 31K100046
CYLINDER - 31K100047
ROTOR BLADE - 31K100048
SIDE HANDLE - 31K100049
HANDLE - 31K100050
CASE - 31K100051
CASE - 31K100052
ROTOR - 31M200045
BEARING - 31R200186
INLET - 31Y200061

Documents

User manual
