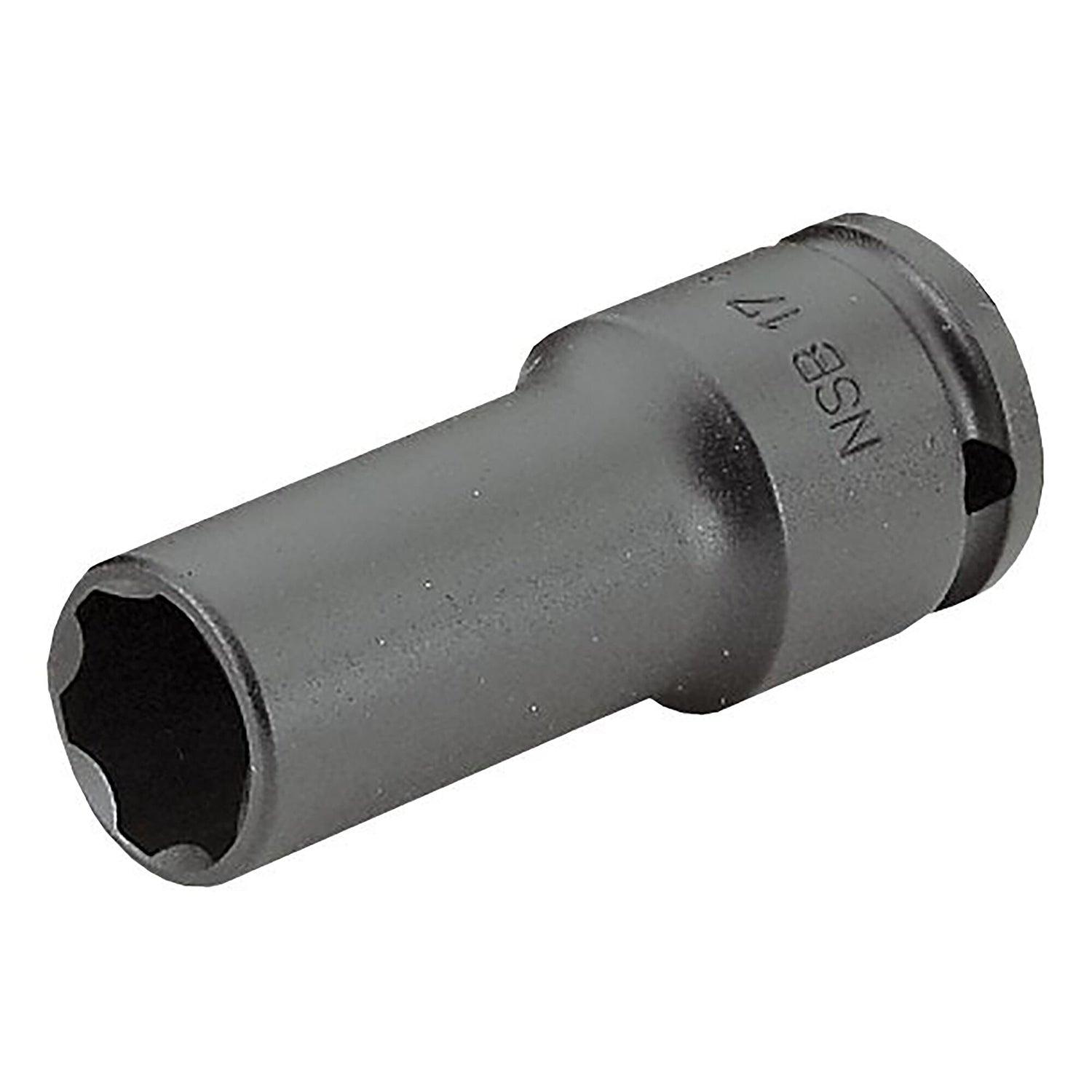

NSB - 1/2" thin wall long impact socket 6-points, metric

SKU: NSB.10 - Barcode: 3148510456096

HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
IMPACT TOOL - Use with energised tools.
OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
TREATEMENT - Molybdenum chrome steel tempered with heat treatment.
HIGH PROTECTION - Coated with manganese phosphate for higher protection and corrosion resistance.
ACCESSIBILITY - Thin wall which offers better accessibility in tight spaces.
6-point convex pattern for increased resilience.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

DIN 3129, ISO 1711-2, ISO 2725-2, NF ISO 1711-2, NF ISO 2725-2

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
IMPACT TOOL - Use with energised tools.
OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
TREATEMENT - Molybdenum chrome steel tempered with heat treatment.
HIGH PROTECTION - Coated with manganese phosphate for higher protection and corrosion resistance.
ACCESSIBILITY - Thin wall which offers better accessibility in tight spaces.
6-point convex pattern for increased resilience.

Specifications

Technical drawing and dimensions

		A (mm)	D1 (mm)	L1 (mm)	L (mm)
NSB.10	[NSB.10] 1/2 in.6-point Thin Wall Long Impact Socket, 10 mm	10.00	17.00	78.00	80.00
NSB.13	[NSB.13] 1/2 in. Thin Wall Long Impact Socket, 6-point, 13 mm	13.00	21.00	78.00	80.00
NSB.15	[NSB.15] 1/2 in. Thin Wall Long Impact Socket, 6-point, 15 mm	15.00	24.00	78.00	80.00
NSB.16	[NSB.16] 1/2" thin wall long impact socket 6-point, 16 mm	16.00	24.00	78.00	80.00
NSB.17	[NSB.17] 1/2 in. Thin Wall Long Impact Socket, 6-point, 17 mm	17.00	26.00	78.00	80.00
NSB.18	[NSB.18] 1/2 in. Thin Wall Long Impact Socket, 6-point, 18 mm	18.00	28.00	78.00	80.00
NSB.19	[NSB.19] 1/2 in. Thin Wall long Impact Socket, 6-point, 19 mm	19.00	28.00	78.00	80.00
NSB.21	[NSB.21] 1/2" thin wall long impact socket 6-point, 21 mm	21.00	30.00	78.00	80.00
NSB.22	[NSB.22] 1/2" thin wall long impact socket 6-point, 22 mm	22.00	32.00	78.00	85.00
NSB.24	[NSB.24] 1/2 in. Thin Wall Long Impact Socket, 6-point, 24 mm	24.00	34.00	78.00	85.00
NSB.27	[NSB.27] 1/2 in. Thin Wall Long Impact Socket 6-points, 27 mm	27.00	38.00	78.00	85.00
NSB.30	[NSB.30] 1/2 in. Thin Wall Long Impact Socket, 6-point, 30 mm	30.00	42.00	78.00	85.00
NSB.32	[NSB.32] 1/2 in. Thin Wall Long Impact Socket, 6-point, 32 mm	32.00	44.00	78.00	85.00
