Facom - The Art of Precision since 1918.

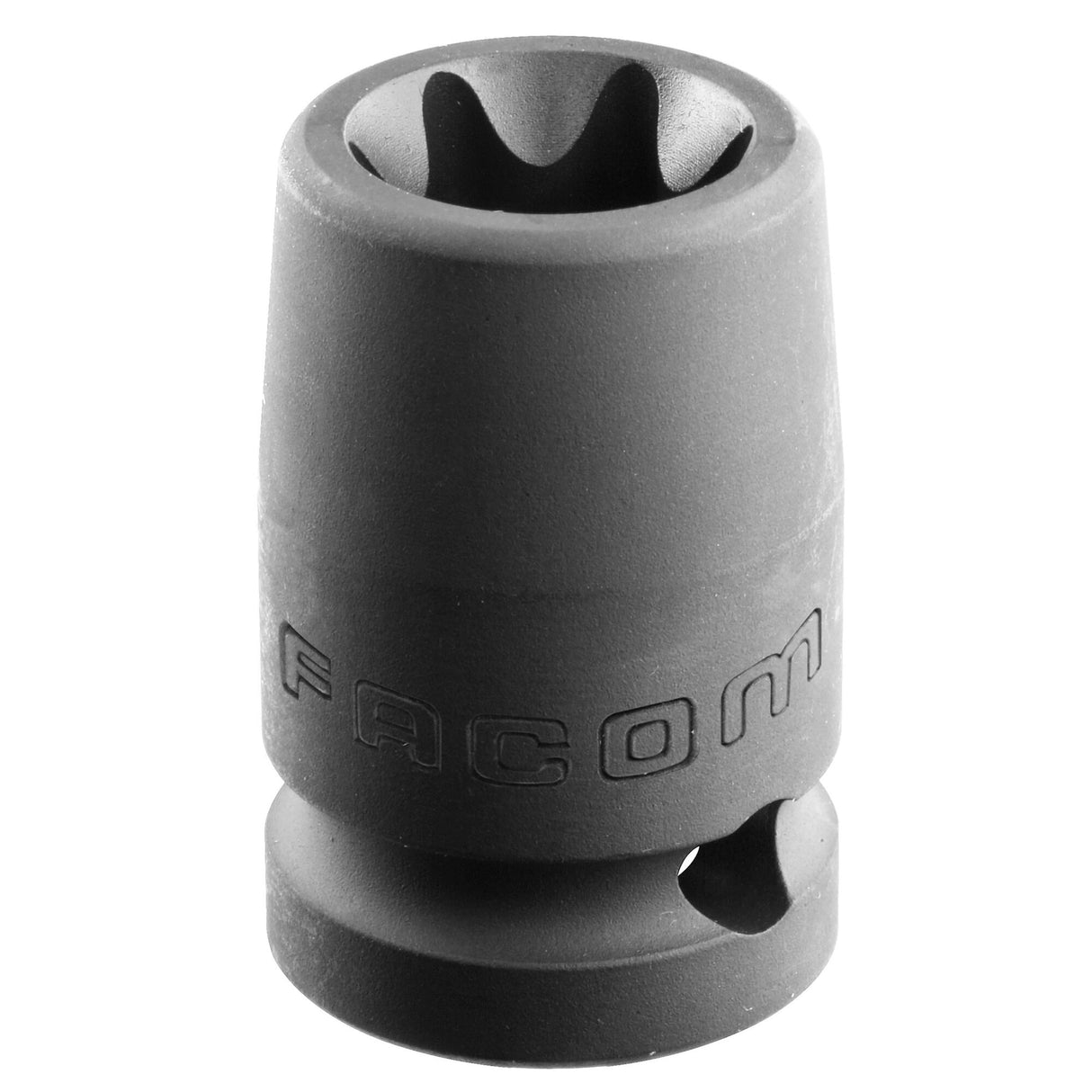

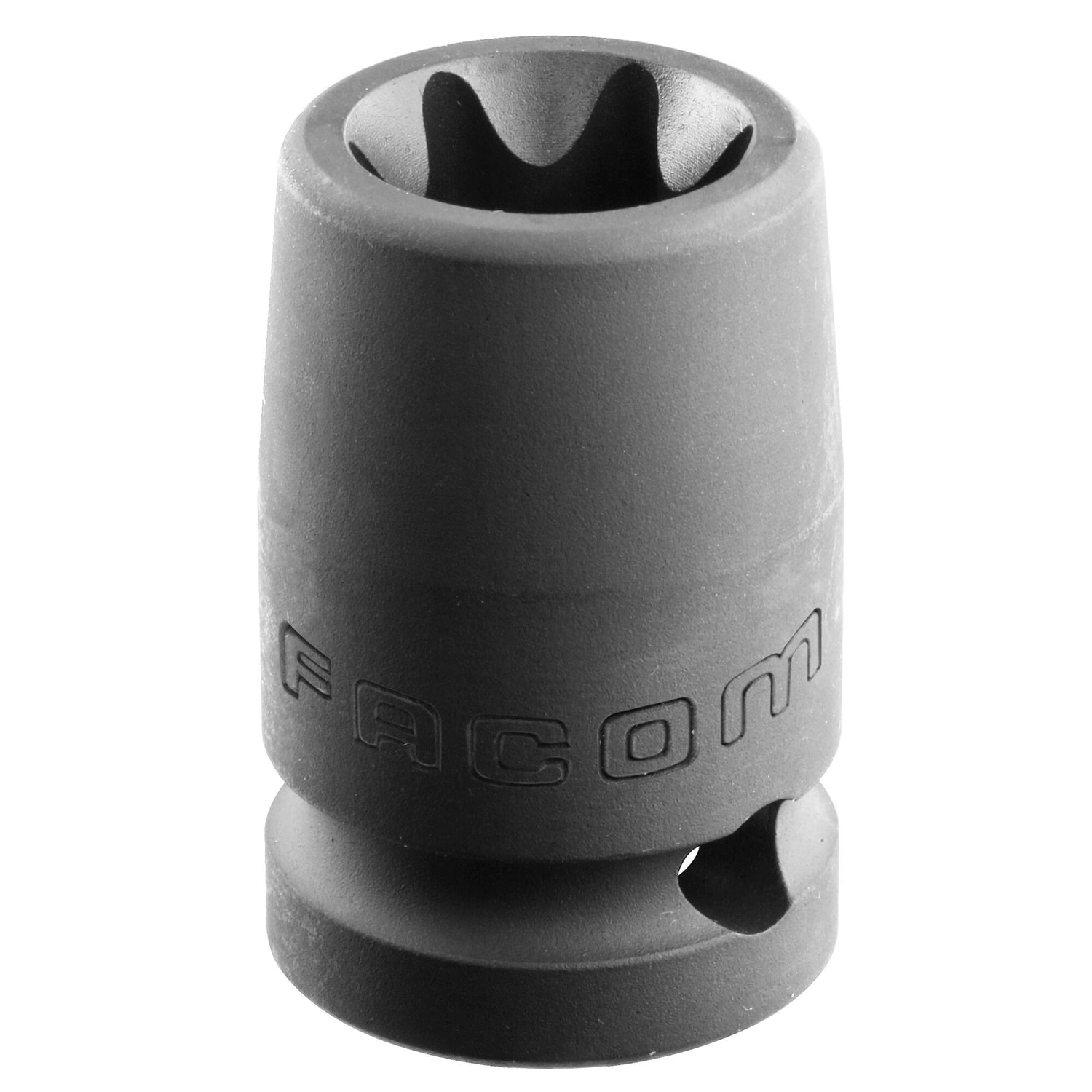

NSTX - 1/2" Torx® impact sockets

SKU: NSTX.10  -  Barcode: 3148517877801
  • HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
  • IMPACT TOOL - Use with energised tools.
  • OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
  • TREATEMENT - Molybdenum chrome steel tempered with heat treatment.
  • HIGH PROTECTION - Coated with manganese phosphate for higher protection and corrosion resistance.
  • ACCESSIBILITY - Long shape which offers better accessibility in deep spaces.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
  • IMPACT TOOL - Use with energised tools.
  • OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
  • TREATEMENT - Molybdenum chrome steel tempered with heat treatment.
  • HIGH PROTECTION - Coated with manganese phosphate for higher protection and corrosion resistance.
  • ACCESSIBILITY - Long shape which offers better accessibility in deep spaces.

Specifications
  • AttachéNon
  • Clé à chocsOui
  • Diamètre25 mm
  • Dimension Torx® femelleE10
  • ExtensibleNon
  • FinitionPhosphate
  • FlexibleNon
  • Isolation 1000VNon
  • Longueur du produit38 mm
  • MagnétiqueNon
  • Pour visseuse à chocNon
  • Poids net0.085 Kg
  • Taille de la douille9.19 mm

Technical drawing and dimensions

A (mm)D1 (mm)L (mm)
NSTX.10 [NSTX.10] 1/2 in. TORX® Impact Socket, E10 9.1914.2038.00
NSTX.12 [NSTX.12] 1/2 in. TORX® Impact Socket, E12 10.9515.2038.00
NSTX.14 [NSTX.14] 1/2 in. TORX® Impact Socket, E14 12.6718.2038.00
NSTX.16 [NSTX.16] 1/2 in. TORX® Impact Socket, E16 14.7019.2038.00
NSTX.18 [NSTX.18] 1/2 in. TORX® Impact Socket, E18 16.3822.2038.00
NSTX.20 [NSTX.20] 1/2 in. TORX® Impact Socket, E20 18.1624.2038.00
NSTX.24 [NSTX.24] 1/2 in. TORX® Impact Socket, E24 21.8428.2040.00

Documents

NSTX - 1/2" Torx® impact sockets

References available

  • [NSTX.10] 1/2 in. TORX® Impact Socket, E10
  • [NSTX.12] 1/2 in. TORX® Impact Socket, E12
  • [NSTX.14] 1/2 in. TORX® Impact Socket, E14
  • [NSTX.16] 1/2 in. TORX® Impact Socket, E16
  • [NSTX.18] 1/2 in. TORX® Impact Socket, E18
  • [NSTX.20] 1/2 in. TORX® Impact Socket, E20
  • [NSTX.24] 1/2 in. TORX® Impact Socket, E24

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
