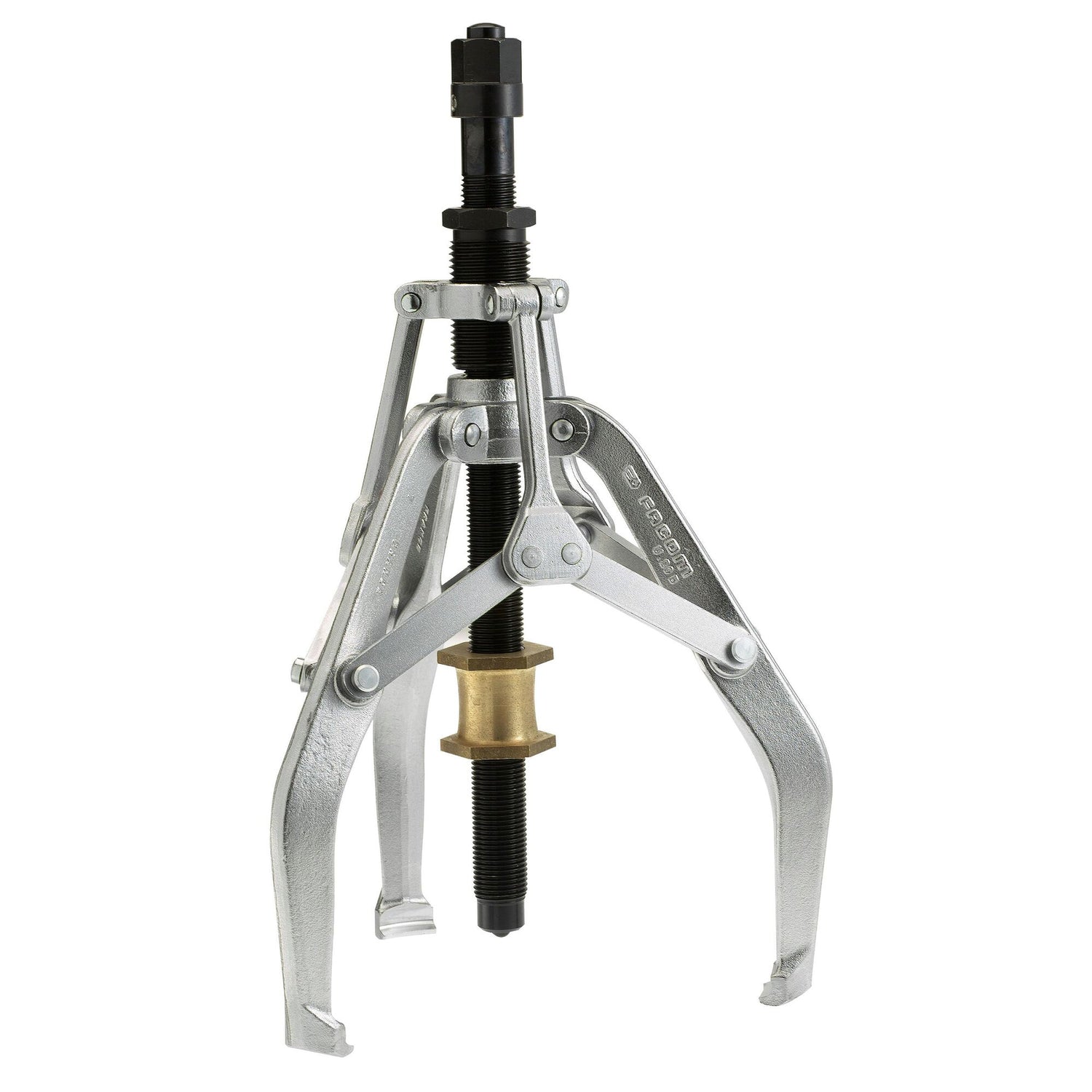

Pullers-3 legs-long reach legs

SKU: U.20B - Barcode: 3148510667201

Safety: legs locked in position on the bearing using the central nut. No risk for the puller to escape from the bearing.
Shear pin: the pin shears if torque limit is exceeded. Supplied with 2 spare pins.
Set of 3 spare pins. U.306-24J3.

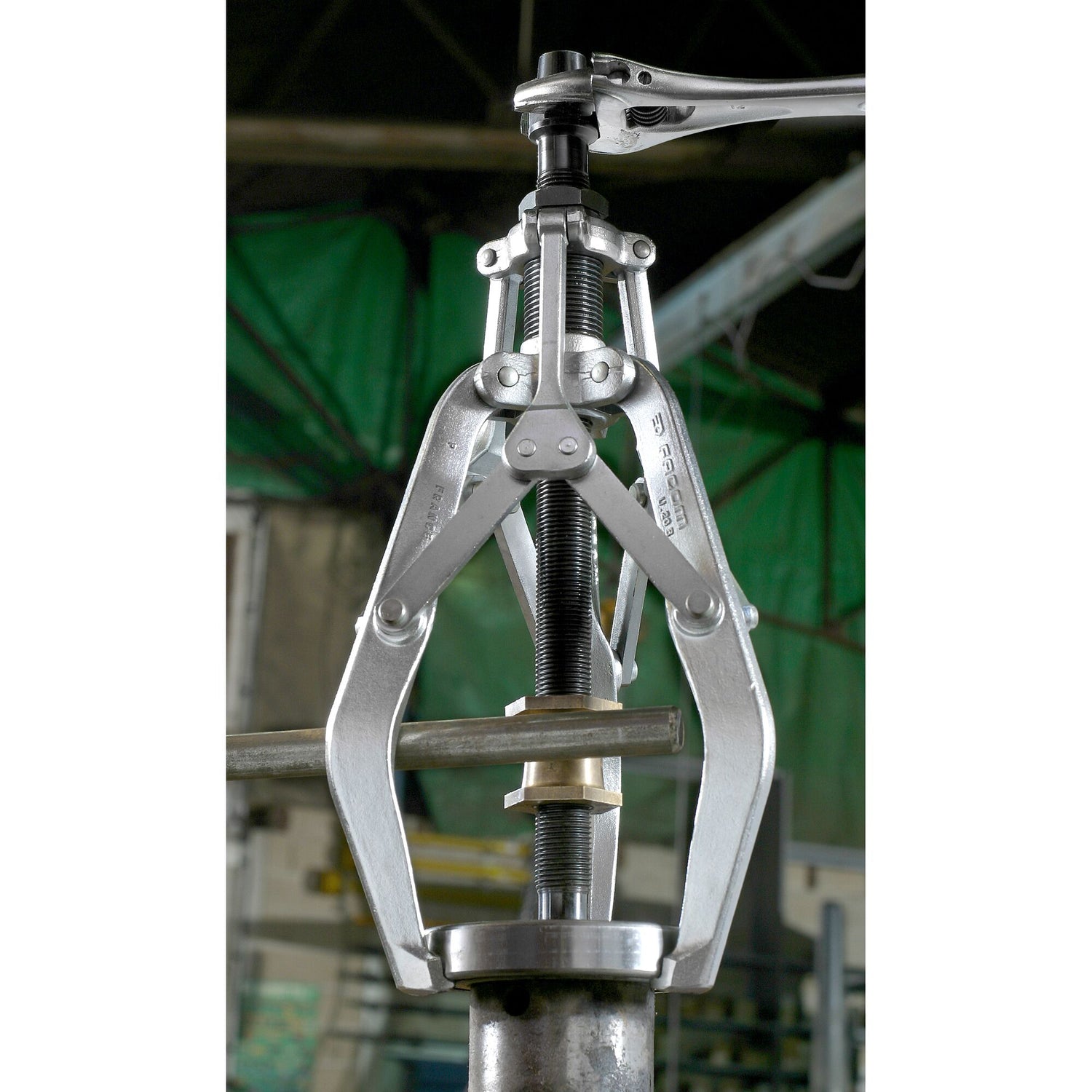

Fitted with the anti-rotation bush U.20-12. The button protects the screw when a bar is used to block puller rotation.
Adaptable puller accessory: slide hammer U.2.
Capacity diameter 25-260 mm.
Capacity 7 t.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: Lifetime warranty on the tool (repair)

Click here to learn more about our warranties.

Description

Safety: legs locked in position on the bearing using the central nut. No risk for the puller to escape from the bearing.
Shear pin: the pin shears if torque limit is exceeded. Supplied with 2 spare pins.
Set of 3 spare pins. U.306-24J3.
Fitted with the anti-rotation bush U.20-12. The button protects the screw when a bar is used to block puller rotation.
Adaptable puller accessory: slide hammer U.2.
Capacity diameter 25-260 mm.
Capacity 7 t.

Specifications

Technical drawing and dimensions

			H (mm)	L (mm)
	U.20B	[U.20B] Pullers-3 legs-long reach legs	370.00	125.00

Spare parts

SCREW - U.20B1S
LEG - U.20BSE4
PIN - U.20SE3
