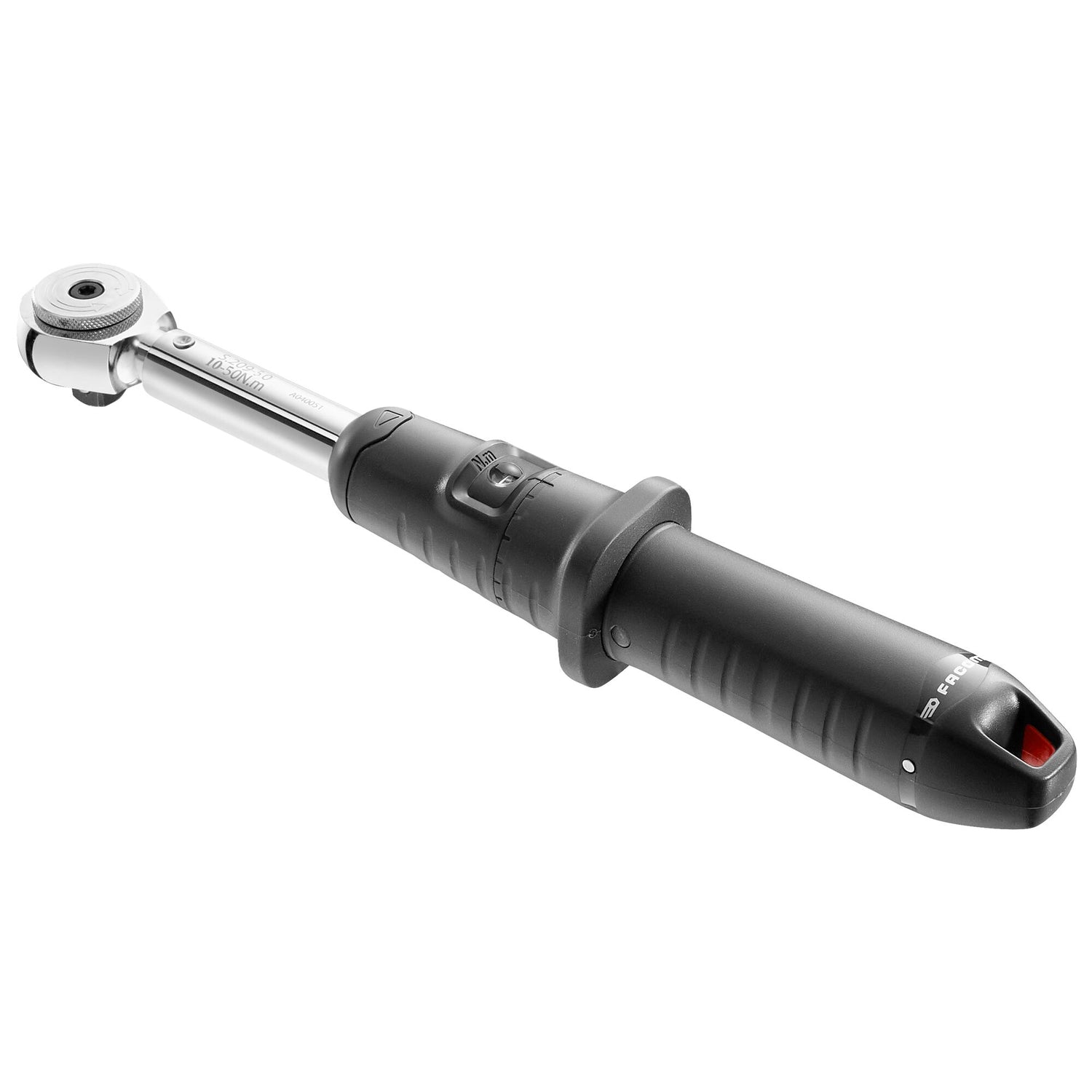

"Quick Read" 1/2 in. Click Wrench Fixed Head 40-200 Nm

SKU: J.209-50PB - Barcode: 3662424106057

ACCURACY: ± 4%.
READABILITY: Easy read out.
COMPATIBILITY: Dual scale capability for multi unit use.
UNITS: 2 values N.m and Ft.Lbs.
SETTING: Twin start thread giving time saving due to the 2x faster setting.
TORQUE: Avoid risk on overtorque.
CERTIFICATION: ISO 6789 calibration certificate.
STORAGE: Supplied in plastic protection tube.
ENVIRONMENT: Popular in automotive environment.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

ISO 6789

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description

ACCURACY: ± 4%.
READABILITY: Easy read out.
COMPATIBILITY: Dual scale capability for multi unit use.
UNITS: 2 values N.m and Ft.Lbs.
SETTING: Twin start thread giving time saving due to the 2x faster setting.
TORQUE: Avoid risk on overtorque.
CERTIFICATION: ISO 6789 calibration certificate.
STORAGE: Supplied in plastic protection tube.
ENVIRONMENT: Popular in automotive environment.

Specifications

Longueur du produit337 mm
Poids net0.78 Kg

Spare parts

WASHER - 7585.100.004-SPARE
BEARING THRUST - 7585.100.06-SPARE
INSERT - 7585.100.07-SPARE
INSERT - 7585.100.08-SPARE
INSERT - 7585.100.10-SPARE
SCREW - 7585.100.11-SPARE
SPRING SA - 7585.100.12-SPARE
LOCKING RING - 7585.100.16-SPARE
HANDLE - 7585.100.17-SPARE
SUPPORT - 7585.100.19-SPARE
HOLDER - 7585.100.20-SPARE
SHAFT SA - 7585.100.21-SPARE
NOSE - 7585.100.26-SPARE
CLIP - 7585.100.27-SPARE
CAP - 7585.100.28-SPARE
SPRING - 7585.50.02-SPARE
SPACER - 7585.50.03-SPARE
LABEL - SCALE - 7585.50.04-SPARE
PIN - 767-028
PIN - S.206-100-03
ROCKER - S.206-100-590
ROCKER - S.206-100-600
ROCKER - S.206-100-610
THRUST PLATE - S.325D4

Documents

User Guide
