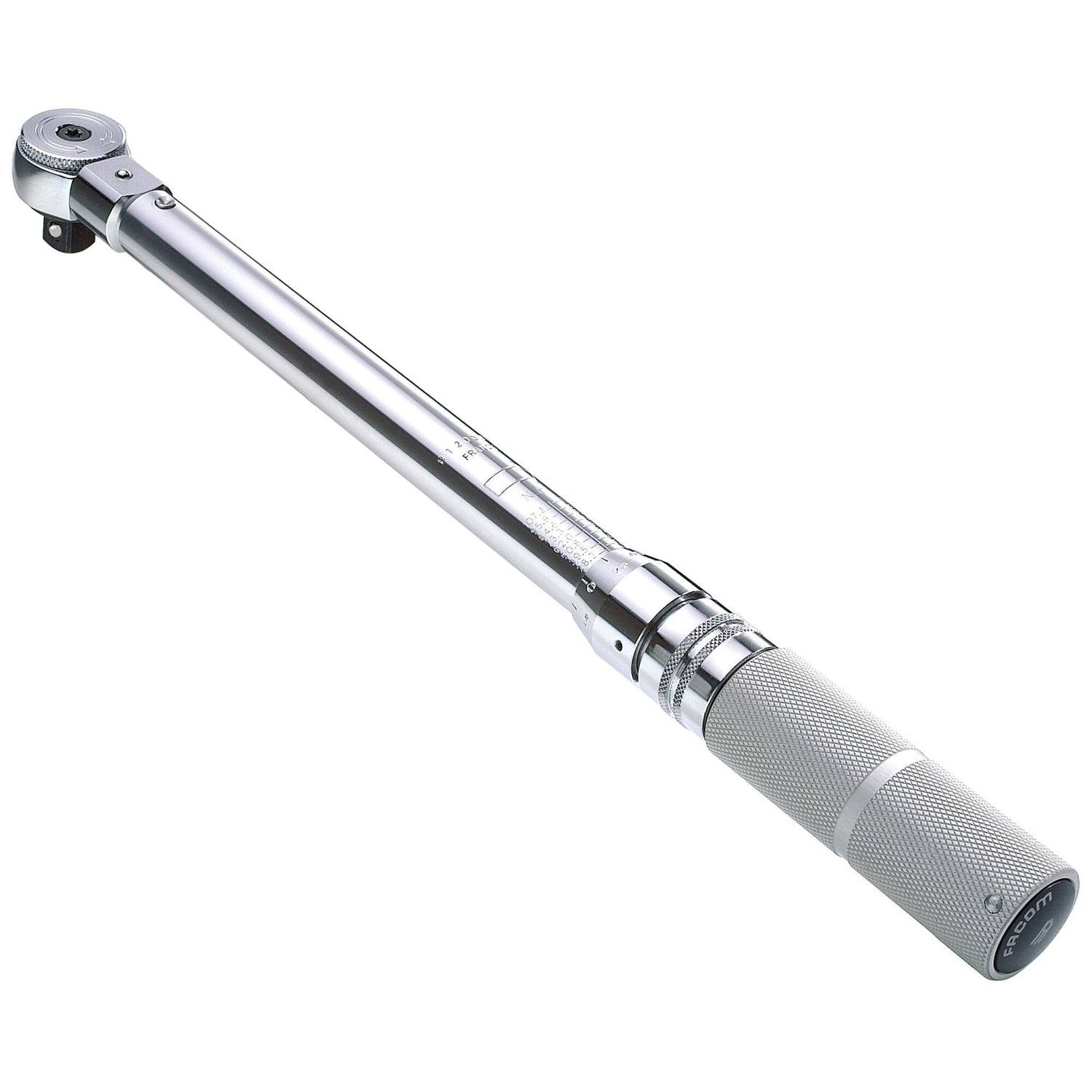

R-J-S.306U - Click wrenches with dual Ibf.in or Ibf.ft and N.m graduation

SKU: J.306U - Barcode: 3148517326316

ACCURACY: 72 tooth mechanism for 5° increments.
FACTORY ACCURACY: ± 2%.
RELIABILITY: 50 000 cycles.
SETTING: Click wrenches with dual Ibf.in or Ibf.ft and N.m graduation.
VERSATILITY: Reversible model.
MATERIAL: Full metal wrenches with knurled handle.
CERTIFICATION: Numbered wrenches supplied with ISO 6789 calibration certificate.
STORAGE: Supplied in plastic box with ratchet.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description

ACCURACY: 72 tooth mechanism for 5° increments.
FACTORY ACCURACY: ± 2%.
RELIABILITY: 50 000 cycles.
SETTING: Click wrenches with dual Ibf.in or Ibf.ft and N.m graduation.
VERSATILITY: Reversible model.
MATERIAL: Full metal wrenches with knurled handle.
CERTIFICATION: Numbered wrenches supplied with ISO 6789 calibration certificate.
STORAGE: Supplied in plastic box with ratchet.

Specifications

Spare parts

HANDLE TUBE - 778-001
PIN - S.206-100-03
ROCKER - S.206-100-15
SPRING - S.313-16
LOCKING RING - S.313-17
THRUST PLATE - S.325D4

Documents

User Guide
