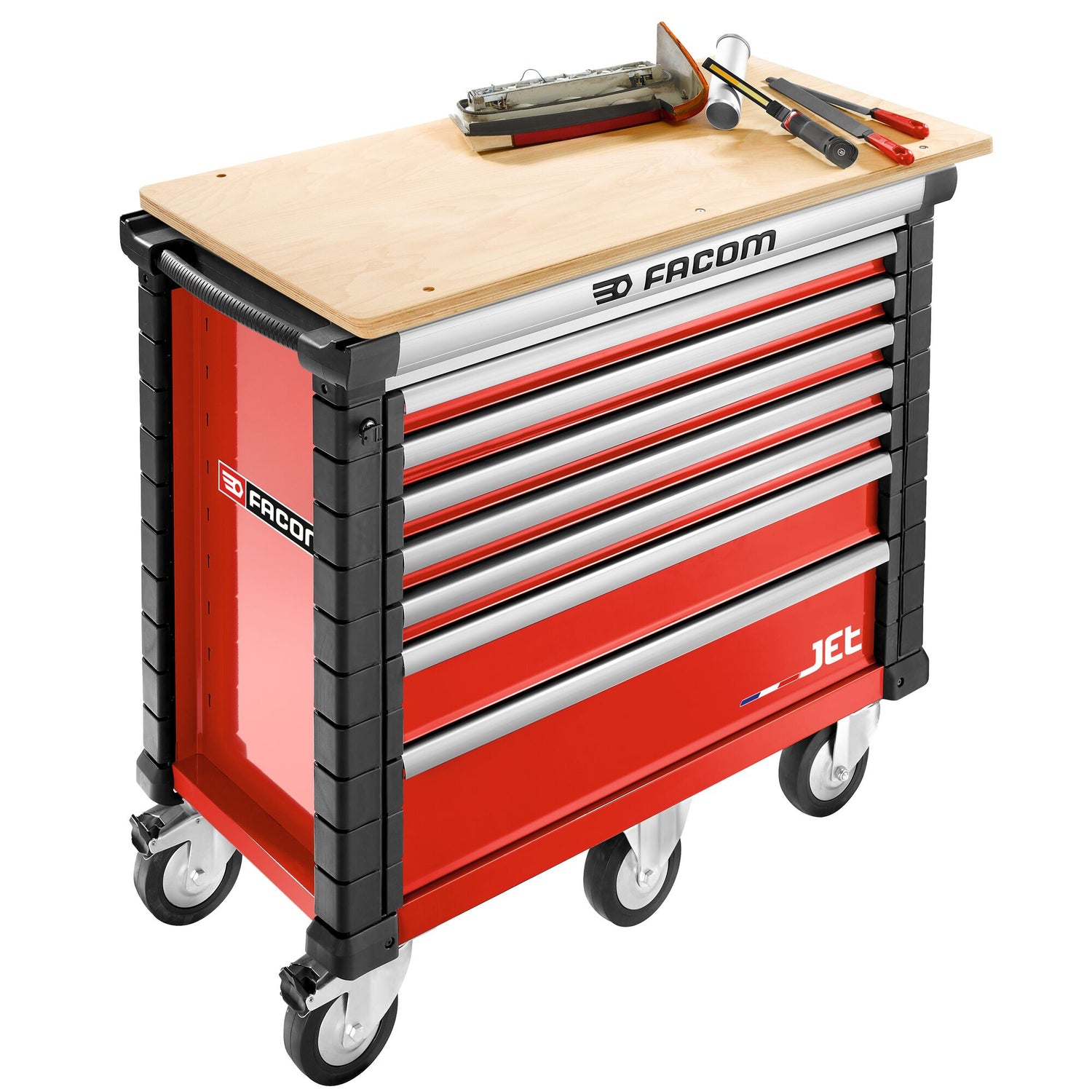

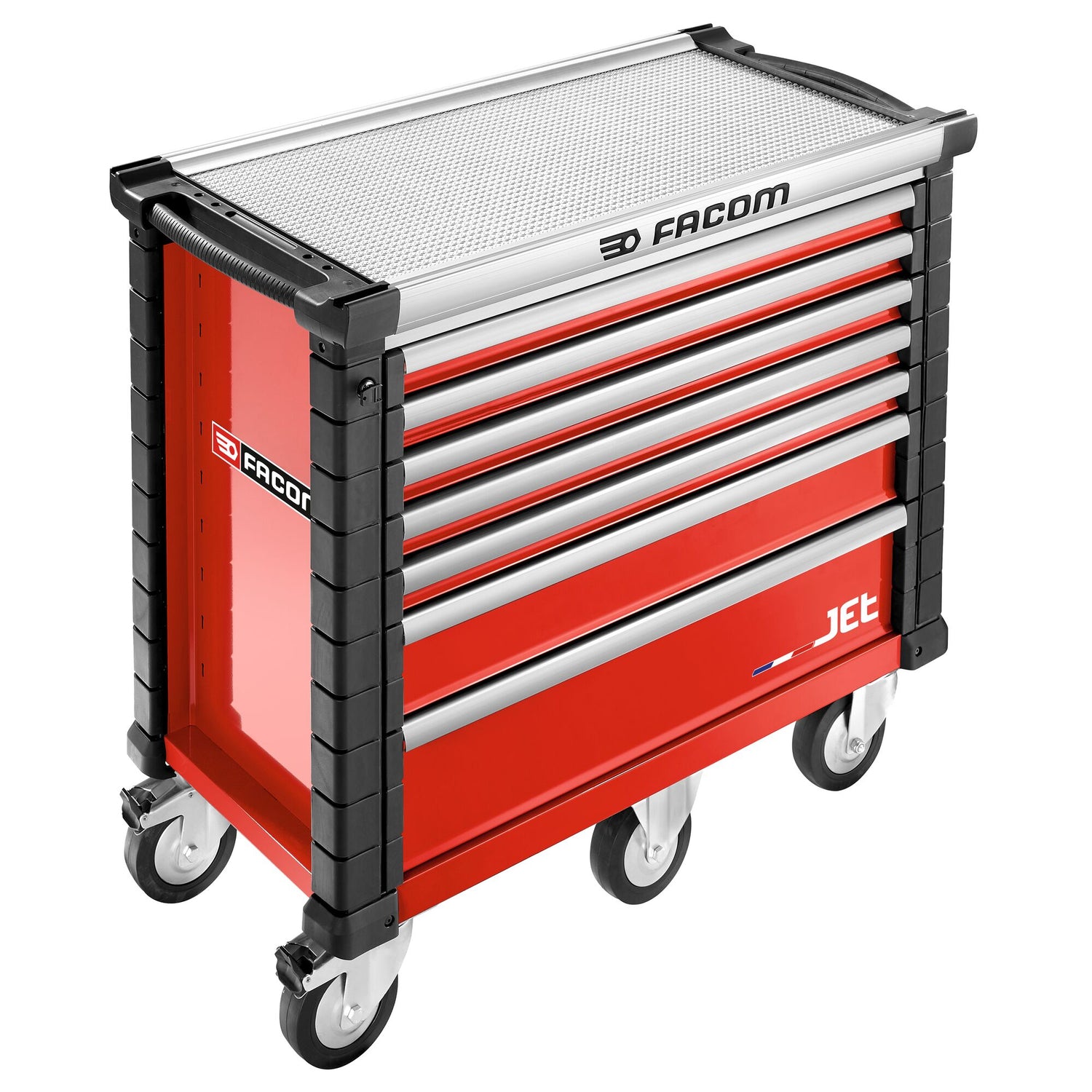

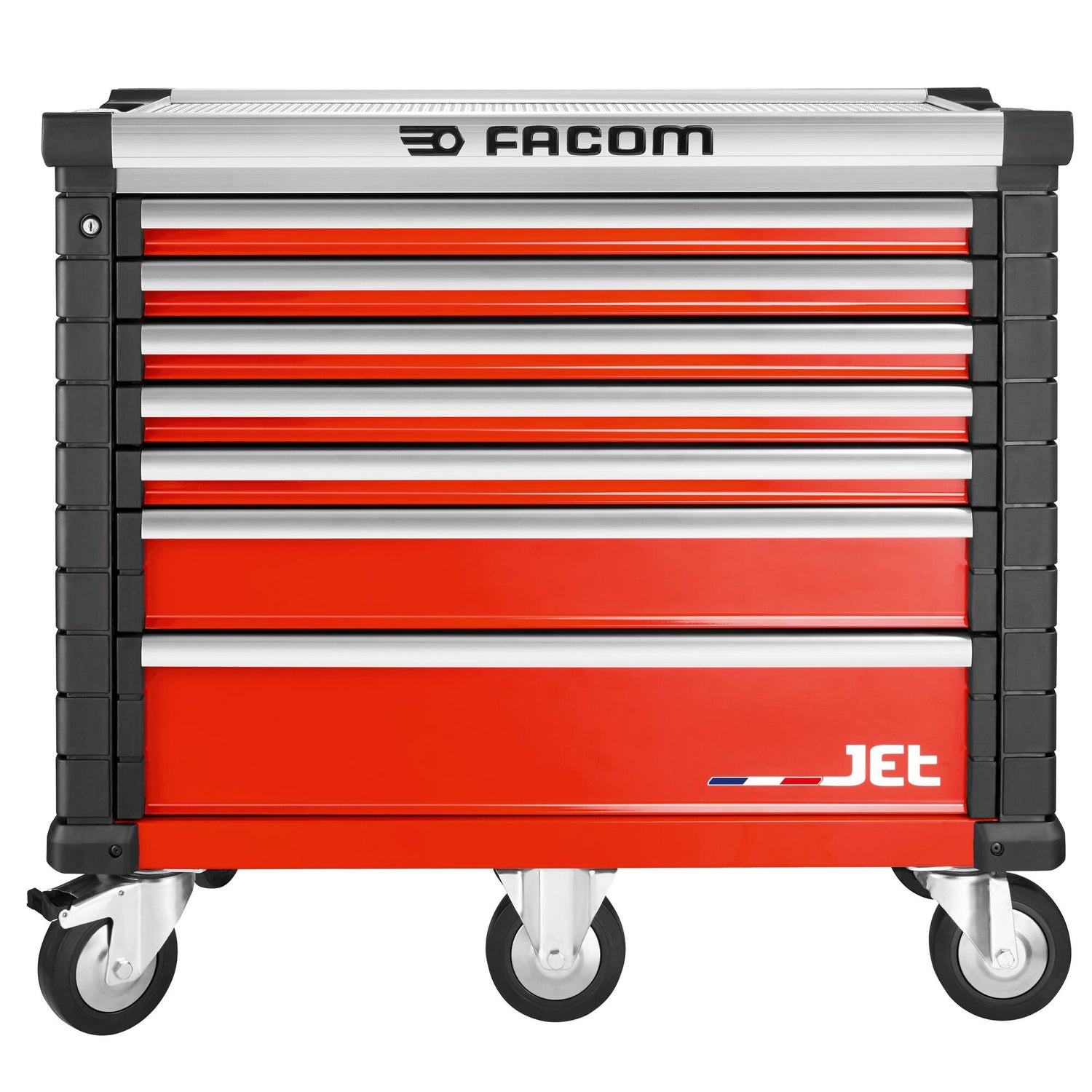

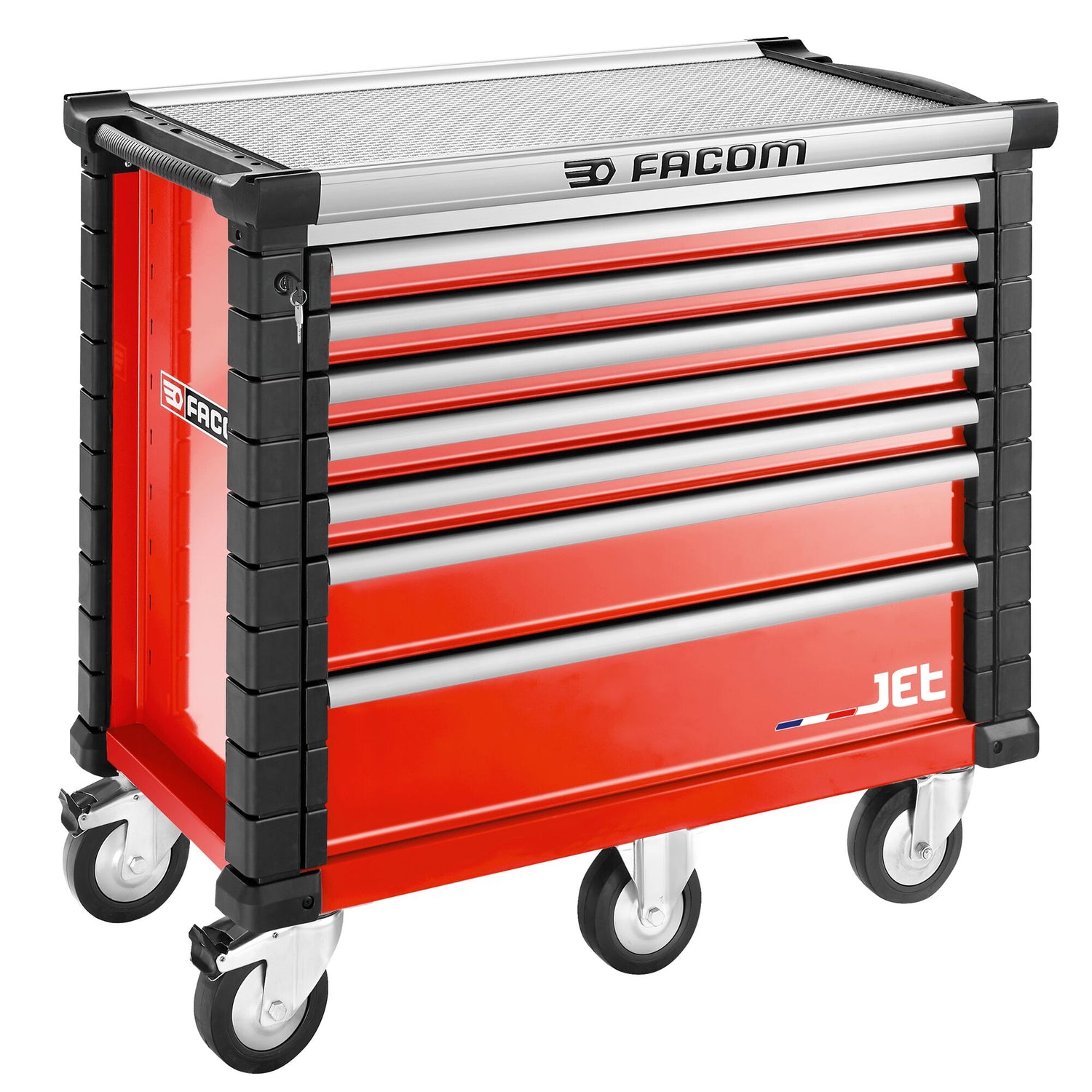

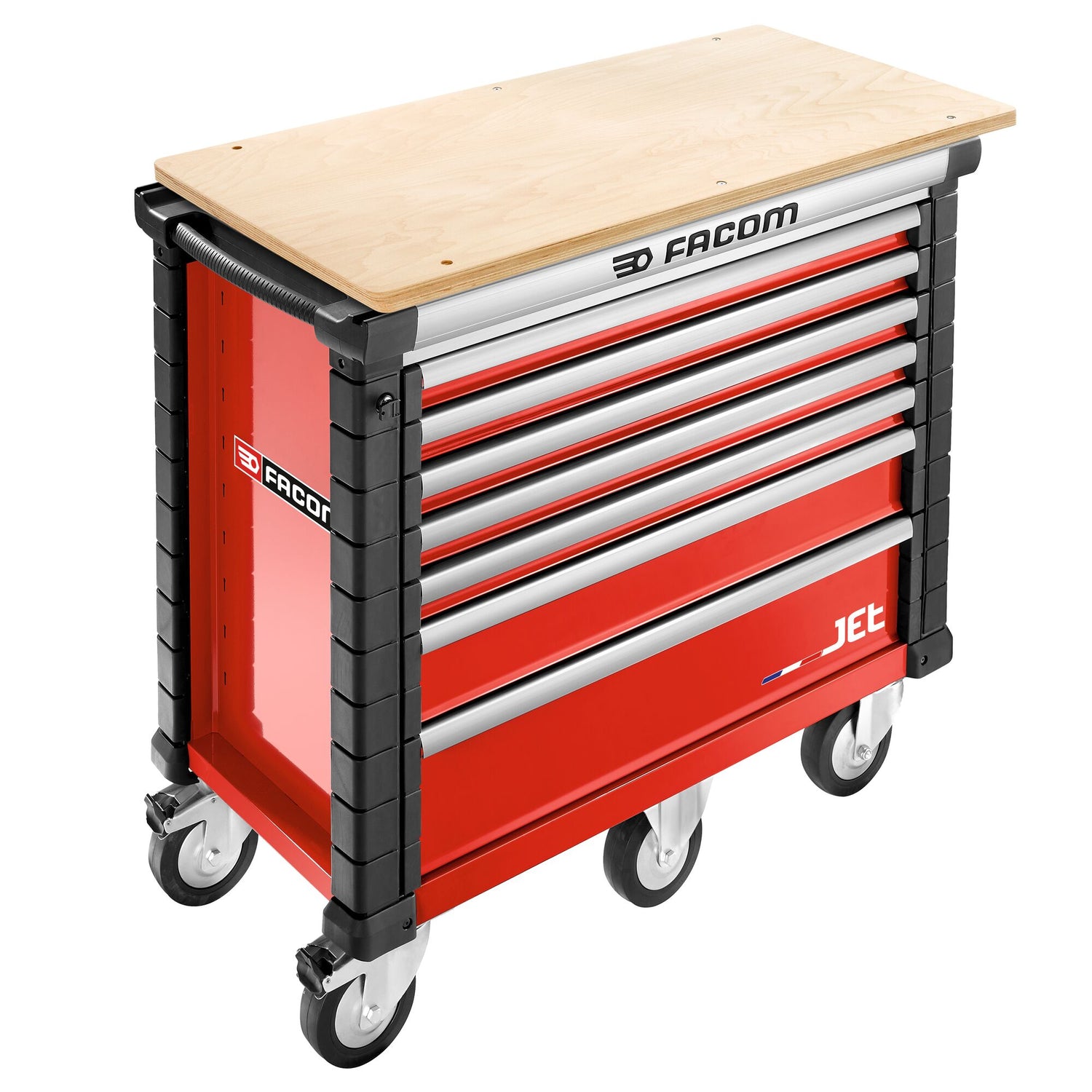

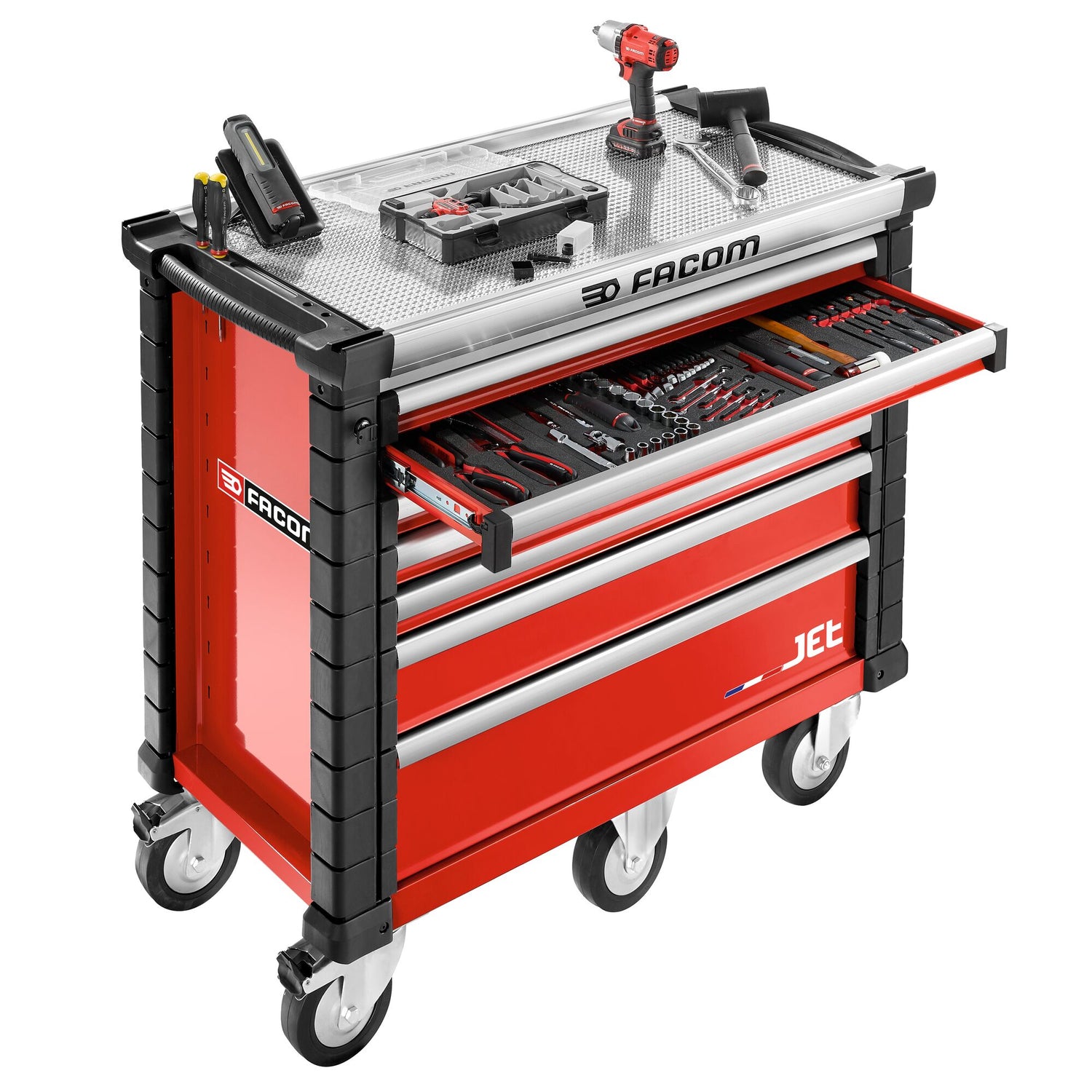

Roller Cabinet, 7 Drawers, L 948 x H 421mm, 5 Modules Per Drawer, 0,46 m² Top

SKU: JET.7M5A  -  Barcode: 3662424106774
  • 7 drawer roller cabinet = 30 modules in 60 and 130 mm drawers.
  • 5 drawers height 60 mm = 25 modules.
  • 1 drawer height 130 mm = 5 modules.
  • 1 drawer height 200 mm.

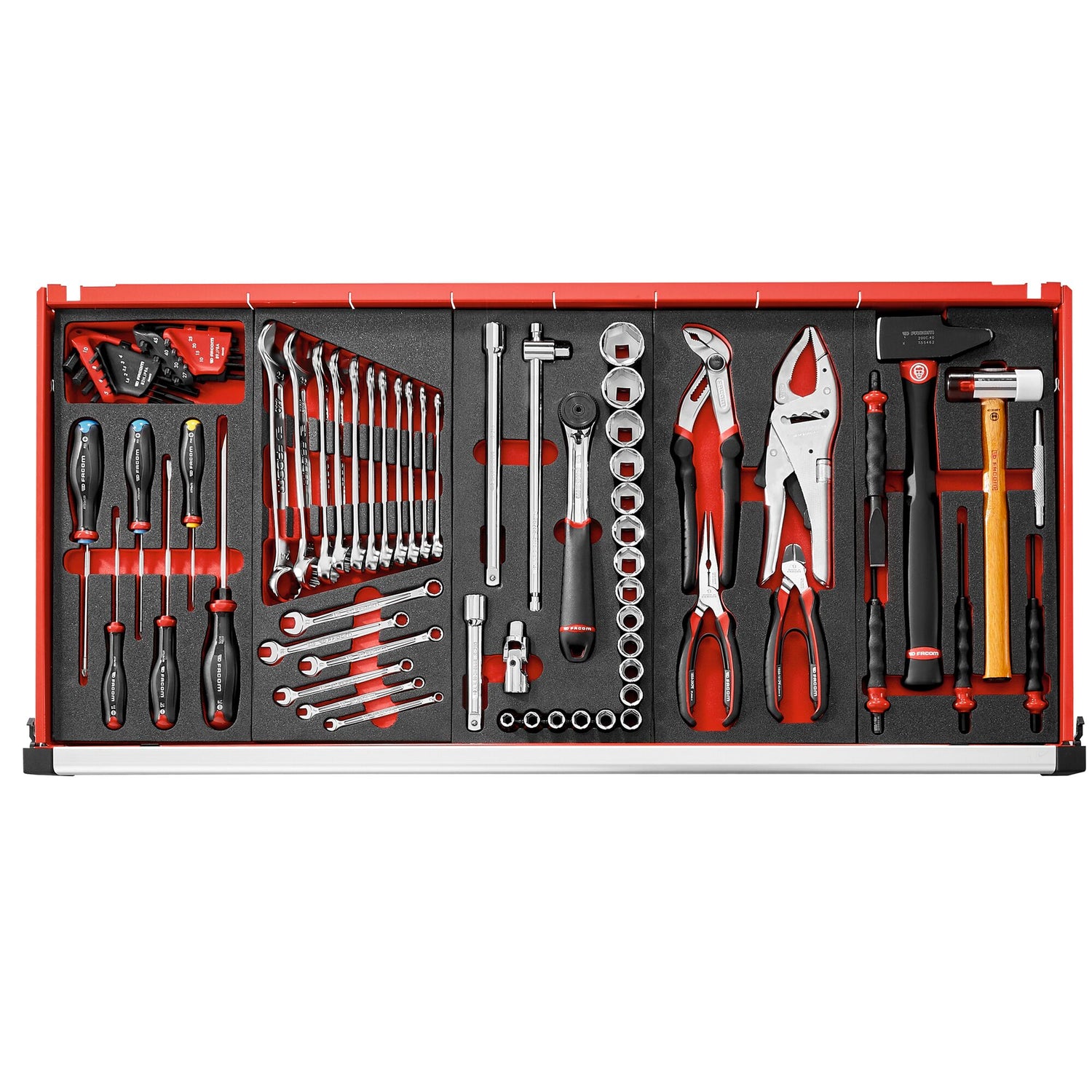

  • The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system.
  • The 200 and 270 mm drawers can also be fitted with modules.
  • Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 35/40/50 kg.
  • The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use.
  • Total load capacity of the drawers: 265 kg.
  • Total storage capacity: 255 litres.

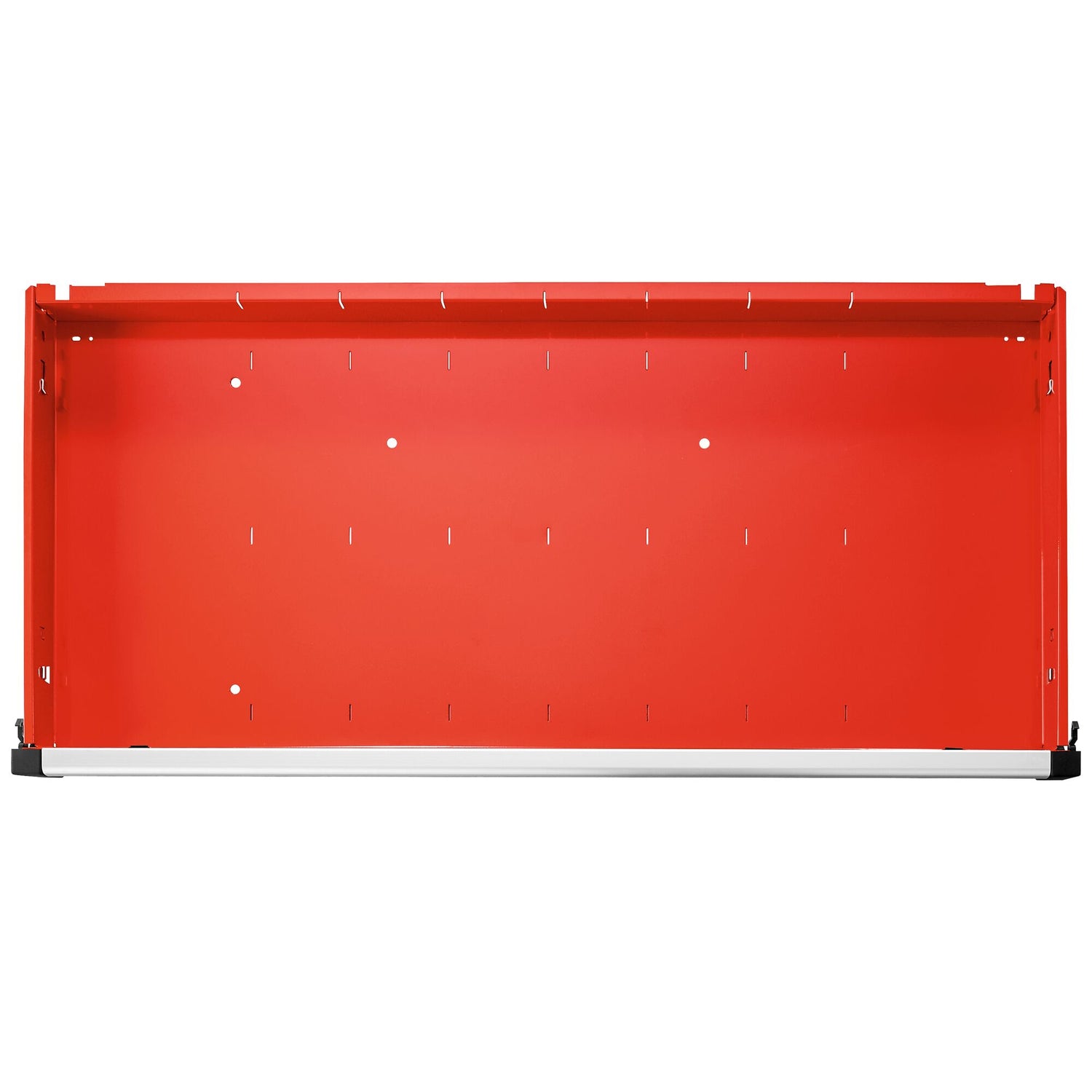

  • Usable drawer dimensions: L 948 x D 421 x H 60/130/200 mm.
  • Supplied with 4 JET2.15 partitions for 60 mm drawers and 4 JET2.16 partitions for 130 mm drawers.
  • Additional partitions can be purchased as an option if required.

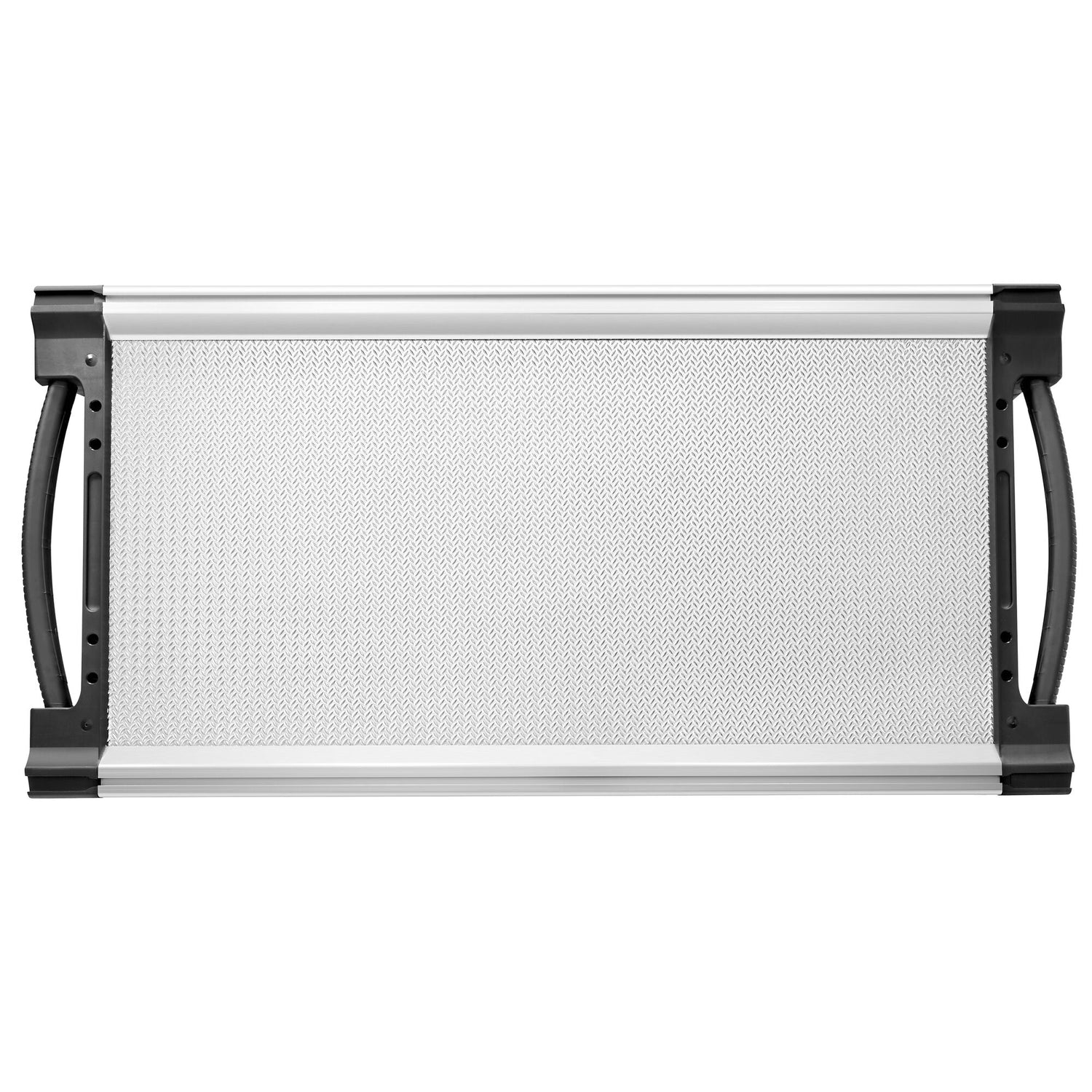

  • Worktop: Extra large work surface, usable area 987 x 461 mm, 0,46m². +25% vs JET.
  • High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 1100 kg.
  • Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles.
  • Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system.
  • The installation of accessories is fast and secure.
  • A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation.
  • Dedicated slots for 8 screwdrivers.
  • Integrated ledges prevent tools from falling out while moving.
  • Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion.
  • The high-quality self-closing system ensures closure and increases safety.
  • Central locking system with key lock, supplied with 2 keys, 1 of which is hinged.
  • Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect.
  • Manoeuvrability: Low starting effort, long life, high resistance to heavy loads.
  • 6 wheels diameter 160 mm for very high performance, 4 swivel including 2 with brakes for an extra stability while working and 2 fixed.
  • 360° function: Very easy to park.
  • The trolley is delivered with the wheels already mounted.
  • Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated.
  • Top chest available as optional unit for added volume and flexibility.
Full product description
Reference comparison

Made in France

This product is Made in France in our factories.

Click here to learn more about Our Factories.

Warranty

This product is: This product is covered by a 5-year warranty

Click here to learn more about our warranties.

Description
  • 7 drawer roller cabinet = 30 modules in 60 and 130 mm drawers.
  • 5 drawers height 60 mm = 25 modules.
  • 1 drawer height 130 mm = 5 modules.
  • 1 drawer height 200 mm.
  • The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system.
  • The 200 and 270 mm drawers can also be fitted with modules.
  • Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 35/40/50 kg.
  • The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use.
  • Total load capacity of the drawers: 265 kg.
  • Total storage capacity: 255 litres.
  • Usable drawer dimensions: L 948 x D 421 x H 60/130/200 mm.
  • Supplied with 4 JET2.15 partitions for 60 mm drawers and 4 JET2.16 partitions for 130 mm drawers.
  • Additional partitions can be purchased as an option if required.
  • Worktop: Extra large work surface, usable area 987 x 461 mm, 0,46m². +25% vs JET.
  • High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 1100 kg.
  • Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles.
  • Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system.
  • The installation of accessories is fast and secure.
  • A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation.
  • Dedicated slots for 8 screwdrivers.
  • Integrated ledges prevent tools from falling out while moving.
  • Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion.
  • The high-quality self-closing system ensures closure and increases safety.
  • Central locking system with key lock, supplied with 2 keys, 1 of which is hinged.
  • Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect.
  • Manoeuvrability: Low starting effort, long life, high resistance to heavy loads.
  • 6 wheels diameter 160 mm for very high performance, 4 swivel including 2 with brakes for an extra stability while working and 2 fixed.
  • 360° function: Very easy to park.
  • The trolley is delivered with the wheels already mounted.
  • Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated.
  • Top chest available as optional unit for added volume and flexibility.

Specifications
  • Accessoires disponiblesCloisons/Séparateurs de tiroirs
  • Capacité de rotation de 360°Oui
  • CouleurRed 3020
  • Capacité du tiroir265 Kg
  • Capacité totale du tiroir265 Kg
  • Charge maximale du plan de travail1000 Kg
  • Capacité de charge totale statique1000 Kg
  • Épaisseur du corps en métal1 mm
  • Effet pare-chocsOui
  • Hauteur du tiroir60 mm
  • Hauteur du produit971 mm
  • Longueur du tiroir759 mm
  • Longueur du produit948 mm
  • Matériau des protections d'angle de boîtePlastique dur
  • Matériau des protections d'angle de tiroirPlastique souple
  • Matériau des glissièresMétal
  • Nombre de séparateurs de tiroirs30
  • Nombre de tiroirs7
  • Nombre de roues fixes avec frein1
  • Nombre de roues fixes sans frein1
  • Nombre de poignées1
  • Nombre de roues pivotantes sans frein0
  • Nombre de roues4
  • Ouverture des tiroirs à 100%Oui
  • Profondeur du tiroir421 mm
  • Possibilité d’accessoirisationNon
  • Poids net106 Kg
  • Poignée pivotanteNon
  • Séparateurs de tiroirsNon
  • Système de verrouillageCentral
  • Tapis de tiroirNon
  • Type de poignéePlastique
  • Traitement de surfaceChrome
  • Un coffre supplémentaire peut être ajouté sur le dessusNon

Spare parts

LOCK - 2840.17
WHEEL FIXED - JET3-RF160
WHEEL PIVOT - JET3-RP160
WHEEL PIVOT - BRAKE - JET3-RPF160
HANDLE - JET4-01
BUMPER - JET4-02
BUMPER - JET4-03
HOOK - JET4-04
BAR - JET4-05
BUMPER - JET4-07
BUMPER - JET4-08
BUMPER - JET4-09
HANDLE - JET4-10M5
RAIL - JET4-11M5
DRAWER - JET4-130M5R2
TOP - JET4-13M5
DRAWER - JET4-200M5R2
DRAWER - JET4-60M5R2
TRACK - SER.GLSC30
