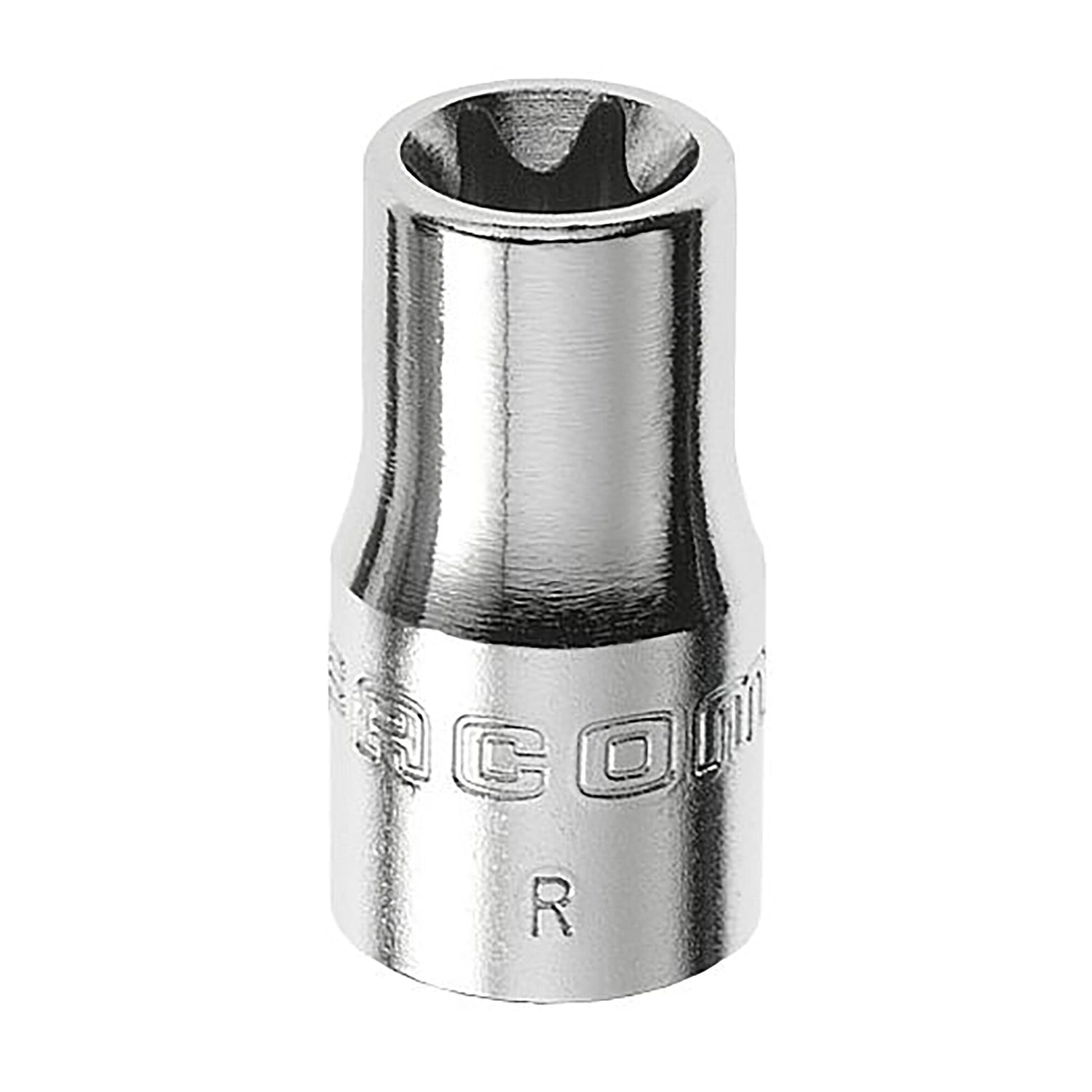

RTX - 1/4" Torx® Sockets

SKU: RTX.4  -  Barcode: 3148510533643
  • HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
  • OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
  • NECK-DOWN DESIGN - Facilitating the use in narrow spaces.
  • FINISHING - Bright chrome.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
  • OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
  • NECK-DOWN DESIGN - Facilitating the use in narrow spaces.
  • FINISHING - Bright chrome.

Specifications
  • AntidéflagrantNon
  • AttachéNon
  • Clé à chocsNon
  • Diamètre11.2 mm
  • Dimension Torx® femelleE4
  • FinitionVernis chromé
  • Isolation 1000VNon
  • Longueur du produit22 mm
  • Pour visseuse à chocNon
  • Poids net0.008 Kg
  • Taille de la douille3.7 mm

Technical drawing and dimensions

A (mm)D1 (mm)L1 (mm)L (mm)
RTX.4 [RTX.4] 1/4 in. TORX® Socket E4 3.705.403.2022.00
RTX.5 [RTX.5] 1/4 in. TORX® Socket, E5 4.586.703.0022.00
RTX.6 [RTX.6] 1/4 in. TORX® Socket, E6 5.547.703.6022.00
RTX.7 [RTX.7] 1/4 in. TORX® Socket, E7 6.228.303.6022.00
RTX.8 [RTX.8] 1/4 in. TORX® Socket, E8 7.299.604.3022.00
RTX.10 [RTX.10] 1/4" TORX® socket, E10 9.1911.305.6022.00

Documents

RTX - 1/4" Torx® Sockets

References available

  • [RTX.4] 1/4 in. TORX® Socket E4
  • [RTX.5] 1/4 in. TORX® Socket, E5
  • [RTX.6] 1/4 in. TORX® Socket, E6
  • [RTX.7] 1/4 in. TORX® Socket, E7
  • [RTX.8] 1/4 in. TORX® Socket, E8
  • [RTX.10] 1/4" TORX® socket, E10

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
