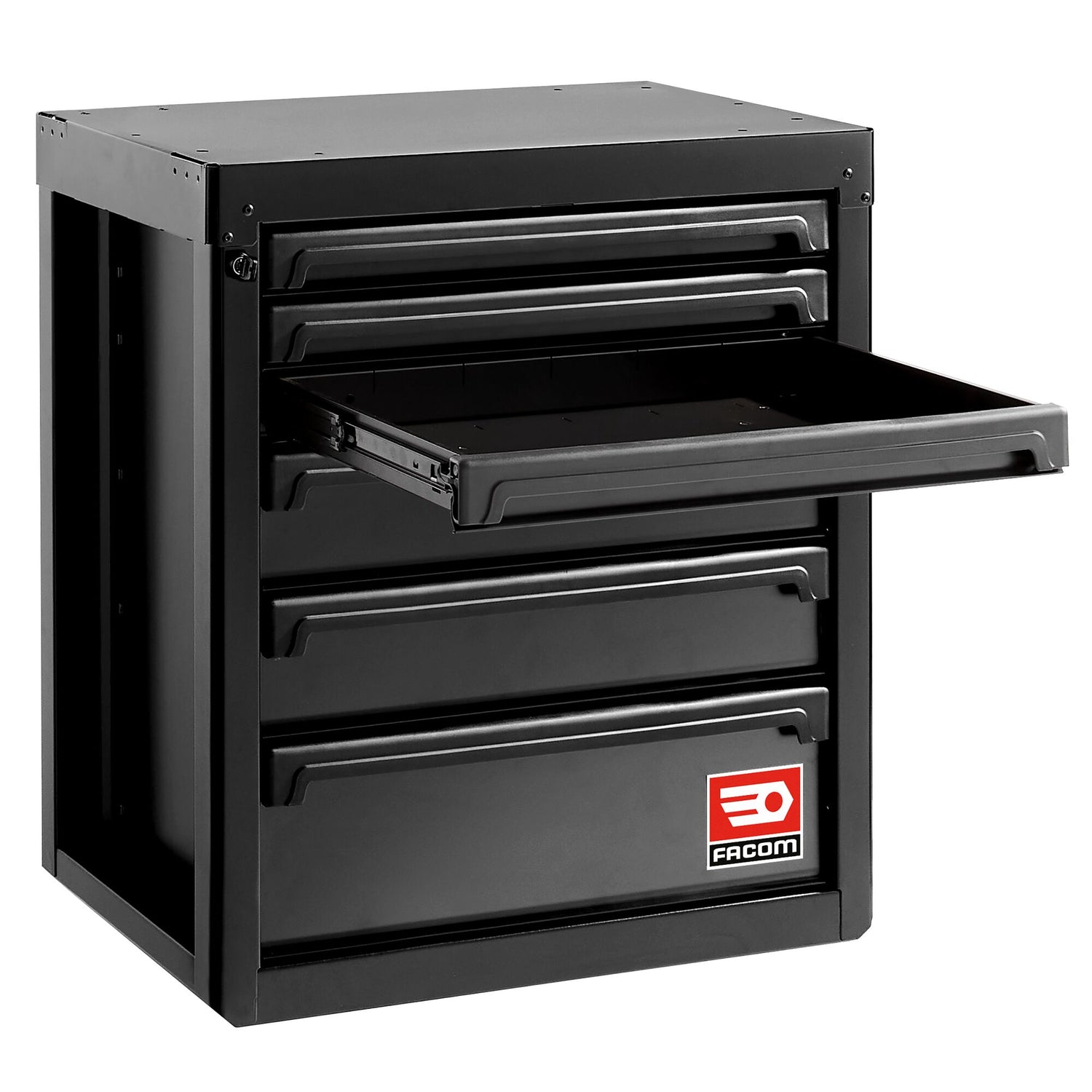

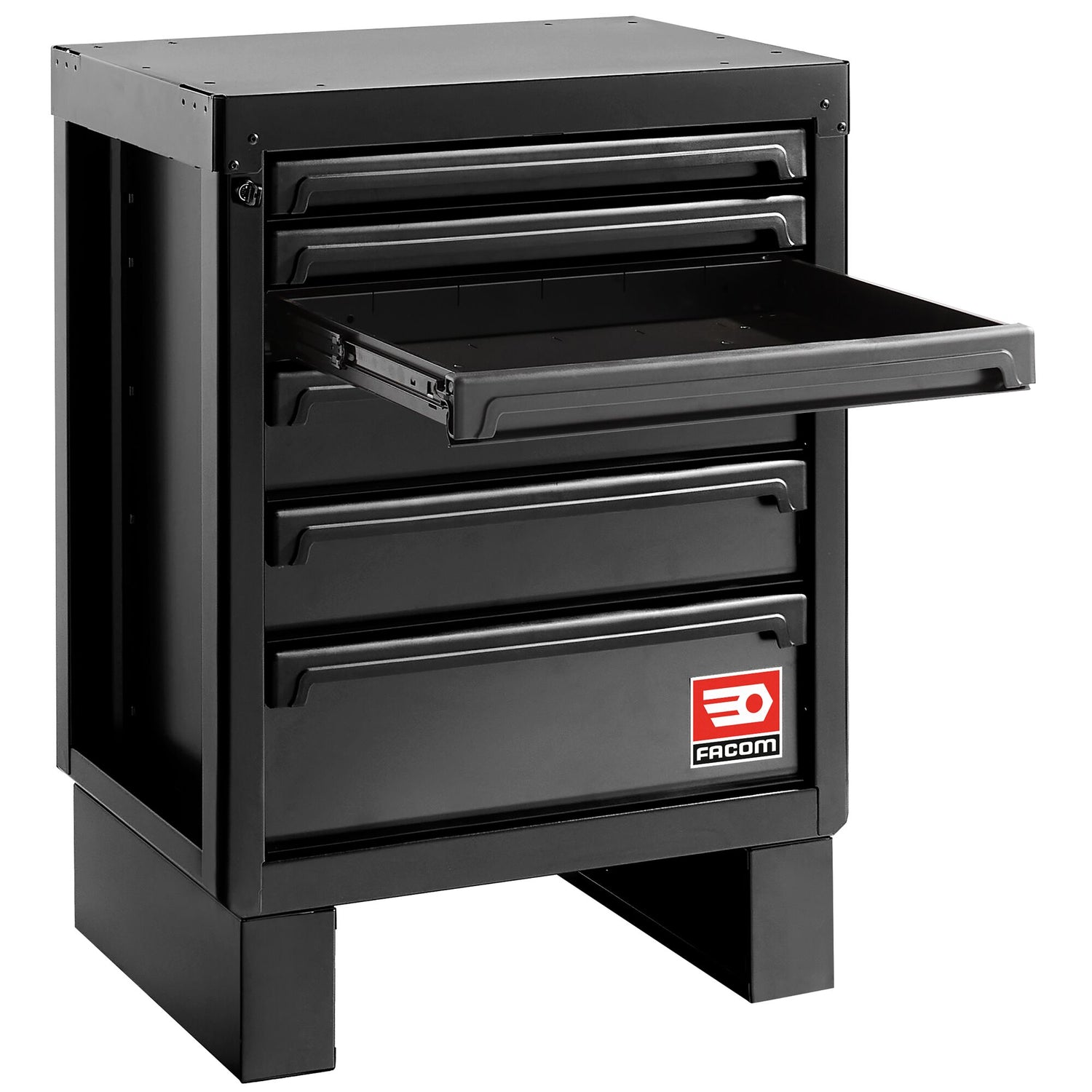

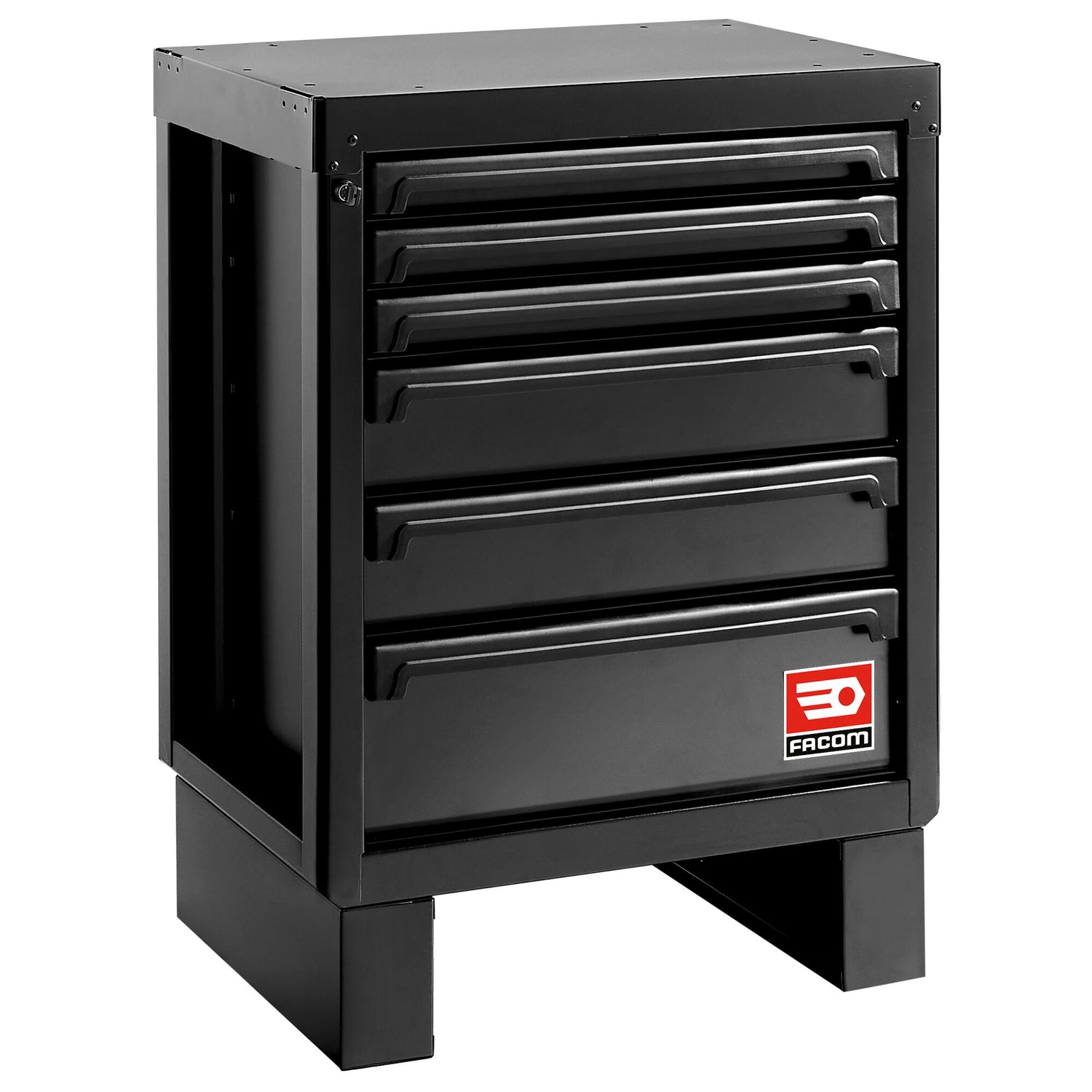

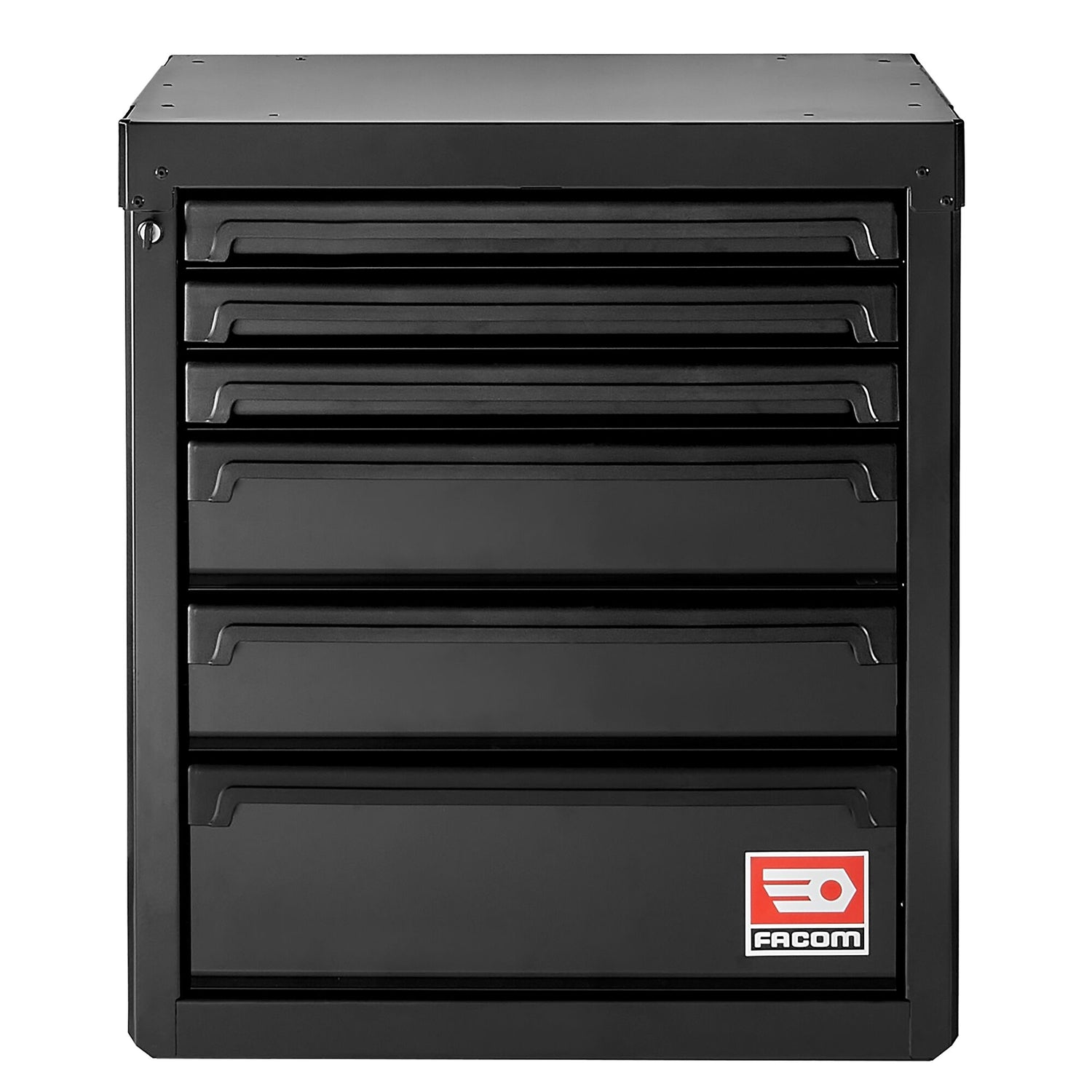

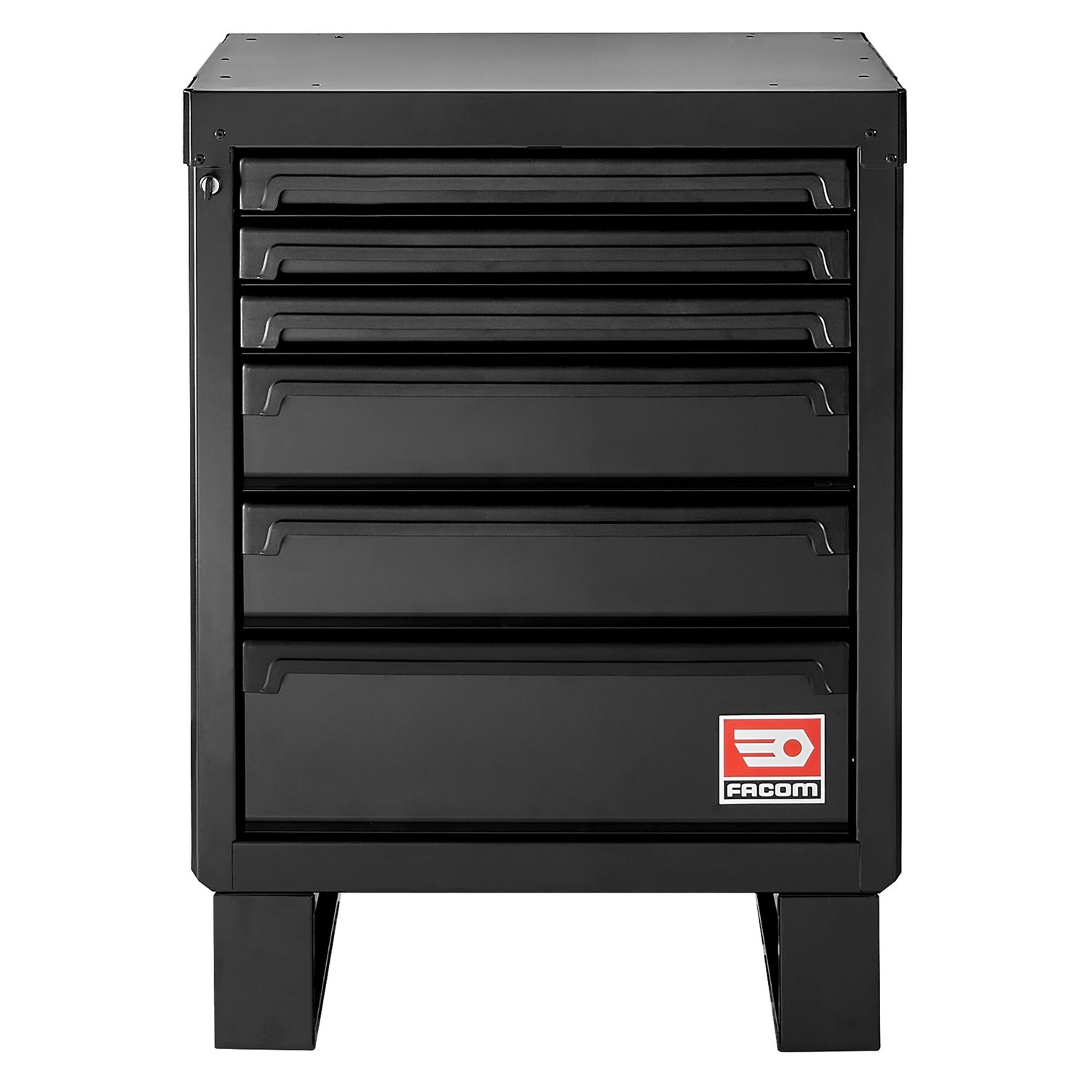

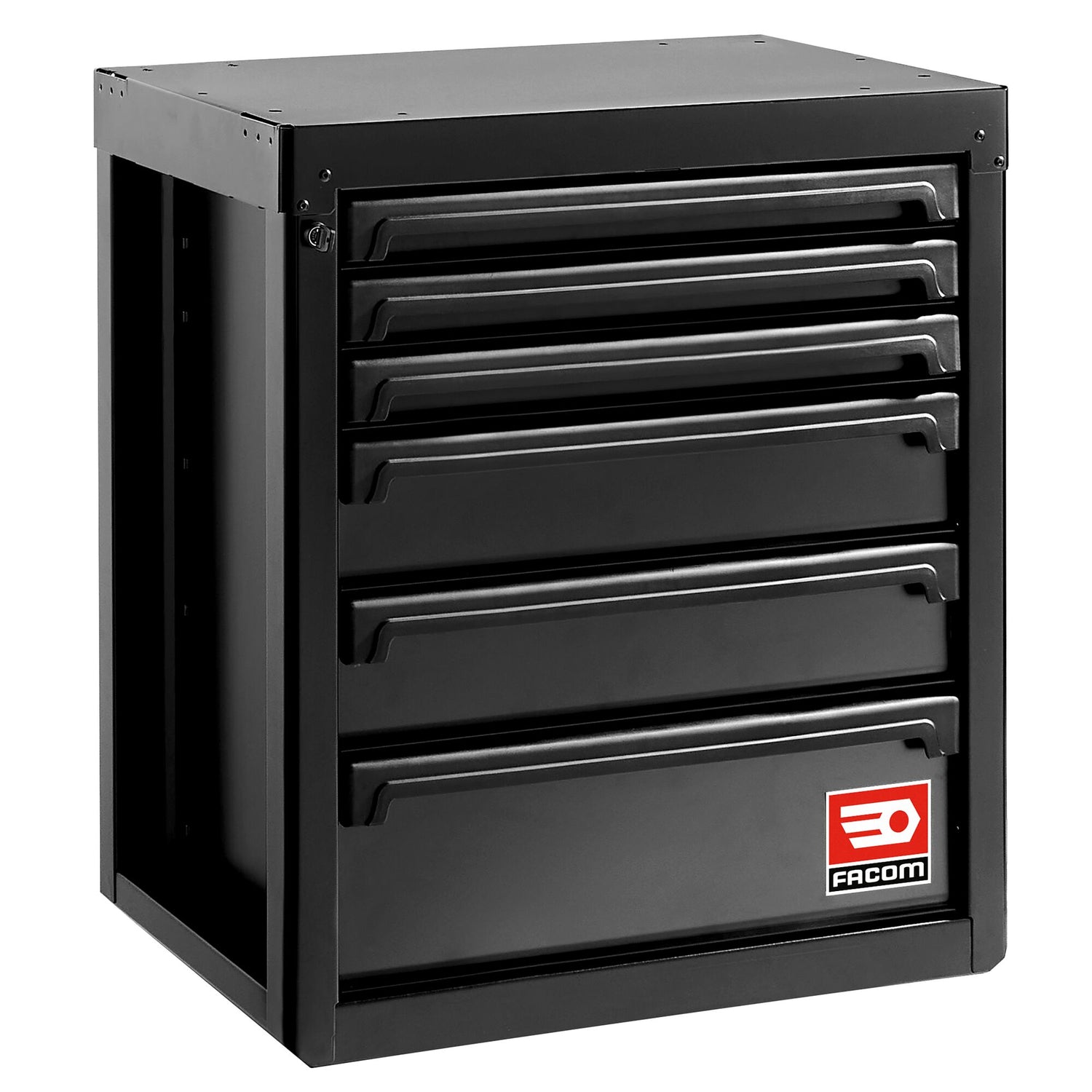

RWS2.0 - Base Unit, 6 Drawers, Black
SKU:
RWS2-MBS6TBS
- Part of Facom ROLL Workshop System (RWS2).
- 3 drawers 60mm high = 9 modules.
- 2 drawers 130mm high = 6 modules.
- 1 drawer 200mm high.
- Drawer useful size: L 569 x D 421 x H 60/130/200 mm.
- Load resistance per drawer : 20/25/30kg.

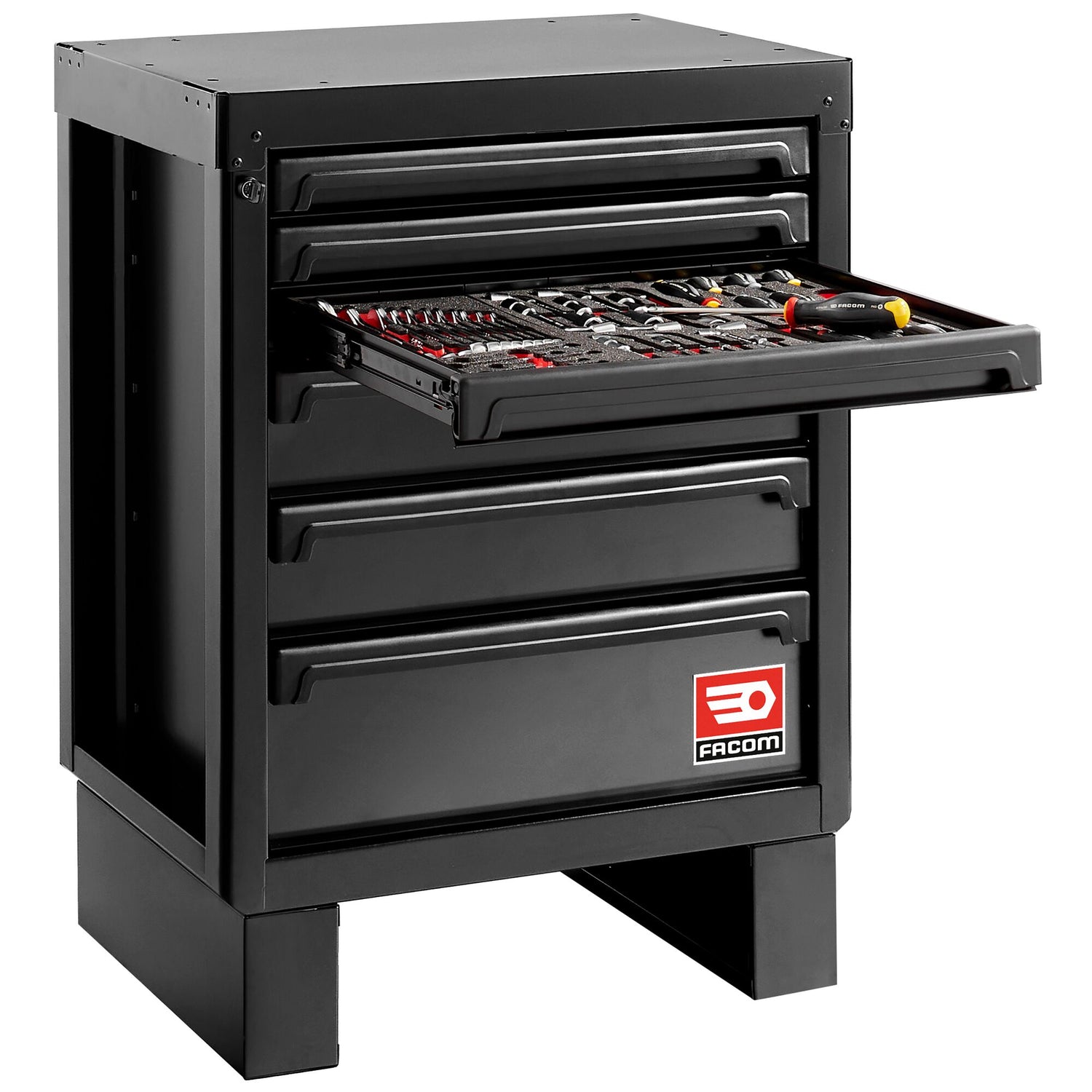

- Fully opening drawers on telescopic ball bearing slides.
- Fiber-filled Polypropylene drawer pulls with safety hooks.
- Centralised locking, supplied with 2 keys, one folding.

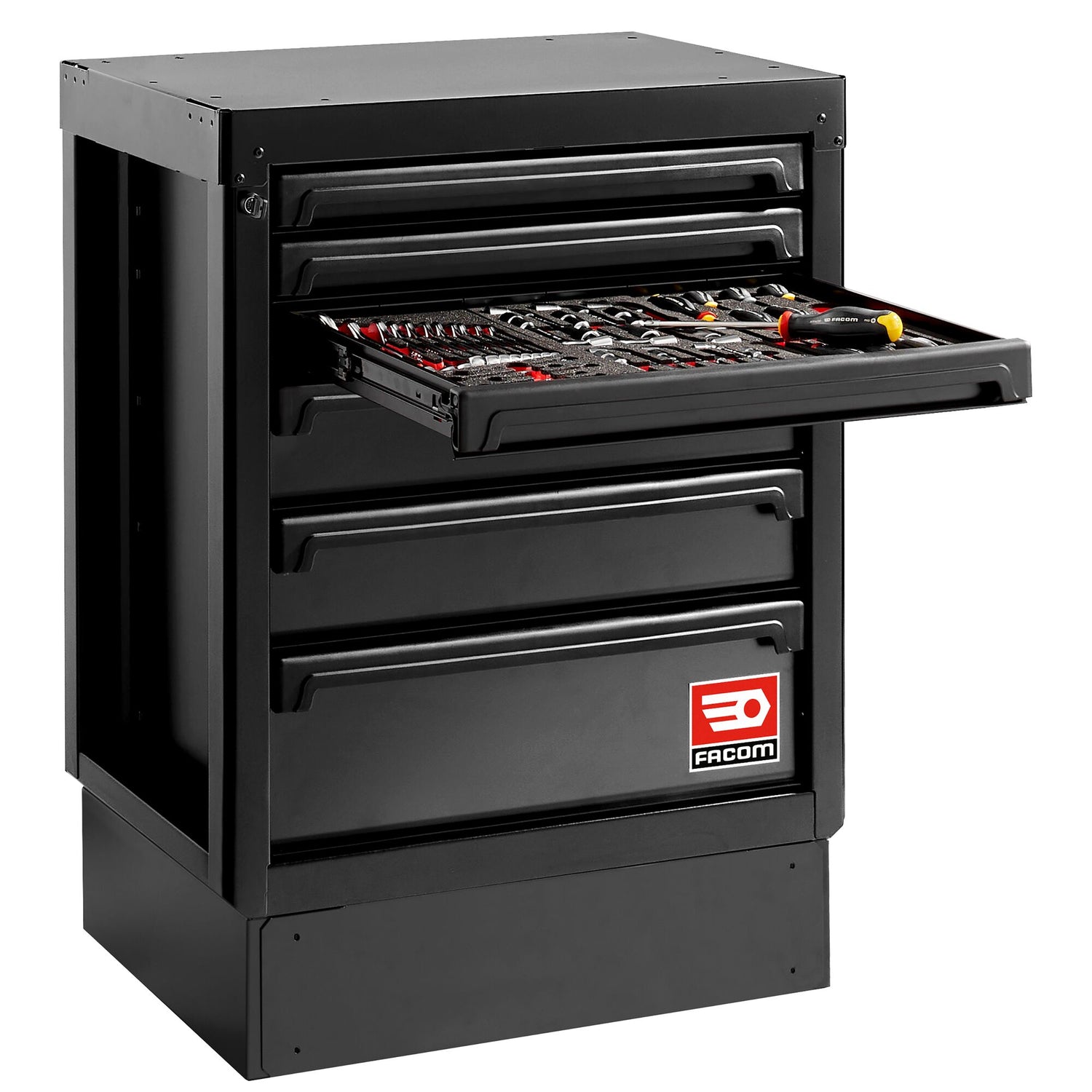

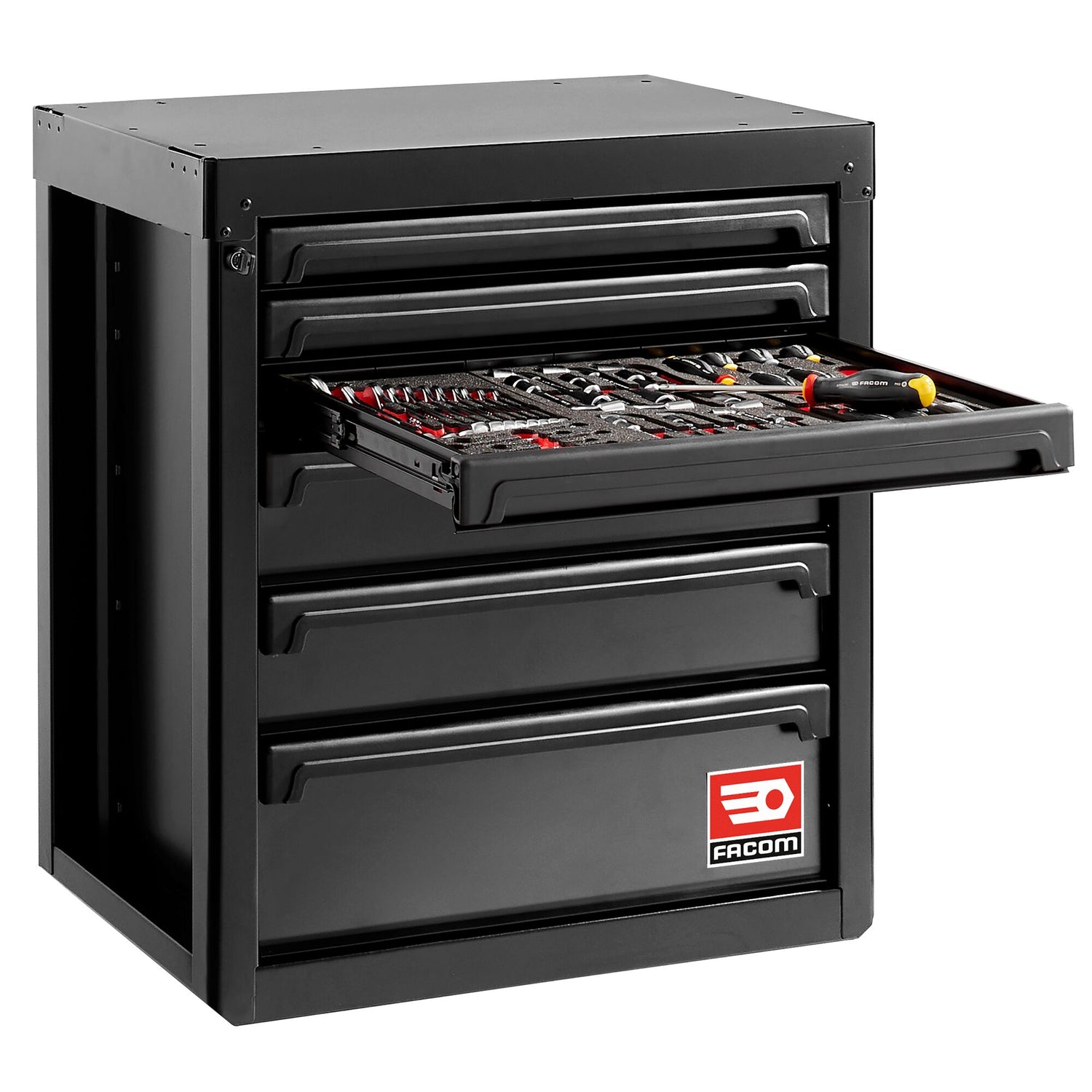

- The 60 and 130 mm drawers can be fitted with thermoshaped or foam modules from Facom Modular system program. The 200 mm drawers can also be fitted with modules.
- Can be fitted with optional partitions : JET2.15 for 60mm drawers and JET2.16 for 130mm drawers.

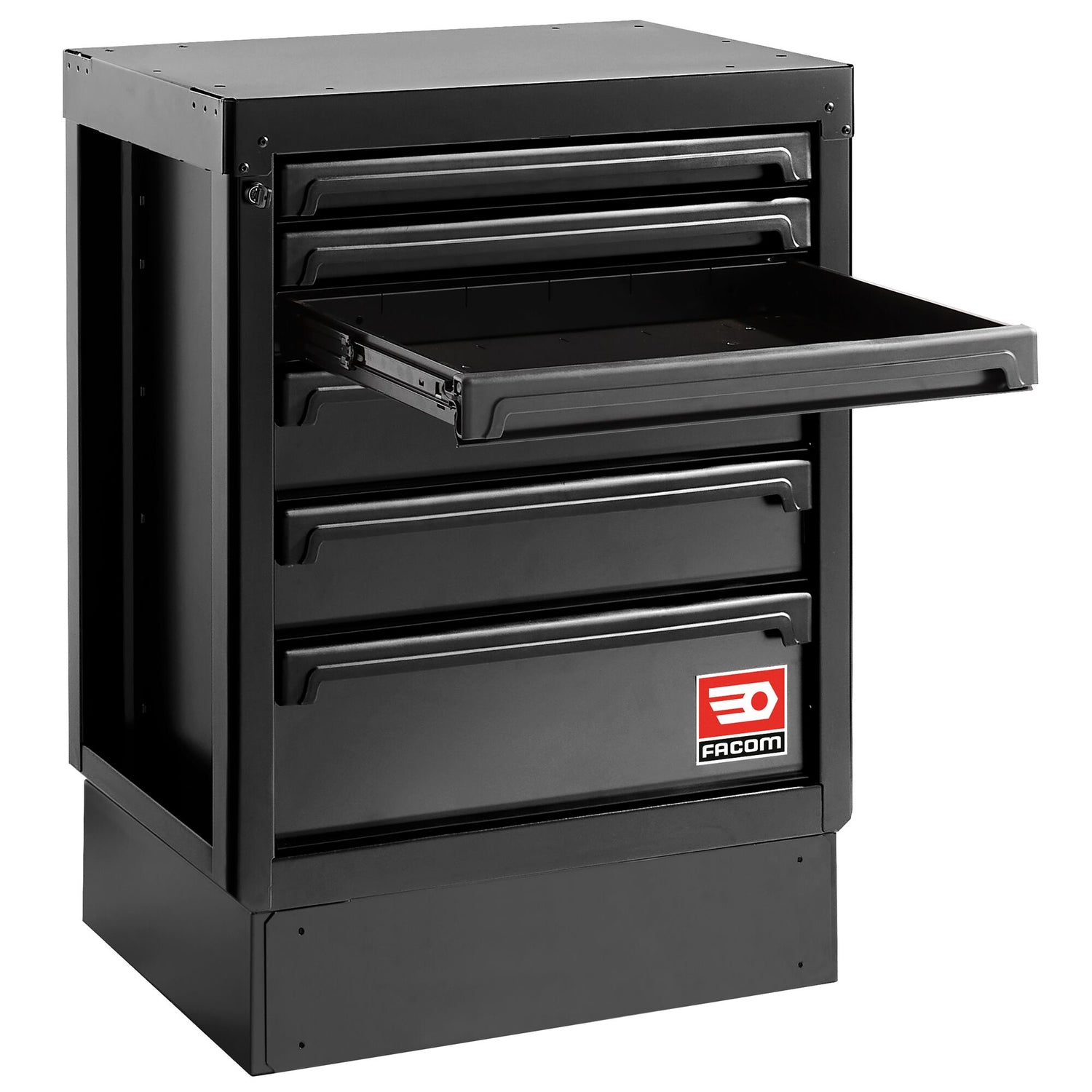

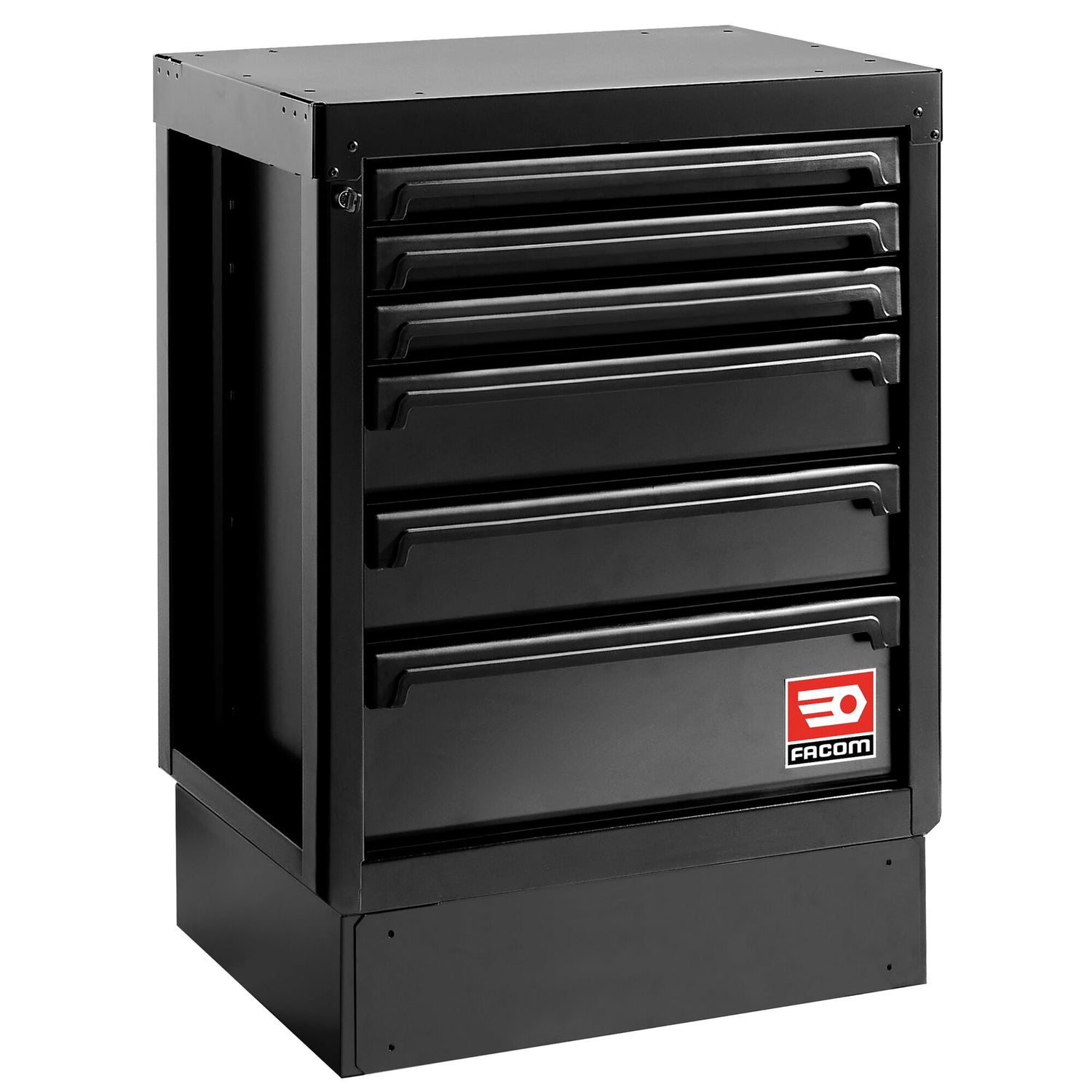

- Raising base RWS2-BASEMBS can be added to reach an height of 1012 with worktop included.
- Pivoting jacks JLS2.03 can be added if necessary to have a great alignment.
- Sides of the units can receive JET lateral accessories (See range of accessories in FACOM catalogue).
- Structure in Epoxy painted steel sheet.
- Overall dimensions: L 725 x D 505 x H 817 mm (H 982 mm by adding raising base RWS-BASESMBS).
- Weight: 56 kg.
- COLOR: Black 9005.
Warranty
Warranty
This product is: This product is covered by a 5-year warranty
Click here to learn more about our warranties.
Description
Description
- Part of Facom ROLL Workshop System (RWS2).
- 3 drawers 60mm high = 9 modules.
- 2 drawers 130mm high = 6 modules.
- 1 drawer 200mm high.
- Drawer useful size: L 569 x D 421 x H 60/130/200 mm.
- Load resistance per drawer : 20/25/30kg.
- Fully opening drawers on telescopic ball bearing slides.
- Fiber-filled Polypropylene drawer pulls with safety hooks.
- Centralised locking, supplied with 2 keys, one folding.
- The 60 and 130 mm drawers can be fitted with thermoshaped or foam modules from Facom Modular system program. The 200 mm drawers can also be fitted with modules.
- Can be fitted with optional partitions : JET2.15 for 60mm drawers and JET2.16 for 130mm drawers.
- Raising base RWS2-BASEMBS can be added to reach an height of 1012 with worktop included.
- Pivoting jacks JLS2.03 can be added if necessary to have a great alignment.
- Sides of the units can receive JET lateral accessories (See range of accessories in FACOM catalogue).
- Structure in Epoxy painted steel sheet.
- Overall dimensions: L 725 x D 505 x H 817 mm (H 982 mm by adding raising base RWS-BASESMBS).
- Weight: 56 kg.
- COLOR: Black 9005.
Specifications
Specifications
- Accessoires disponiblesModule mousse
- CouleurBlack 9005
- Épaisseur du corps en métal2 mm
- Épaisseur du métal du tiroir impérial2 mm
- Hauteur du produit812 mm
- Longueur du tiroir569 mm
- Longueur du produit722 mm
- Largeur du produit500 mm
- Matériau des glissièresMétal
- Nombre de séparateurs de tiroirs10
- Nombre de tiroirs6
- Nombre de poignées6
- Ouverture des tiroirs à 100%Oui
- Profondeur du tiroir421 mm
- Possibilité d’accessoirisationOui
- Poids net48 Kg
- Séparateurs de tiroirsOui
- Système de verrouillageCentral
- Type de poignéePlastique - Intégrée
