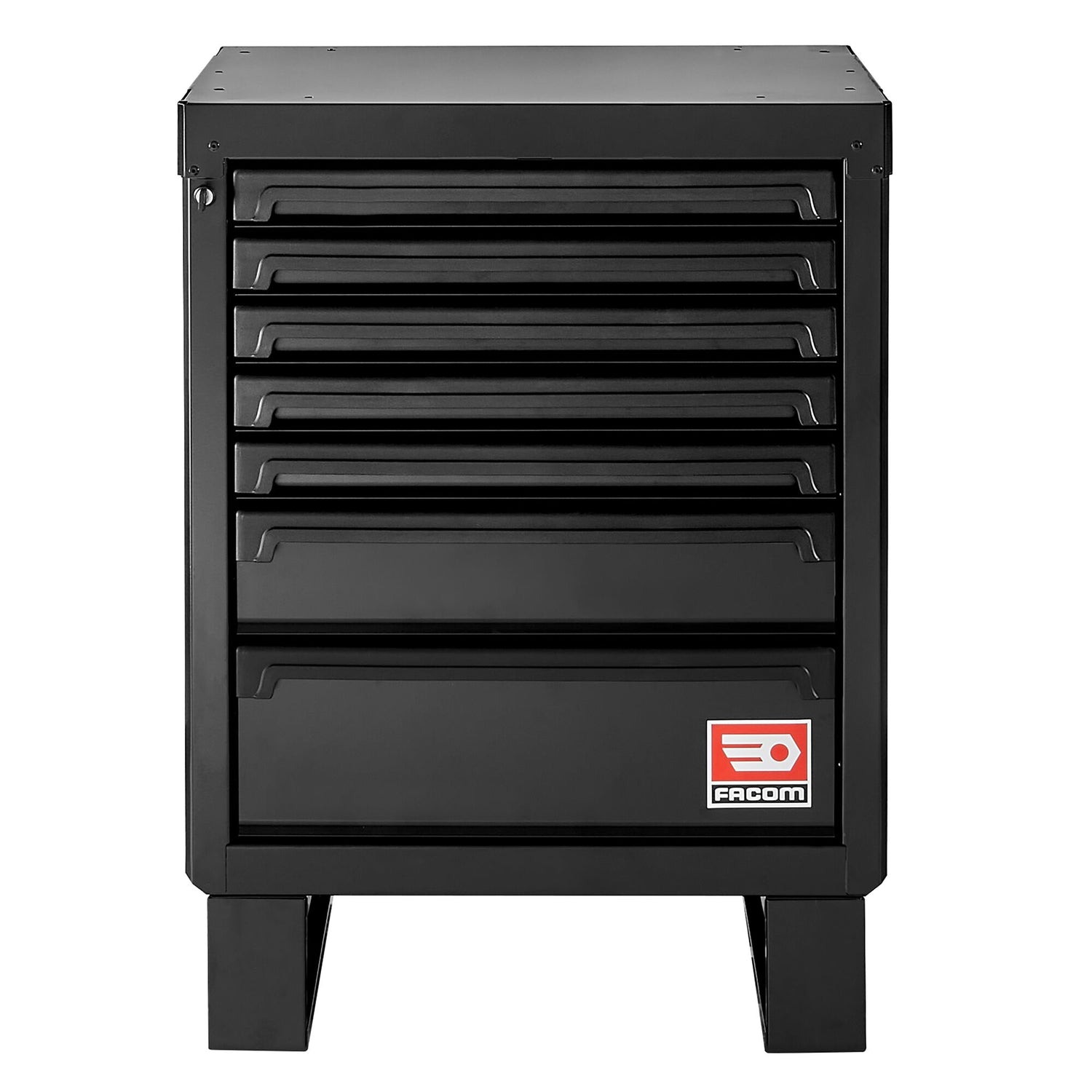

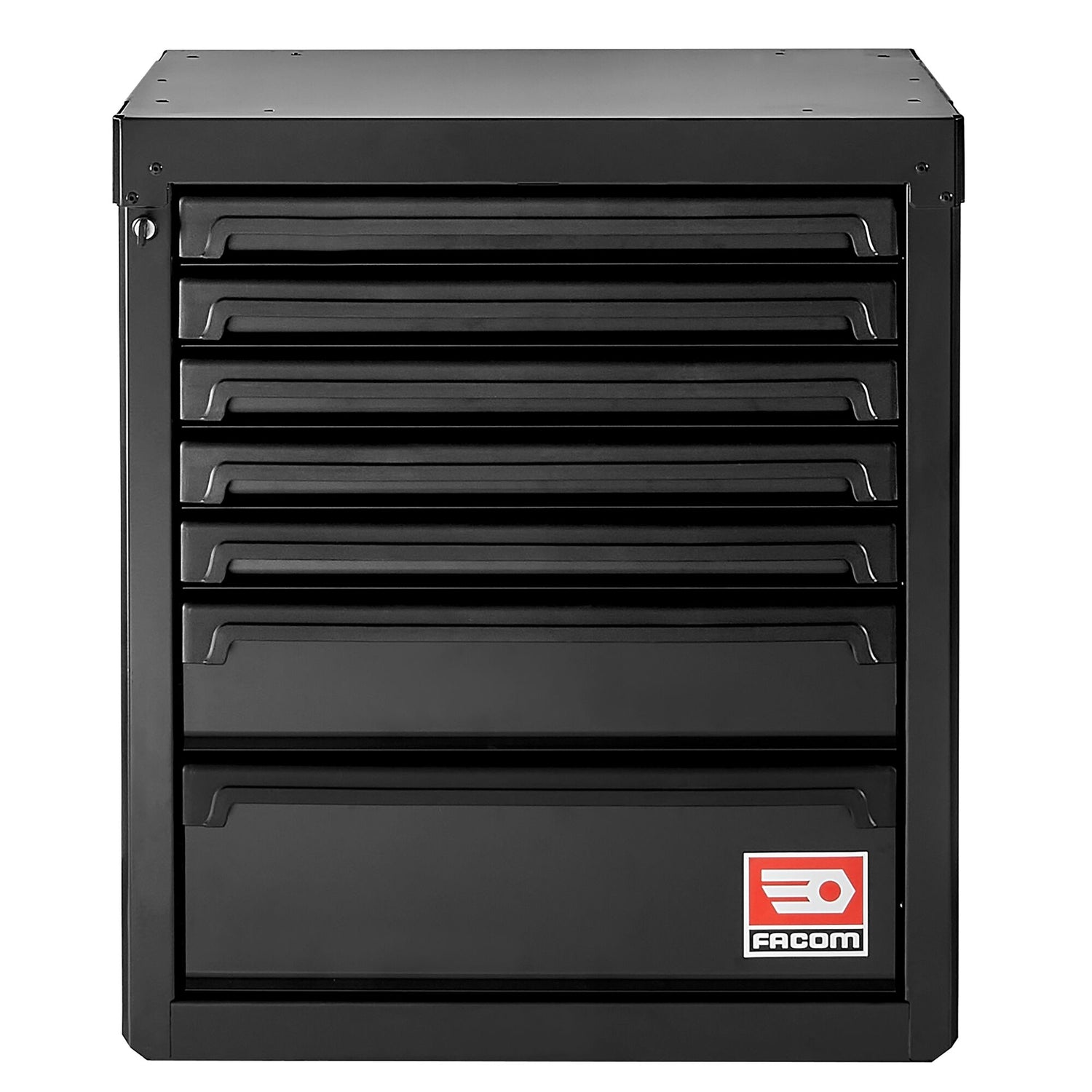

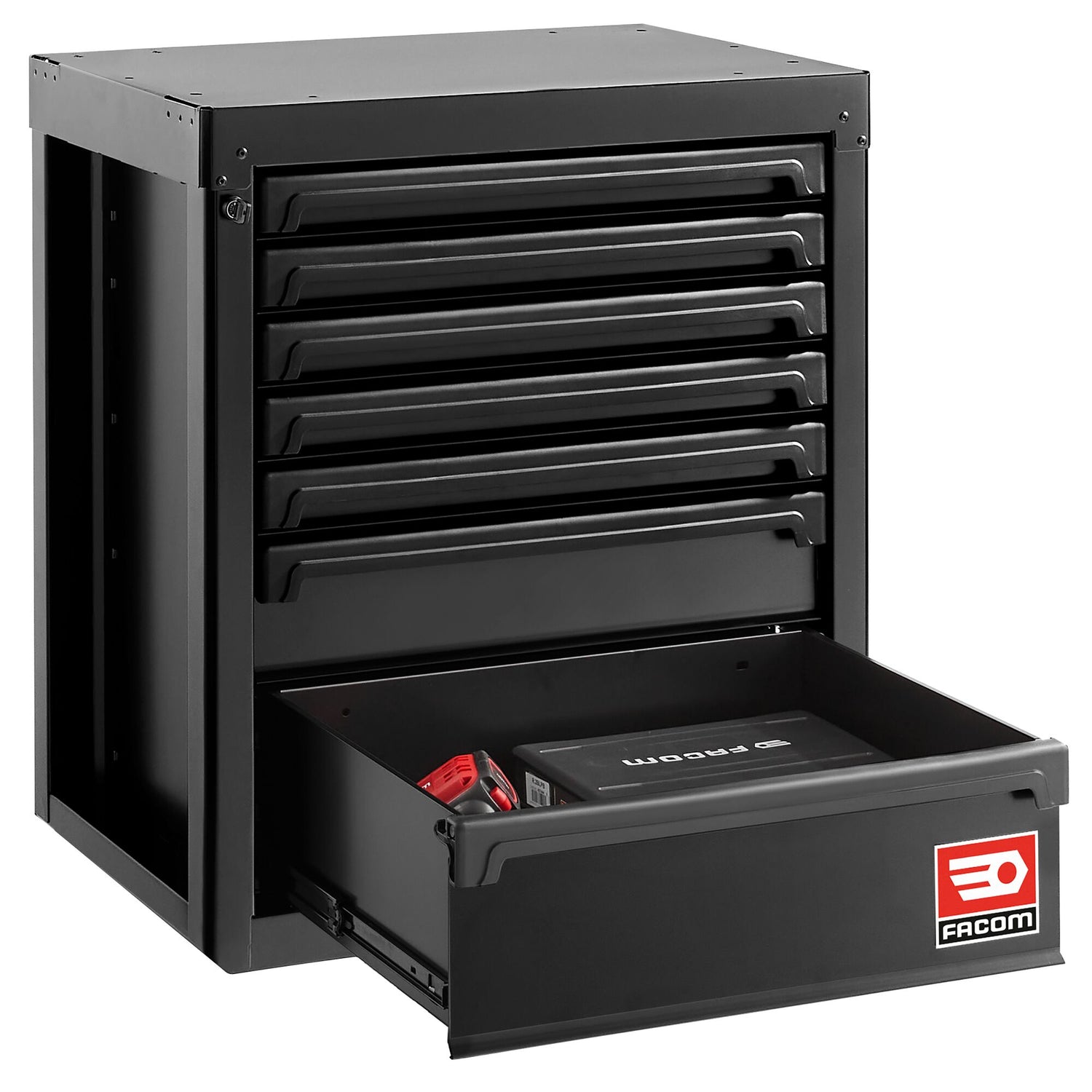

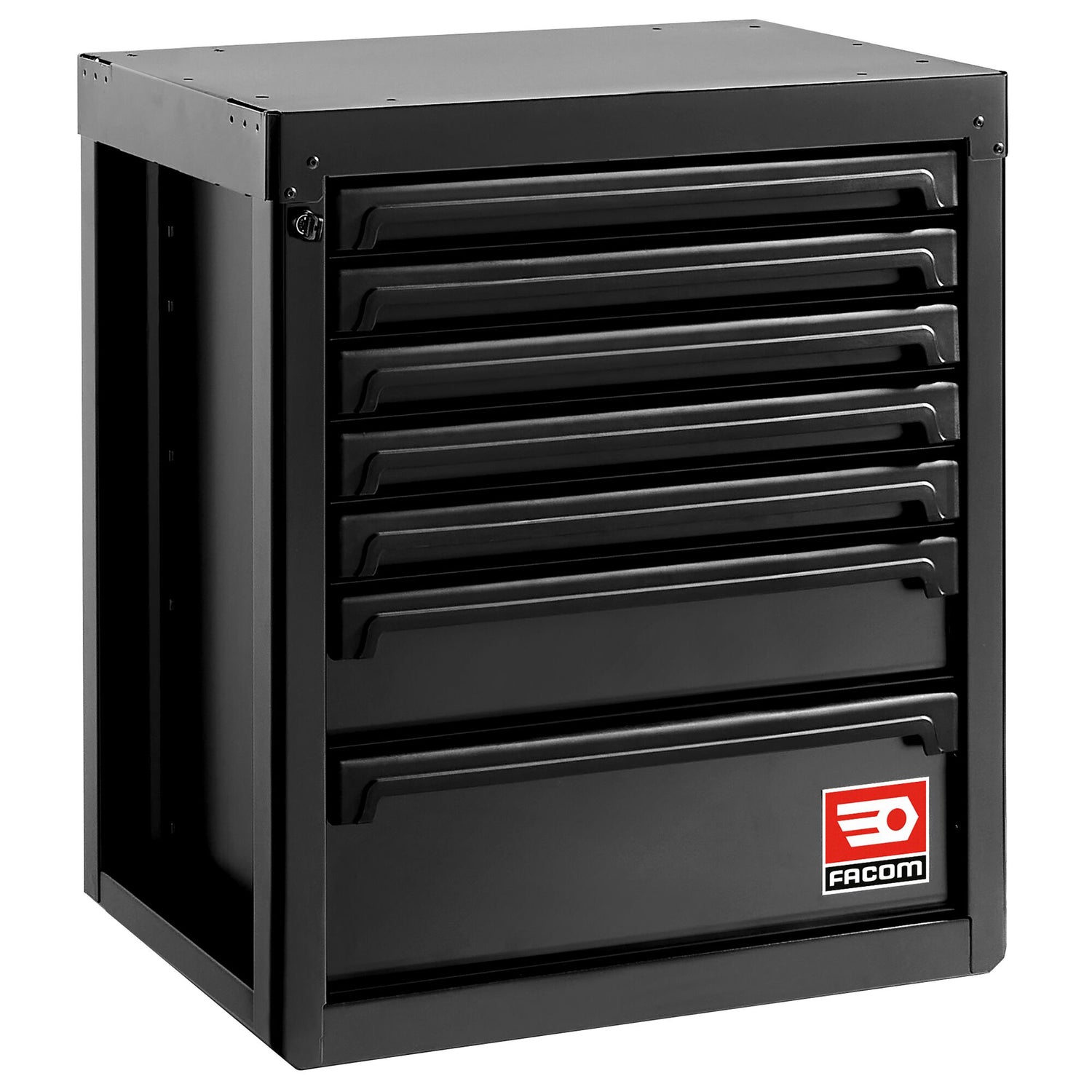

Base Unit, 7 Drawers, Black

SKU: RWS2-MBS7TBS - Barcode: 3662424110290

Part of Facom ROLL Workshop System (RWS2).
5 drawers : 60mm high = 15 modules.
2 drawers : 130mm high = 6 modules.
Drawer useful size: L 569 x D 421 x H 60/130 mm.
Load resistance per drawer : 20/25kg.

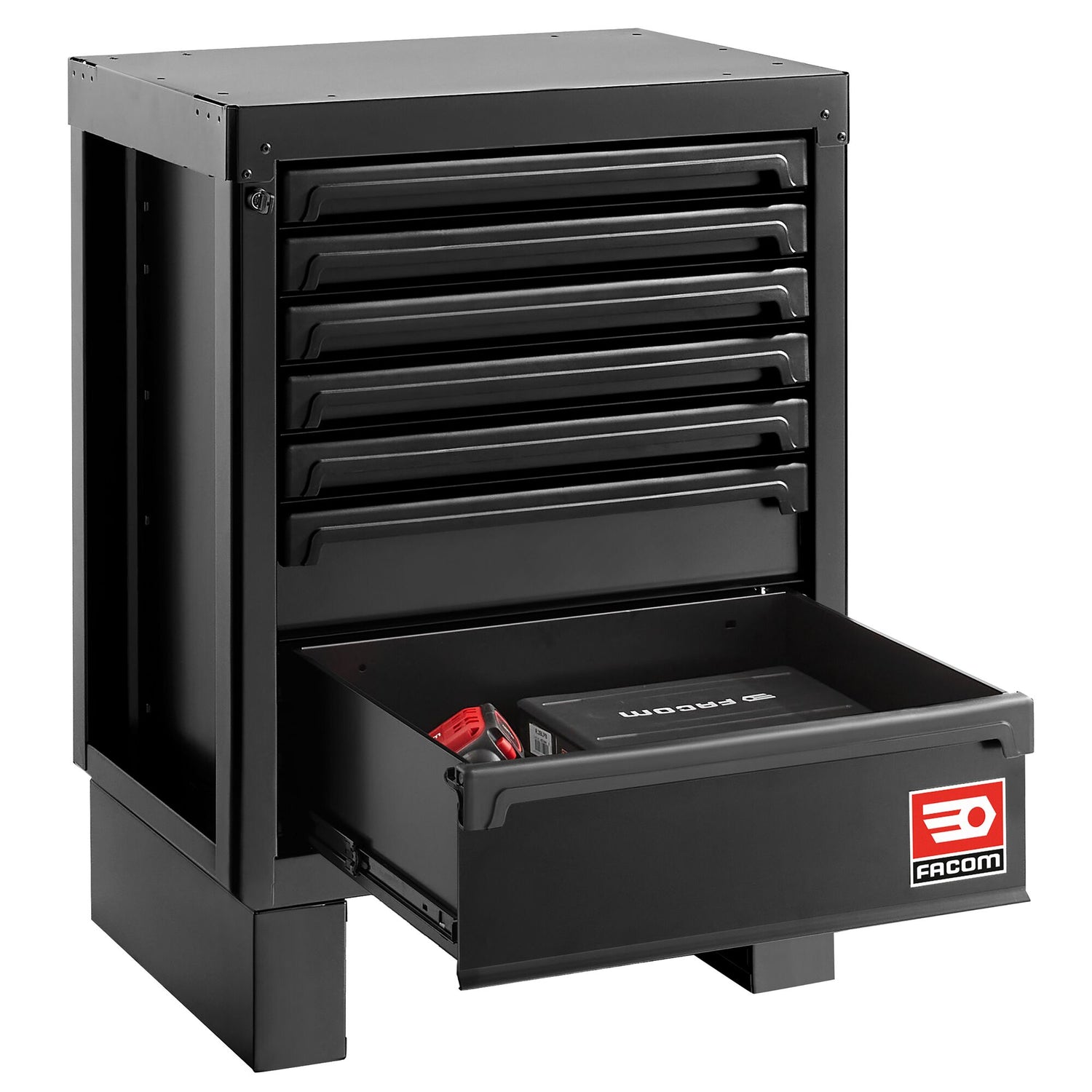

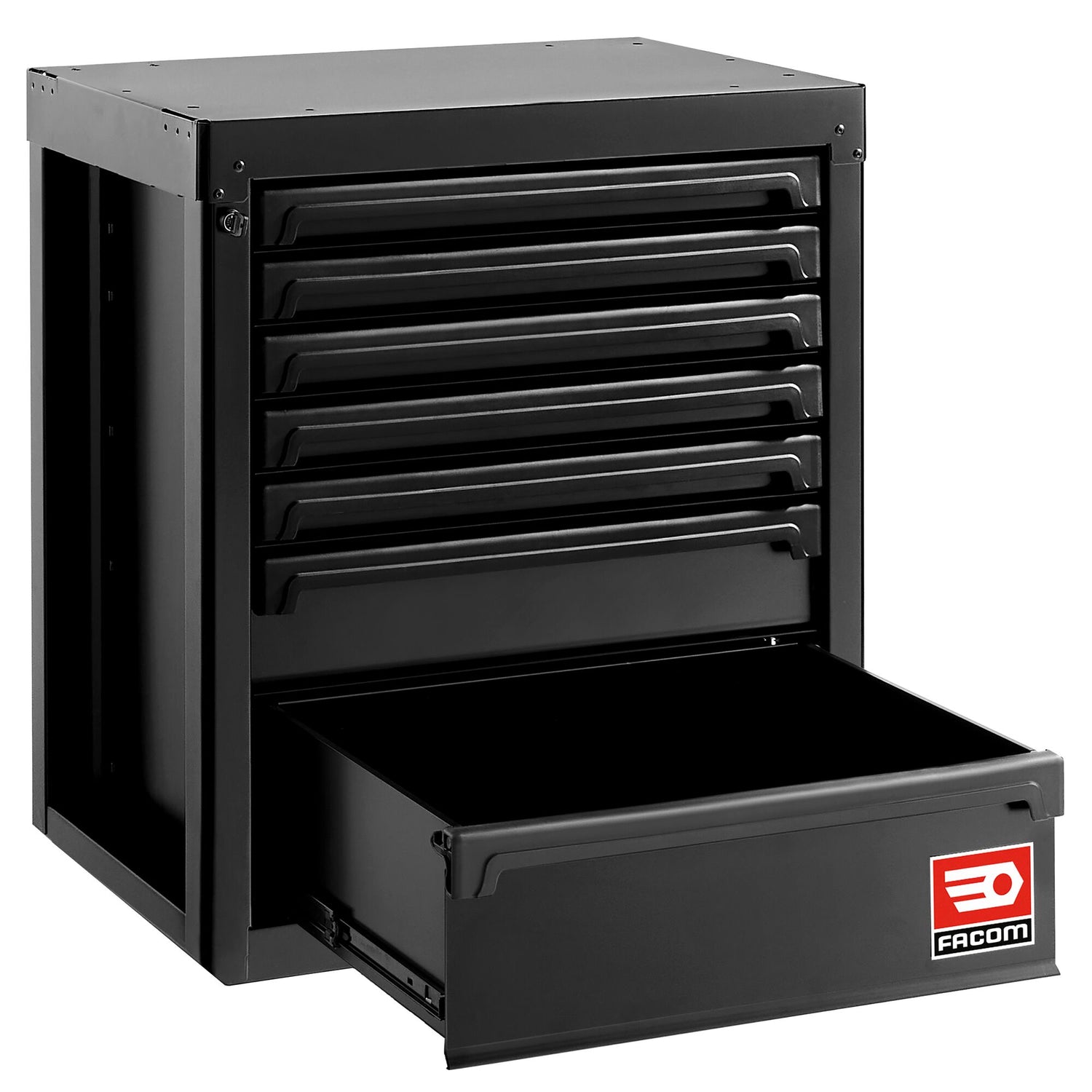

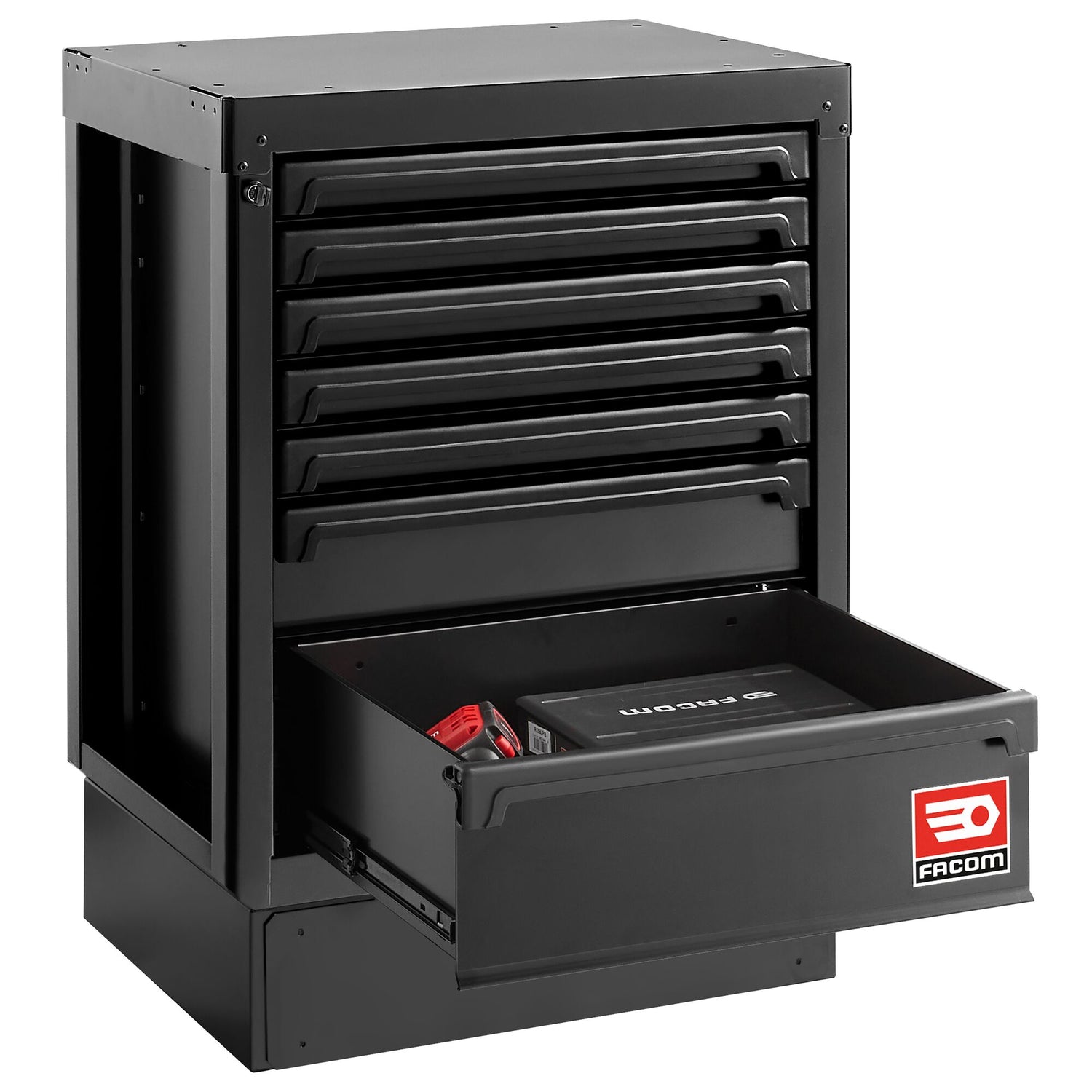

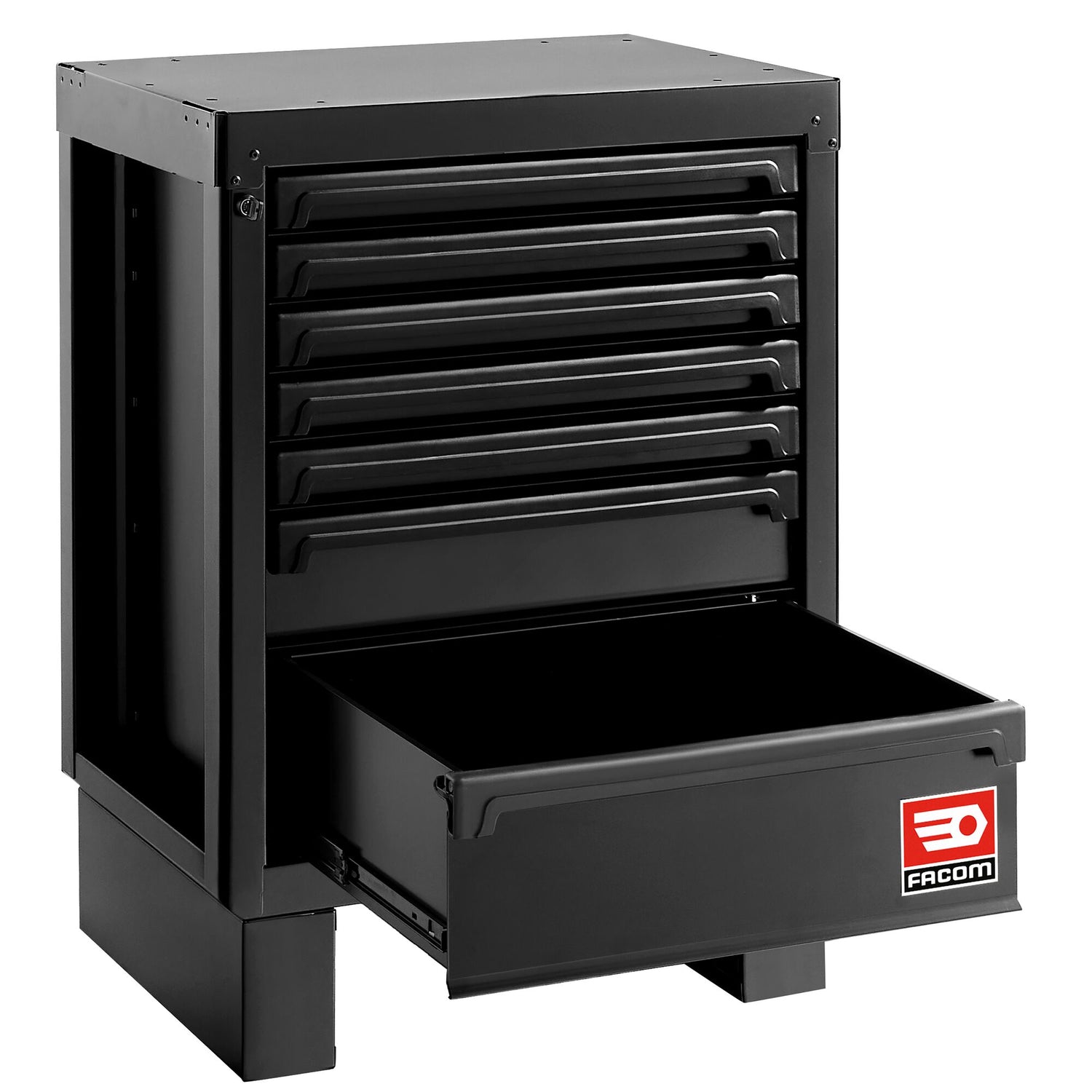

Fully opening drawers on telescopic ball bearing slides.
Fiber-filled polypropylene drawer pulls with safety hooks.
Centralised locking, supplied with 2 keys, one folding.
The 60 and 130 mm drawers can be fitted with thermoshaped or foam modules from Facom Modular system program.
Can be fitted with optional partitions : JET2.15 for 60mm drawers and JET2.16 for 130mm drawers.

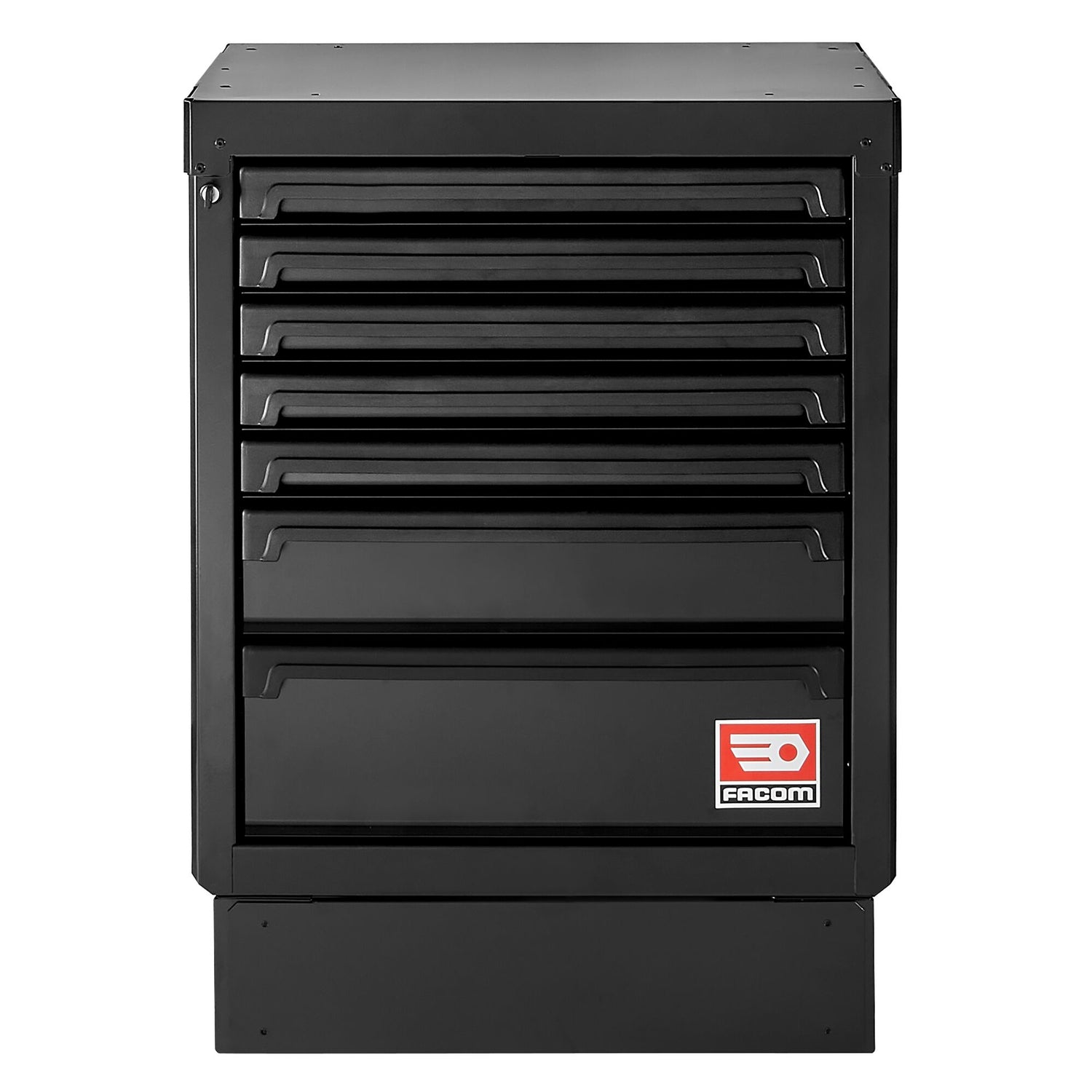

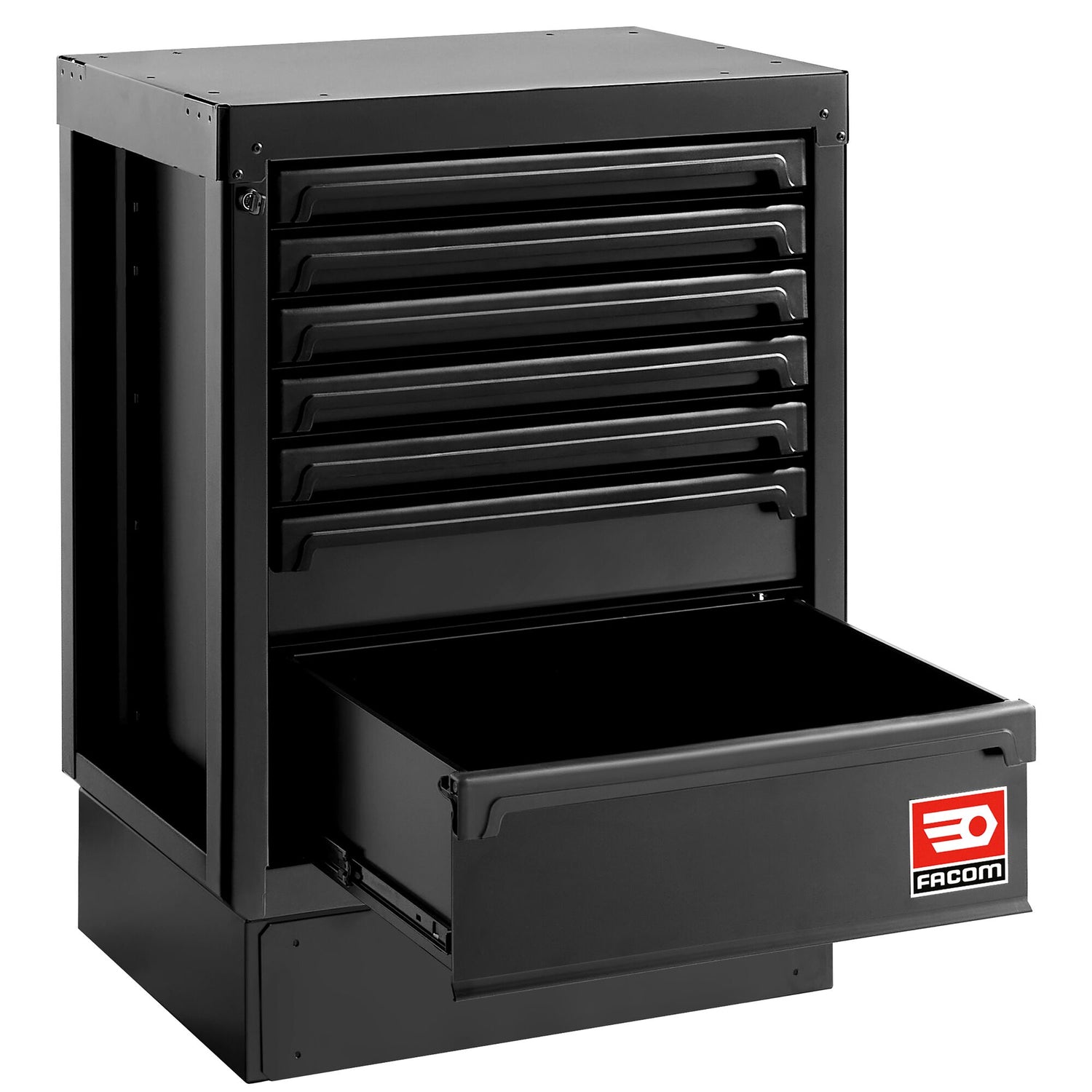

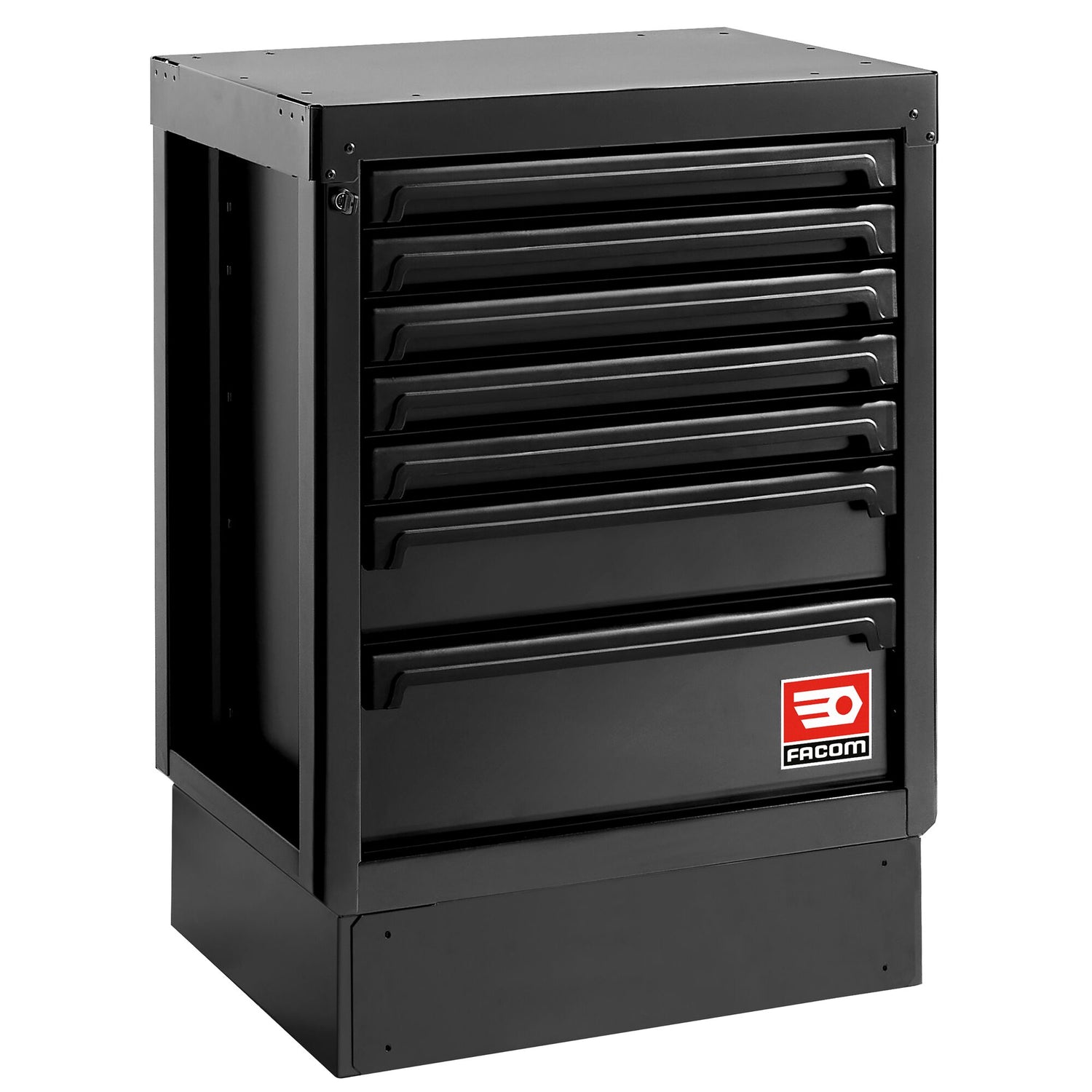

Raising base RWS2-BASEMBS can be added to reach an height of 1012 with worktop included.

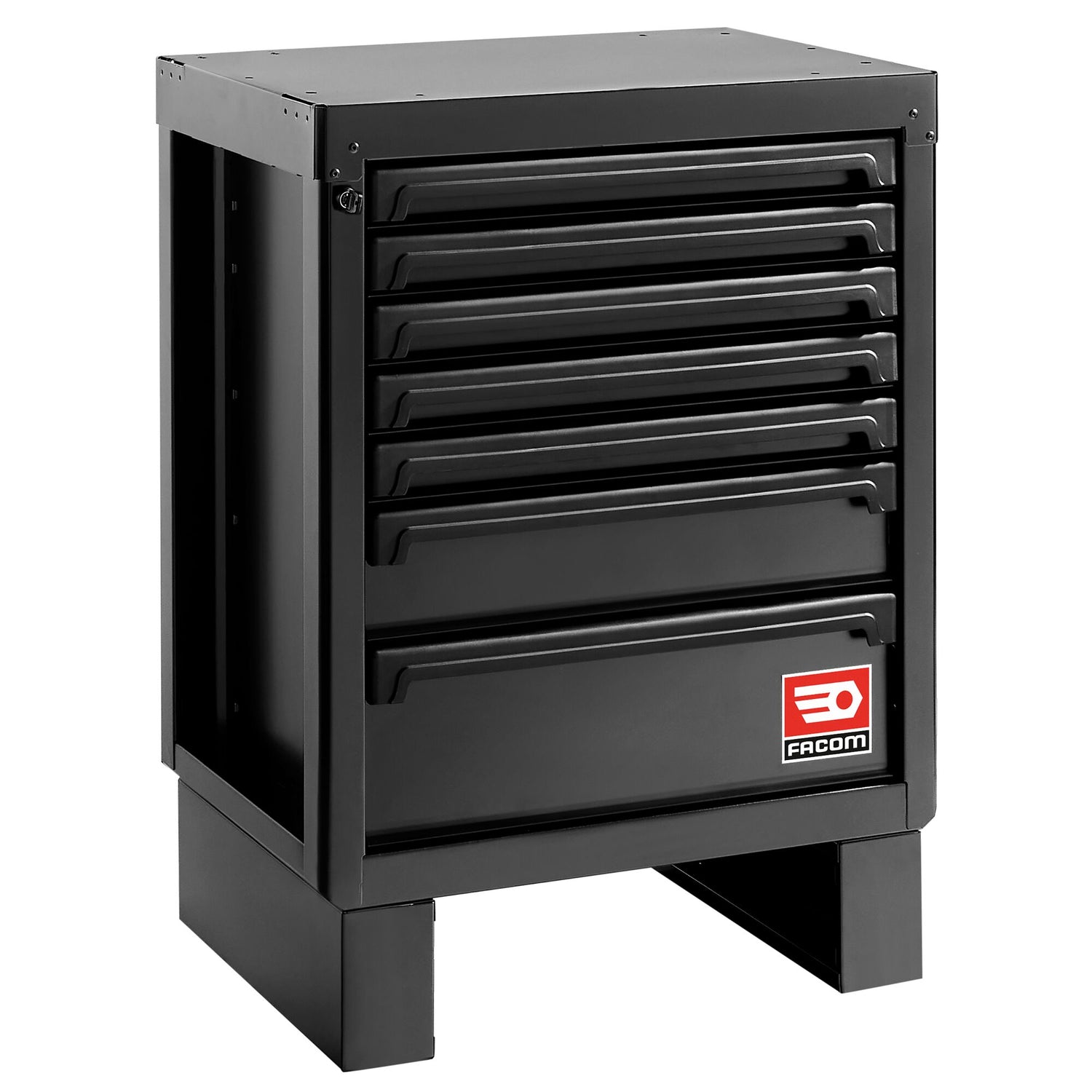

Pivoting jacks JLS2.03 can be added if necessary to have a great alignment.

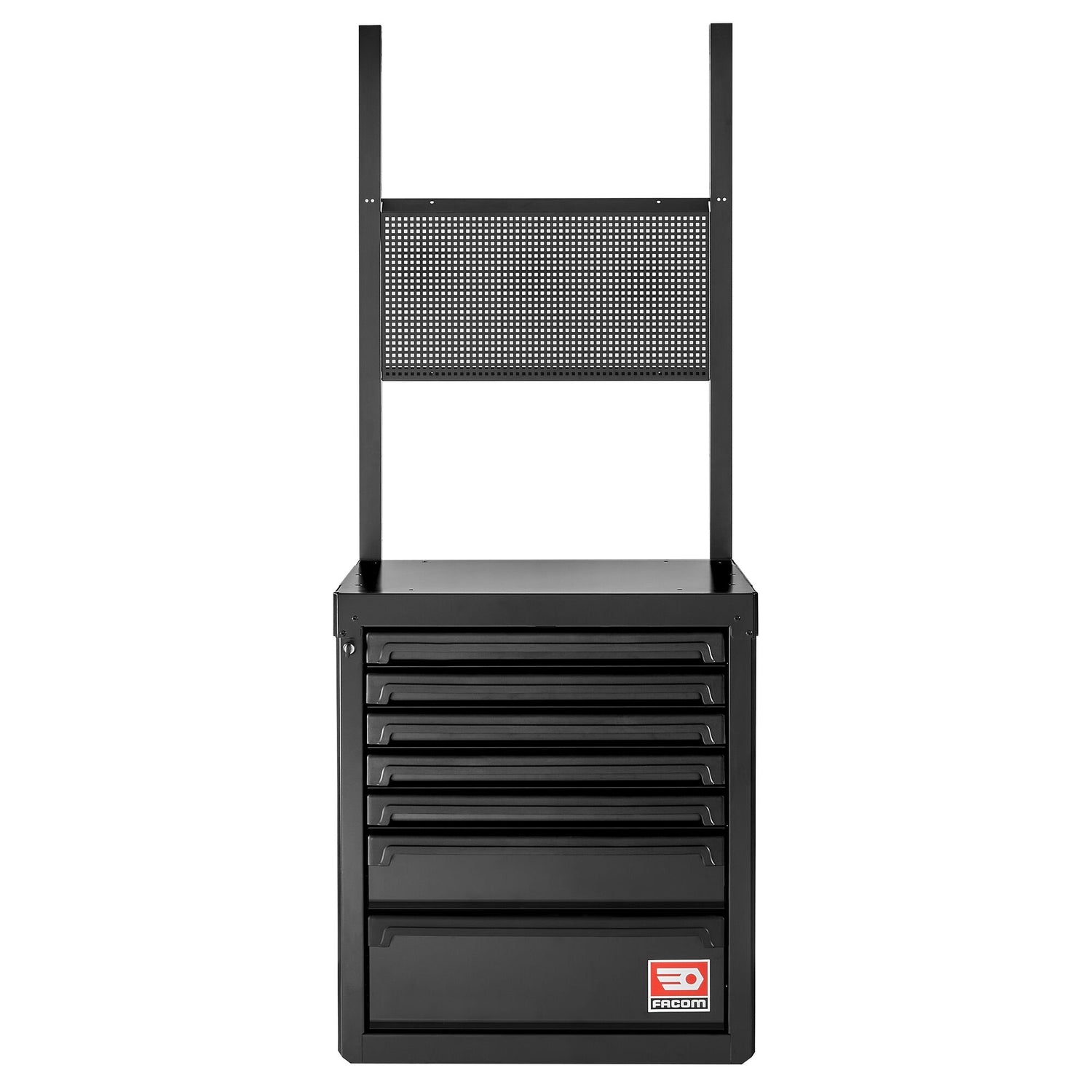

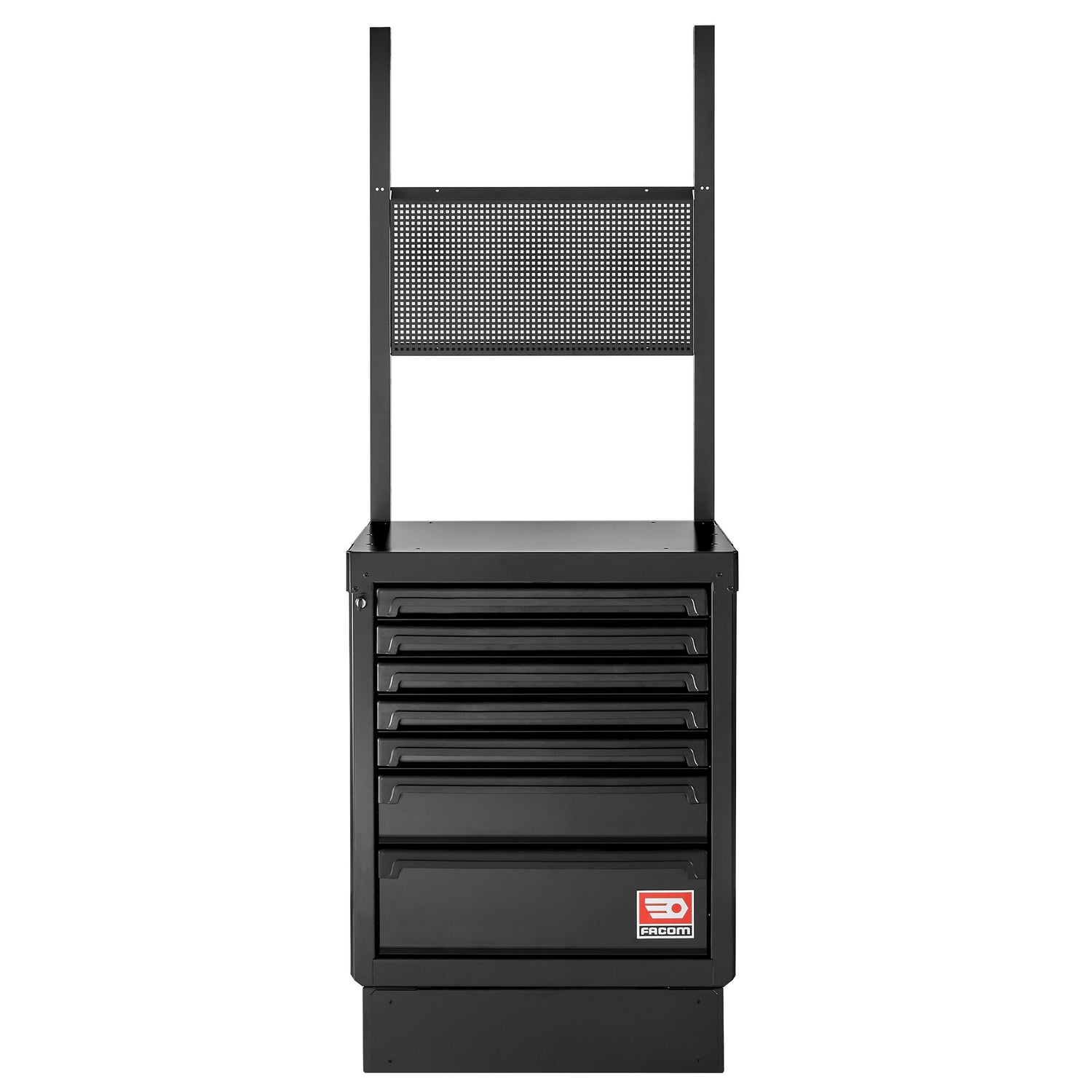

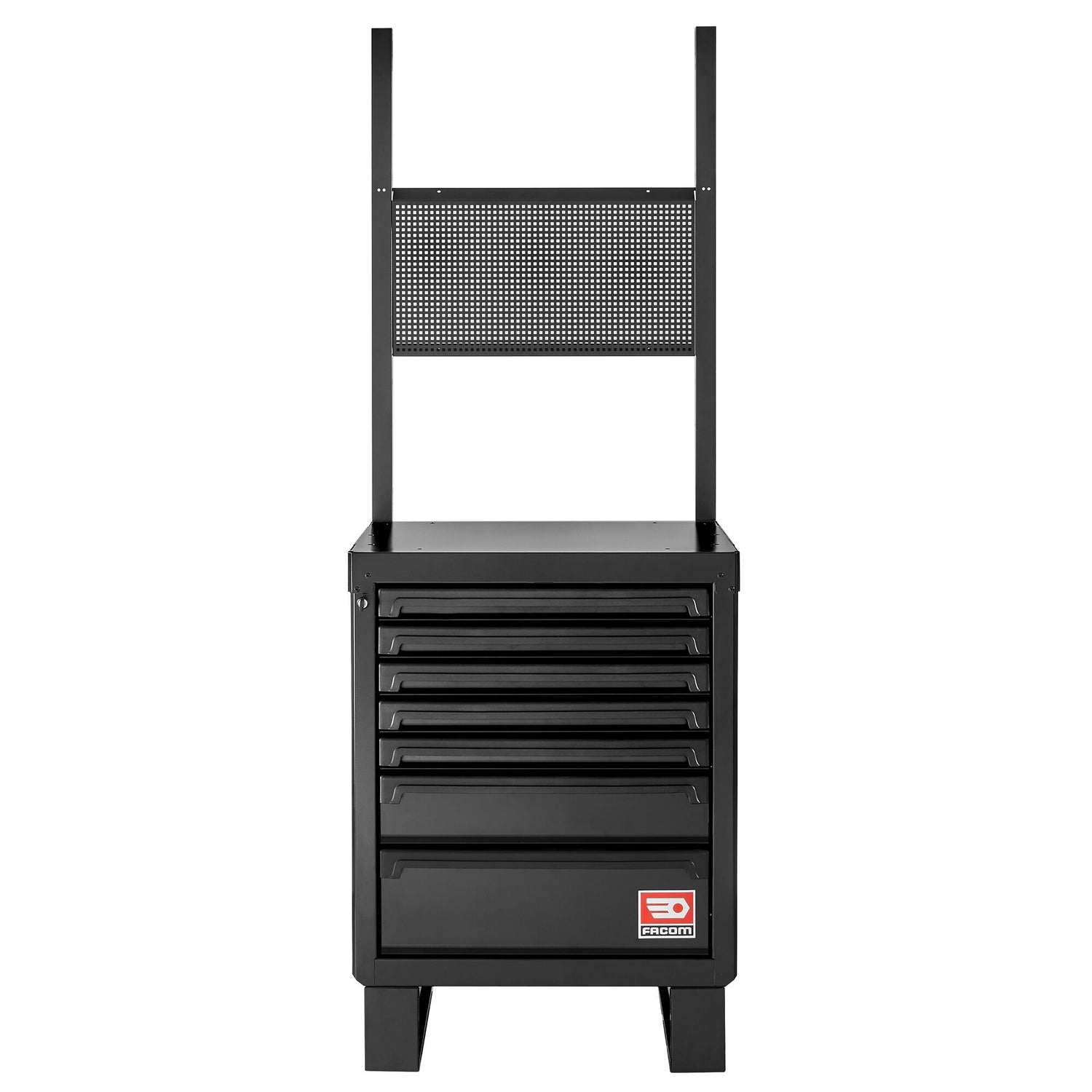

Sides of the units can receive JET lateral accessories (See range of accessories in FACOM catalogue).
Structure in Epoxy painted steel sheet.
Overall dimensions: L 725 x D 505 x H 817 mm (H 982 mm by adding raising base RWS-BASESMBS).
Weight: 55 kg.
COLOR: Black 9005.

Full product description

Warranty

This product is: This product is covered by a 5-year warranty

Click here to learn more about our warranties.

Description

Part of Facom ROLL Workshop System (RWS2).
5 drawers : 60mm high = 15 modules.
2 drawers : 130mm high = 6 modules.
Drawer useful size: L 569 x D 421 x H 60/130 mm.
Load resistance per drawer : 20/25kg.
Fully opening drawers on telescopic ball bearing slides.
Fiber-filled polypropylene drawer pulls with safety hooks.
Centralised locking, supplied with 2 keys, one folding.
The 60 and 130 mm drawers can be fitted with thermoshaped or foam modules from Facom Modular system program.
Can be fitted with optional partitions : JET2.15 for 60mm drawers and JET2.16 for 130mm drawers.
Raising base RWS2-BASEMBS can be added to reach an height of 1012 with worktop included.
Pivoting jacks JLS2.03 can be added if necessary to have a great alignment.
Sides of the units can receive JET lateral accessories (See range of accessories in FACOM catalogue).
Structure in Epoxy painted steel sheet.
Overall dimensions: L 725 x D 505 x H 817 mm (H 982 mm by adding raising base RWS-BASESMBS).
Weight: 55 kg.
COLOR: Black 9005.

Specifications

Accessoires disponiblesModule mousse
CouleurBlack 9005
Épaisseur du corps en métal2 mm
Épaisseur du métal du tiroir impérial2 mm
Hauteur du produit812 mm
Longueur du tiroir569 mm
Longueur du produit722 mm
Largeur du produit500 mm
Matériau des glissièresMétal
Nombre de séparateurs de tiroirs10
Nombre de tiroirs7
Nombre de poignées7
Ouverture des tiroirs à 100%Oui
Profondeur du tiroir421 mm
Possibilité d’accessoirisationOui
Poids net55 Kg
Séparateurs de tiroirsOui
Système de verrouillageCentral
Type de poignéePlastique - Rabattable

Documents

Base Unit, 7 Drawers, Black

Part of Facom ROLL Workshop System (RWS2).
5 drawers : 60mm high = 15 modules.
2 drawers : 130mm high = 6 modules.
Drawer useful size: L 569 x D 421 x H 60/130 mm.
Load resistance per drawer : 20/25kg.
Fully opening drawers on telescopic ball bearing slides.
Fiber-filled polypropylene drawer pulls with safety hooks.
Centralised locking, supplied with 2 keys, one folding.
The 60 and 130 mm drawers can be fitted with thermoshaped or foam modules from Facom Modular system program.
Can be fitted with optional partitions : JET2.15 for 60mm drawers and JET2.16 for 130mm drawers.
Raising base RWS2-BASEMBS can be added to reach an height of 1012 with worktop included.
Pivoting jacks JLS2.03 can be added if necessary to have a great alignment.
Sides of the units can receive JET lateral accessories (See range of accessories in FACOM catalogue).
Structure in Epoxy painted steel sheet.
Overall dimensions: L 725 x D 505 x H 817 mm (H 982 mm by adding raising base RWS-BASESMBS).
Weight: 55 kg.
COLOR: Black 9005.

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

This product is covered by a 5-year warranty
