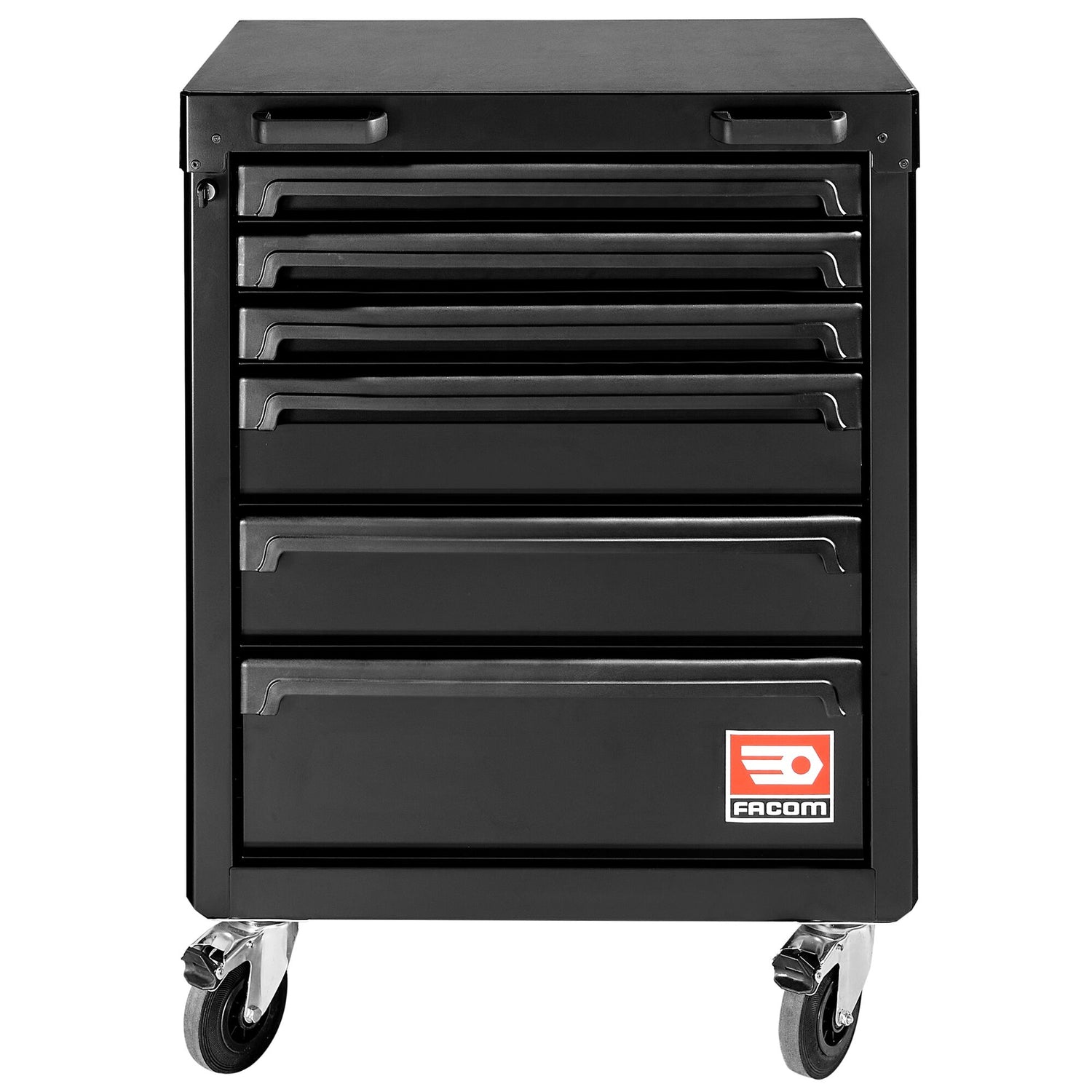

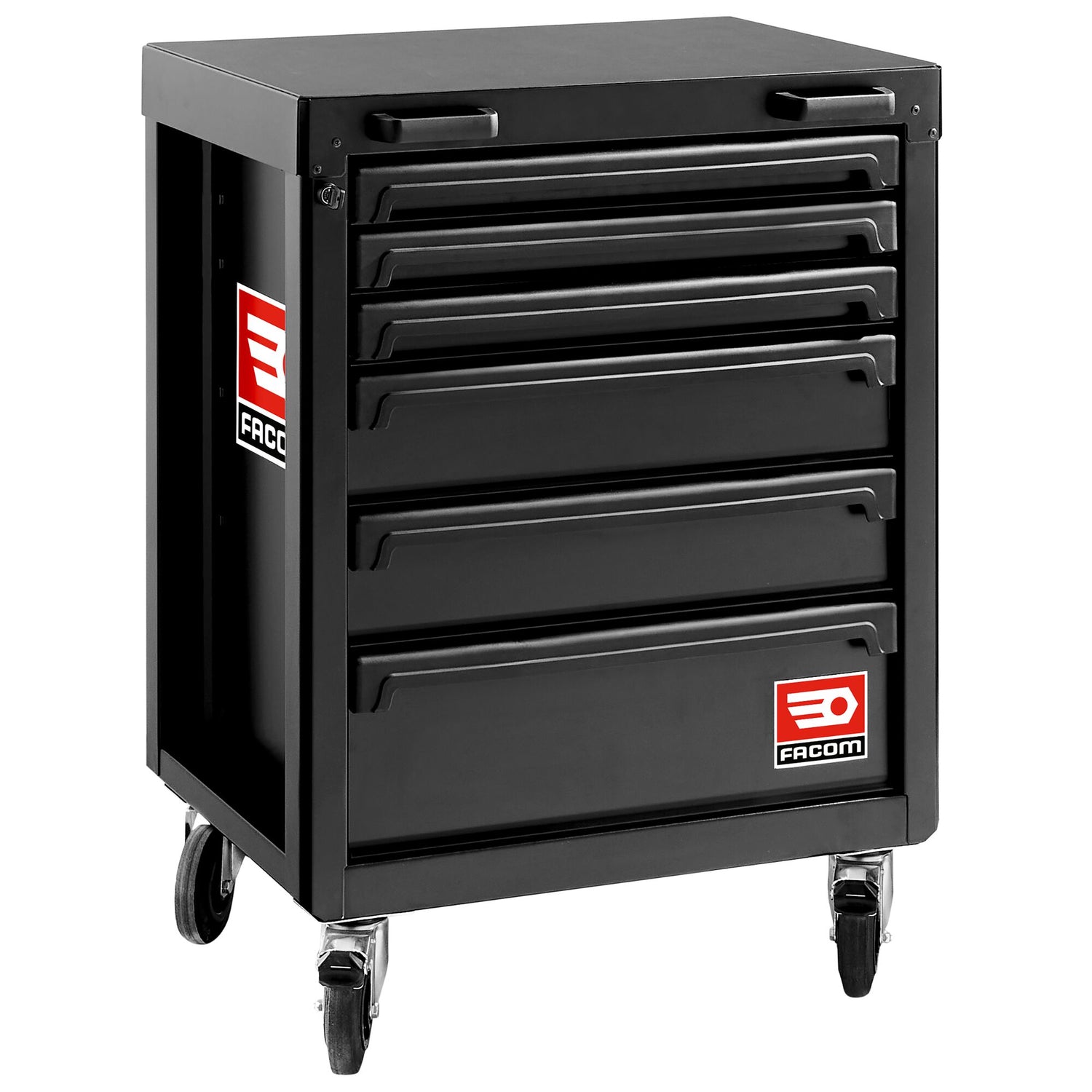

6-Drawer Undertop Roller Cabinet
SKU:
RWS2-ROLL6M3ABS
- Part of Facom ROLL Workshop System (RWS2).
- Ideal to be used in combination with the ROLL workshop system.
- 3 drawers : 60mm high = 9 modules.
- 2 drawers : 130mm high = 6 modules.
- 1 drawer : 200mm high.
- Drawer useful size: L 569 x D 421 x H 60/130/200 mm.
- Load resistance per drawer : 20/25/30kg.
- Fully opening drawers on telescopic ball bearing slides.
- Fiber-filled polypropylene drawer pulls with safety hooks, drawers cannot open while moving.
- Centralised locking, supplied with 2 keys, one folding.
- The 60 and 130 mm drawers can be fitted with thermoshaped or foam modules from Facom Modular system program. The 200 mm drawers can also be fitted with modules.
- Can be fitted with optional partitions : JET2.15 for 60mm drawers and JET2.16 for 130mm drawers.
- Sides of the units can receive JET lateral accessories (See range of accessories in FACOM catalogue).
- Worktop protected by an ABS plate.
- Maximum static loading capacity: 800 kg.
- 2 large handles on the front to easily move and store the cabinet.

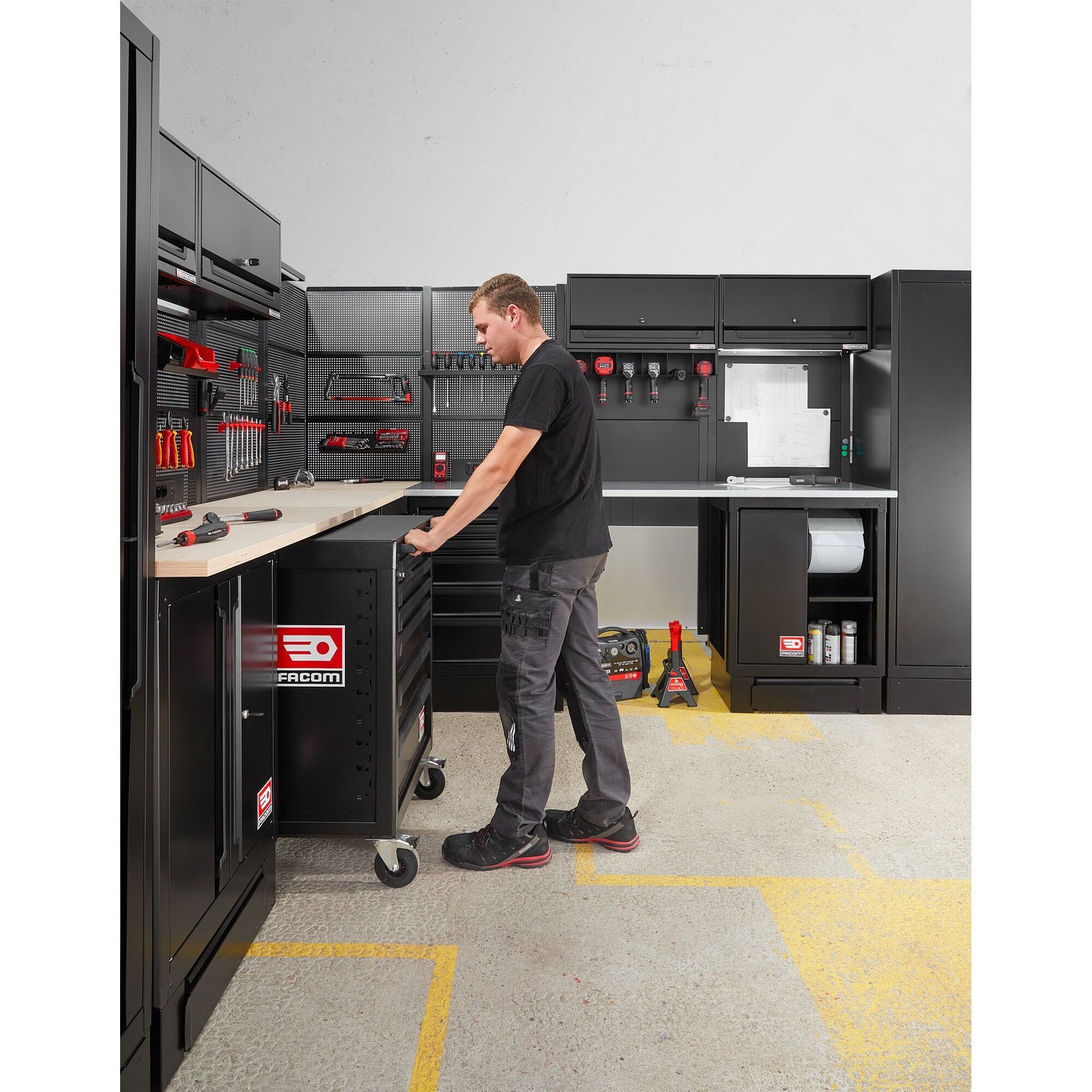

- 4 swivelling wheels (Ø 125 mm),two with brakes for an extra stability while working. 360° function allowing the roller cabinet to be easily stored under the workbench whilst maintaining access to the tools.
- Structure in Epoxy painted steel sheet.
- Overall dimensions: L 725 x D 545 x H 972 mm.
- Weight: 59 kg.
- COLOR: Black 9005.
Warranty
Warranty
This product is: This product is covered by a 5-year warranty
Click here to learn more about our warranties.
Description
Description
- Part of Facom ROLL Workshop System (RWS2).
- Ideal to be used in combination with the ROLL workshop system.
- 3 drawers : 60mm high = 9 modules.
- 2 drawers : 130mm high = 6 modules.
- 1 drawer : 200mm high.
- Drawer useful size: L 569 x D 421 x H 60/130/200 mm.
- Load resistance per drawer : 20/25/30kg.
- Fully opening drawers on telescopic ball bearing slides.
- Fiber-filled polypropylene drawer pulls with safety hooks, drawers cannot open while moving.
- Centralised locking, supplied with 2 keys, one folding.
- The 60 and 130 mm drawers can be fitted with thermoshaped or foam modules from Facom Modular system program. The 200 mm drawers can also be fitted with modules.
- Can be fitted with optional partitions : JET2.15 for 60mm drawers and JET2.16 for 130mm drawers.
- Sides of the units can receive JET lateral accessories (See range of accessories in FACOM catalogue).
- Worktop protected by an ABS plate.
- Maximum static loading capacity: 800 kg.
- 2 large handles on the front to easily move and store the cabinet.
- 4 swivelling wheels (Ø 125 mm),two with brakes for an extra stability while working. 360° function allowing the roller cabinet to be easily stored under the workbench whilst maintaining access to the tools.
- Structure in Epoxy painted steel sheet.
- Overall dimensions: L 725 x D 545 x H 972 mm.
- Weight: 59 kg.
- COLOR: Black 9005.
Specifications
Specifications
- Accessoires disponiblesModule mousse
- CouleurBlack 9005
- Épaisseur du corps en métal2 mm
- Épaisseur du métal du tiroir impérial2 mm
- Hauteur du produit937 mm
- Longueur du tiroir569 mm
- Longueur du produit722 mm
- Largeur du produit500 mm
- Matériau des glissièresMétal
- Nombre de séparateurs de tiroirs10
- Nombre de tiroirs6
- Nombre de roues fixes sans frein2
- Nombre de poignées6
- Nombre de roues pivotantes avec frein2
- Nombre de roues4
- Ouverture des tiroirs à 100%Oui
- Profondeur du tiroir421 mm
- Poids net55 Kg
- Séparateurs de tiroirsOui
- Système de verrouillageCentral
- Type de poignéePlastique - Intégrée
