Facom - The Art of Precision since 1918.

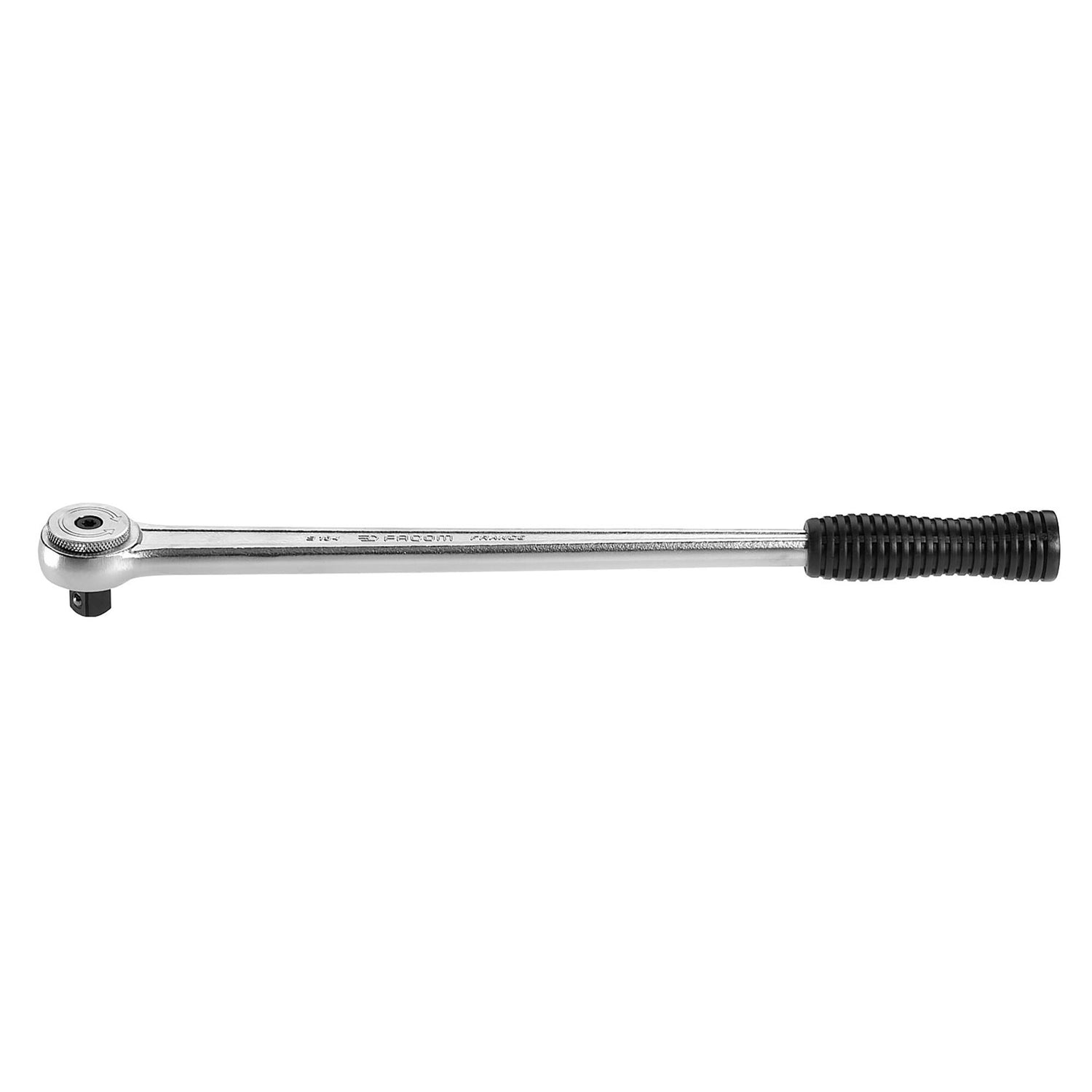

1/2" long reach round head ratchet

SKU: S.154  -  Barcode: 3148510568300
  • HIGH PERFORMANCE - Designed to meet the highest standards of the industries.
  • 5° ARC SWING - 72 tooth mechanism - Reversing by rotating cap.
  • ULTRA-COMPACT ROUND HEAD - 10% Smaller that the previous version - Ideal of tight spaces.
  • HANDLE - Single material elastomer grip: high resistance to abrasion and the most severe workshop solvents: SP95, SP98, diesel fuel, acetone, brake fluid, Skydrol, Jet Oil, kerosene.
  • HANGING HOLE - Hole in the handle for strapping when working in high places.
  • LONG PANEL - For deep access.
Full product description

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.110, DIN 3122, ISO 3315

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

  • HIGH PERFORMANCE - Designed to meet the highest standards of the industries.
  • 5° ARC SWING - 72 tooth mechanism - Reversing by rotating cap.
  • ULTRA-COMPACT ROUND HEAD - 10% Smaller that the previous version - Ideal of tight spaces.
  • HANDLE - Single material elastomer grip: high resistance to abrasion and the most severe workshop solvents: SP95, SP98, diesel fuel, acetone, brake fluid, Skydrol, Jet Oil, kerosene.
  • HANGING HOLE - Hole in the handle for strapping when working in high places.
  • LONG PANEL - For deep access.

Specifications

  • Angle de reprise5 deg
  • AccrochableNon
  • AntidéflagrantNon
  • AttachéNon
  • Clé à chocsNon
  • Diamètre40 mm
  • ExtensibleNon
  • FinitionChrome satin
  • FlexibleNon
  • Hauteur du produit40 mm
  • Isolation 1000VNon
  • InversionCapuchon
  • Longueur du produit404 mm
  • MancheOui
  • Matériau de la poignéeMonomatière
  • Nombre de dents72
  • Poignée extensibleNon
  • Pour visseuse à chocNon
  • Poids net0.78 Kg
  • Système de verrouillage des douillesNon
  • Taille du carré conducteur1/2 in
  • Tête flexibleNon
  • Trou de suspensionNon
  • Tête pivotanteNon

Technical drawing and dimensions

  • D1 (mm)
    30.00
  • H (mm)
    40.00
  • L1 (mm)
    38.00
  • L (mm)
    404.00

Documents

1/2" long reach round head ratchet

Lieu de fabrication

N/A

Normes & certifications

ASME B107.110, DIN 3122, ISO 3315

Période de garantie

Lifetime warranty on the tool (replacement)
