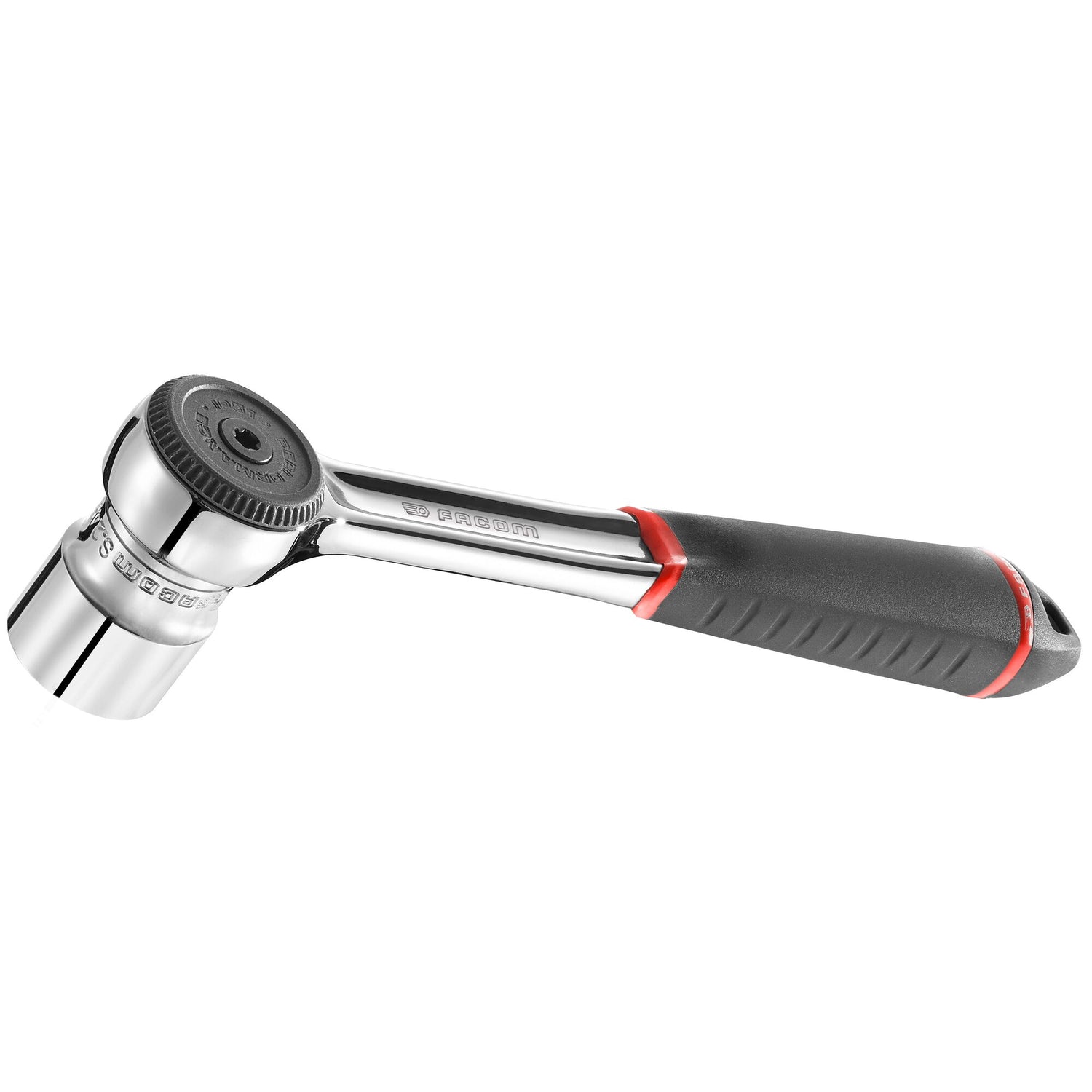

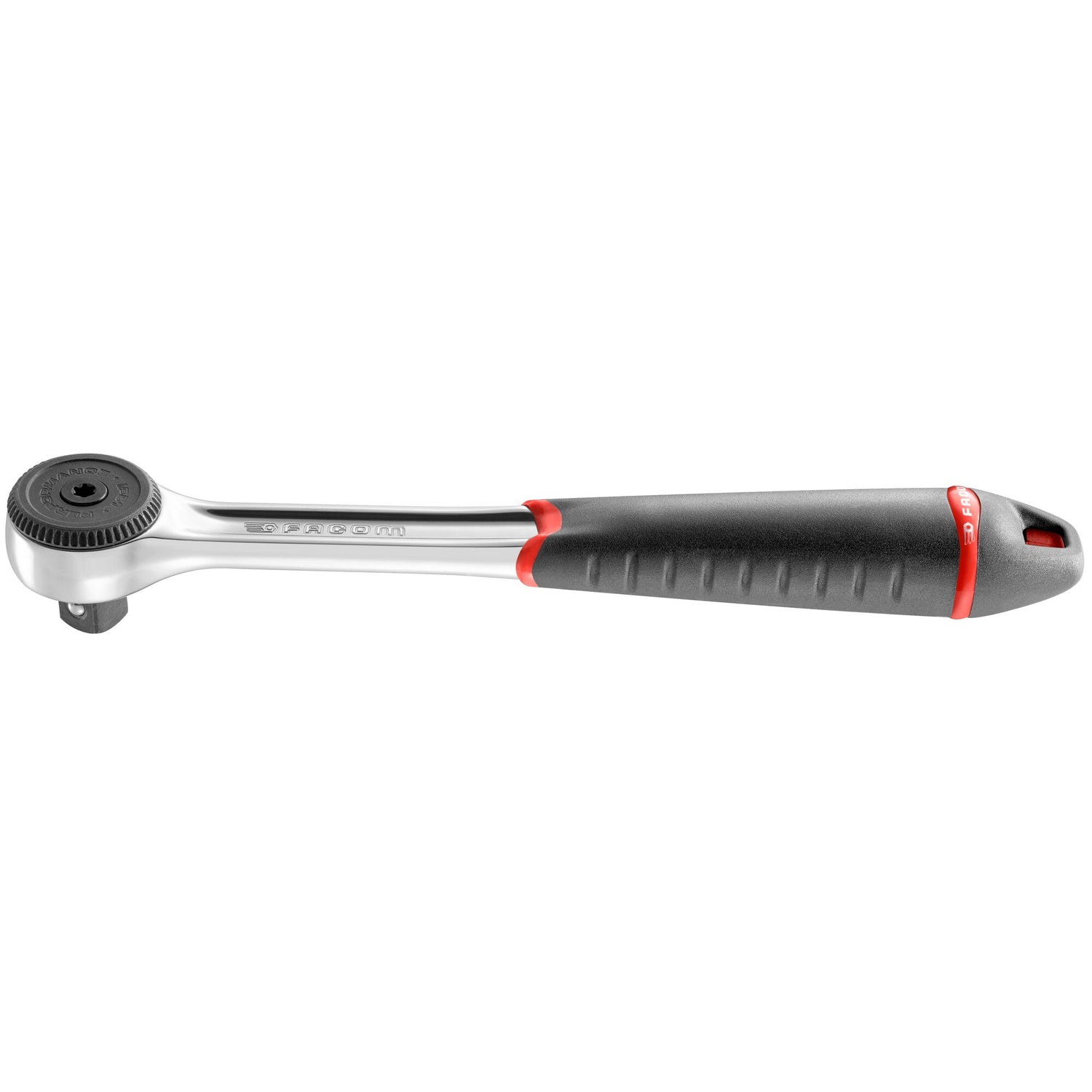

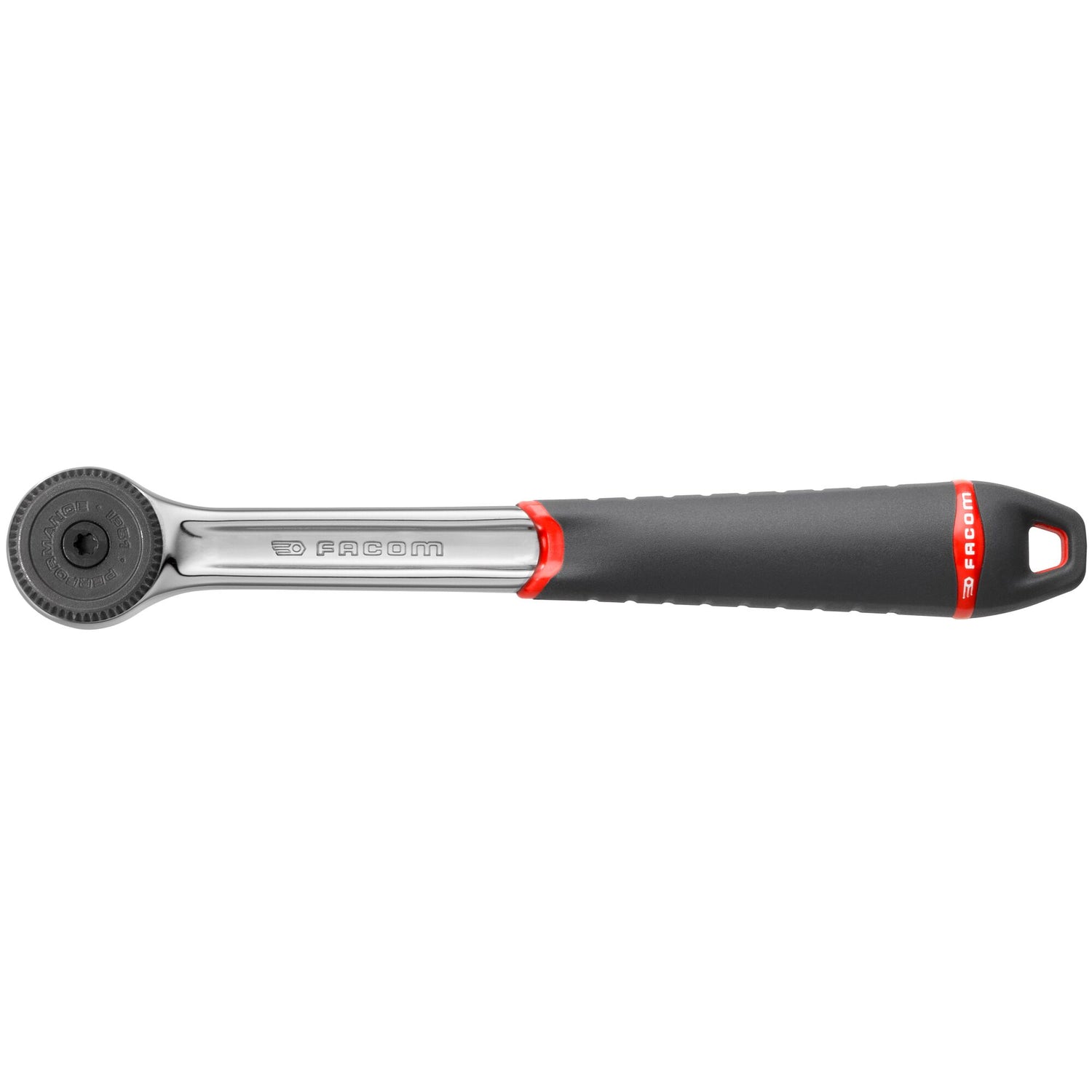

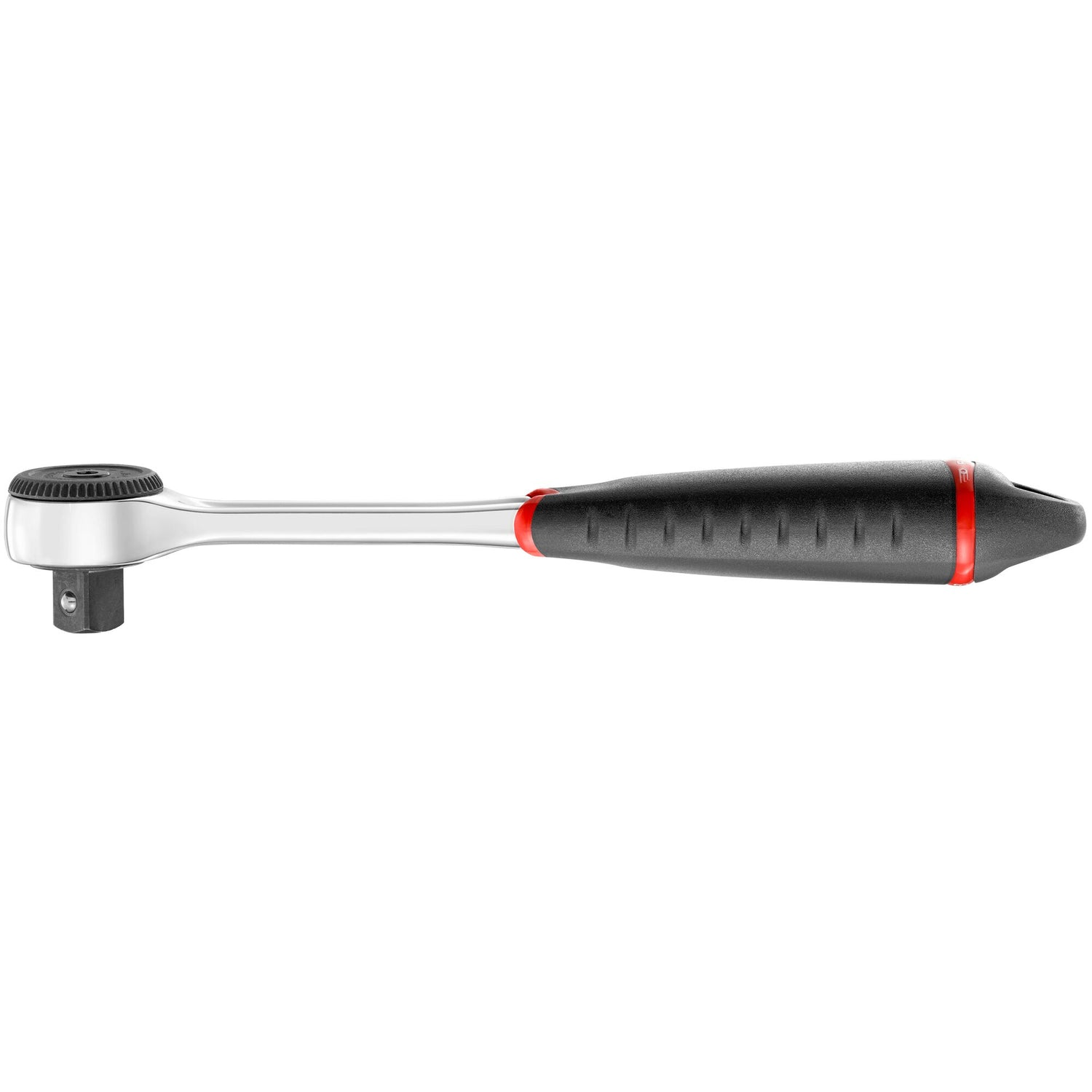

S.161B - 1/2" performance round head ratchets

SKU: S.161B  -  Barcode: 3662424065477
  • HIGH PERFORMANCE - Designed to meet the highest standards of the industries, Mechanism sealed to industrial dust (IP51 Rated).
  • 5° ARC SWING - 72 tooth mechanism - Reversing by rotating cap.

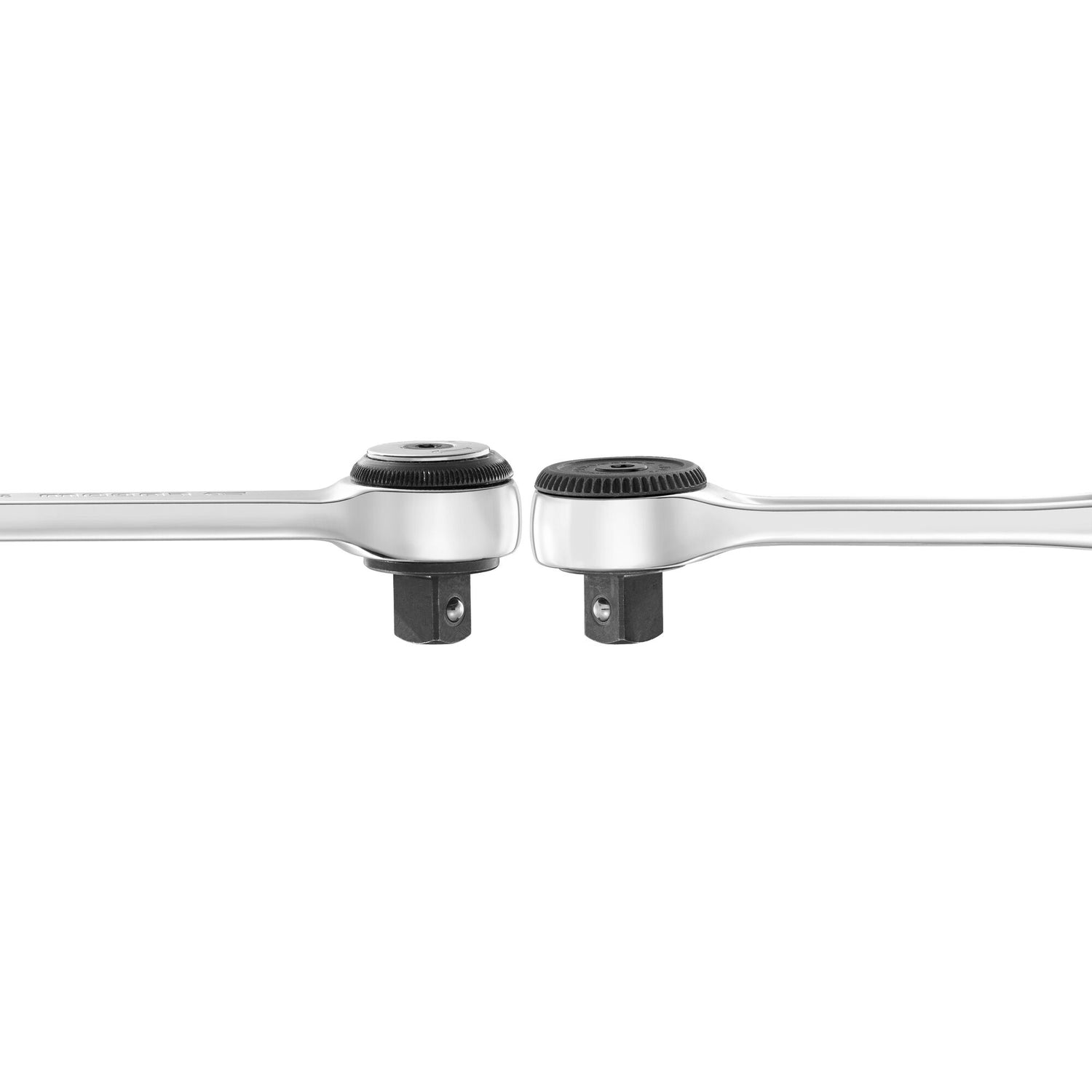

  • ULTRA-COMPACT ROUND HEAD - 10% Smaller that the previous version - Ideal of tight spaces.

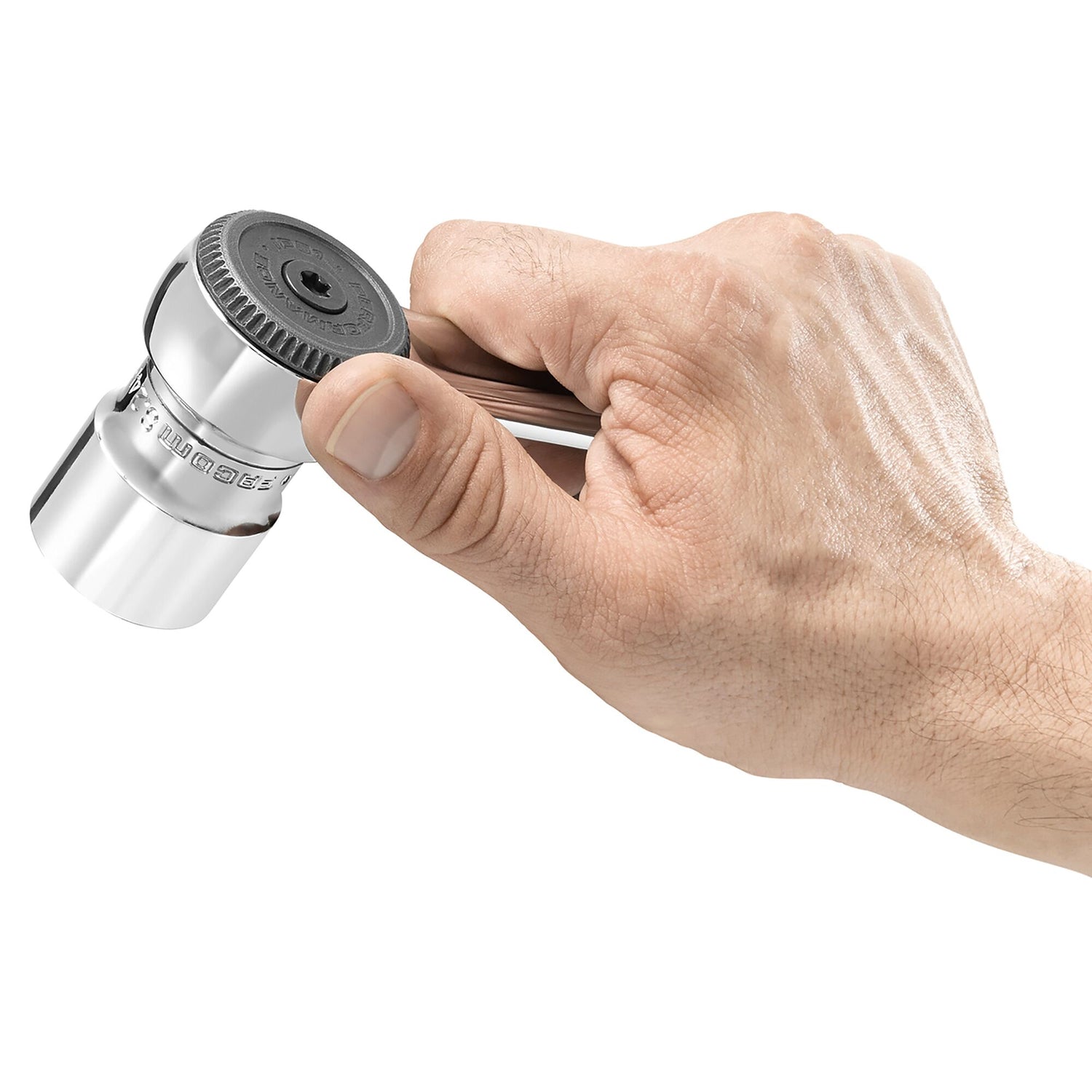

  • ERGONOMIC HANDLE - Bi-material elastomer grip: high resistance to abrasion and the most severe workshop solvents: SP95, SP98, diesel fuel, acetone, brake fluid, Skydrol, Jet Oil, kerosene.
  • HANGING HOLE - Hole in the handle for strapping when working in high places.
  • MAINTENANCE KIT - Easy maintenance: spare parts kit R.161B-KIT, J.161B-KIT, S-161BKIT.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.10, ASME B107.110, DIN 3122, ISO 3315, NF ISO 3315

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • HIGH PERFORMANCE - Designed to meet the highest standards of the industries, Mechanism sealed to industrial dust (IP51 Rated).
  • 5° ARC SWING - 72 tooth mechanism - Reversing by rotating cap.
  • ULTRA-COMPACT ROUND HEAD - 10% Smaller that the previous version - Ideal of tight spaces.
  • ERGONOMIC HANDLE - Bi-material elastomer grip: high resistance to abrasion and the most severe workshop solvents: SP95, SP98, diesel fuel, acetone, brake fluid, Skydrol, Jet Oil, kerosene.
  • HANGING HOLE - Hole in the handle for strapping when working in high places.
  • MAINTENANCE KIT - Easy maintenance: spare parts kit R.161B-KIT, J.161B-KIT, S-161BKIT.

Specifications
  • Angle de reprise5 deg
  • AccrochableOui
  • AntidéflagrantNon
  • AttachéNon
  • Clé à chocsNon
  • Diamètre38.5 mm
  • ExtensibleNon
  • FinitionVernis chromé
  • FlexibleNon
  • Hauteur du produit38.2 mm
  • Isolation 1000VNon
  • InversionCapuchon
  • Longueur du produit260 mm
  • MancheOui
  • Matériau de la poignéeBi-matière
  • Nombre de dents72
  • Poignée extensibleNon
  • Pour visseuse à chocNon
  • Poids net0.41 Kg
  • Système de verrouillage des douillesNon
  • Taille du carré conducteur1/2 in
  • Tête flexibleNon
  • Trou de suspensionOui
  • Tête pivotanteNon

Technical drawing and dimensions

D1 (mm)H (mm)L1 (mm)L (mm)
S.161B [S.161B] 1/2" performance round head ratchet 18.1 / 33.138.20244.00260.00
S.161BPB [S.161BPB] 1/2" performance round head ratchet 18.1 / 33.1038.20244.00260.00

Spare parts

SERVICE KIT - S.161B-KIT

Documents
User Guide

S.161B - 1/2" performance round head ratchets

References available

  • [S.161B] 1/2" performance round head ratchet
  • [S.161BPB] 1/2" performance round head ratchet

Lieu de fabrication

N/A

Normes & certifications

ASME B107.10, ASME B107.110, DIN 3122, ISO 3315, NF ISO 3315

Période de garantie

Lifetime warranty on the tool (replacement)
